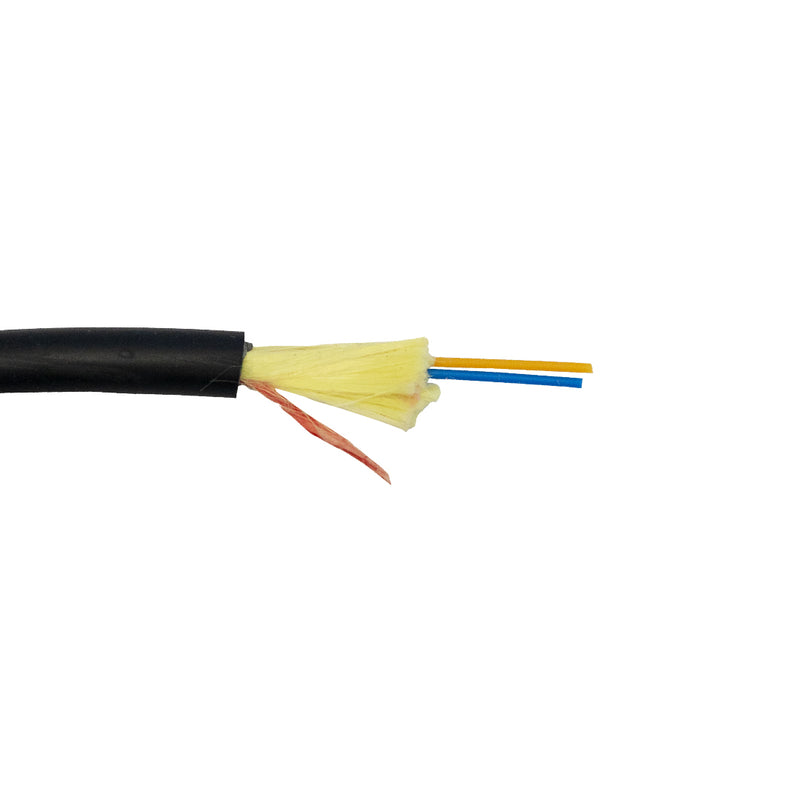

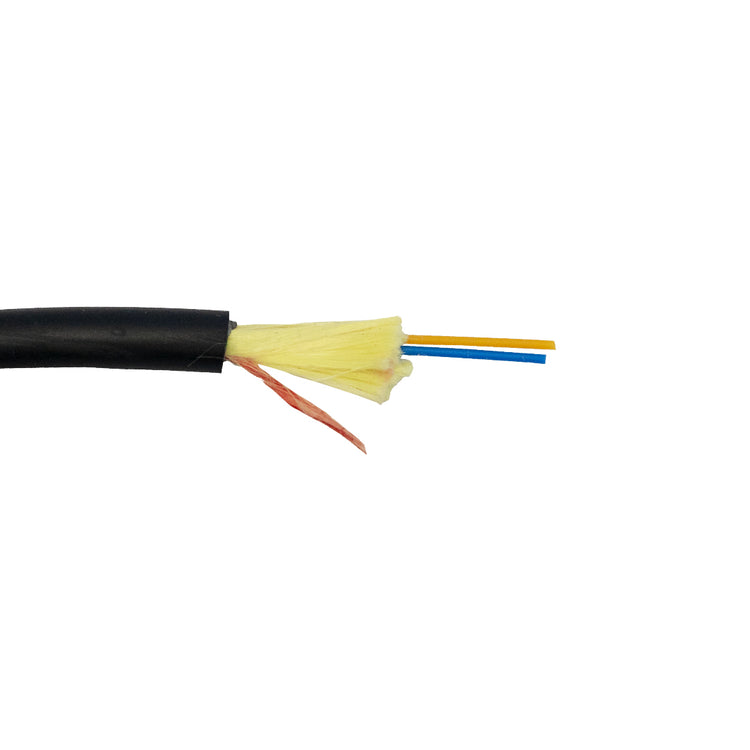

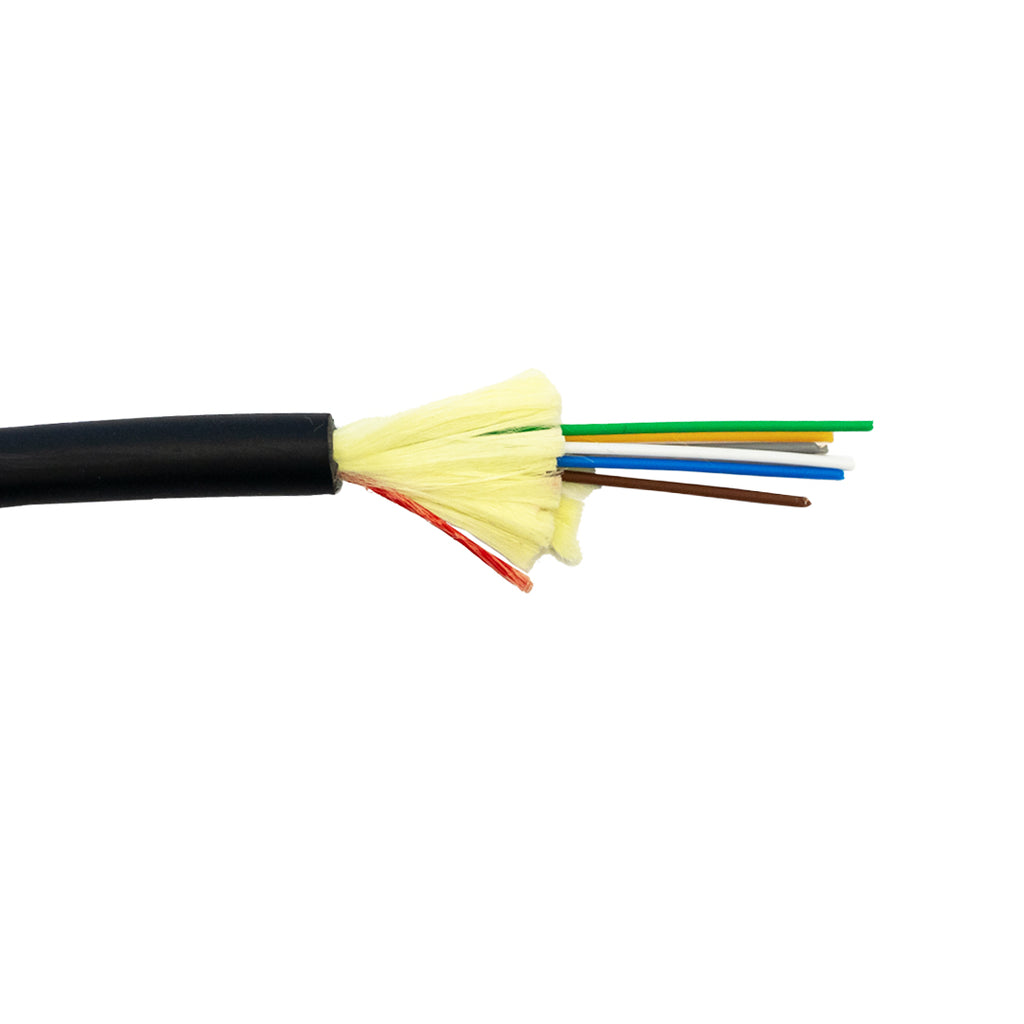

This bulk tactical fiber cable can be used outdoors in permanent or temporary applications. Highly flexible and impact resistant, common applications for this cable include installation on outdoor service poles, field deployment in abusive environments, high traffic areas, broadcast deployments and temporary installation of critical communications lines where quick retrieval and re-use is necessary.
Physical Characteristics
|
Color |
Black |
Fiber Optic Type |
9 micron Singlemode Tactical Cable |
Fiber Count |
2-Strand/ 6-Strand |
Glass Fiber |
Corning ClearCurve LBL |
Nominal Diameter |
5.8mm (2-Strand) 6.1mm (6-Strand)
|
Tight Buffer Coating |
900 microns |
Bending Radius (Installation) |
58mm (2-Strand) 61mm (6-Strand)
|
Bending Radius (Operation) |
29mm (2-Strand) 31mm (6-Strand)
|
Operating Temperature |
-57°C ~ +85°C |
Storage Temperature |
-46°C ~ +71°C |
Impact Resistance |
TIA/EIA - 455-25C (military requirement) 6.6lb-f |
Flexibility |
TIA/EIA - 455-104A (military requirement) Tensile Mass 5kg, 20 x cable diameter |
Twist Resistance |
TIA/EIA 455-85-A (military requirement) |
Compressive Load |
TIA/EIA 455-41A (military requirement) |
Tensile Strength (Short Term) |
300lb-f /100 meters |
Tensile Strength (Long Term) |
90lb-f /100 meters |
Attenuation Range |
@1300nm 0.5dB/km @1550nm 0.5dB/km
|
Product Support
|
RoHS |
Yes |
Country of Origin |
USA |
Packaging Information
|
Package Quantity |
1 |
2-strand |
6-strand |
0.064 lbs/m |
0.072 lbs/m |
