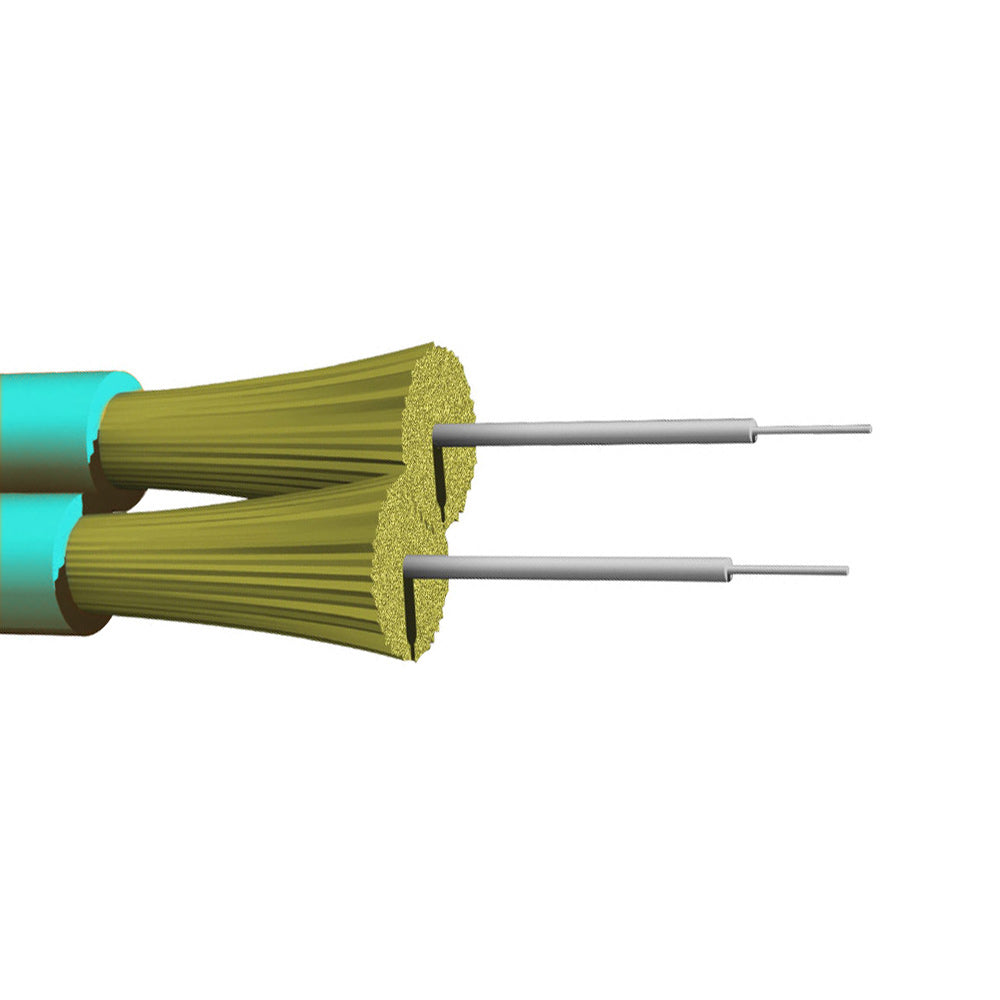

This cable is primarily used in the assembly of duplex fiber patch cords used in server rooms, data centers and other point to point indoor applications.
Physical Characteristics |
Color |
Aqua |
Fiber Optic Type |
Zipcord 2.0 Multimode 50/125um |
Fiber Core Diameter |
50.0 micron ± 2.0 micron |
Bandwidth Range |
@850 > 3500 MHz/km @1300 > 500 MHz/km |
Attenuation Range |
@850nm 2.3dB/km @1300nm 0.6dB/km |
Maximum Tensile Load |
Short Term, N 450 Long Term, N 200 |
Minimum Bending Radius |
Load 40mm Unload 20mm |
Fiber Count |
2C |

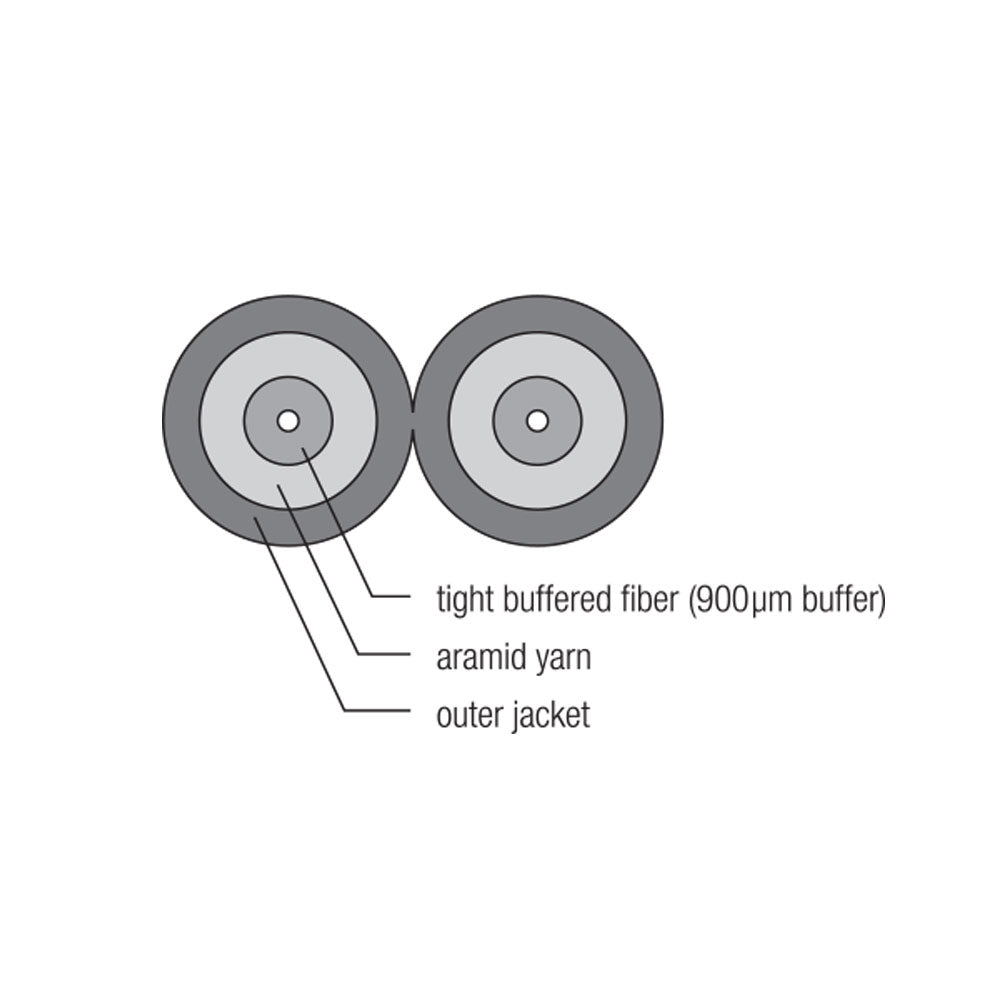

Tight Buffer Diameter |
0.9 micron ±0.05 |
Cable Diameter |
2mm |
Fire Rating |
LSZH |
Uniformly Distributed |
Kevlar |
Operating Temperature |
-40°C ~ +75°C
|
Environmental |
RoHS |
Yes |
Packaging Information |
Package Quantity |
1 |
Product Weight |
0.03 lbs [0.01 kg] |
