This 50 micron (OM3) laser optimized fiber optic cable is made with Corning glass fiber. It has 2mm jacket and rated low smoke zero halogen (LSZH) & riser (OFNR). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.
Premium Cables Made with Corning® Glass Fibers
All of our multimode fiber cables are made with Corning® ClearCurve glass for optimal performance and quality.
Individually Serialized Cables
Each cable is individually serialized with cable labels at both ends which allows us to quickly access saved detailed interferometer test reports, but also makes tracing quick and easy during installation.
Dual Rated LSZH/OFNR Rated Jacket
These cables have a dual rating (low-smoke-zero-halogen and riser) ideal for use in data center installations.
Bend Insensitive Fibers
Our multimode fiber cables are designed with Corning® ClearCurve glass which can withstand tighter bends than traditional multimode fiber.
Ceramic Ferrule
All our connectors are made with ceramic ferrules which have a high durability and reliable dimensional control to ensure optimal insertion and return loss.
3D Interferometer Tested
Each of our cables are individually interferometer tested for radius of curvature, apex offset and fiber height.
Certifications
Our fiber optic cable is c(UL)us certified to meet the appropriate safety standards.
100% Fully IL Tested
Our multimode cables are 100% tested for insertion loss to stringent parameters and come with a test report.
Lifetime Warranty
Our cables come with a limited lifetime warranty against manufacturing defects.
Specifications
Color
Aqua
Cable Diameter
2mm
Fiber Size
50/125 micron - Laser Optimized
Fiber Type
Multimode
Glass Manufacturer
Corning Glass
Connector Ferrules
Ceramic
Fiber Classification
OM3
Jacket Rating
Low Smoke Zero Halogen (LSZH) & Riser (OFNR)
Operating Temperature
-20°C ~ +70°C

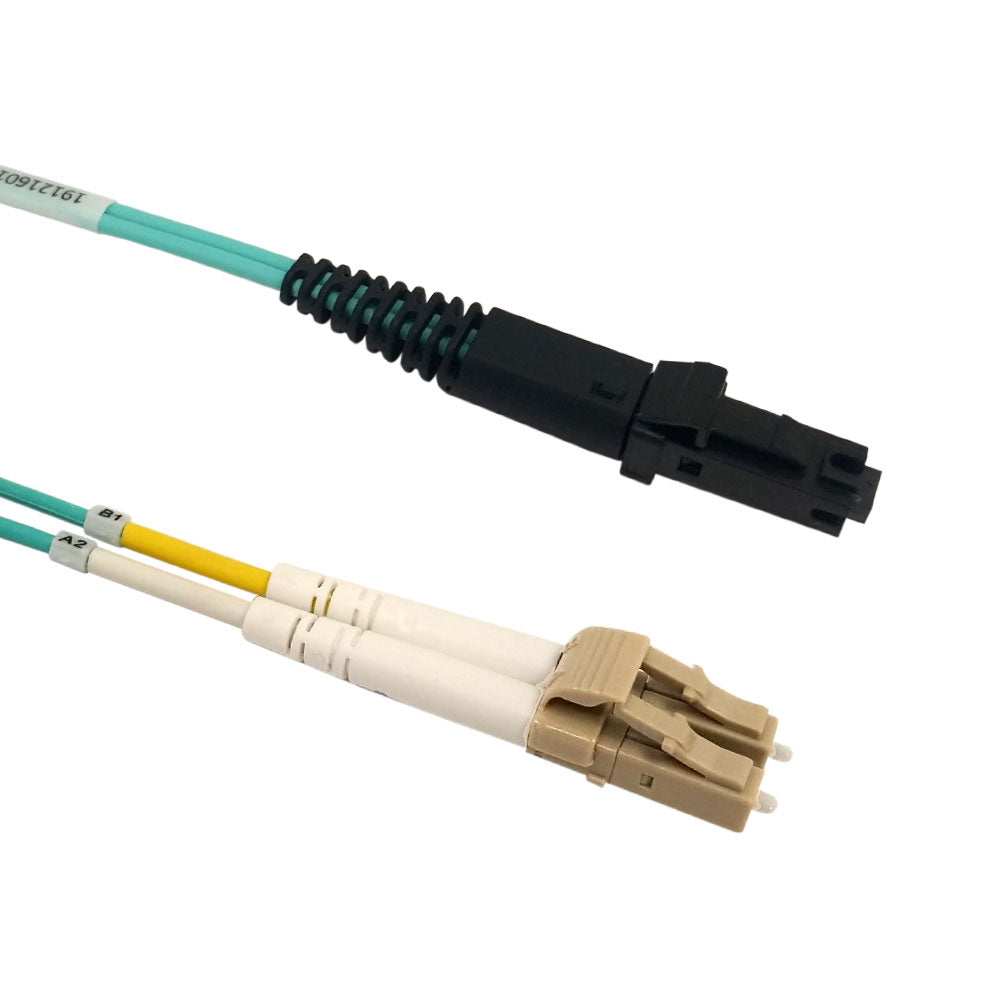

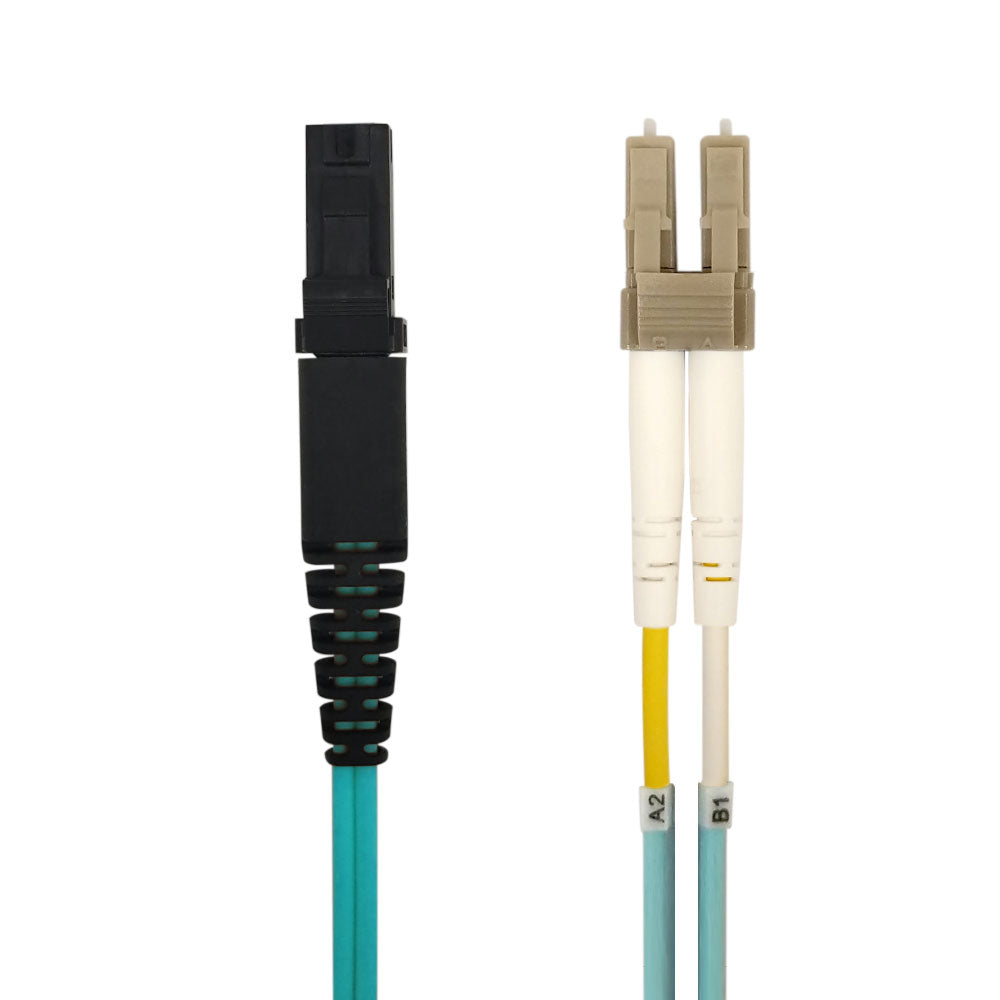

Connector(s)
Connector A
MTRJ Duplex Male
Connector B
LC Duplex Male
Performance
Insertion Loss
<0.3db @ 1300nm
Speed
10Gbps, 40Gbps and 100Gbps Applications
Interferometer Tested
100% Tested
Environmental
RoHS
Yes
Conflict Minerals
Yes
Packaging Information
Warranty
Limited Lifetime
Cable Weights
8inch - 0.2m
1.5ft - 0.5m
3ft - 1m
5ft - 1.5m
6ft - 2m
10ft - 3m
13ft - 4m
15ft - 5m
20ft - 6m
23ft - 7m
26ft - 8m
0.02 lbs
0.05 lbs
0.08 lbs
0.08 lbs
0.09 lbs
0.13 lbs
0.16 lbs
0.20 lbs
0.23 lbs
0.29 lbs
0.30 lbs
30ft - 10m
40ft - 12m
50ft - 15m
65ft - 20m
80ft - 25m
100ft - 30m
115ft - 35m
131ft - 40m
148ft - 45m
164ft - 50m
0.38 lbs
0.44 lbs
0.52 lbs
0.77 lbs
0.86 lbs
1.03 lbs
1.17 lbs
1.39 lbs
1.70 lbs
2.05 lbs
