Description
- Description
- Spec Sheets
- Lead-time
- Product Weights
Description

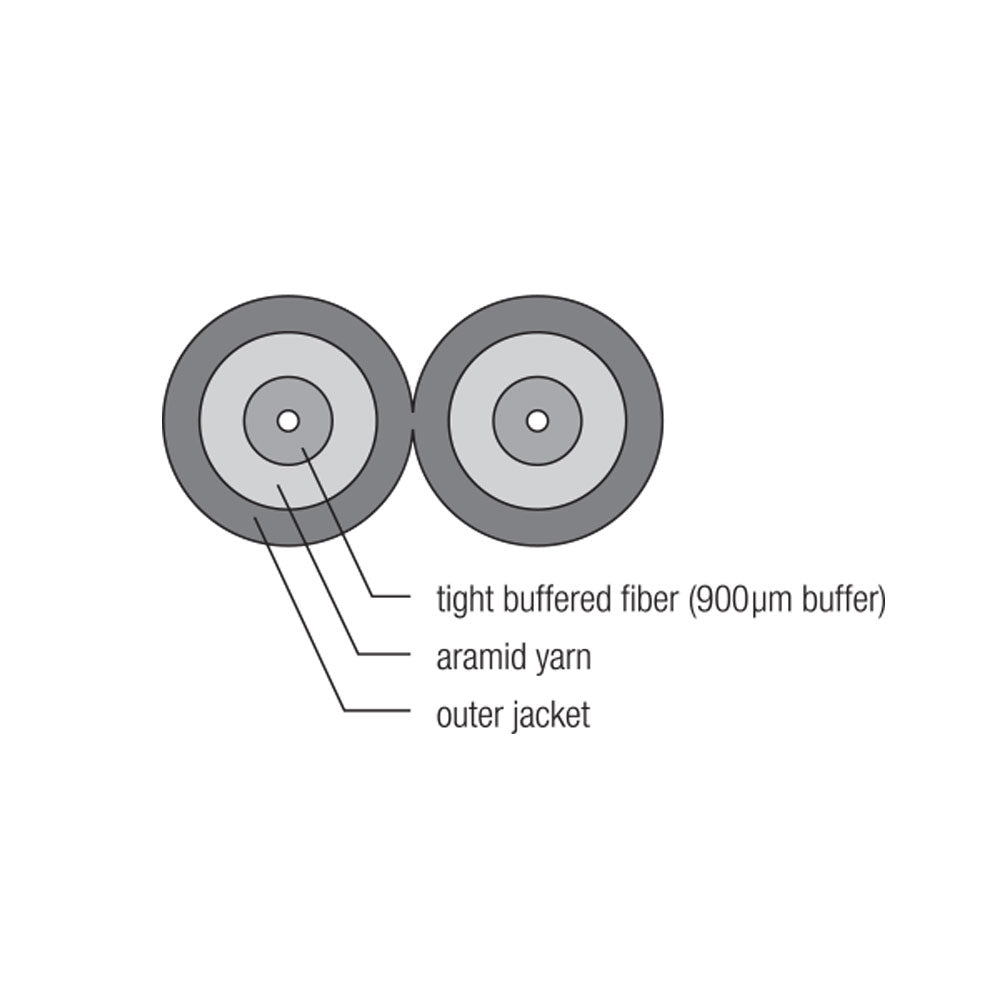

This cable is primarily used in the assembly of duplex fiber patch cords used in server rooms, data centers and other point to point indoor applications.
| Physical Characteristics | |
|---|---|
| Color | Aqua |
| Fiber Optic Type | Zipcord 2.0 Multimode 50/125um |
| Fiber Core Diameter | 50.0 micron ± 3.0 micron |
| Bandwidth Range | @850 (High Performance EMB) > 1500 MHz/km @1310 > 500 MHz/km |
| Attenuation Range | @850nm 2.3dB/km @1310nm 0.6dB/km |
| Maximum Tensile Load | Short Term, N 450 Long Term, N 200 |
| Minimum Bending Radius | Load 40mm Unload 20mm |
| Fiber Count | 2C |
| Tight Buffer Diameter | 0.9 micron ±0.05 |
| Cable Diameter | 2mm |
| Fire Rating | LSZH/OFNR |
| Uniformly Distributed | Aramid Yarn |
| Operating Temperature | -40°C ~ +75°C |
| Environmental | |
| RoHS | Compliant |
Spec Sheets
Lead-time
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
Product Weights
| SKU | Weight | |
| BK-F2Z-OM3B-LR | 0.03 lb |
