Overview

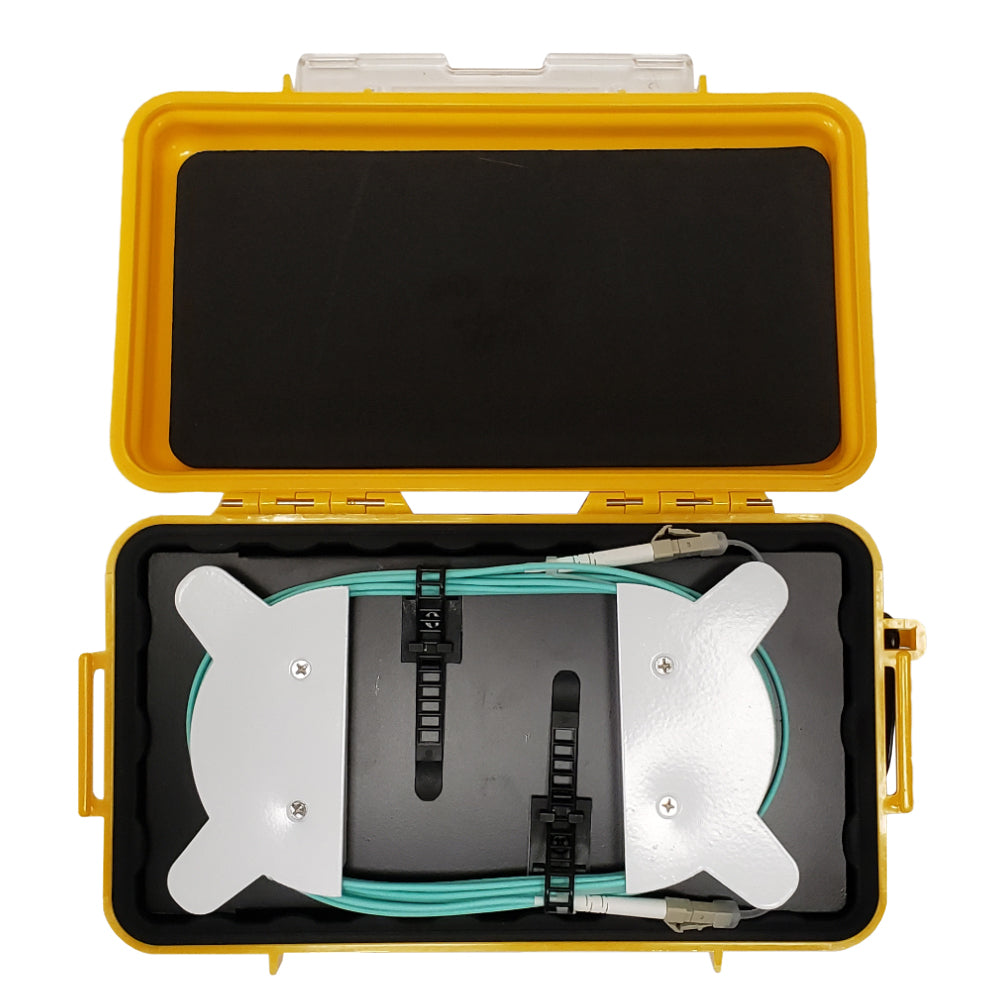

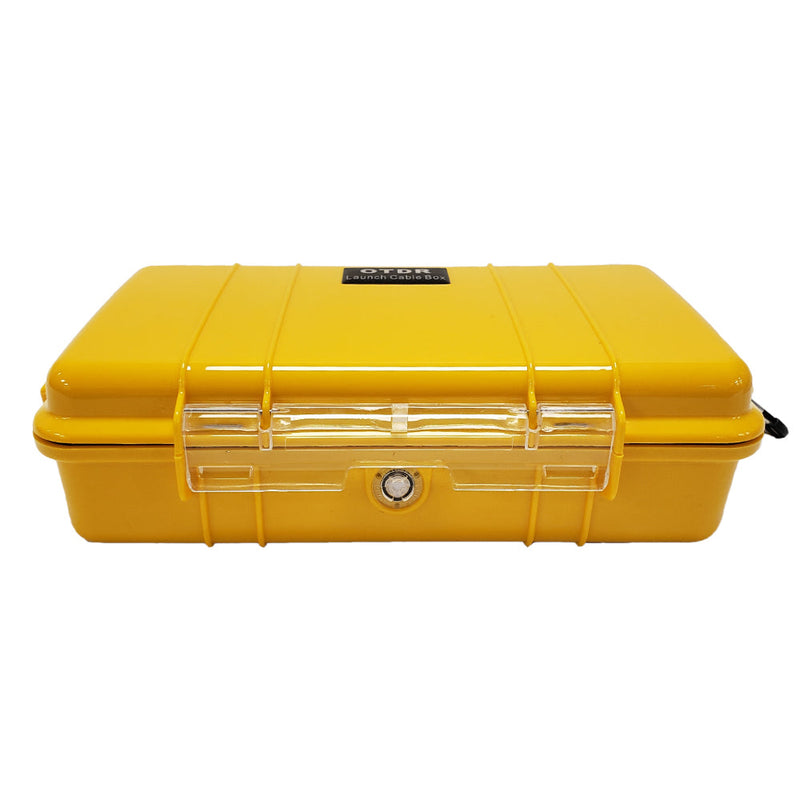

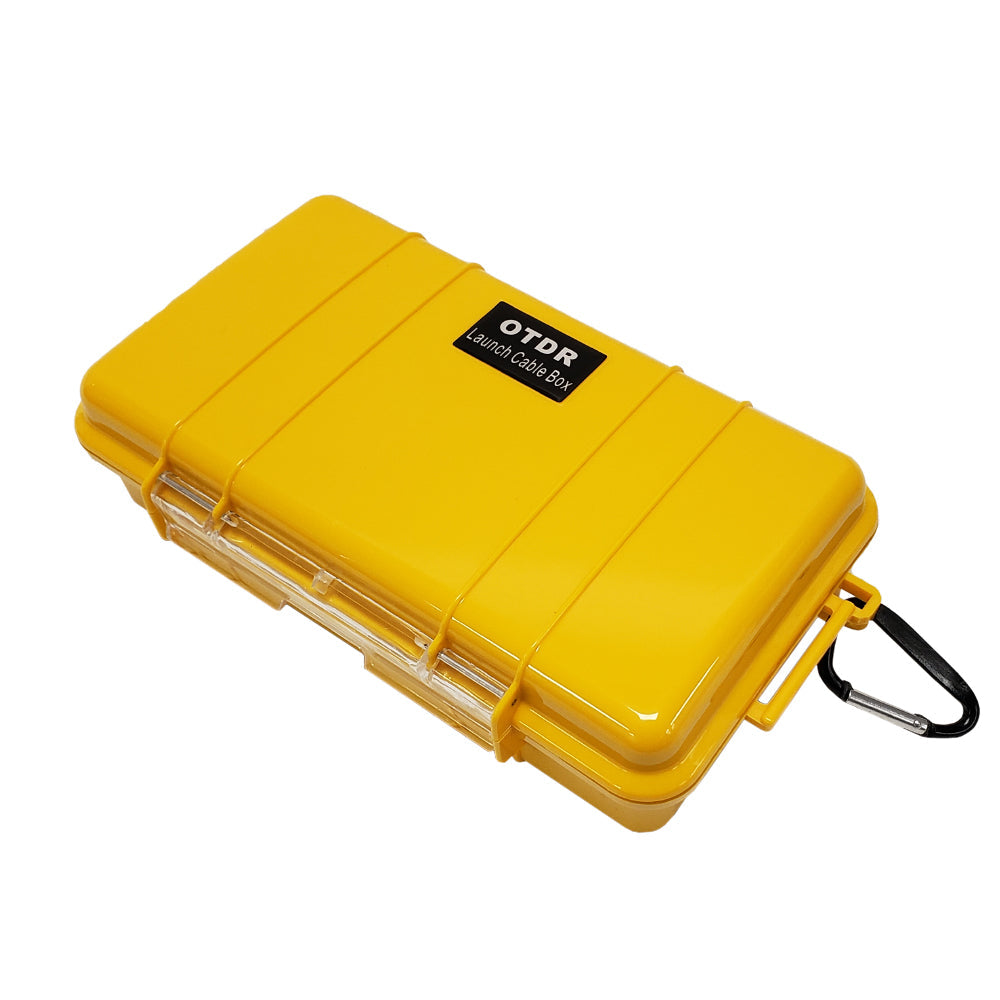

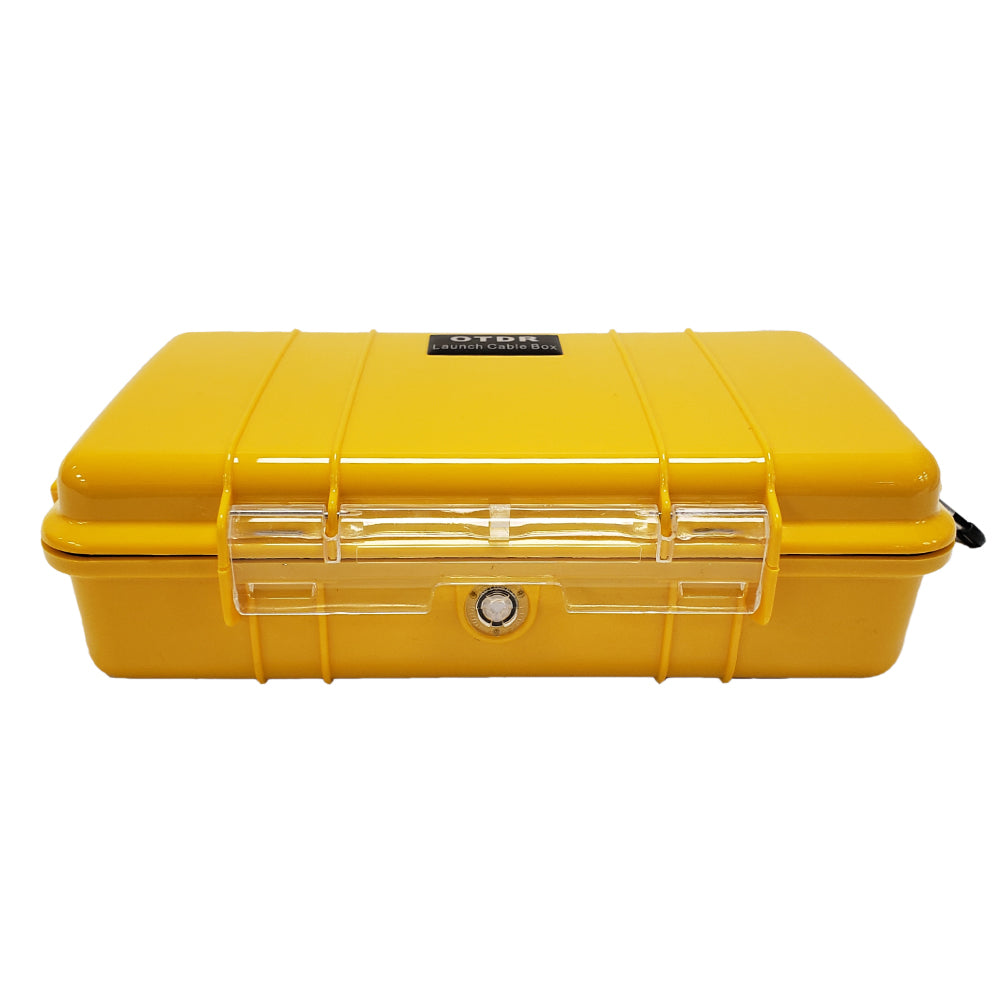

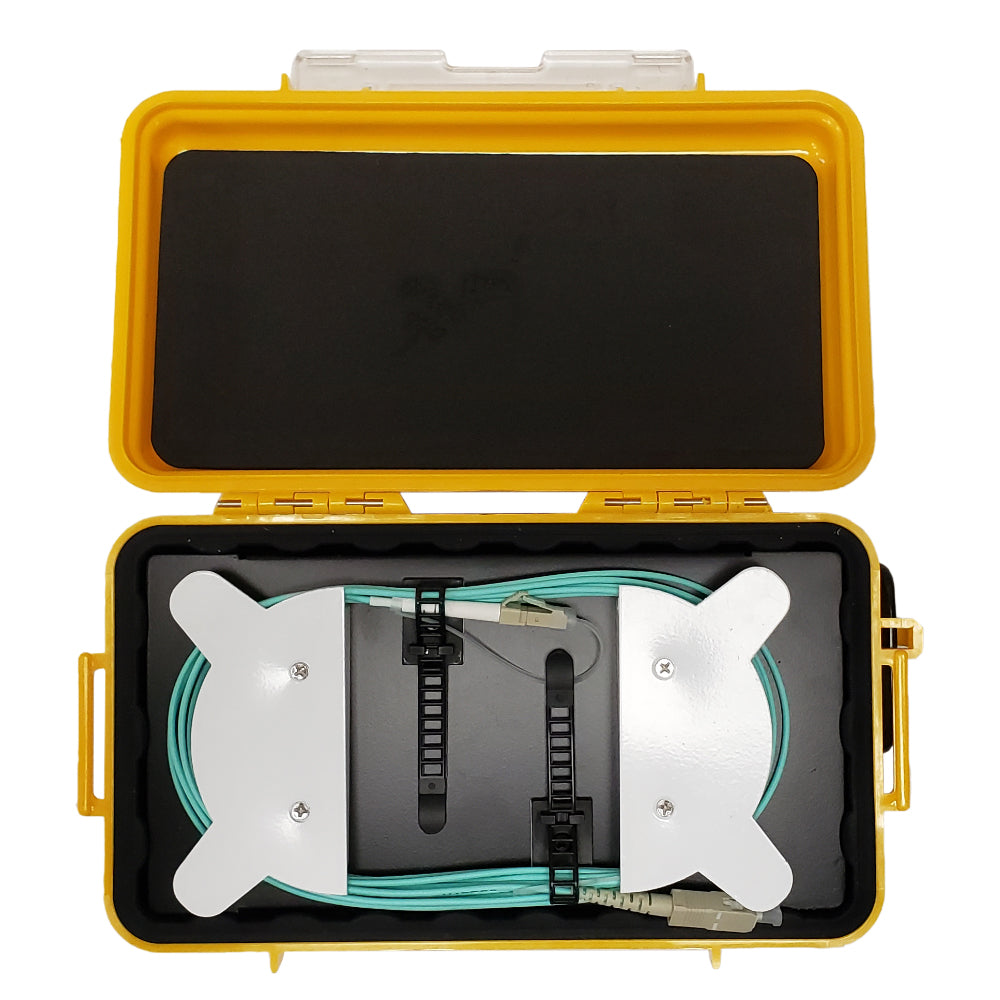

This launch box holds a coil of terminated fiber cable which is placed in a hard case. It is typically used for installation between an OTDR tester and a fiber line for testing, training and calibration.
|
Robust Metal Retractor
The robust metal retractor makes the launch box easy to carry.
Auto Purge Valve
The auto purge valve regulates the pressure automatically.
Built-in Cable Management
The built-in cable management helps reduce cable stress and saves space.
|
Features
Physical Characteristics |
Box Color |
Yellow |
Box Size |
23.8 x 14.1 x 6.7 cm |
Fiber Types |
Multimode 50/125um OM3 |
Insertion Loss |
≤0.3dB (Singlemode) ≤0.5dB (Multimode)
|
Return Loss |
PC≥36dB
|
Connectors |
Connector A |
Connector B
|
LC-PC Duplex Male |
LC-PC Simplex Male |
LC-PC Duplex Male |
SC-PC Simplex Male |
Packaging Information |
Package Quantity |
1 |
Product Weight |
1.5 lbs [0.68kg] |
