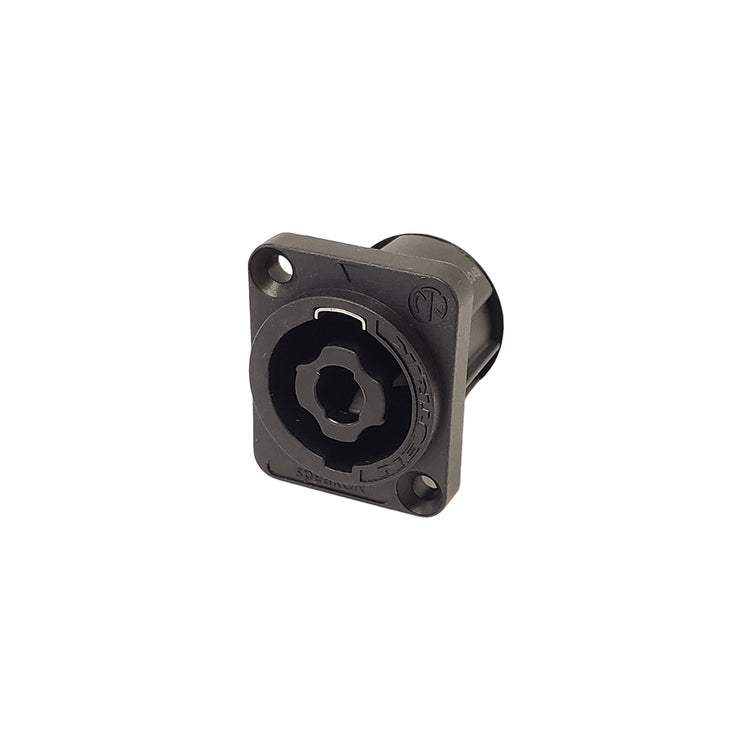

This connector is typically used as the standard chassis connectors for loudspeaker/amplifier interconnections. They feature a unique metal locking system, making contact once fully locked. They are versatile, robust and easy to terminate.
Physical Characteristics |
Color |
Black |
Connector Type |
speakON |
Temperature Range |
-30℃ to +80℃
|
Contact Plating |
Ag
|
Contacts |
Copper Alloy |
Shell |
Polyamide (PA 6.6) |
Locking Element |
Stainless Steel |
Gender |
Male |
Electrical Characteristics |
Contact Resistance |
? 2 mΩ |
Dielectric Strength |
2.8 kVdc (peak) |
Insulation Resistance |
> 1 GΩ (after damp heat) |
Rated Current Per Contact |
25 A rms continuous (audio rating significantly higher, depending on signal) |
Rated Voltage |
250 V ac |
Mechanical Characteristics |
Lifetime |
> 5000 mating cycles |
Locking Device |
Quick Lock |
Chassis Shape |
D |
Layout |
Standard Hole Position, Thru Holes |
Environmental |
Flammability |
UL 94 V-0 |
Manufacturer Information |
Neutrik Part Number |
NL4MPXX |
Packaging Information |
Package Quantity |
1 |
Product Weight |
0.02 lbs [0.01 kg] |
