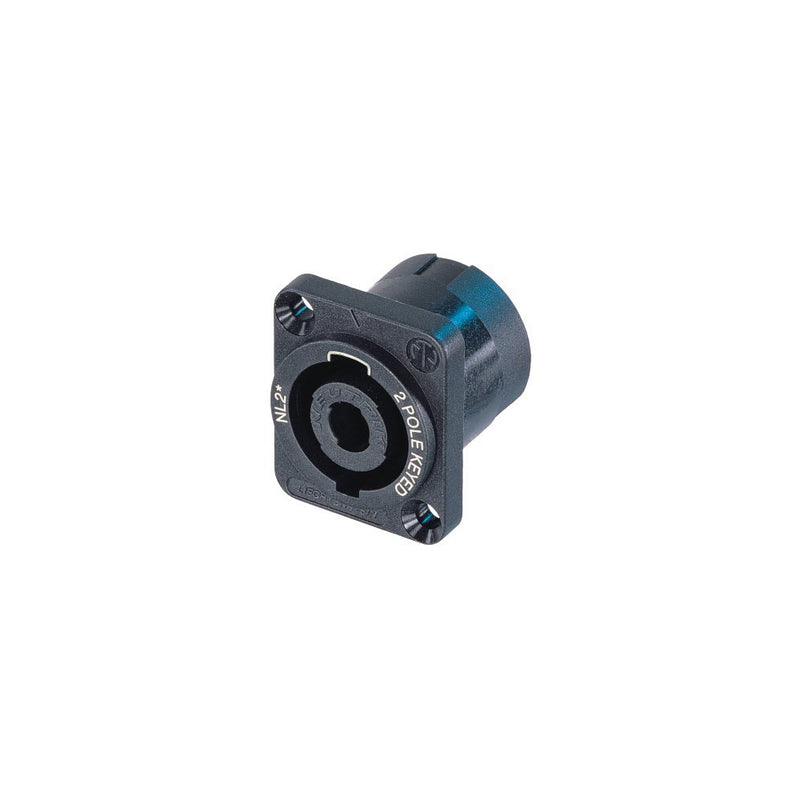

Neutrik speakON 2-Pole Male to Solder D-Cut Connector

Audio ConnectorsSKU: NT-NL2MPXX
No reviews

Price:
Sale price$5.15 CAD
Stock:
In stock

Description

This connector is typically used as the standard chassis connectors for loudspeaker/amplifier interconnections. They feature a unique metal locking system, making contact once fully locked. They are versatile, robust and easy to terminate.

Physical Characteristics
Color Black
Connector Type speakON
Temperature Range -30 °C to +80 °C
Contact Plating Ag
Contacts Copper Alloy
Shell Polyamide (PA 6.6)
Gender Male
Electrical Characteristics
Contact Resistance ? 2 m? (after lifetime)
Dielectric Strength 2.8 kVdc (peak)
Insulation Resistance > 0.1 G? (after damp heat)
Rated Current Per Contact 24 A rms continuous(audio rating significantly higher, depending on signal)
Rated Voltage 250 V ac
Mechanical Characteristics
Lifetime > 5000 mating cycles
Termination 3/16" flat tabs (e.g. NLFASTON)
Locking Device Quick Lock
Chassis Shape D
Layout Standard Hole Position, Thru Holes
Environmental
Flammability UL94 V-0
Solderability Complies with IEC 68-2-20
Manufacturer Information
Neutrik Part Number NL2MPXX
Packaging Information
Package Quantity 1
Product Weight 0.02 lbs [0.01 kg]
