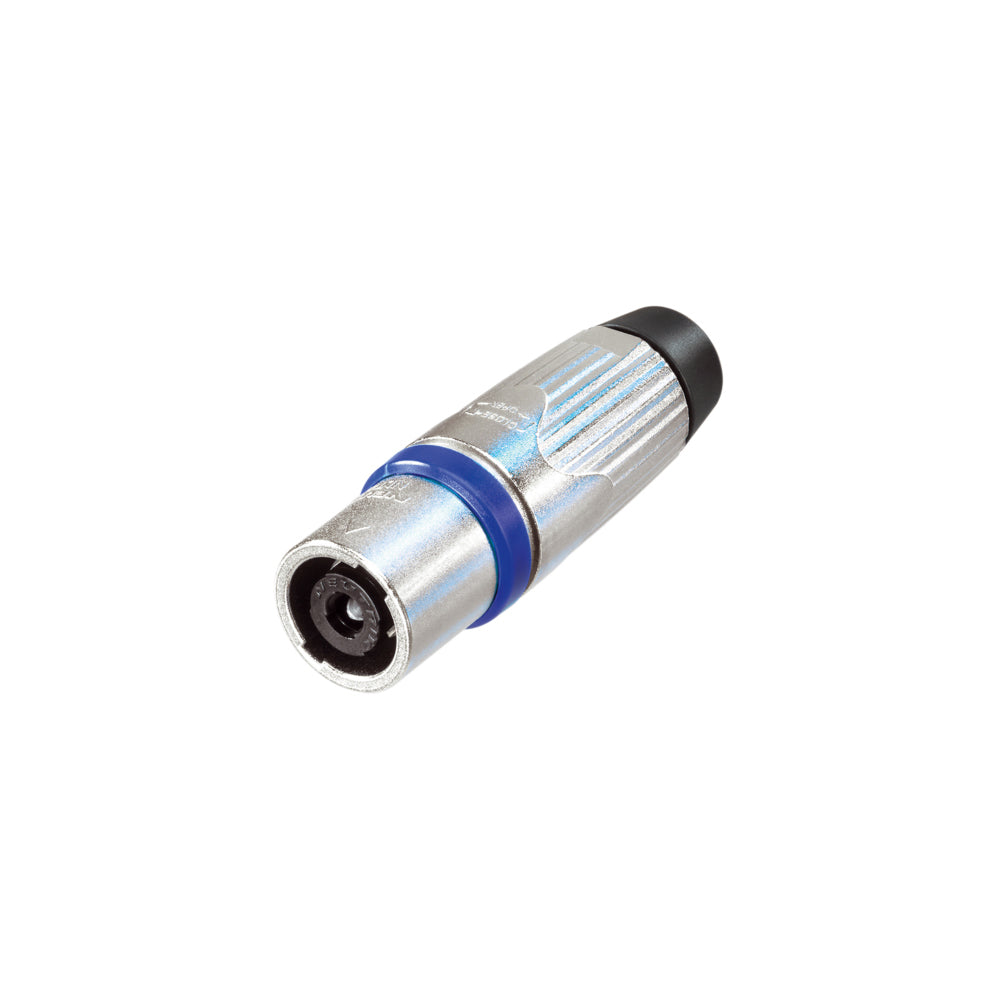

Neutrik 4-Pole speakON Connector (Male)

Audio ConnectorsSKU: NT-NLT4MXX

Price:
Sale price$22.20 CAD
Stock:
In stock


Description

This connector is designed for heavy duty amplifier-loud speaker applications such as professional touring.

Physical Characteristics
Color Blue
Housing Metal
Connector Type speakON
Temperature Range -30℃ to +80℃
Contact Plating 4 µm Ag
Contacts Spring copper
Insert Polyamide
Locking Element Zinc Diecast
Shell Zinc Diecast
Strain Relief Polyacetal (POM)
Gender Male
Electrical Characteristics
Contact Resistance > 2 mΩ (after lifetime)
Dielectric Strength 4 kVdc (peak)
Insulation Resistance > 10 GΩ
Rated Current Per Contact 40 A rms continuous
50 A audio signal, duty cycle 50%
Rated Voltage 250 V ac
Mechanical Characteristics
Cable O.D. 9 - 16 mm
Cable Retention ≥ 220 N (subject to cable O.D. and material)
Lifetime > 5000 mating cycles
Wire size 6 mm²
10 AWG
Wiring Solder contacts
Locking Device Quick Lock (Latch)
Environmental
Flammability UL 94 HB
Protection Class IP 54 (mated condition)
Solderability Complies with IEC 68-2-20
Packaging Information
Package Quantity 1
Product Weight 0.02 lbs [0.01 kg]
