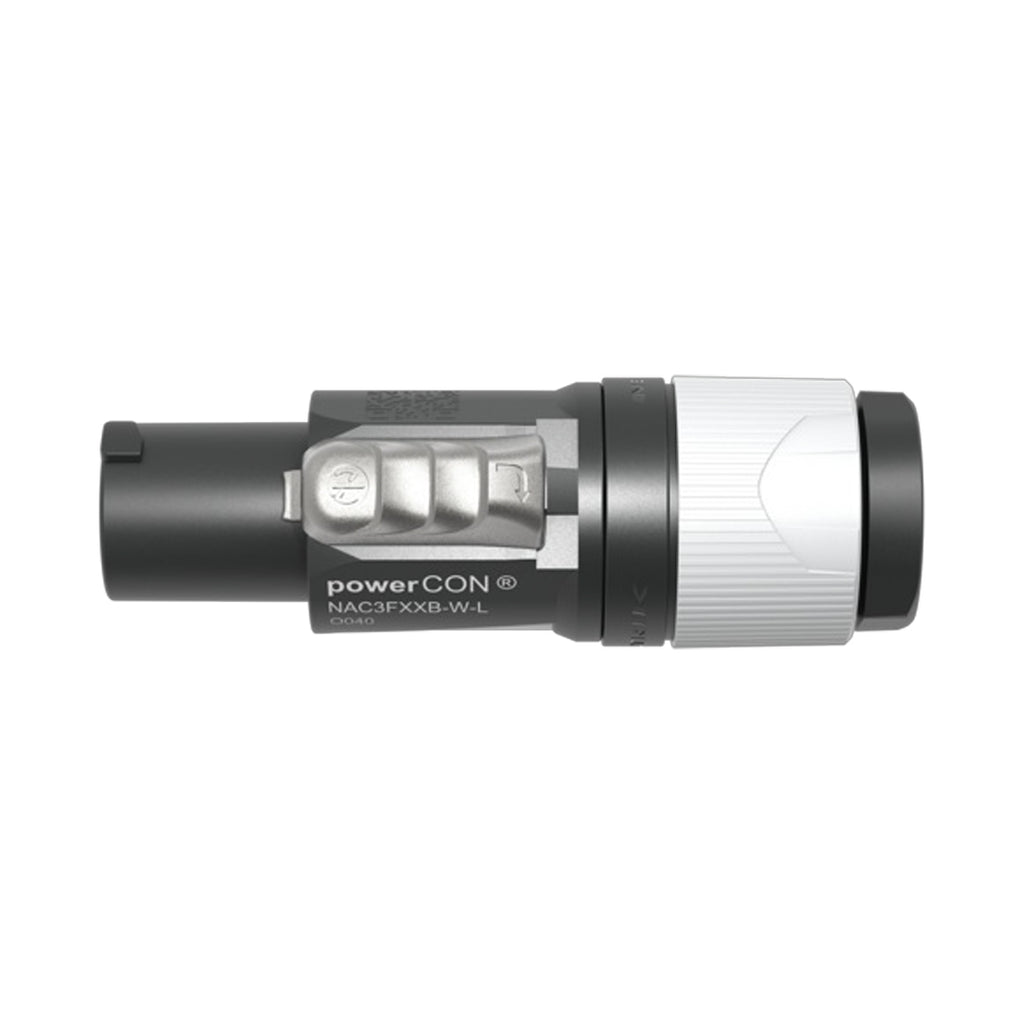

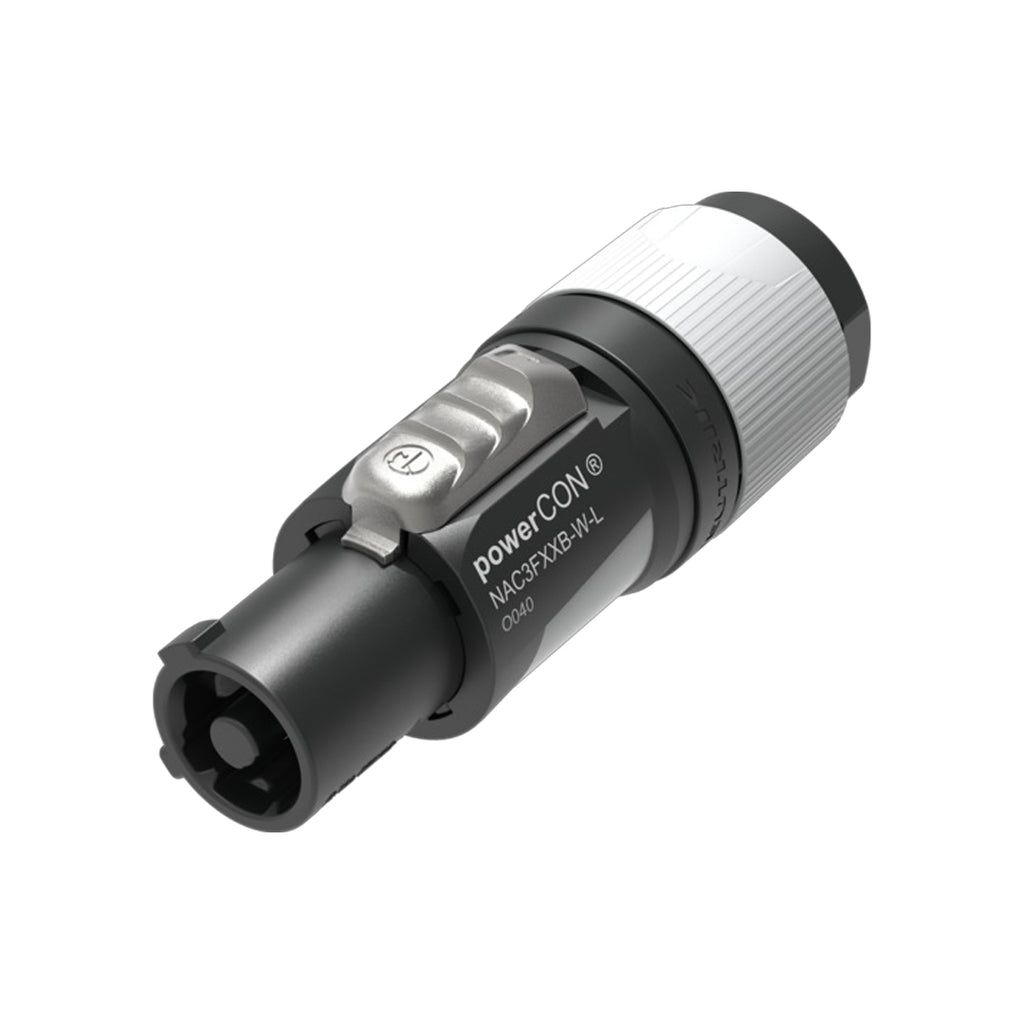

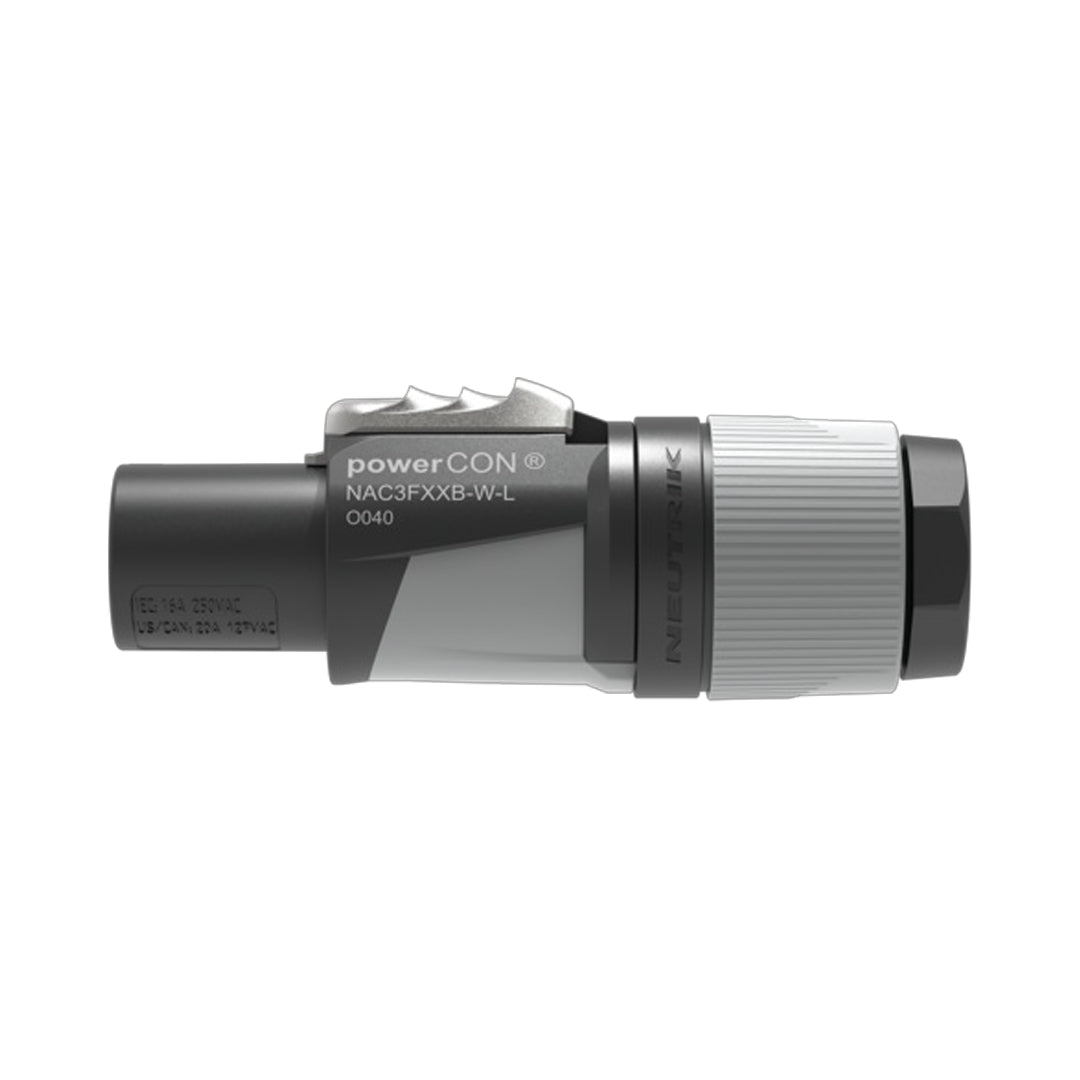

This locking 3 conductor equipment AC connector replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Features:
- Ergonomic design with slip-proof two-component molded housing
- Unique locking bushing and strain relief for cable diameters 10 mm to 16 mm
- Superior quality standard, extremely robust and reliable
- Improved kink protection by two-component bushing
- Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
- Easy and reliable twist lock system
Physical Characteristics |
Color |
Grey |
Temperature Range |
-33℃ to +80℃
|
Contact Plating |
Ag
|
Contacts |
Copper Alloy |
Insert |
Polyamide (PA6.6) |
Locking Element |
Zinc Diecast |
Shell |
Polyamide (PA6) / TPE |
Strain Relief |
Polyketone |
Bushing |
Polypropylene / TPE |
Gender |
Female |
Protection class |
IP20 |
Flammability acc. to UL94 |
V-0 |
Electrical Characteristics |
Contact Resistance |
≤ 2 mΩ |
Dielectric Strength |
3 kVac (after mating cycles) |
Insulation Resistance |
> 10 GΩ (initially) |
Number of Electronical Contacts |
2 + PE |
Rated Voltage |
20 A 127 V AC / 14 - 12 AWG |
Mechanical Characteristics |
Cable O.D. |
10 – 16 mm
|
Lifetime |
Typically 5’000 mating cycles |
Wire size |
1.5 – 2.5 mm² 14 – 12 AWG
|
Locking Device |
Twist lock |
Termination Type |
Screw |
Approvals |
cUL |
Yes |
Certifications |
VDE |
Yes |
Manufacturer Information |
Neutrik Part Number |
NAC3FXXB-W-L |
Packaging Information |
Package Quantity |
1 |
Product Weight |
0.08 lbs [0.03 kg] |
