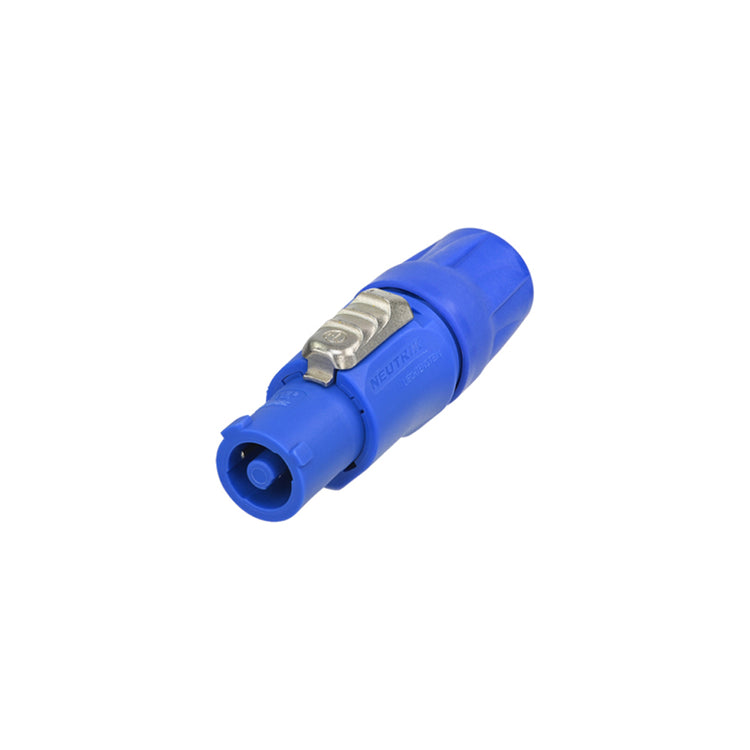

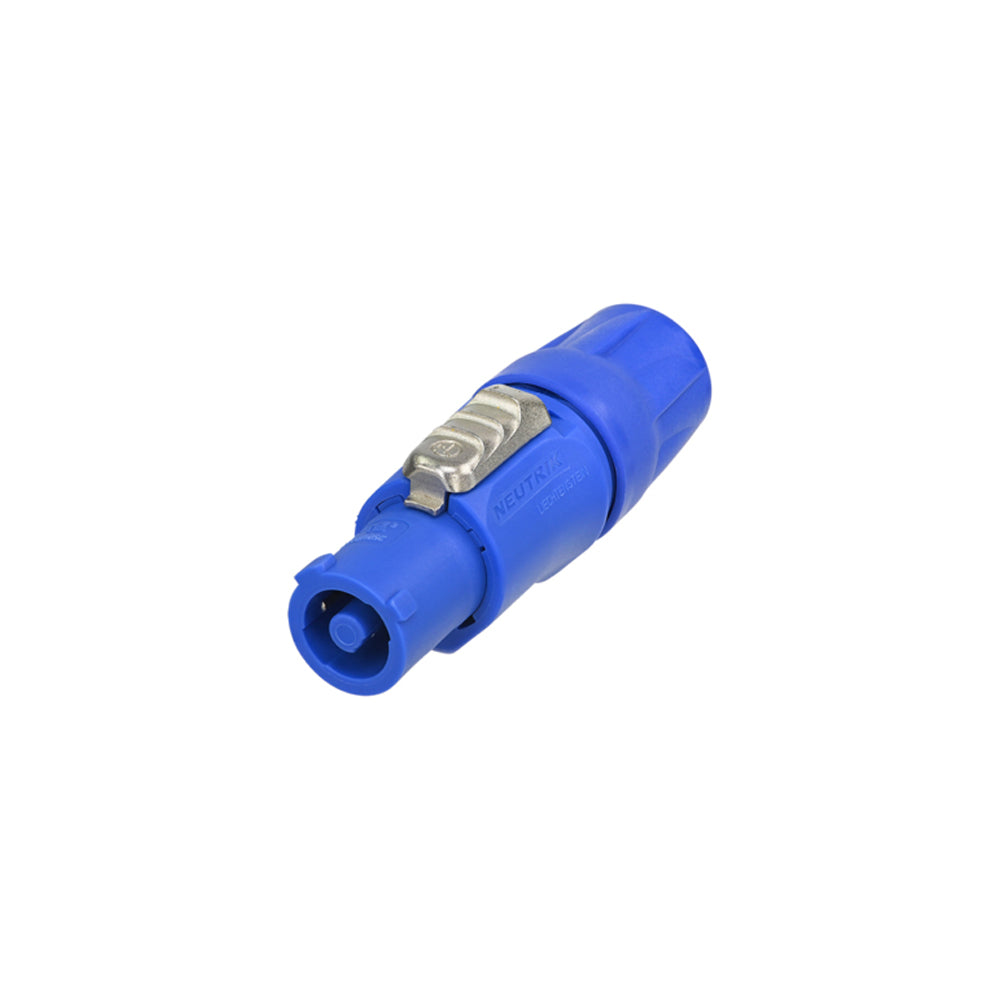

This locking 3 conductor equipment AC connector replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Physical Characteristics |
Color |
Blue |
Temperature Range |
-30℃ to +80℃
|
Contact Plating |
4 µm Ag
|
Contacts |
Bronze |
Insert |
Polyamide |
Locking Element |
Zinc Diecast |
Shell |
Polyamide |
Strain Relief |
Polyacetal |
Gender |
Female |
Electrical Characteristics |
Contact Resistance |
? 3 mΩ |
Dielectric Strength |
4 kVdc / 2.8 kVac |
Insulation Resistance |
> 0.1 GΩ (after damp heat test IEC 68-2-30) |
Number of Electronical Contacts |
2 + PE |
Rated Current Per Contact |
20 A rms |
Rated Voltage |
250 V ac |
Mechanical Characteristics |
Cable O.D. |
6 - 15 mm 6 - 15 mm (Cable O.D. range limited to 6 mm - 14 mm acc. VDE)
|
Lifetime |
> 1000 mating cycles |
Wire size |
2,5 mm² 12 AWG |
Locking Device |
Quick Lock |
Approvals |
UL, cUL, SEV |
Yes |
Certifications |
VDE |
Yes |
Manufacturer Information |
Neutrik Part Number |
NAC3FCA |
Packaging Information |
Package Quantity |
1 |
Product Weight |
0.02 lbs [0.01 kg] |
