NEMA L6-20P to IEC C19 Power Cable - 12AWG (20A 250V) - SJT Jacket

AC Power CordsSKU: PWC-146-08

Length: 8ft
Price:
Sale price$24.40 CAD
Stock:
In stock


Description

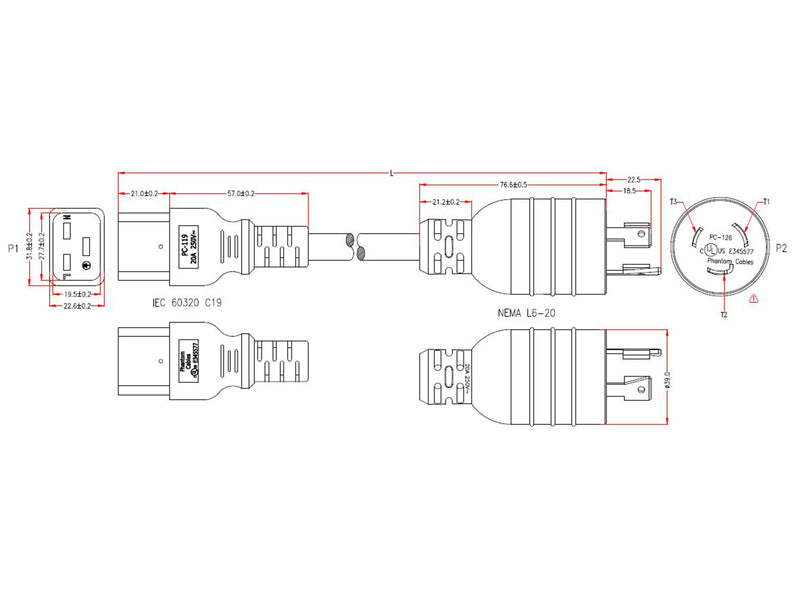

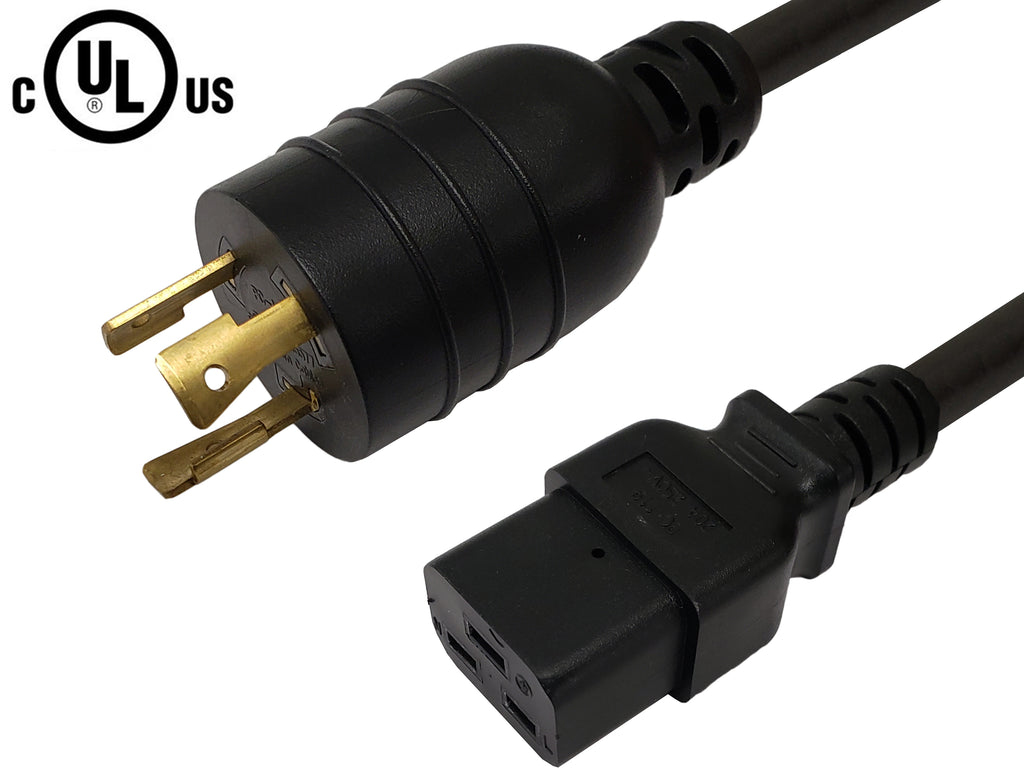

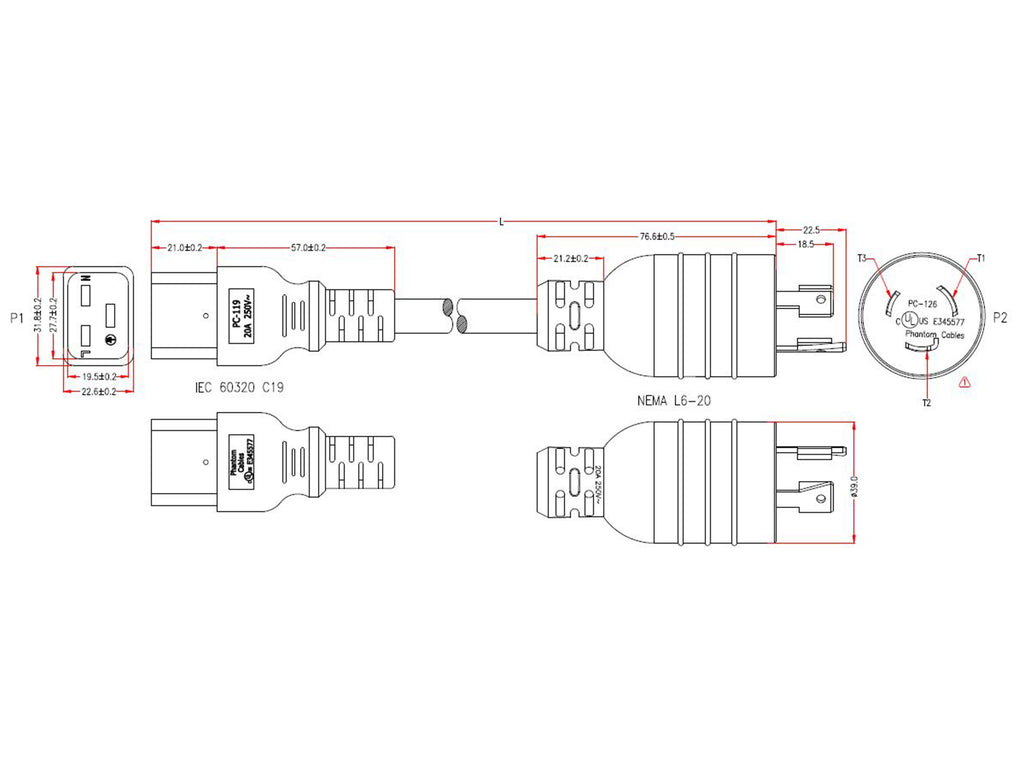

This power cord consists of a L6-20P male on one end and a C19 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 12 AWG
Jacket Heavy duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating FT2
VW-1
Strain Relief Molded 100% Virgin PVC
Conductor Material 100% bare copper
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A NEMA L6-20P
Connector B IEC 60320 C19
Performance
Power Rating 20 Amp / 250 Volt
Approvals
L6-20P c(UL)us
C19 c(UL)us
Cable c(UL)us, CSA
ISO ISO 9001:2015, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
8ft 15ft
1.35 lbs 2.45 lbs
SKU Options Weight
PWC-146-08 8ft 0.85 lb
PWC-146-15 15ft 1.5 lb
