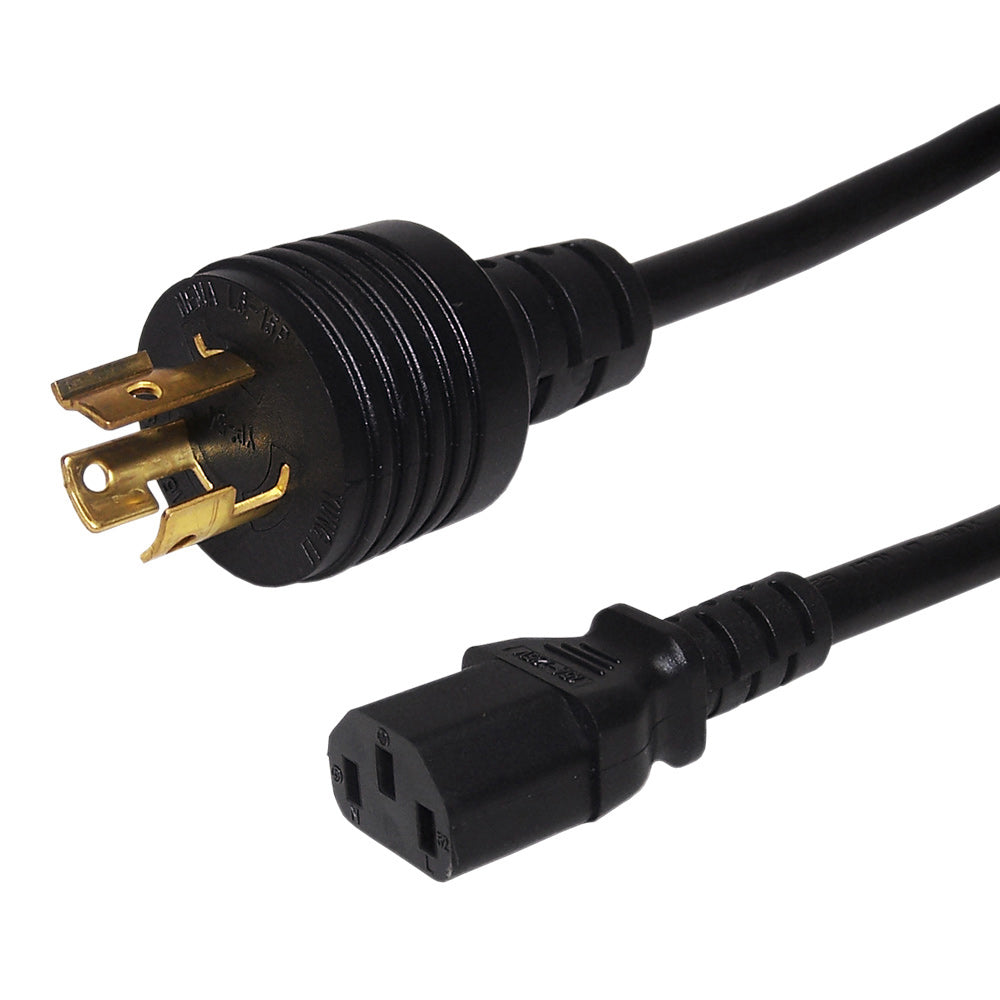

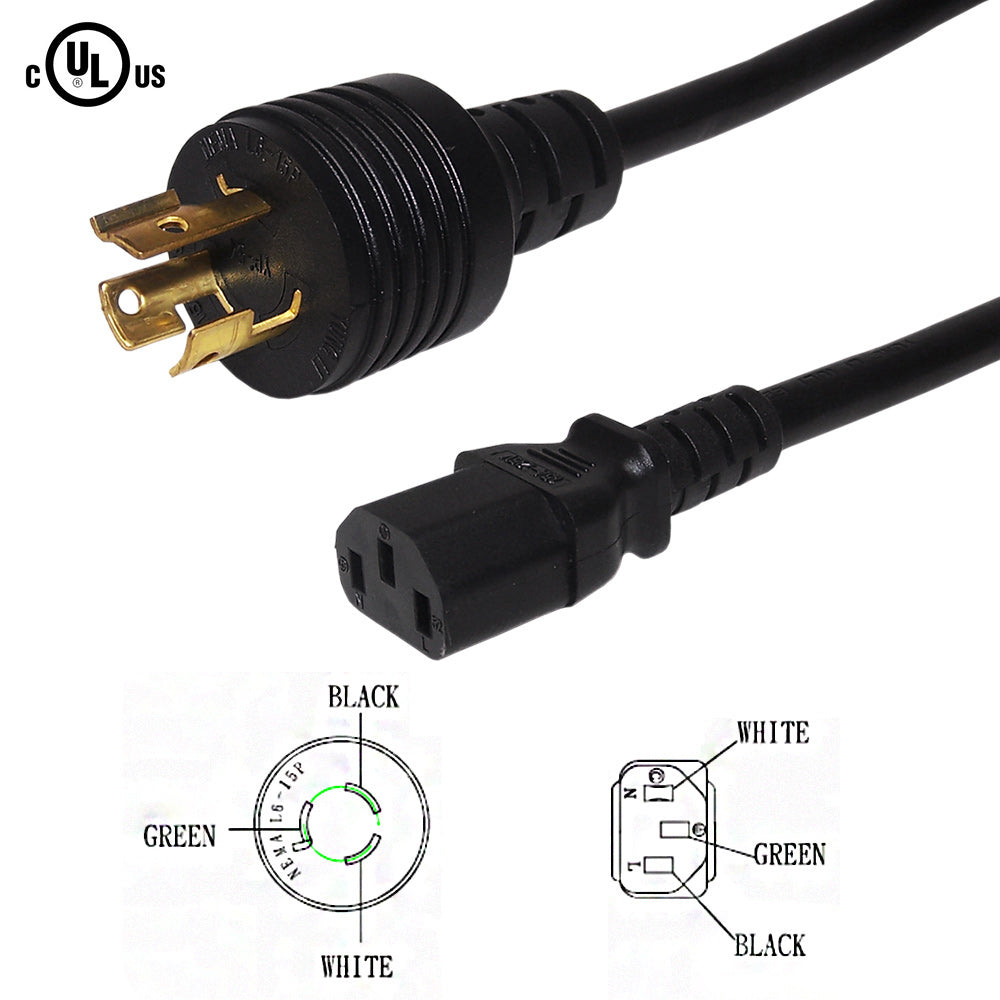

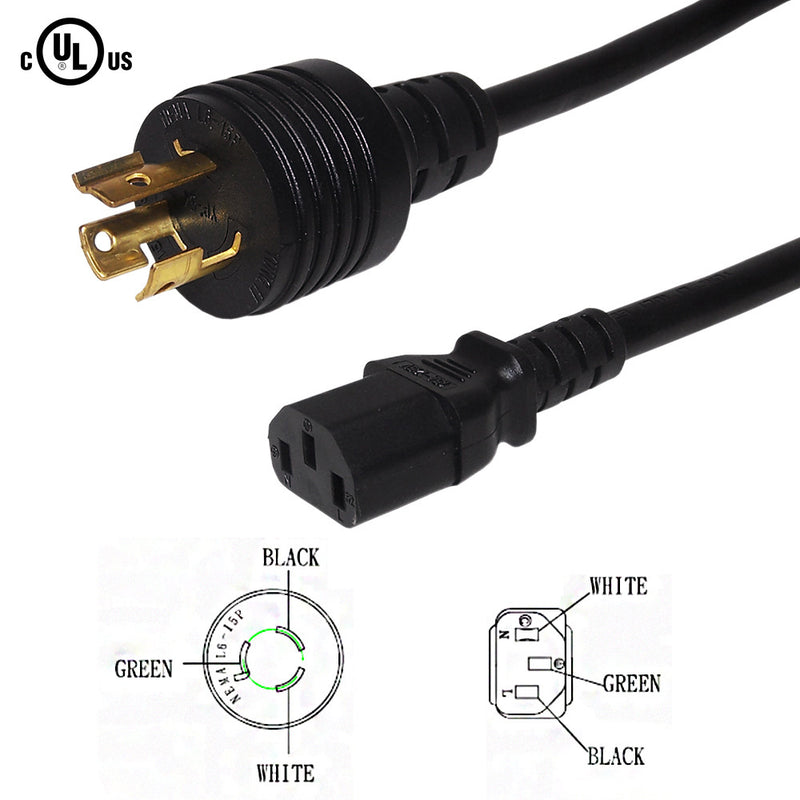

This power cord consists of a L6-15P male on one end and a C13 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Physical Characteristics |
Cable Length |
10 foot [3m] |
Color |
Black |
Number of Conductors |
3 Conductor |
Wire Gauge |
14 AWG |
Jacket |
Heavy duty SJT |
Jacket Material |
100% Virgin PVC - Polyvinyl Chloride |
Jacket Fire Rating |
FT2 VW-1 |
Strain Relief |
Molded 100% Virgin PVC |
Temperature Rating |
-20℃ to 105℃ |
Connector(s) |
Connector A |
NEMA L6-15P |
Connector B |
IEC 60320 C13 |
Performance |
Power Rating |
15 Amp / 250 Volt |
Approvals |
L6-15P |
c(UL)us |
C13 |
c(UL)us, CSA |
Cable |
c(UL)us, CSA |
ISO |
ISO 9001:2015, ISO 14000 |
Environmental |
RoHS |
Yes |
Reach |
Yes |
Conflict Minerals |
Yes |
Packaging Information |
Package Quantity |
1 |
Product Weight |
1.2 lbs [0.5kg] |
Warranty Information |
Warranty |
Limited Lifetime |
