1ft NEMA 5-20P to NEMA L5-30R Power Cable - 12AWG - SJT Jacket

AC Power CordsSKU: PW-1318-01

Price:
Sale price$14.75 CAD
Stock:
In stock


Description

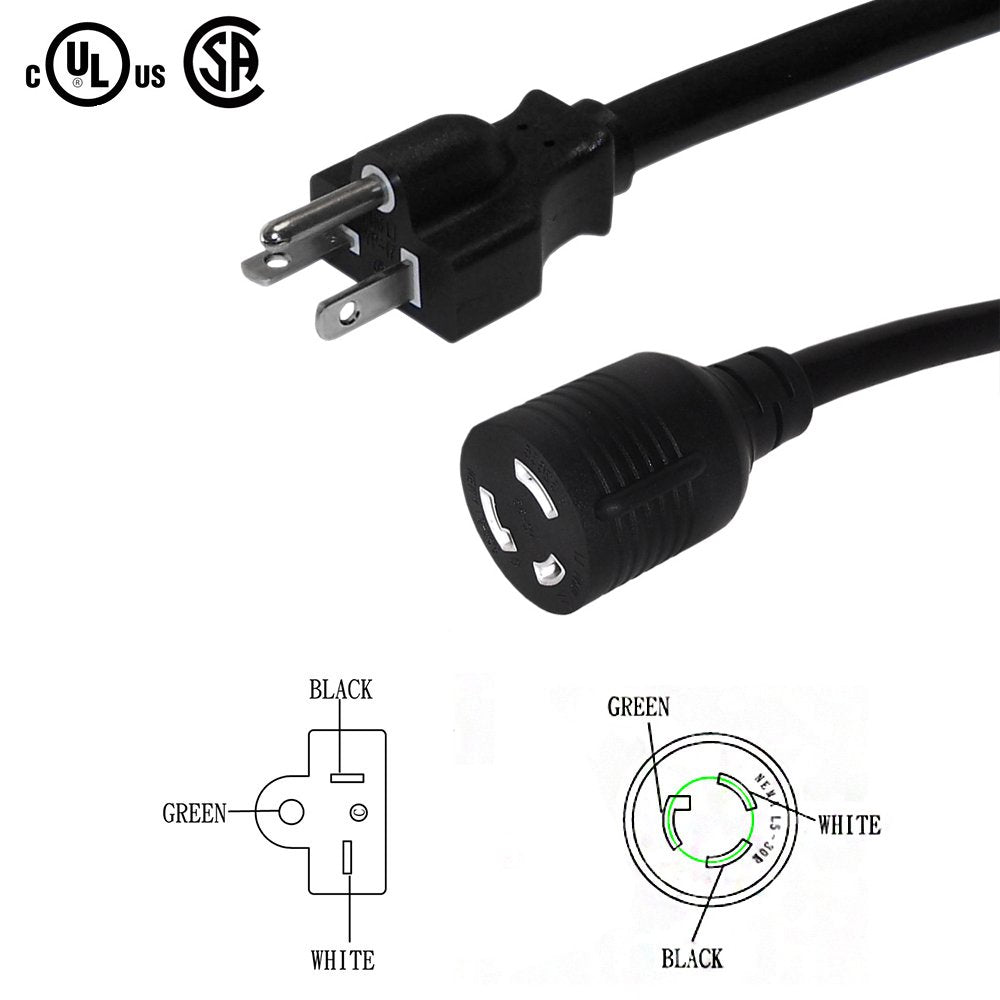

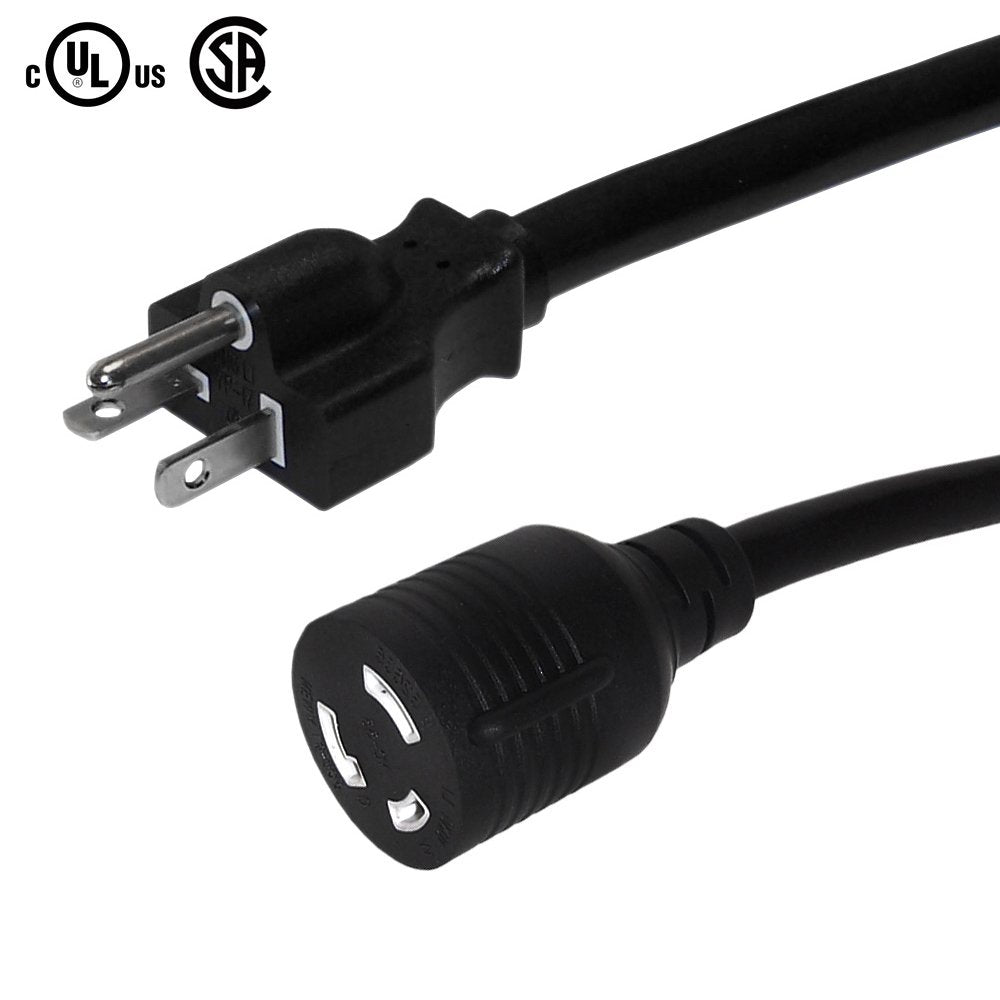

This power cord consists of a 5-20P male on one end and a L5-30R female on the other end. It is typically used as an adapter cable. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Physical Characteristics
Cable Length 1 foot [0.3m]
Color Black
Number of Conductors 3 Conductor
Wire Gauge 12 AWG
Jacket Heavy Duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating FT2
VW-1
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A NEMA 5-20P
Connector B NEMA L5-30R
Performance
Power Rating 20 Amp / 125 Volt
Approvals
5-20P c(UL)us, CSA
L5-30R c(UL)us
Cable c(UL)us, CSA
ISO ISO 9001:2015, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Product Weight 0.3 lbs [0.14kg]
Warranty Information
Warranty Limited Lifetime
SKU Weight
PW-1318-01 0.17 lb
