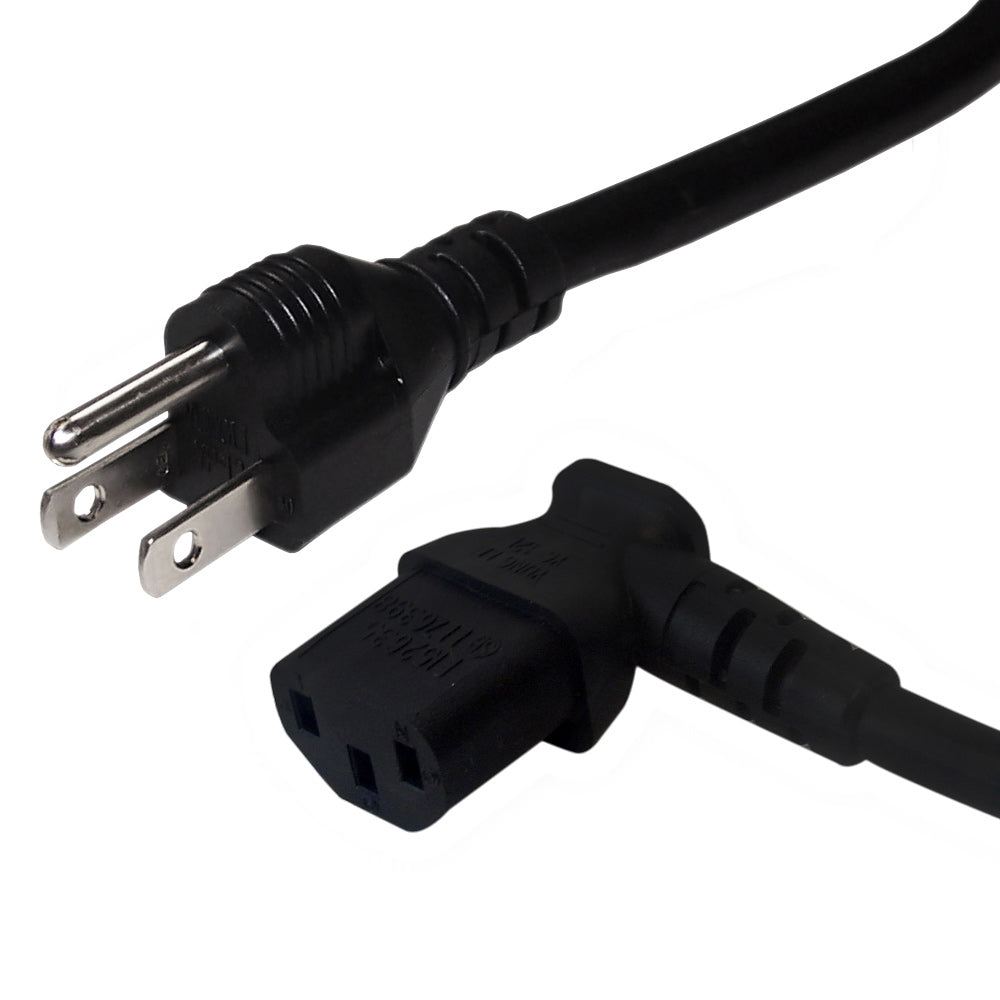

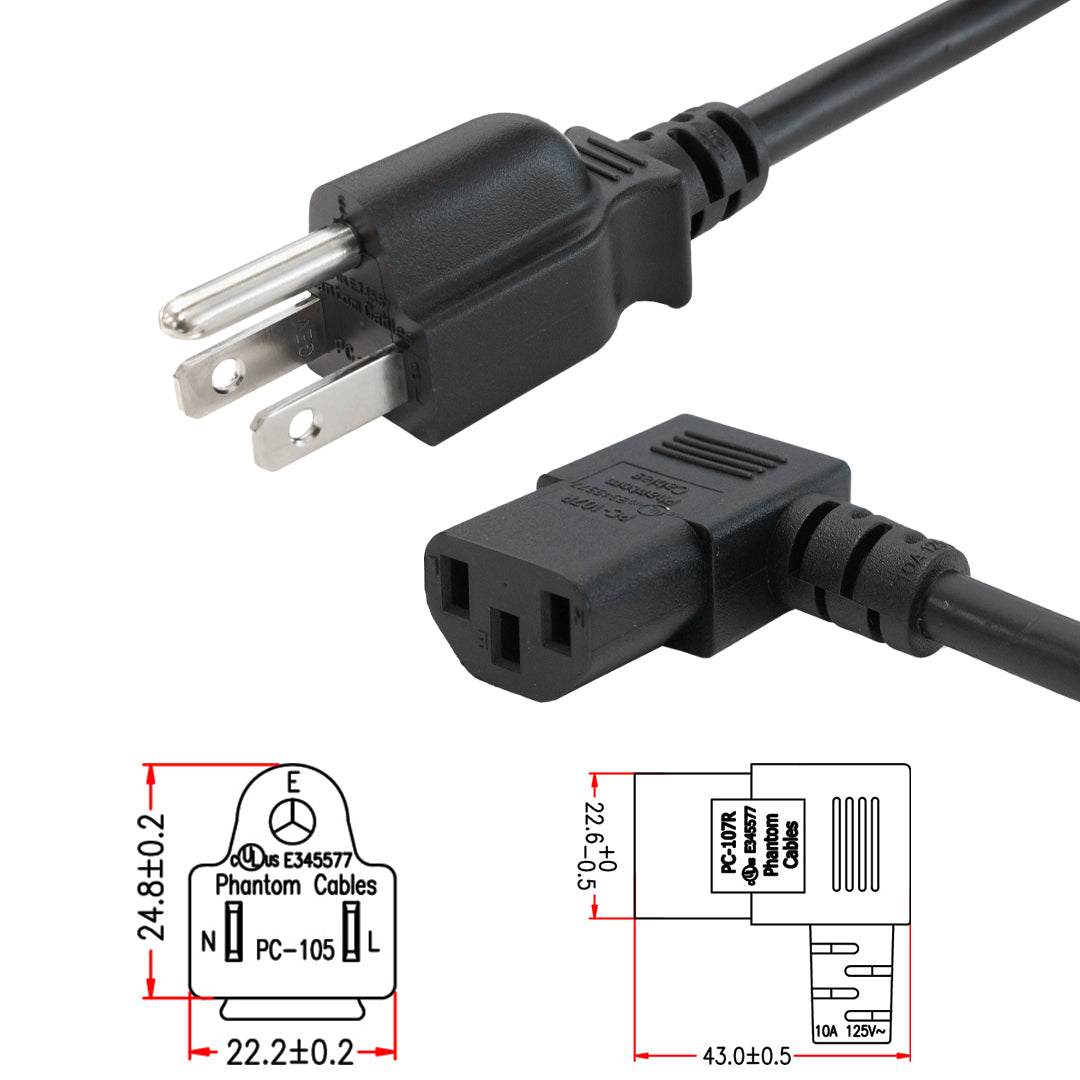

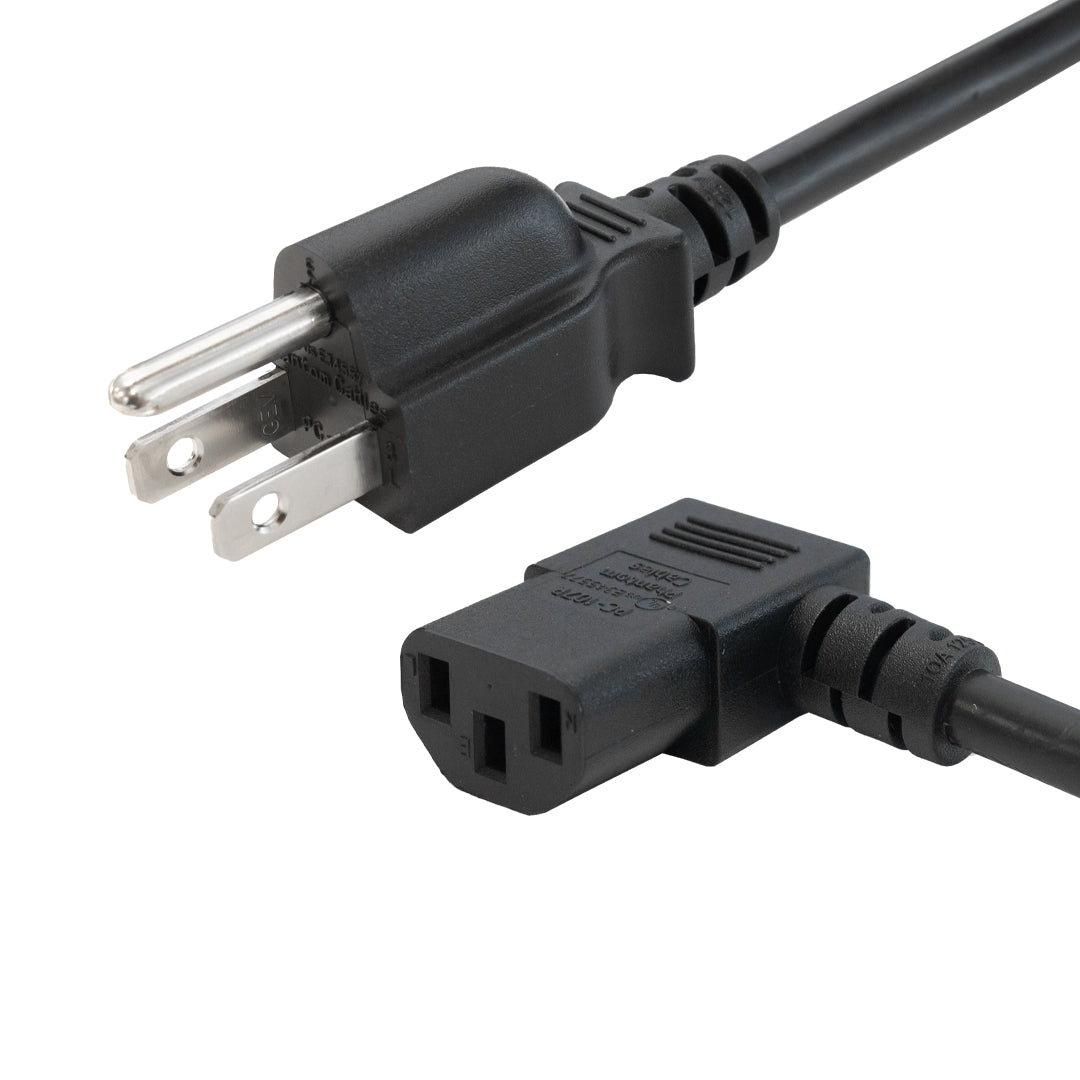

NEMA 5-15P to IEC C13 Right Angle Power Cable - SJT Jacket

AC Power CordsSKU: PWC-105R3-03

Length: 3ft
Price:
Sale price$2.70 CAD
Stock:
In stock


Description

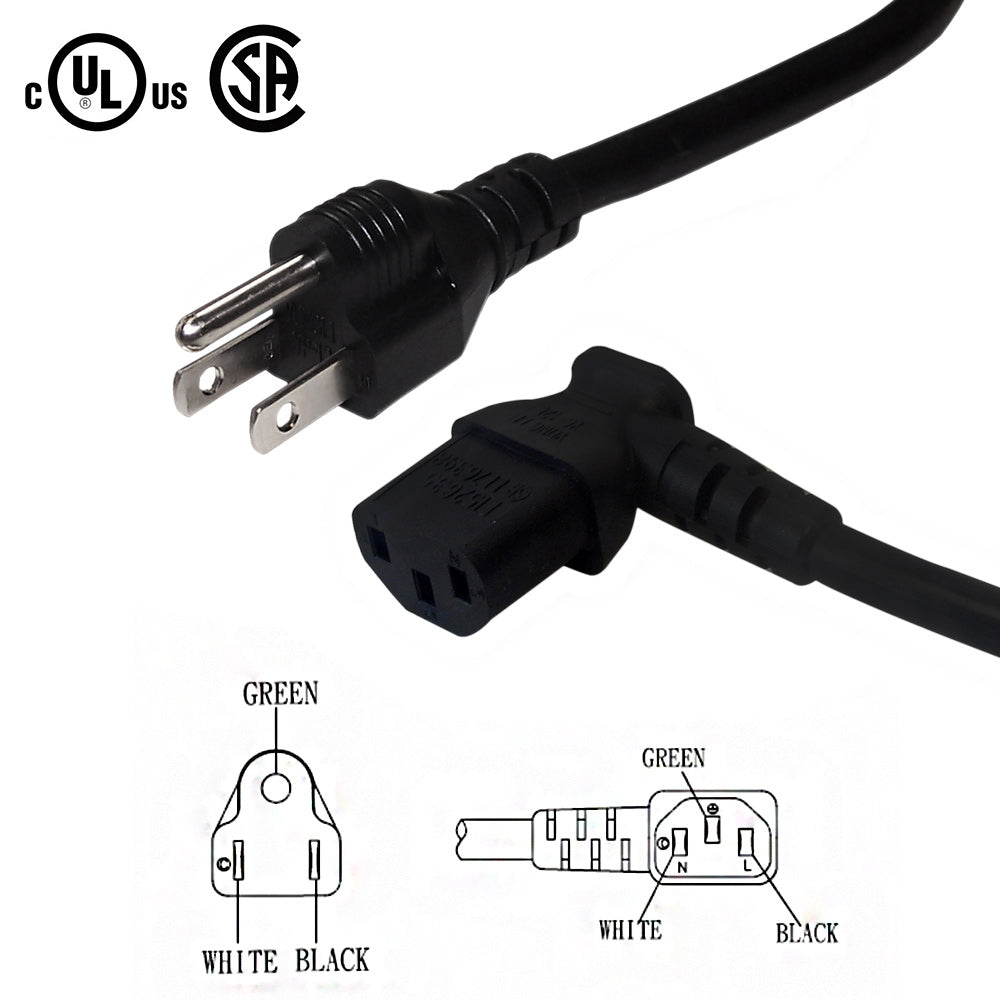

This power cord consists of a 5-15P male on one end and a C13 right angle female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 18 AWG
Jacket Heavy Duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating FT2
VW-1
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A IEC 60320 C13 Right Angle
Connector B NEMA 5-15P
Performance
Power Rating 10 Amp / 125 Volt
Approvals
C13 c(UL)us
5-15P c(UL)us
Cable c(UL)us
ISO ISO 9001:2015, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 6ft 12ft
0.35 lbs 0.47 lbs 0.82 lbs

Product Weight

3ft
PWC-105R3-03
0.36 lb
6ft
PWC-105R3-06
0.65 lb
12ft
PW-105R3-12
1.23 lb
