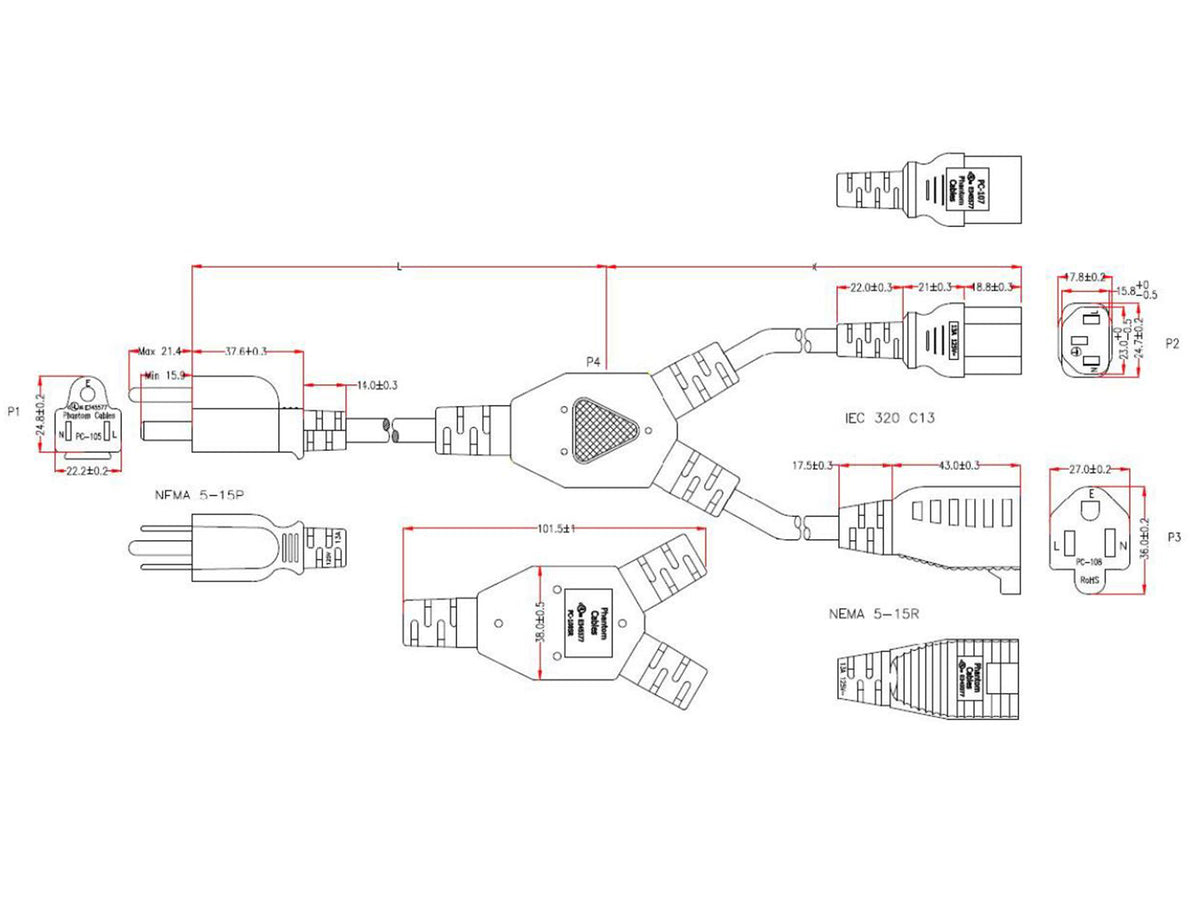

NEMA 5-15P to IEC C13 & NEMA 5-15R Power Splitter Cable - 16AWG (13A 125V) - SJT

Splitter Power CordsSKU: PWC-207B-03

Length: 3ft
Price:
Sale price$8.30 CAD
Stock:
In stock


Description

This power cord consists of a 5-15P male on one end, C13 and 5-15R females on the other end. It is typically used on devices with multiple power supplies sharing one receptacle. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 16AWG
Jacket Heavy Duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Strain Relief Molded 100% Virgin PVC
Conductor Material 100% bare copper
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A NEMA 5-15P
Connector B IEC 60320 C13
Connector B NEMA 5-15R
Performance
Power Rating 13 Amp / 125 Volt
Approvals
5-15P c(UL)us
C13 c(UL)us
5-15R c(UL)us
Cable c(UL)us
ISO ISO 9001:2000, ISO 14000
Product Support
RoHS Yes
Reach Yes
Conflict Minerals Yes
Country of Origin Vietnam
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 6ft
0.57 lbs 0.88 lbs
SKU Options Weight
PWC-207B-03 3ft 0.36 lb
PWC-207B-06 6ft 0.65 lb
