Overview

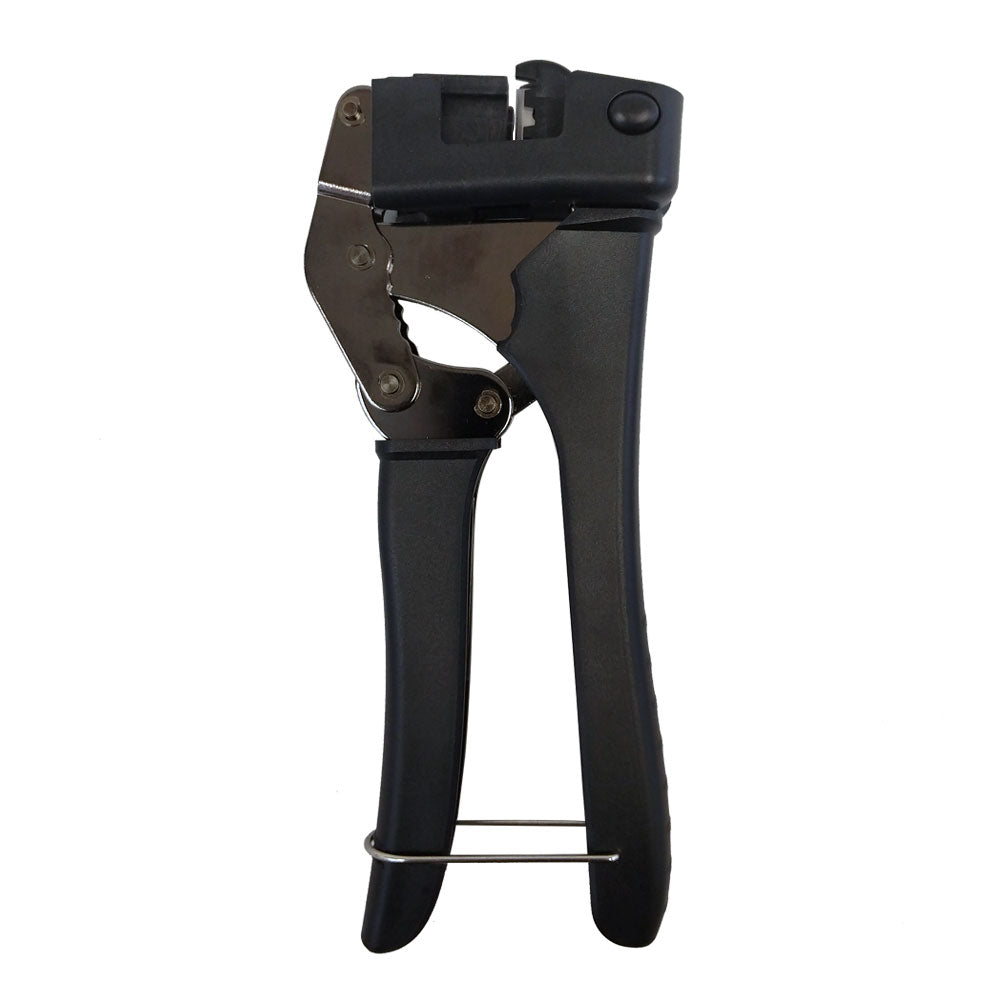

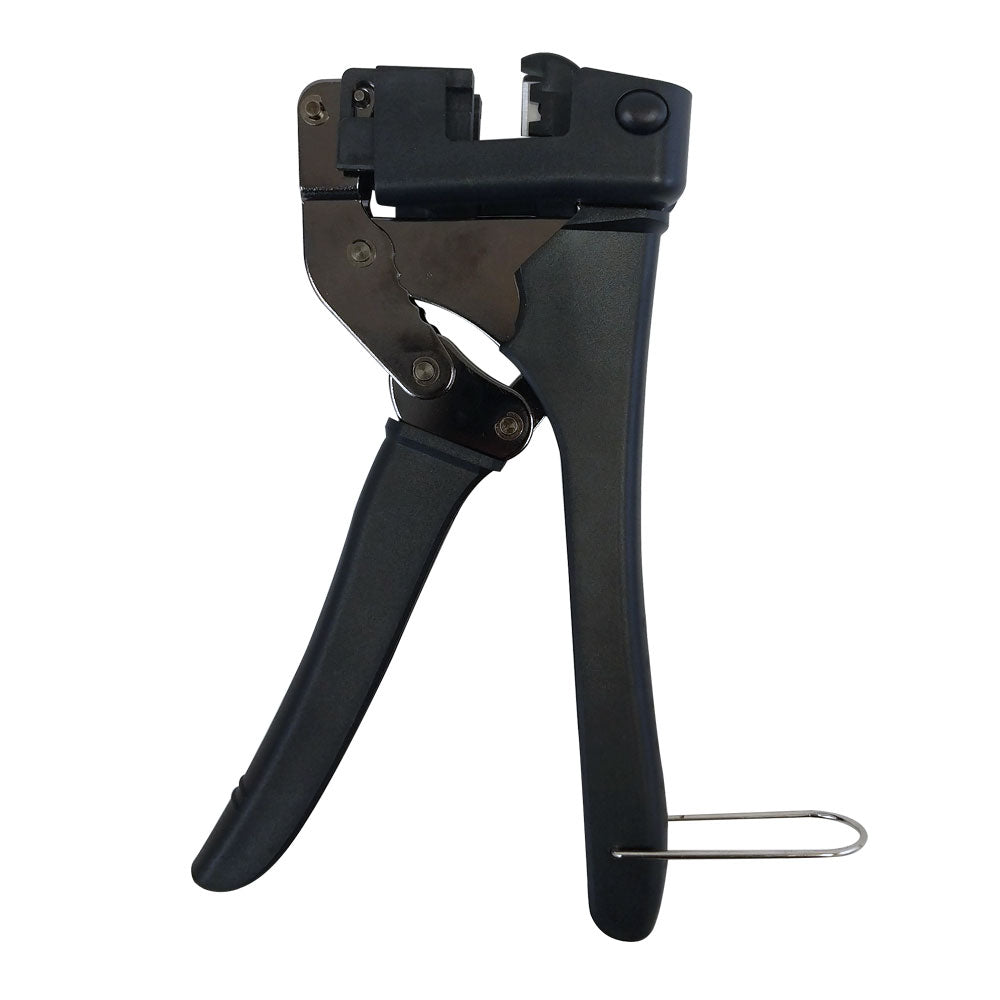

This punch-down tool is used to terminate 90 degree 110 style jacks. It allows for faster and more accurate jack termination with one simple motion. It also features built-in blades which cut off excess wire after termination. The tool is designed with a durable steel body with an ergonomically friendly handle.
 |
Reduces installation time
This punch-down tool saves time and increases accuracy by seating and terminating all wires at once with a simple squeeze of the handle, it allows you to terminate jacks eight times faster.
Easy-to-use with efficiency
The built-in blades cut off the excess wires after termination which makes terminating jacks a simple one-handed operation. The ergonomically designed handle reduces hand fatigue which speeds up the termination process.
|
Specifications
Compatible Jacks
| Physical Characteristics |
|---|
| Color |
Black |
| Material |
Polycarbonate, UL 94V-2
SPCC,2.0mm thickness with 5~8um nickelage
|
Operating Function
|
For Keystone Jacks
|
Operating Temperature
|
-20°C to +70°C
|
Storage Temperature
|
-20°C to +80°C
|
Ratchet
|
No |
| Connectors |
|---|
| Terminal Block Type |
110 |
| Compatible Jacks |
|---|
JK-C5P1-WH
JK-C5P1-BK
JK-C5P1-BL
JK-C6P1-WH
JK-C6P1-BK
JK-C6P1-BL
JK-C6P1-GN
JK-C6P1-OR
JK-C6P1-PR
JK-C6P1-RD
JK-C6P1-YL
JK-C6P1-GY
JK-C6AP1-WH
JK-C6AP1-BK
JK-C6AP1-BL
|
RJ45 Cat5e Slim Profile Jack, 110 Punch-Down - White
RJ45 Cat5e Slim Profile Jack, 110 Punch-Down - Black
RJ45 Cat5e Slim Profile Jack, 110 Punch-Down - Blue
RJ45 Cat6 Slim Profile Jack, 110 Punch-Down - White
RJ45 Cat6 Slim Profile Jack, 110 Punch-Down - Black
RJ45 Cat6 Slim Profile Jack, 110 Punch-Down - Blue
RJ45 Cat6 Slim Profile Jack, 110 Punch-Down - Green
RJ45 Cat6 Slim Profile Jack, 110 Punch-Down - Orange
RJ45 Cat6 Slim Profile Jack, 110 Punch-Down - Purple
RJ45 Cat6 Slim Profile Jack, 110 Punch-Down - Red
RJ45 Cat6 Slim Profile Jack, 110 Punch-Down - Yellow
RJ45 Cat6 Slim Profile Jack, 110 Punch-Down - Grey
RJ45 CAT6A Slim Profile Jack, 110 Punch-Down - White
RJ45 CAT6A Slim Profile Jack, 110 Punch-Down - Black
RJ45 CAT6A Slim Profile Jack, 110 Punch-Down - Blue
|
| Compatible Die Set |
|---|
| TL-PUM-90-DIESET |
90 Degree Die Set for Punch-Down Tool
|
| TL-PUM-180-DIESET |
180 Degree Die Set for Punch-Down Tool |
| Packaging Information |
|---|
| Packaging Quantity |
1 |
| Product Weight |
1.14 lbs [0.52 kg]
|
