Mini DisplayPort Male to DisplayPort Male Cable with Audio 4Kx2K - FT4 32AWG White


Length: 3ft
Price:
Sale price$5.00 CAD
Stock:
In stock


Description

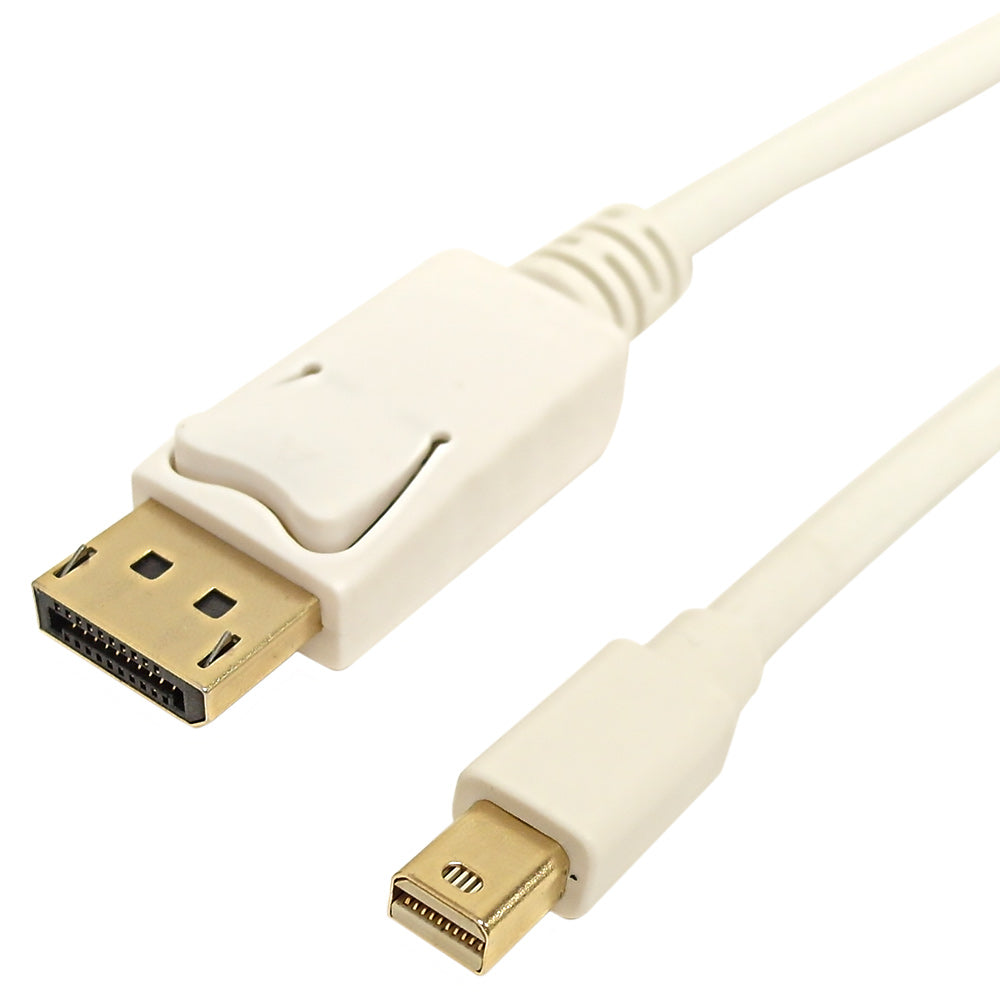

This cable has a Mini DisplayPort male on one end to a DisplayPort male on the other. It is used to connect a Mini DisplayPort source to a DisplayPort monitor. It can also be used to connect a DisplayPort source to a Mini DisplayPort monitor.

Physical Characteristics
Color White
Connector Plating Nickel
Wire Gauge 32 AWG
Jacket Fire Rating CL3/FT4
Jacket Material PVC
Connectors
Connector A Mini DisplayPort male
Connector B DisplayPort male
Performance
Maximum Resolution 4Kx2K (3840x2160)
Maximum Frequency

30Hz - MDP-DP-15

60Hz - MDP-DP-03/ MDP-DP-06/ MDP-DP-10

Maximum Bandwidth 21.6 Gbps (5.4Gbps * 4 lanes)
Supports 3D Yes
Audio Support Yes
DP Version

v1.1 - MDP-DP-06/ MDP-DP-10/ MDP-DP-15

v1.2 - MDP-DP-03

Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Standards
c(UL)us Yes
Packaging Information
Packaging Quantity 1
Warranty
Warranty Lifetime Limited
Cable Weights
3ft 6ft 10ft 15ft
0.20 lbs 0.30 lbs 0.40 lbs 0.50 lbs
SKU Options Weight
MDP-DP-03 3ft 0.15 lb
MDP-DP-06 6ft 0.21 lb
MDP-DP-10 10ft 0.33 lb
MDP-DP-15 15ft 0.5 lb
