Overview

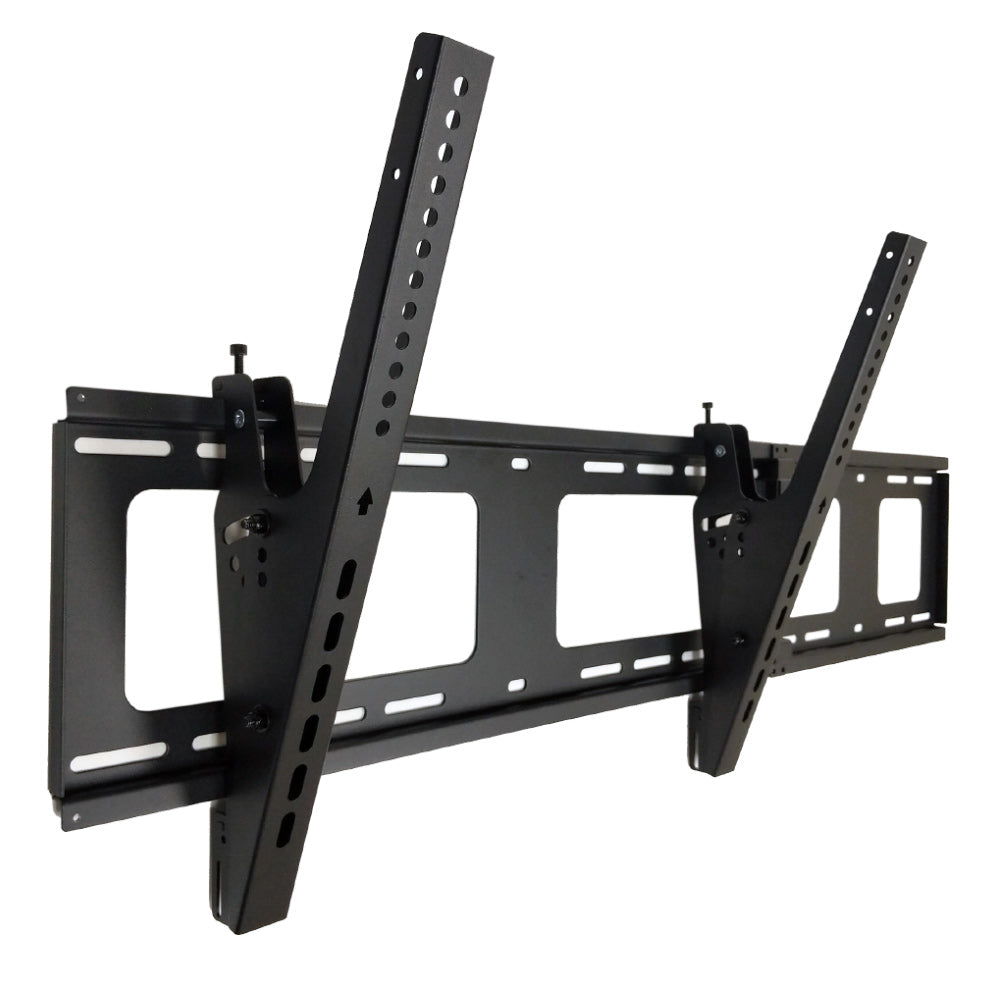

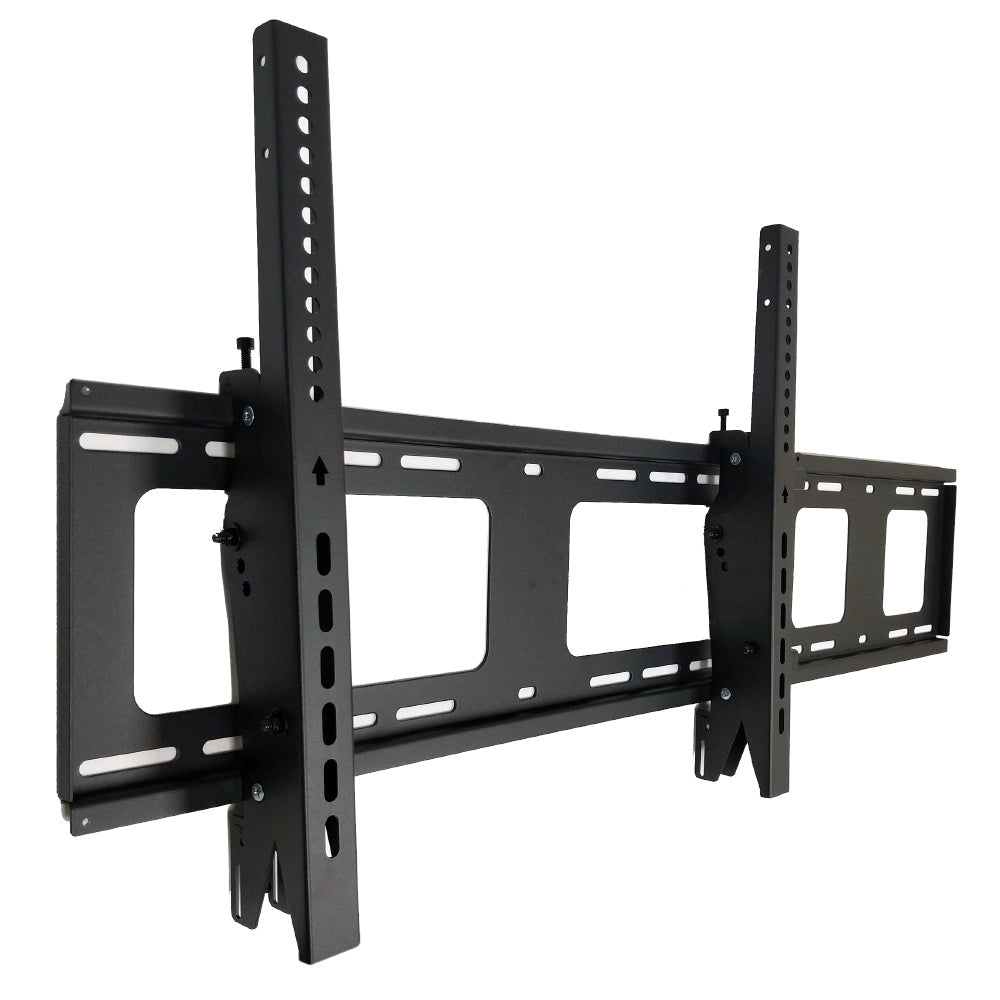

This menu wall TV mounting bracket is designed to hold most 45 inch to 55 inch flat screen displays with a maximum VESA hole pattern of 600x400. It is used to mount a single TV but its modular design allows you to add-on as many TVs as required. Quick and easy installation and designed for use in commercial environments.
|

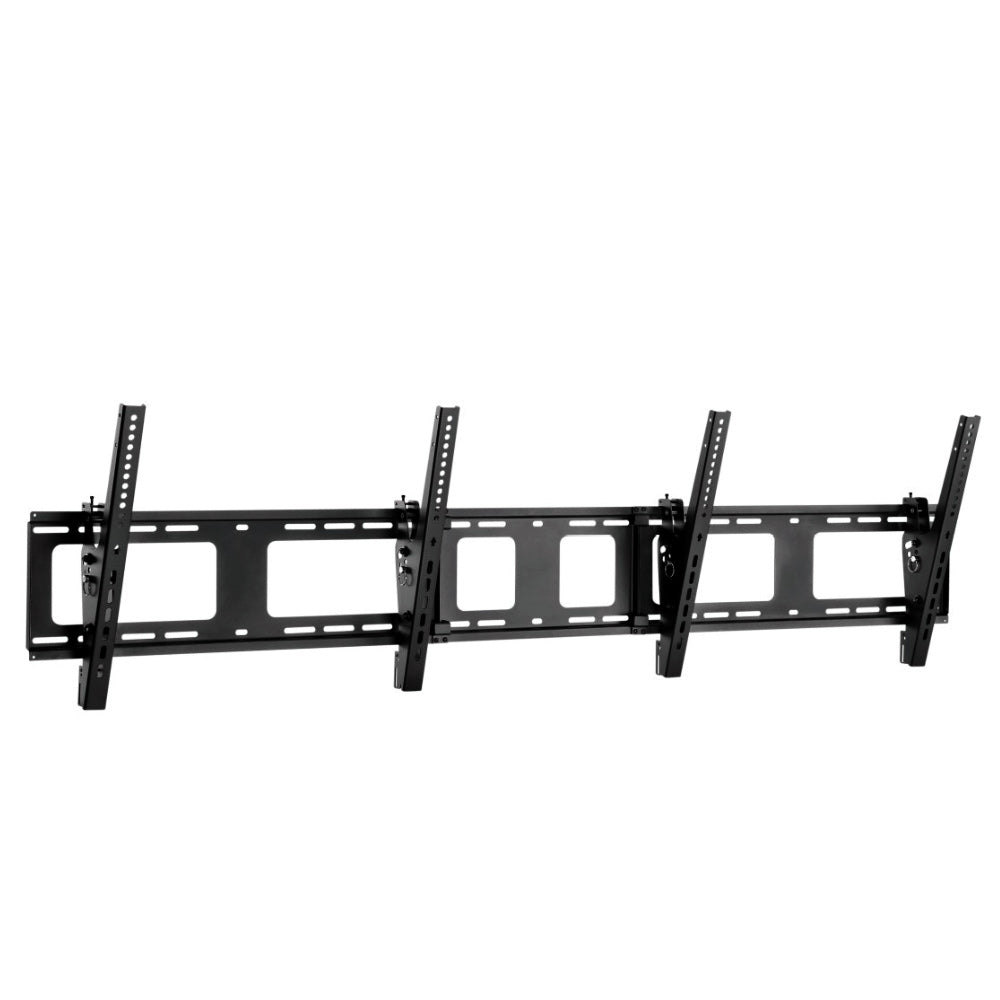

Easy AssemblyThis menu wall mount is expandable to as many TVs as required, one mount simply attaches to the next. No pre-assembly required, the mounts can be joined one at a time directly to the wall. Effortless PositioningThis menu wall mount has five fixed tilt settings which allows all displays to be tilted at the same angle with ease.
|
Specifications
| Physical Characteristics | |
|---|---|
| Mounting Style | Tilting Wall Mount |
| Color | Powder Coated Black |
| Material | Steel |
| Mounting Pattern | VESA 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400 |
| Screen Size | 45 - 55 inches [114 - 178cm] |
| Screen Capacity | 1 TV (expandable) |
| Weight Capacity | 110lbs [50kg] |
| Profile | 76mm (3") |
| Fine Adjustment(Depth/Height) |
10mm (0.39") |

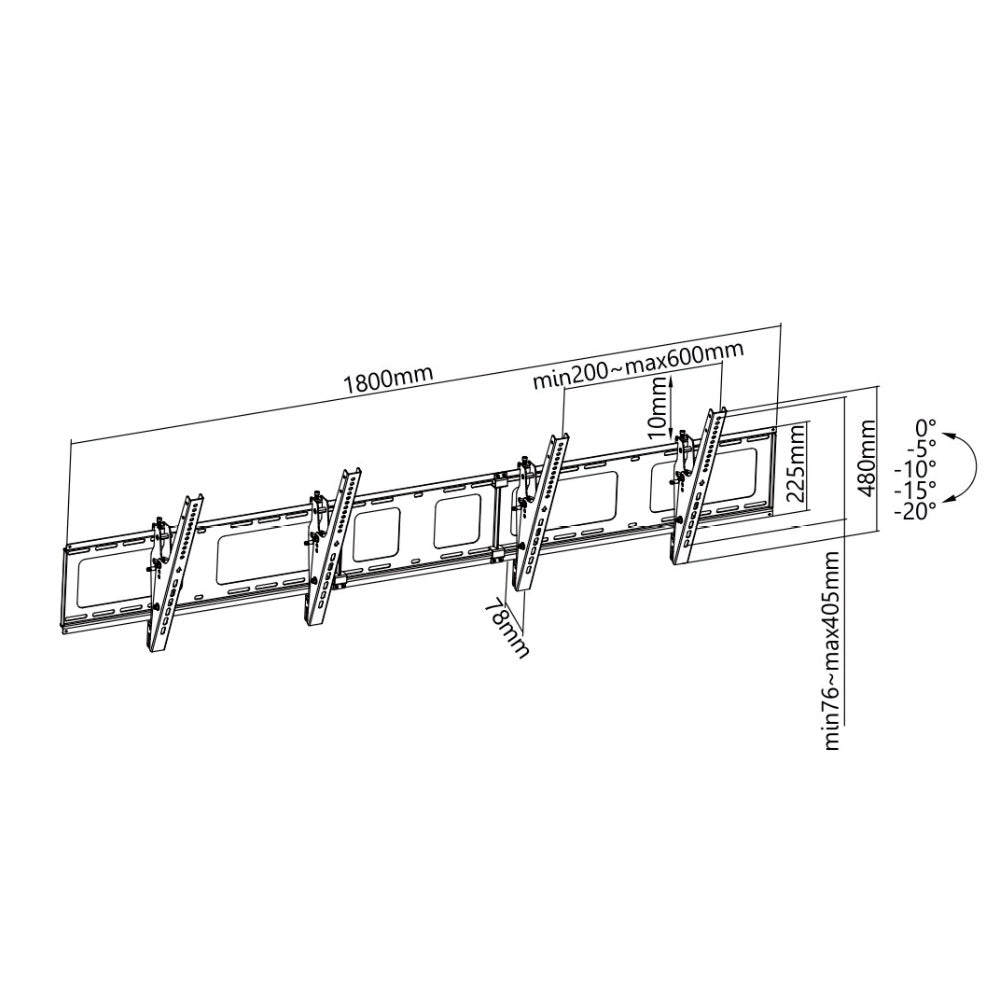

| Product Size | 1800x480x76mm (70.9"x18.9"x3") |
| Installation | Solid Wall or Double Stud |
| Tilt Range | 0°/-5°/-10°/-15°/-20° |
| Screen Level |
+3°~-3° |
| Cable Management | No |
| Direction Indicator |
Yes |
| Approvals | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 - TV Mount 1 - Joint Bracket 2 - Clamps 2 - Safety Pin 4 - M4x6 Screws 4 - M5x14 Screws 4 - M6x30 Screws 4 - M8x30 Screws 4 - M8x50 Screws 4 - Rectangular Washers 8 - Small Spacer 8 - Big Spacer 6 - ST6.3x55 Screws 6 - Concrete Anchors 6 - D6 Washers |
| Product Weight | 13.8 lbs [6.3 kg] |
5-YEAR LIMITED LIFETIME WARRANTY
Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
