Description

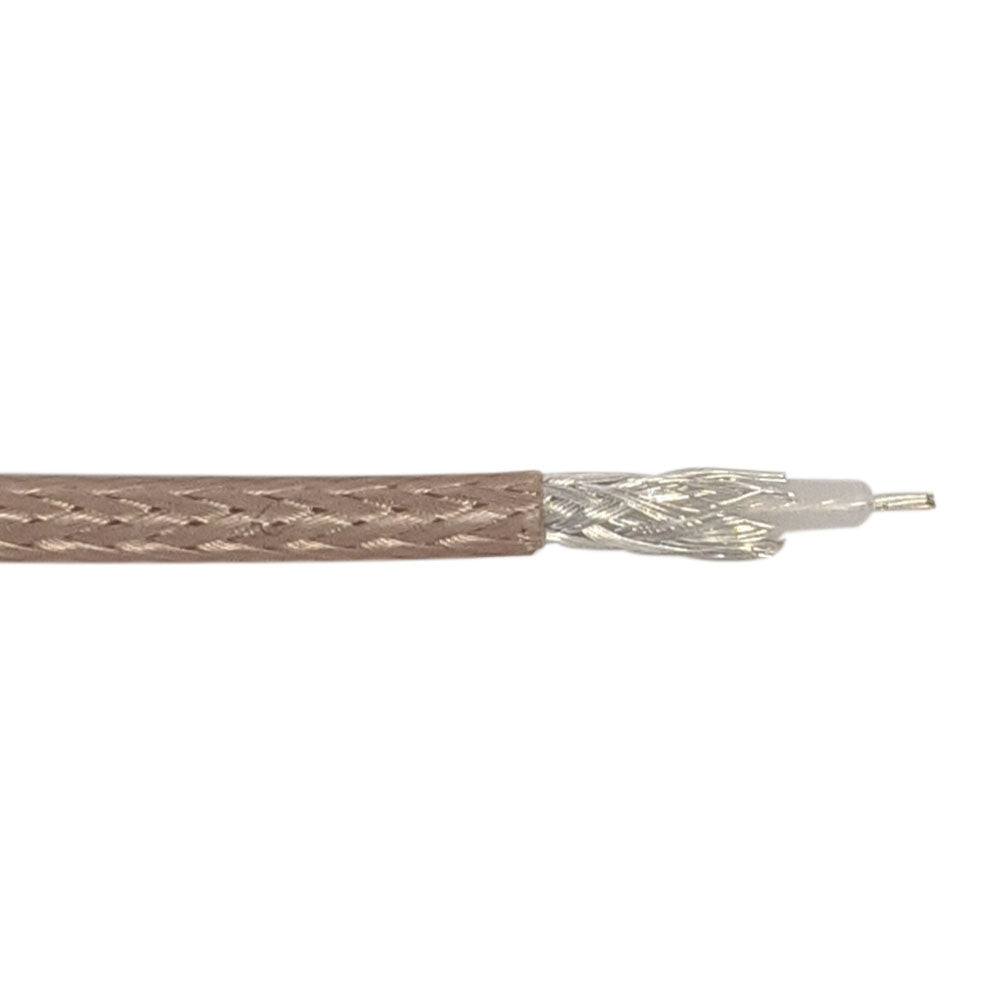

This bulk RG316 cable consists of a 26AWG stranded center conductor. It is ideal for jumper assemblies in wireless communication systems, short antenna feeder runs, GPS and mobile antenna applications.
| Physical Characteristics | |
|---|---|
| Color | Translucent Beige |
| Cable Diameter | 2.55mm |
| Wire Gauge | 26AWG |
| Conductor Material | Silver-Coated Copper Clad Steel |
| Center Conductor | SCCS.0201(7/.0067) |
| Dielectric Material | PTFE - Polytetrafluoroethylene 0.060 inches |
| Jacket Material | FEP - Fluorinated Ethylene Propylene |
| Maximum Voltage | 1200V |
| Nominal Impedance | 50 ohms |
| Nominal Outer Diameter (Inner) | 0.0980 |
| Nominal Diameter of Conductor | 0.0201 |
| Shield and Material | Overall Braid Shield 38 AWG Silver-Coated Copper Braid Shield |
| Number of Strands | 7 |
| Strand Size |
0.0067 |
| Velocity of Propagation | 69.5 |
| Cable Capacitance | 29.4 pF/ft |
| Temperature Rating | -55 ~ +200℃ |
| Mil-Spec | M17/113 |
| M17 Test Frequency | 3 GHz Swept |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
Spec Sheets
Lead-time
We currently have full 1,000ft spools in stock. For any other lengths, please allow approx. 1–2 business days for custom cutting and shipping. Please contact us at sales@infinitecables.com or 1-866-207-6442 with any questions.
Product Weights
| SKU | Options | Weight |
| BK-CXRG316-050 | 50ft | 1.2 lb |
| BK-CXRG316-100 | 100ft | 2.0 lb |
| BK-CXRG316-250 | 250ft | 6.0 lb |
| BK-CXRG316-500 | 500ft | 12.0 lb |
| BK-CXRG316-1000 | 1000ft | 24.0 lb |
