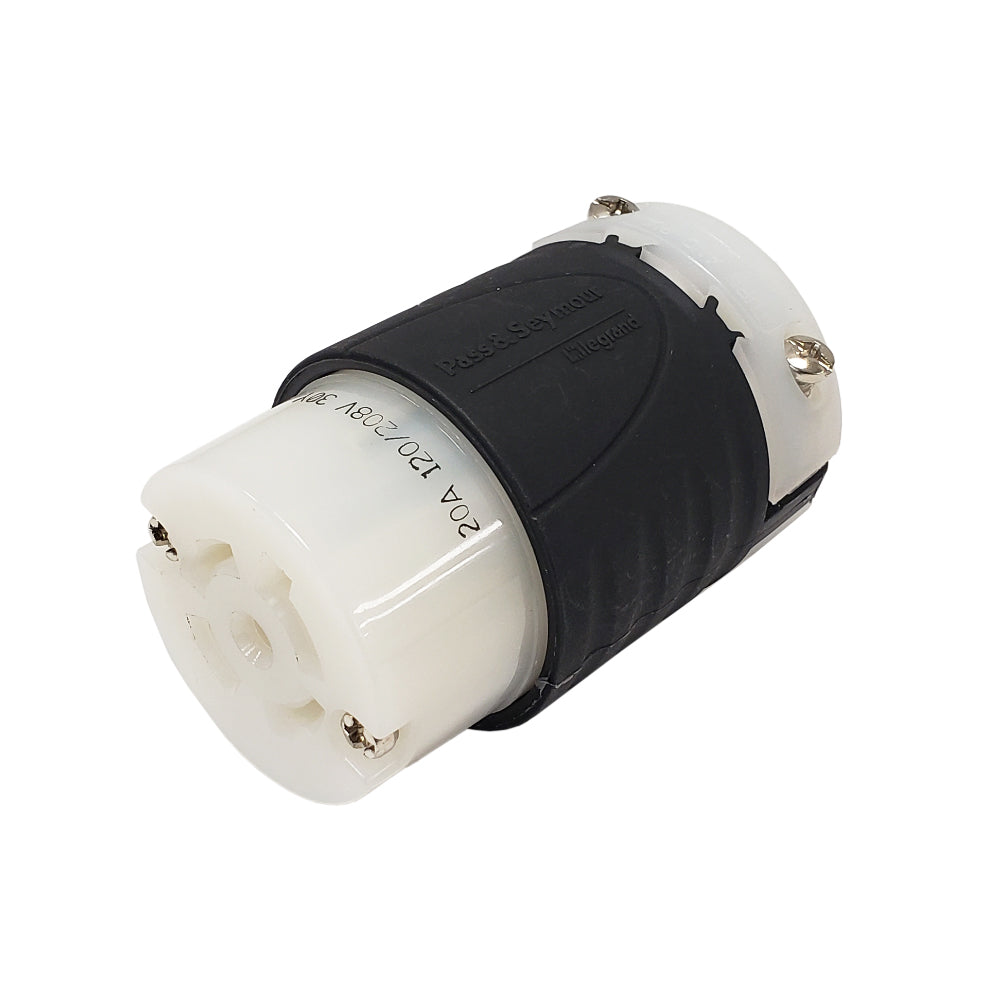

This L21-20R power cord connector is a 4-pole 5-conductor grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals.
| Physical Characteristics
|
|---|
| No. of Poles
|
4-Pole |
| No. Of Conductors |
5 Conductors |
| Connectivity |
Screw Terminals |
| Material |
Polycarbonate |
| Cable Diameter and Size |
0.325 - 0.750 inch (with inserts)
0.700 - 1.15 inches (without inserts) |
| Wire Gauge Compatibility |
14-10AWG |
| Wire Size |
4 AWG |
| Voltage Rating |
120 VAC |
| Power Rating
|
20A 120/208V
|
| Phase |
Three Phase |
| Manufacturing Information |
|---|
Pass & Seymour - Legrand
Part No. |
L2120R
|
| Connectors
|
|---|
| L21-20R
|
Male
|
| Approvals
|
|---|
| UL |
Yes |
| CSA
|
Yes |
| Environmental |
|---|
| RoHS |
Yes |
| Packaging Information |
|---|
| Package Quantity
|
1
|
| Product Weight
|
0.15 lbs [0.06kg]
|
