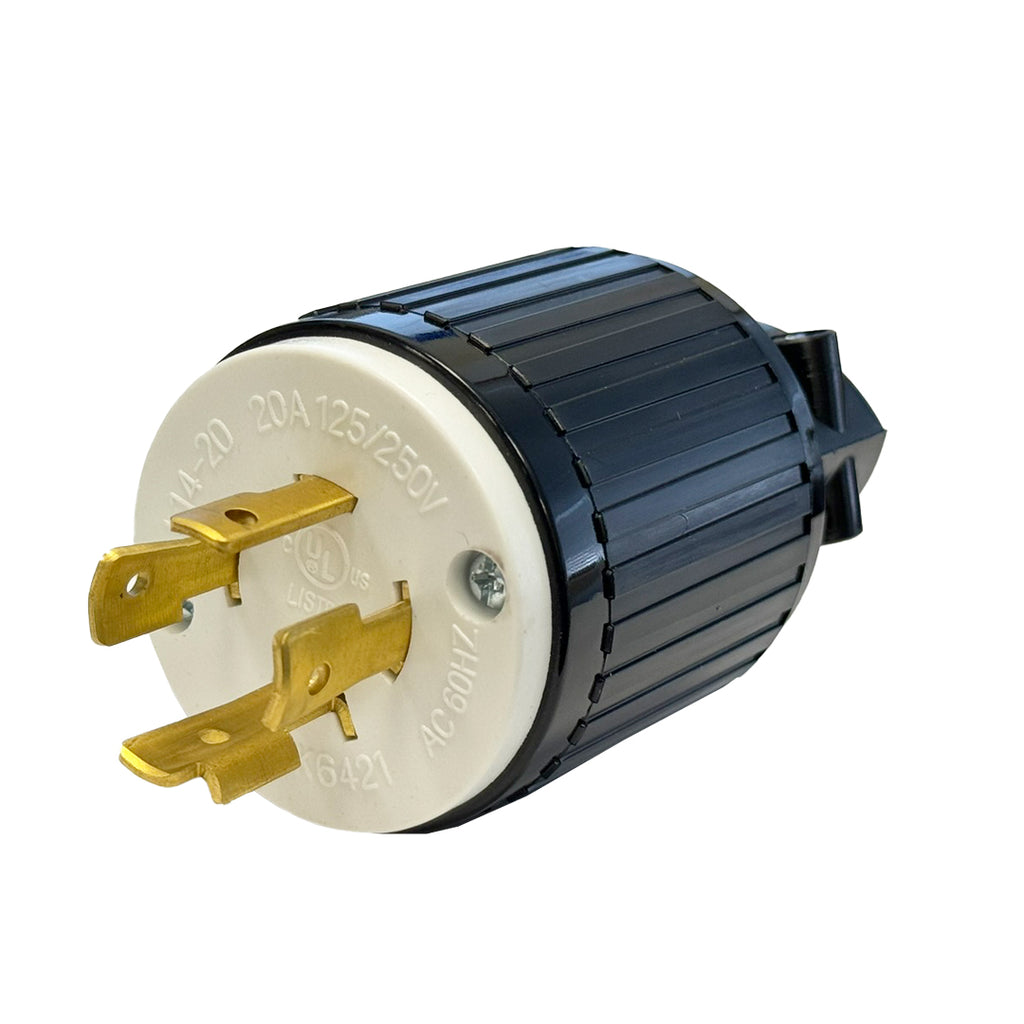

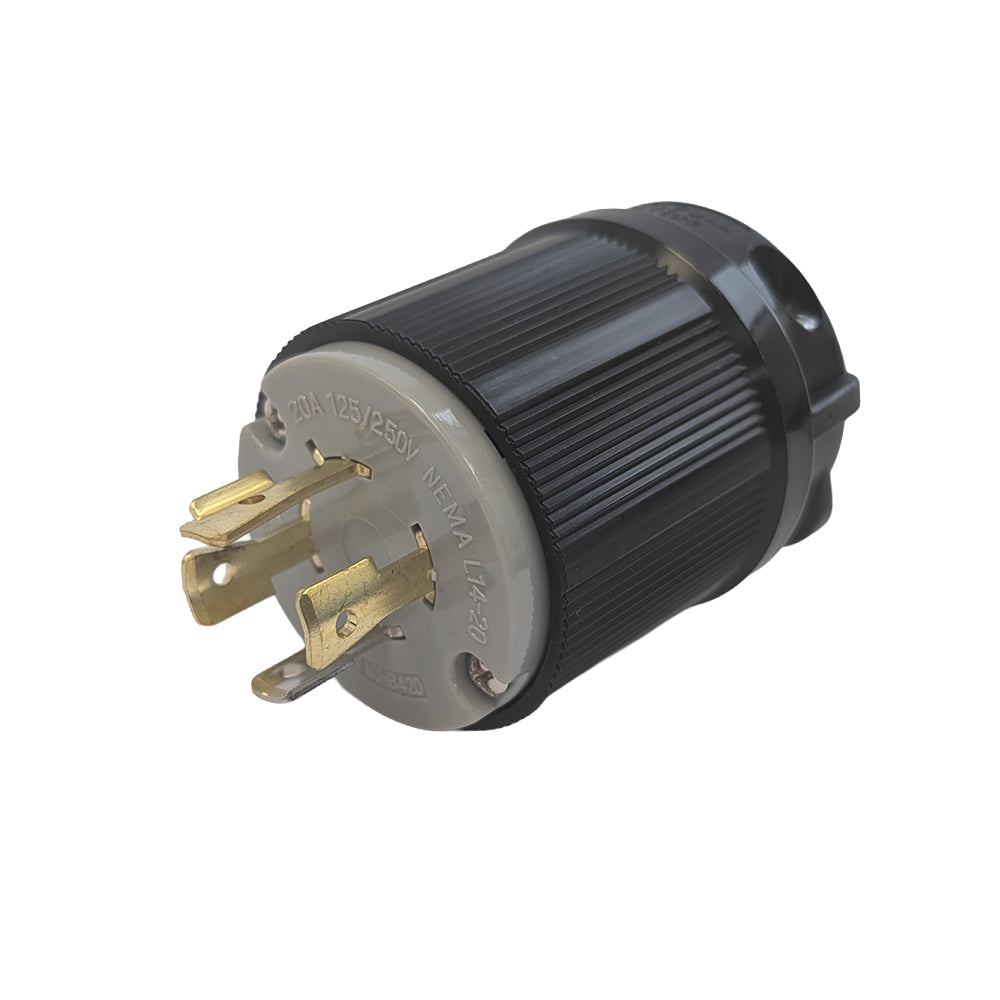

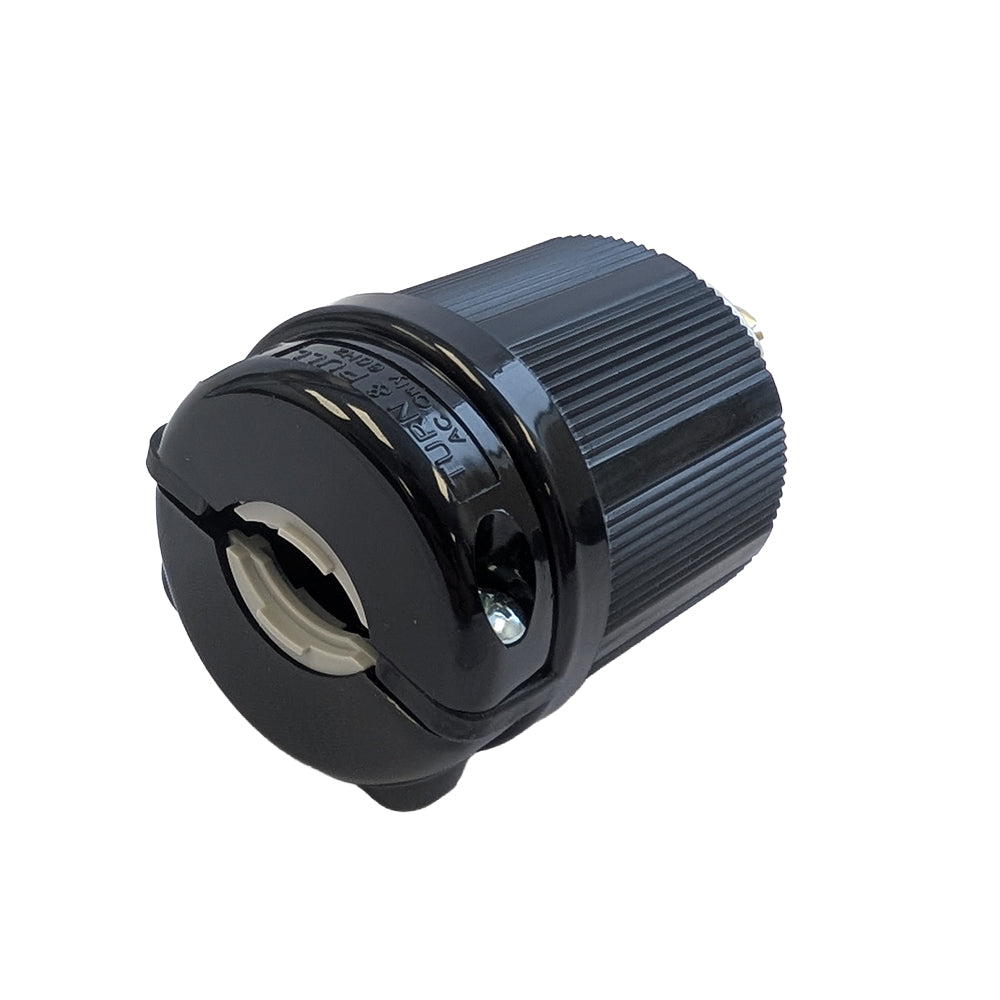

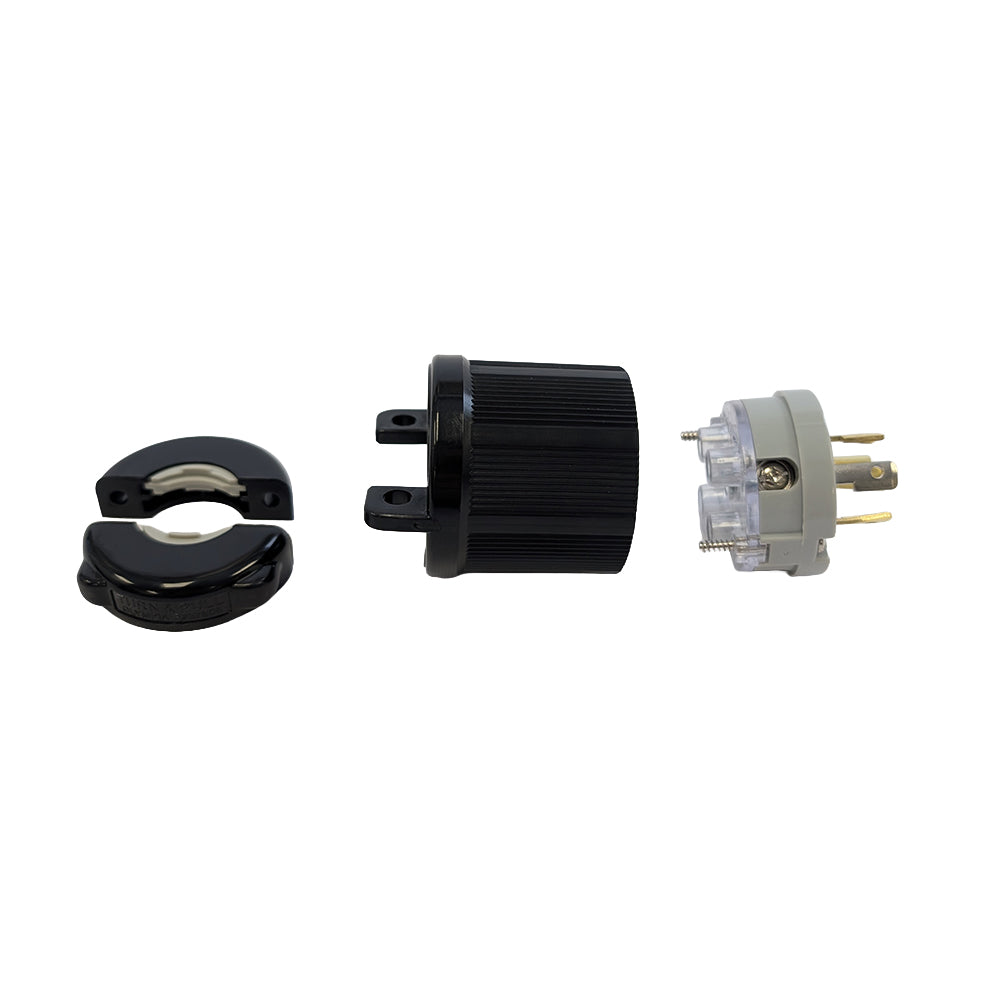

This L14-20P power cord connector is a 3-pole 4-conductor grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jacket prevents strain on the terminals.
| Physical Characteristics |
| No. of Poles |
3-Pole |
| No. Of Conductors |
4 Conductor |
| Connectivity |
Screw Terminals |
| Blade Holder & Terminal Retainer Materia |
Polycarbonate |
| Housing & Cord Clamp Material |
Nylon |
| Blade, Terminal & Ground Screw Material |
Brass |
| Wire size |
.375” to 1.156” (16~10 AWG, 9.525~29.36mm) |
| Power Rating |
20A 125/250V |
| Operating Temperatures |
Maximum Continuous 65 °C,
Minimum -20 °C (w/o impact) |
| Flammability |
UL 94 V-0 |
| Connectors |
| L14-20P |
Male |
| Approvals |
| c(UL)us |
Compliant |
| RoHS |
Compliant |
| REACH |
Compliant |
| Conflict Materials |
Compliant |
| Packaging Information |
| Package Quantity |
1 |
| Product Weight |
0.27 lbs [0.12kg] |
