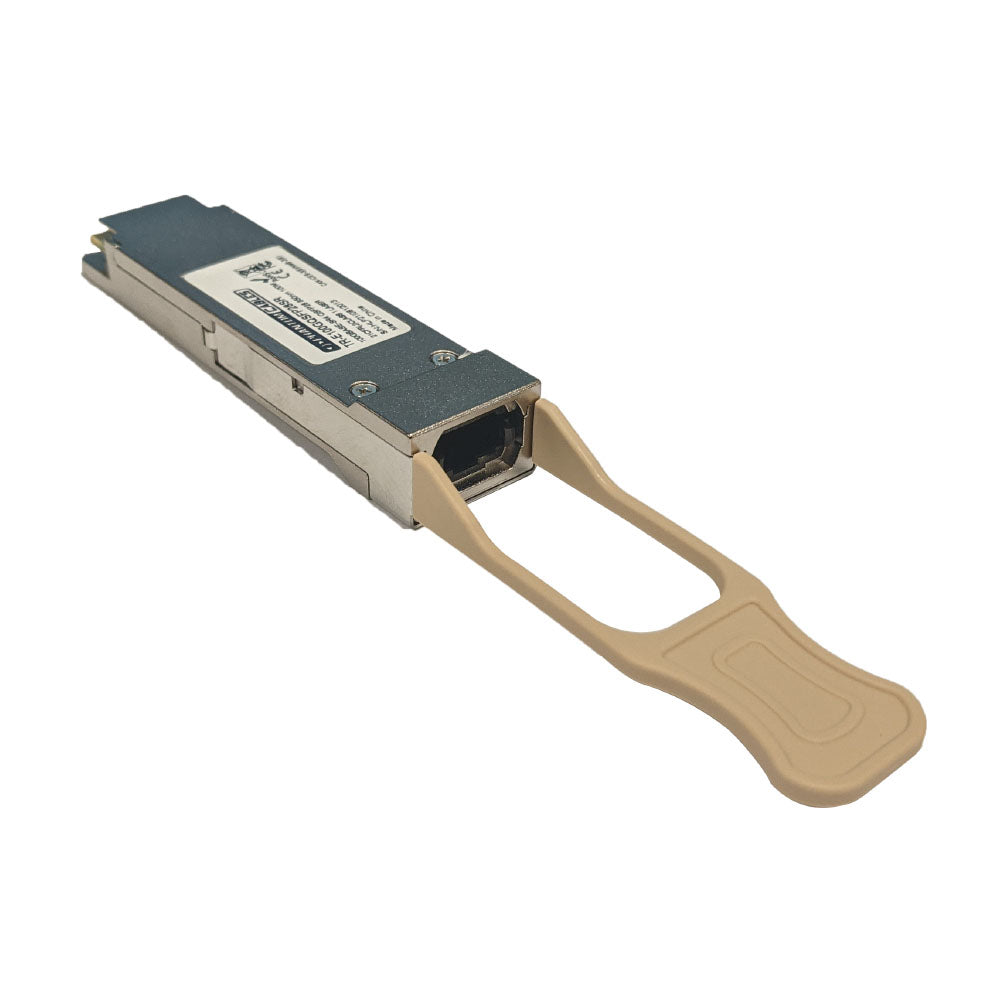

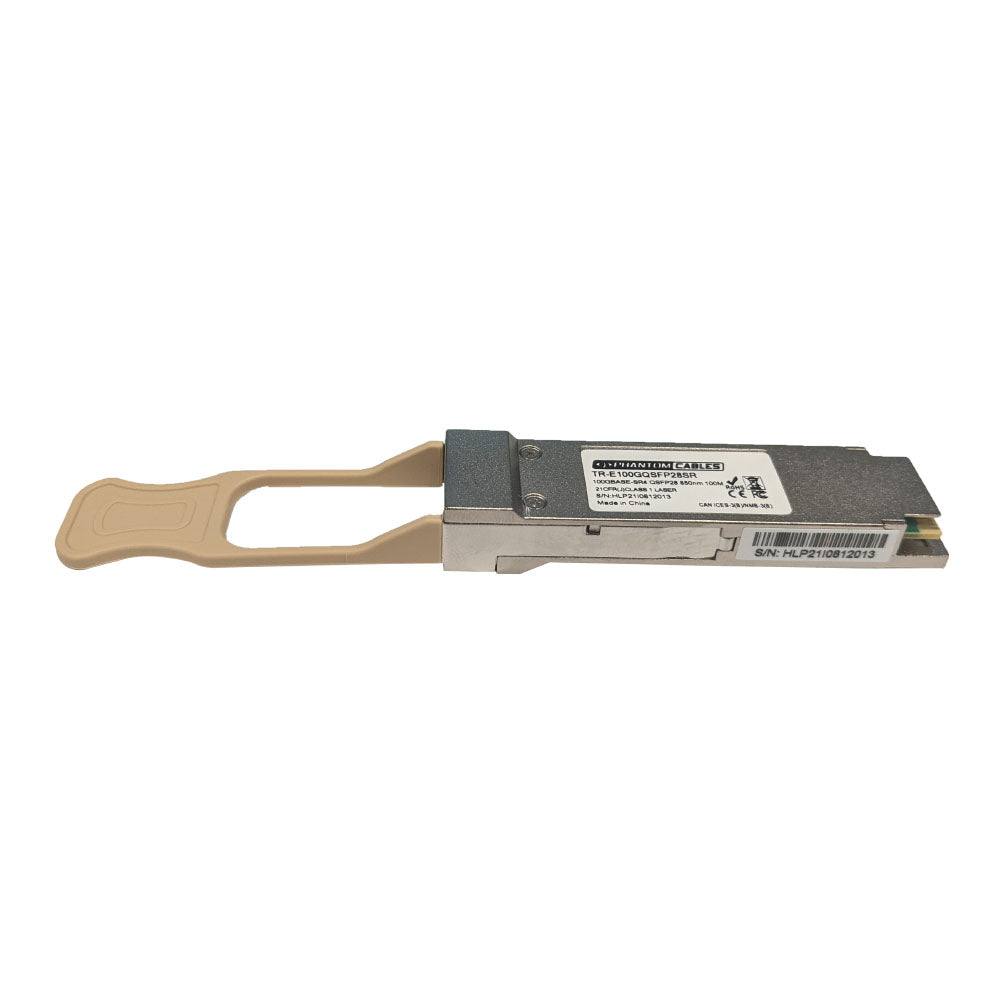

This is a Quad Small Form-factor Pluggable (QSFP) transceiver module with maximum data transfer rate of 100 Gbps up to 100m over multimode fiber cable. It is used in compatible network devices with a QSFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation. This product is not certified or endorsed by Intel.
Physical Characteristics |
Dimensions | 57mm x 15mm x 9mm (L x W x H) |
Operating Temperature | 0°C ~ 70°C |
Storage Temperature | -40°C ~ 85°C |
Laser Type | Class 1 |
Connectors |
Connector | MPO/MTP |
Performance |
Media Supported | 100GBase-SR4 Multimode Fiber |
Maximum Transmission Distance | 150m with 50/125µm OM4 MMF 100m with 50/125µm OM3 MMF |
Wave Length | 850nm |
DDM Support | Yes |
Certifications |
CE | Yes |
FCC | Yes |
RoHS | Yes |
Packaging Information |
Package Quantity | 1 |
Product Weight | 0.02 lbs [0.01kg] |
Warranty Information |
Warranty | Limited Lifetime |
