Description

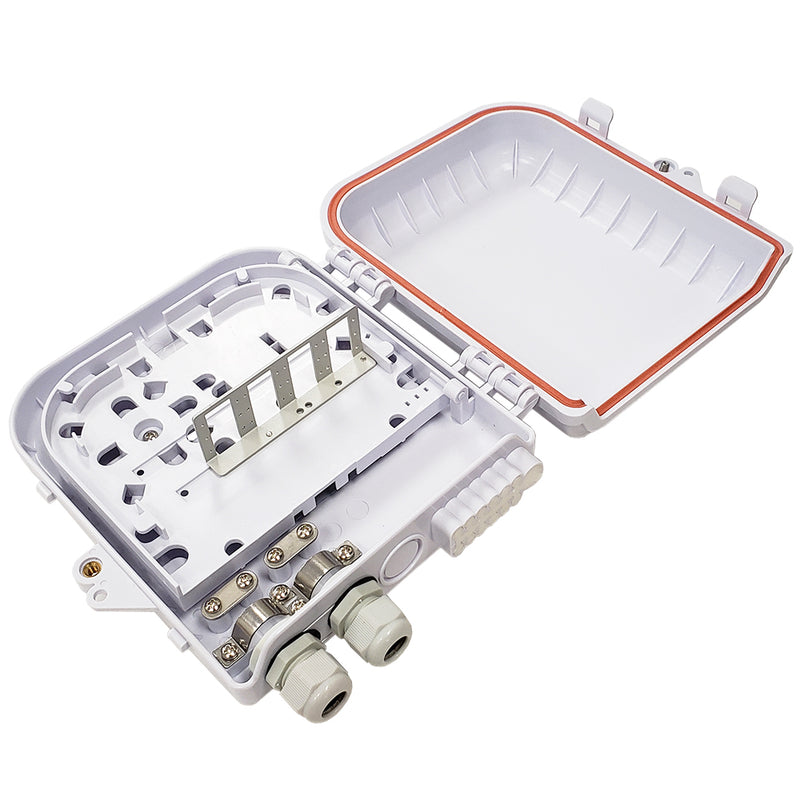

This plastic indoor/outdoor fiber optic terminal box has a latching top for easy access and accepts up to 12 fiber optic panel mount couplers. It is used to interconnect fiber splices and terminated fiber cables. The unit comes with 12 splice sleeves, clear tubing, cable ties, cable management and mounting hardware.
| Physical Characteristics | |
|---|---|
| Color | White |
| Material | Plastic |
| Product Dimensions | 8.9" W x 8.1" L x 2.3" H |
| Compatible Adapters | |
| FO-AD604-PM | SC/SC Fiber Coupler F/F Singlemode Simplex Ceramic Panel Mount, Blue |
| FO-AD604-PMA | SC/SC APC Fiber Coupler F/F Singlemode Simplex Ceramic Panel Mount, Green |
| FO-AD804-PM | SC/SC Fiber Coupler F/F Multimode 50 Micron 10gig OM3/OM4 Simplex Ceramic Panel Mount, Aqua |
| FO-AD108-PM | LC/LC Fiber Coupler F/F Multimode OM1/OM2 Duplex Ceramic Panel Mount, Beige |
| FO-AD208-PM | LC/LC Fiber Coupler F/F Singlemode Duplex Ceramic Panel Mount, Blue |
| FO-AD208-PMA | LC/LC APC Fiber Coupler F/F Singlemode Duplex Ceramic Panel Mount, Green |
| FO-AD408-PM | LC/LC Fiber Coupler F/F Multimode 50 Micron 10gig OM3/OM4 Duplex Ceramic Panel Mount, Aqua |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.25 lbs [0.57kg] |
| Contents | |
| Included in Package | 1 - Fiber Terminal Box 1 - Clear Tubing 1 - Key 12 - Splice Sleeves 4 - Cable Ties Mounting Hardware |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| PP-F1658-WH | 1.25 lb |
