Hospital Grade 5-15P to Locking C13 Power Cable - 18AWG - SJT (10A/125V)


Length: 6ft
Price:
Sale price$10.60 CAD
Stock:
In stock


Description

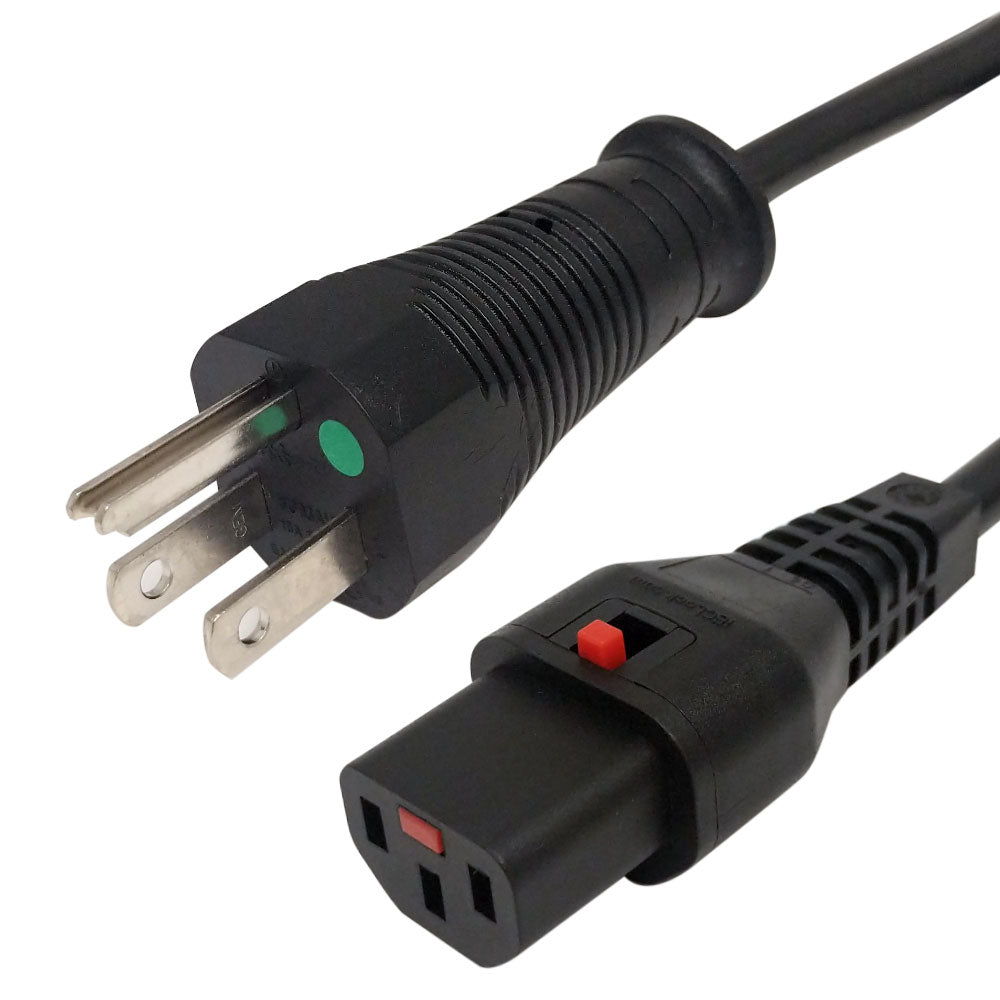

This power cord consists of a 5-15P hospital grade male on one end and a locking C13 female on the other end. It is typically used to connect hospital equipment to a PDU or a wall outlet. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping. The unique lockable C13 female connectors can be used with any standard IEC inlet and guards against accidental disconnection of computers, PDU's, servers and most network devices.

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 18AWG
Jacket Heavy Duty SJT
Jacket Material PVC - Polyvinyl Chloride
Jacket Fire Rating FT2
Strain Relief Molded PVC
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A IEC 60320 Locking C13 - c(UL)us
Connector B NEMA 5-15P Hospital Grade - c(UL)us
Performance
Power Rating 10 Amp / 125 Volt
Approvals
c(UL)us
Yes
CSA Yes
ISO ISO 9001:2008
Environmental
RoHS Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
6ft 10ft
0.48 lbs 0.73 lbs
SKU Options Weight
PWL-H105-06 6ft 0.65 lb
PWL-H105-10 10ft 1.03 lb
