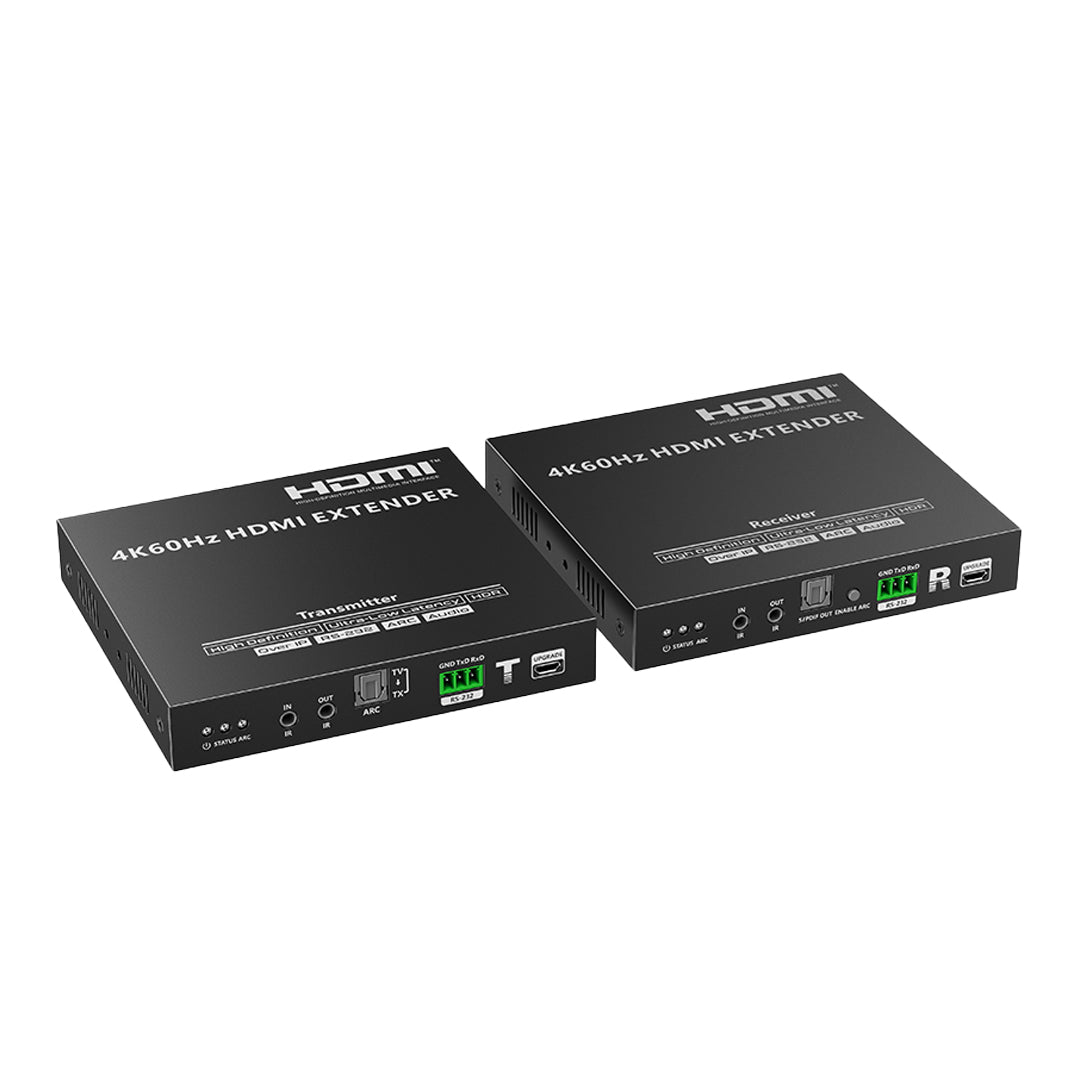

HDMI Extender Over CAT6/6A Cable with Loopout & ARC - 4K 4:4:4 - 120m

Video ExtendersSKU: VE-HDMI-017

Price:
Sale price$553.40 CAD
Stock:
In stock


Description

This UHD HDMI Transmit signals up to 120 meters over Cat6/6A/7 cable with ultra-low latency at 4K@60Hz 4:4:4 HDR. It supports point-to-point connection via gigabit switch, and cascading switches. This includes HDMI loop out, bi-directional IR passthrough, ARC, RS-232 passthrough, and audio extraction via S/PDIF and ideal for security monitoring, rail transit, broadcasting, smart cities, conferences, and more.

Performance
Resolutions 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 1080p@24/25/50/60Hz, 720p@50/60Hz, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1440x900, 1400x1050, 1600x900, 1680x1050, 1920x1080, 1920x1200
Maximum Transfer Rate 18Gbps
HDMI Length ≤ 5m
Connection Types One-to-one connection
One-to-many connection
Switch cascading
Transmission Distance CAT5/5e ≤ 80m
CAT6/6A/7 ≤ 120m
HDMI Out LPCM2.1CH//DTS-Audio/ Dolby Atmos DD+
S/PDIF Out(ARC) LPCM 2.1CH/DTS-Audio/Dolby Digital 5.1CH
Audio Sampling Rate 44.1kHz, 48kHz, 88kHz, 96kHz, 176kHz, 192kHz
Audio Bit Depth 16bit, 24bit
ARC Supported
Receiving Range ≤ 5m
Infrared frequency 20kHz~60kHz
Protection - ESD protection
1a> Contact discharge level 2 (±4KV)
1b> Air discharge level 3 (±8KV)
- Implementation of the standard: IEC61000-4-2
- Lightning protection, Surge protection
CEC supported
RS-232 (GND/RxD/TxD) Default baud rate: 115200 Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400
Physical Characteristics
Color Black
Housing Metal Enclosure (Iron)
Operating Temperature Working : -20℃~50℃
Storage : -30℃~70℃
Humidity 0~90% RH (no condensation)
Dimensions 124.6 (L) x115.0 (W) x21.3 (H) mm
Power
Power Consumption TX/RX:7.5W
Power Supply DC 5V/2A
Connector(s)
Transmitter HDMI Input Female, CAT6/6A Female
Receiver HDMI Output Female, CAT6/6A Female
Approvals
Power Adapter c(UL)us
Environmental
RoHS Yes
Certification(s)
CE Yes
FCC Yes
Packaging Information
Package Quantity 1
Package Weight 2.95 lbs [1.33kg]
Contents

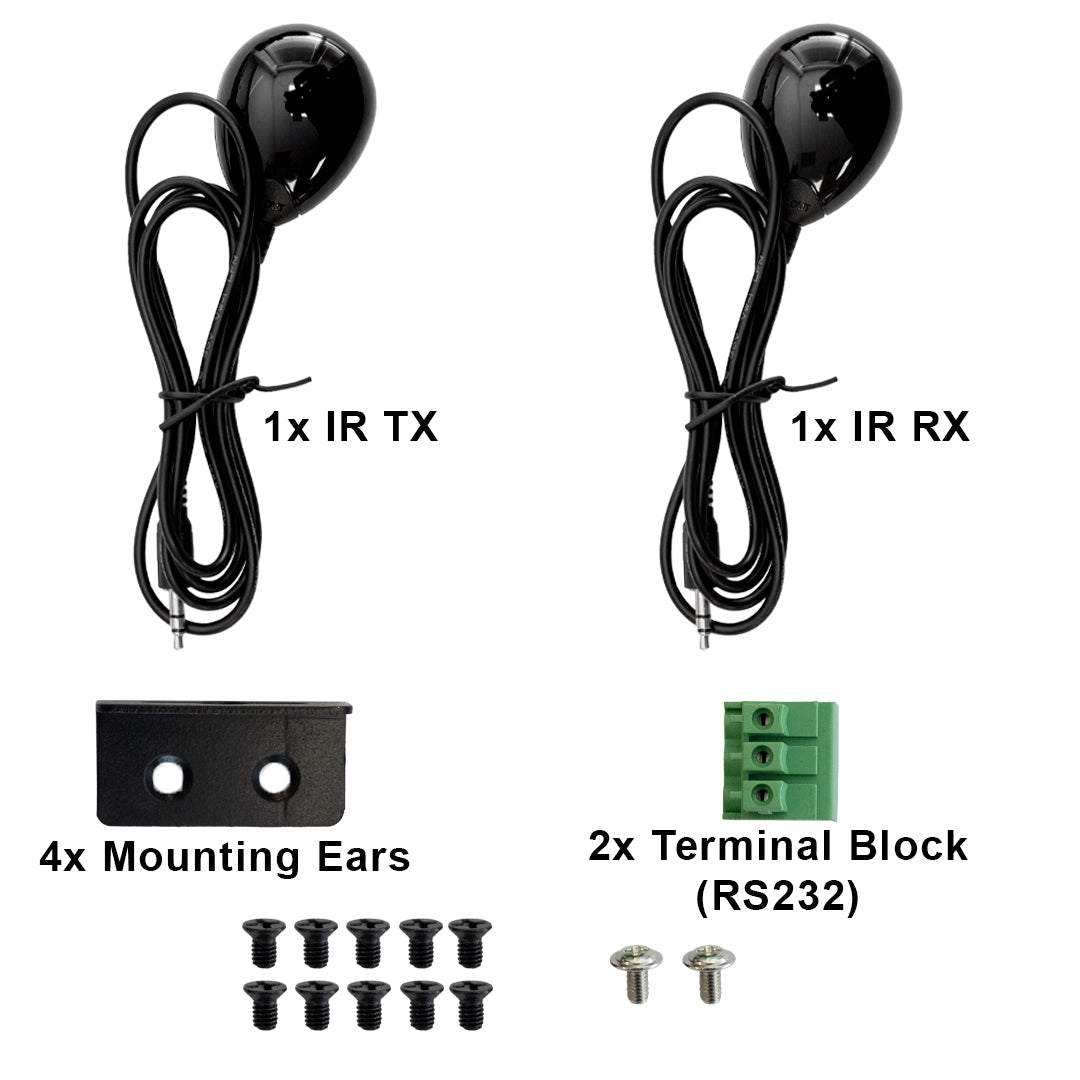

Included in Package 1 - Transmitter
1 - Receiver
1 - IR Tx
1 - IR Rx

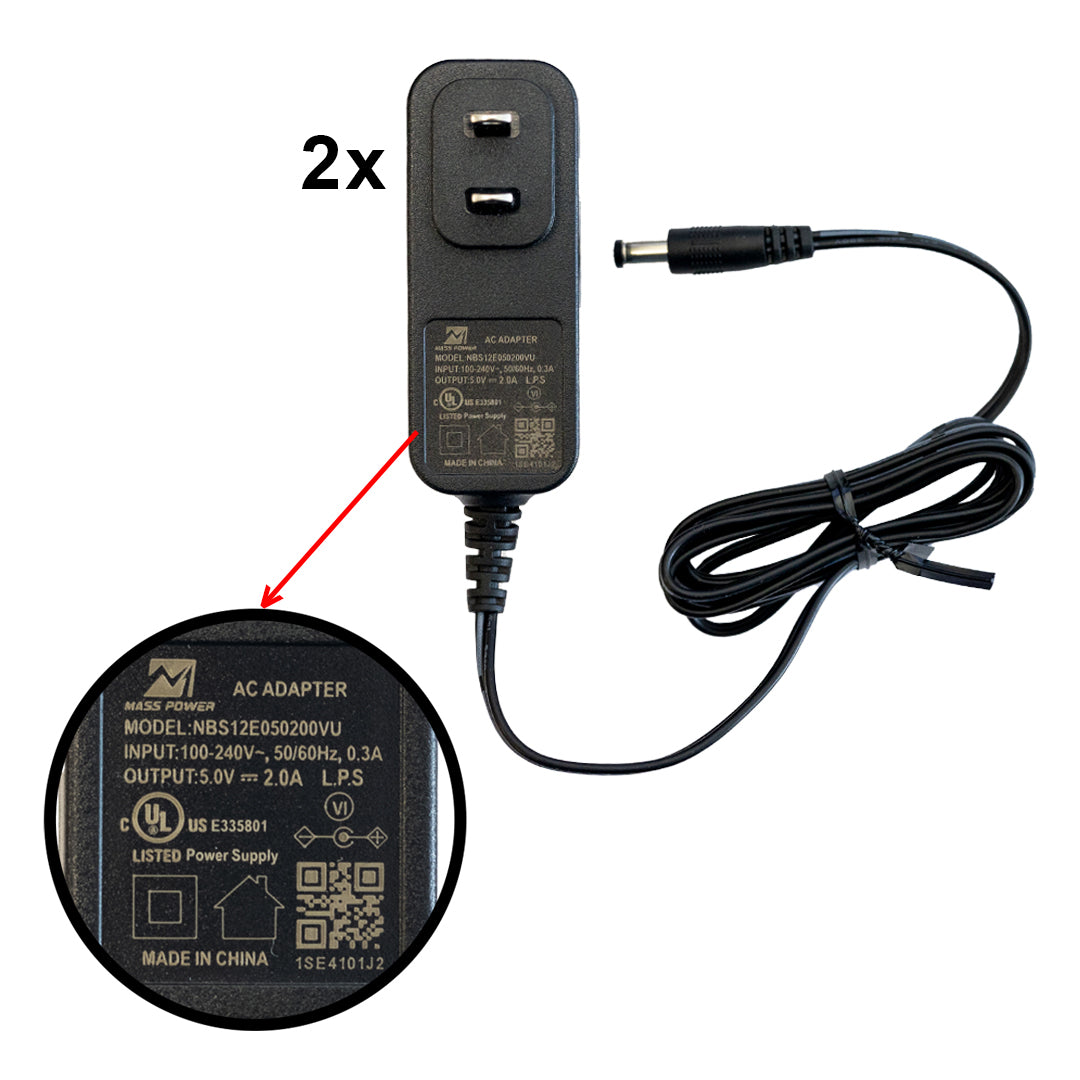

2 - DC5V/2A Power Adapter

4 - Mounting Ears

10 - Screw

2 - RS-232 Terminal Block
1 - Manual
SKU Weight
VE-HDMI-017 2.95 lb
