This 8 port HDMI video extender allows you to extend a maximum of eight 3D/HD displays up to 131ft (40 meters) away from your source device over Cat6 cables at a resolution of 4Kx2K@30Hz. It also has a single HDMI output for a local monitor.
*Please note that the transmitter must be placed in a well ventilated area to avoid overheating.
|Dimensions||Transmitter: 295 x 82 x 18mm (W x D x H)
Receiver: 79.5 x 69 x 16.5mm (W x D x H)
|Operating Temperature||0C to +40C (+32F to +104F)|
|Storage Temperature||-20C to +60C (+-4F to +140F)|
|Relative Humidity||20~90% RH (non-condensing)|
|Power Supply||12V/2.5A DC Power (US/EU Standards, CE/FCC/RoHS Certified)

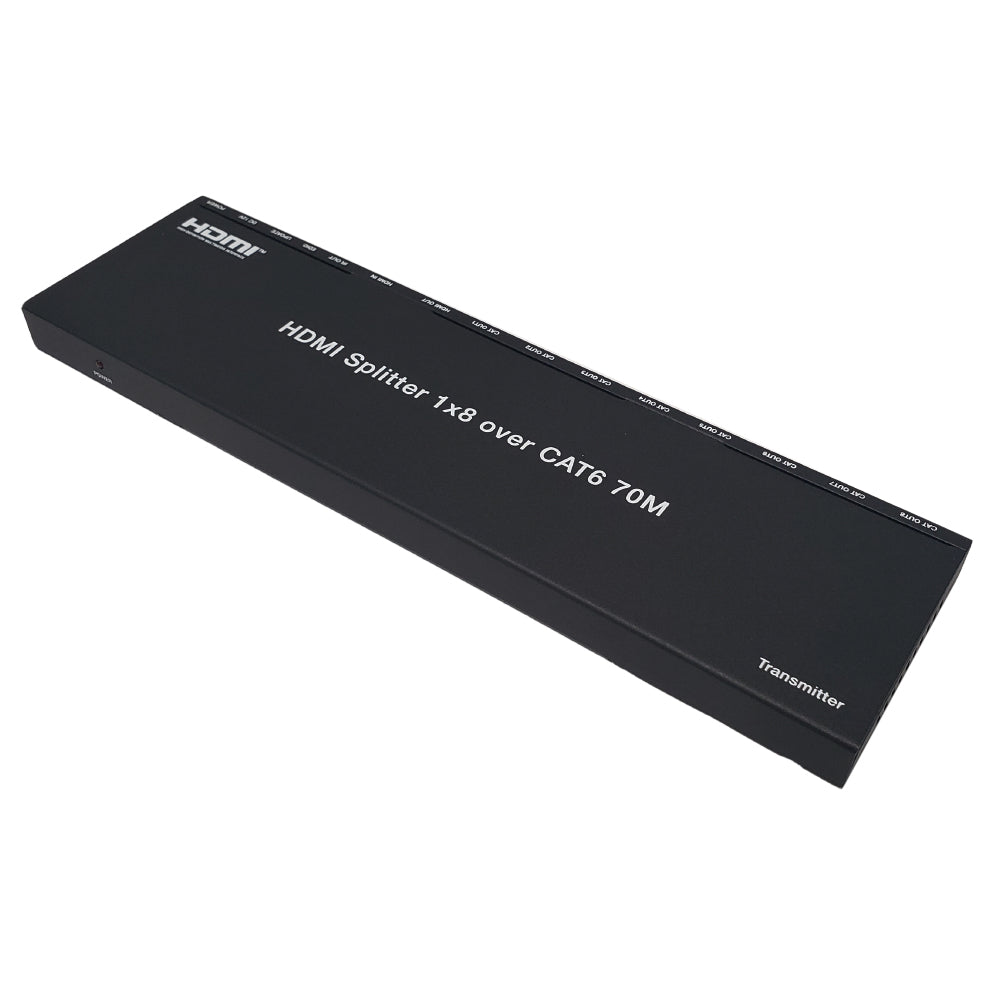

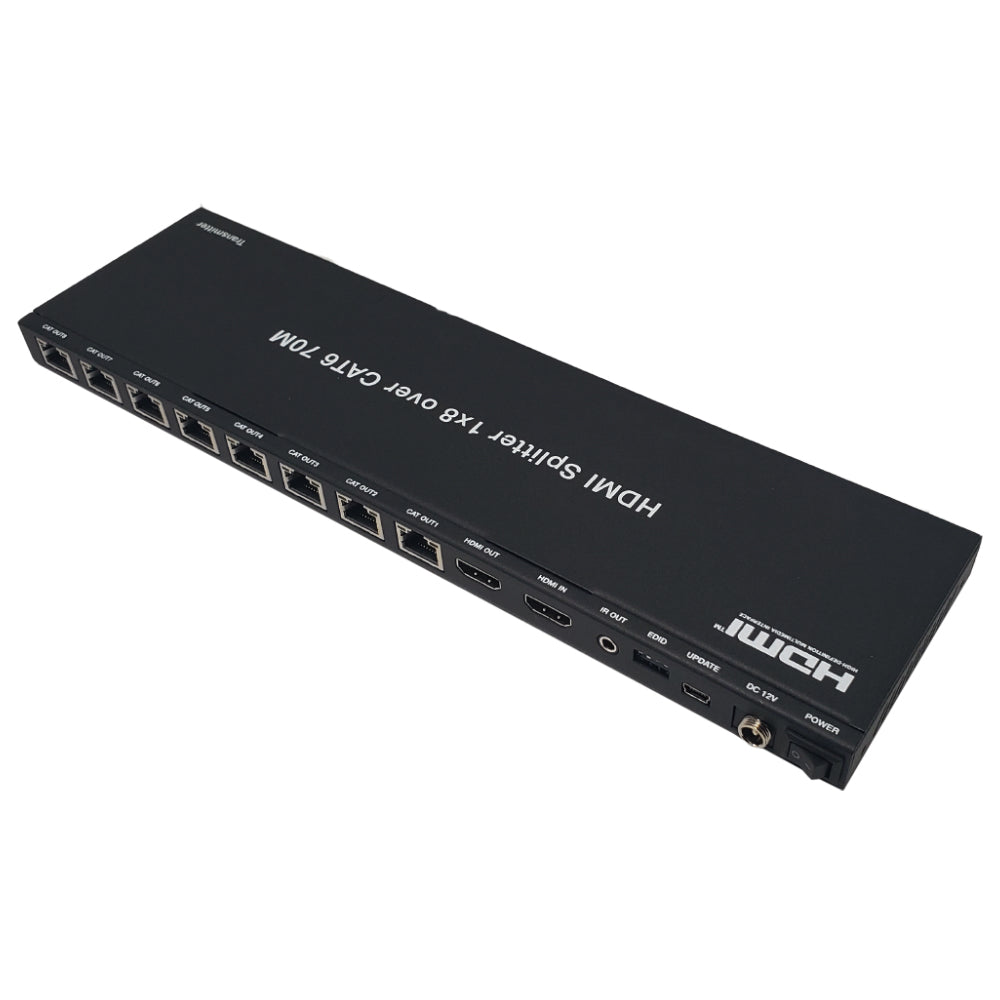

|Transmitter x 1||1 - HDMI Female Input
1 - HDMI Female Output
8 -RJ45 Female Output
1 - IR Output
1 - EDID Dip Switch
1 - Micro USB Update Port

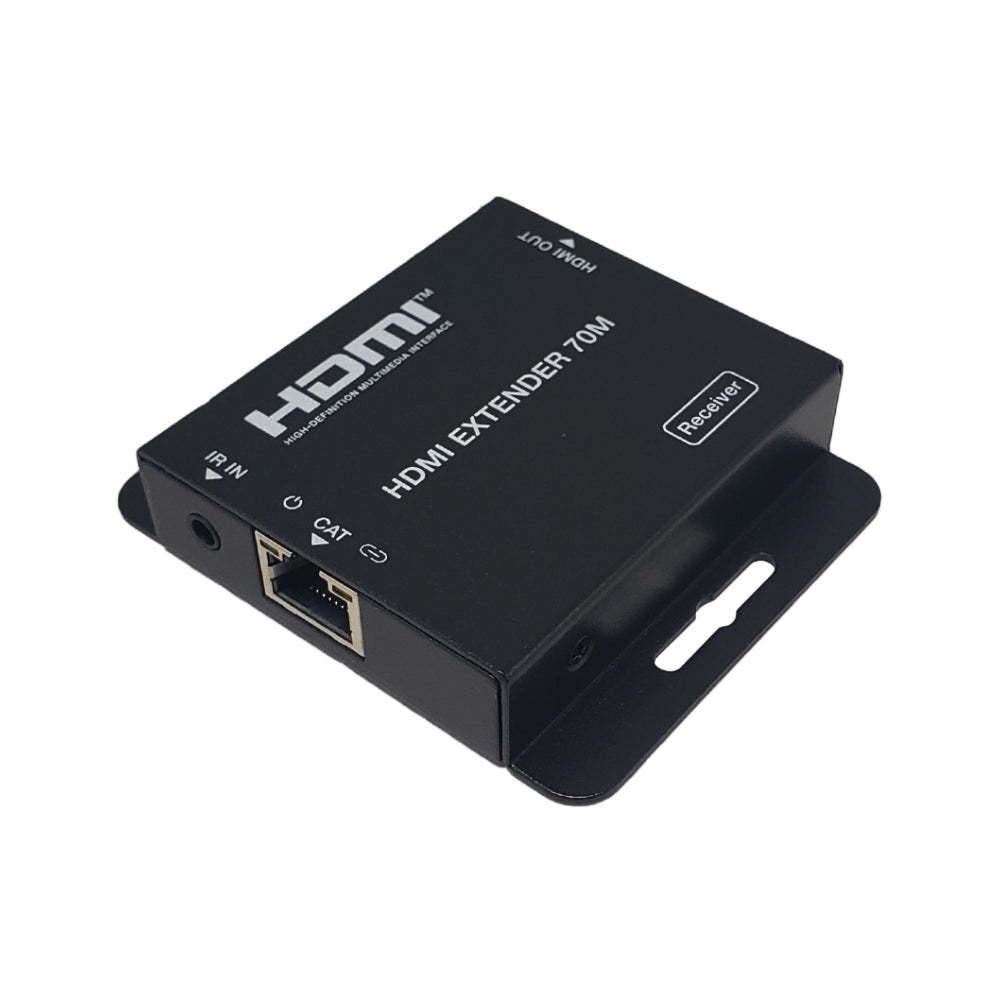

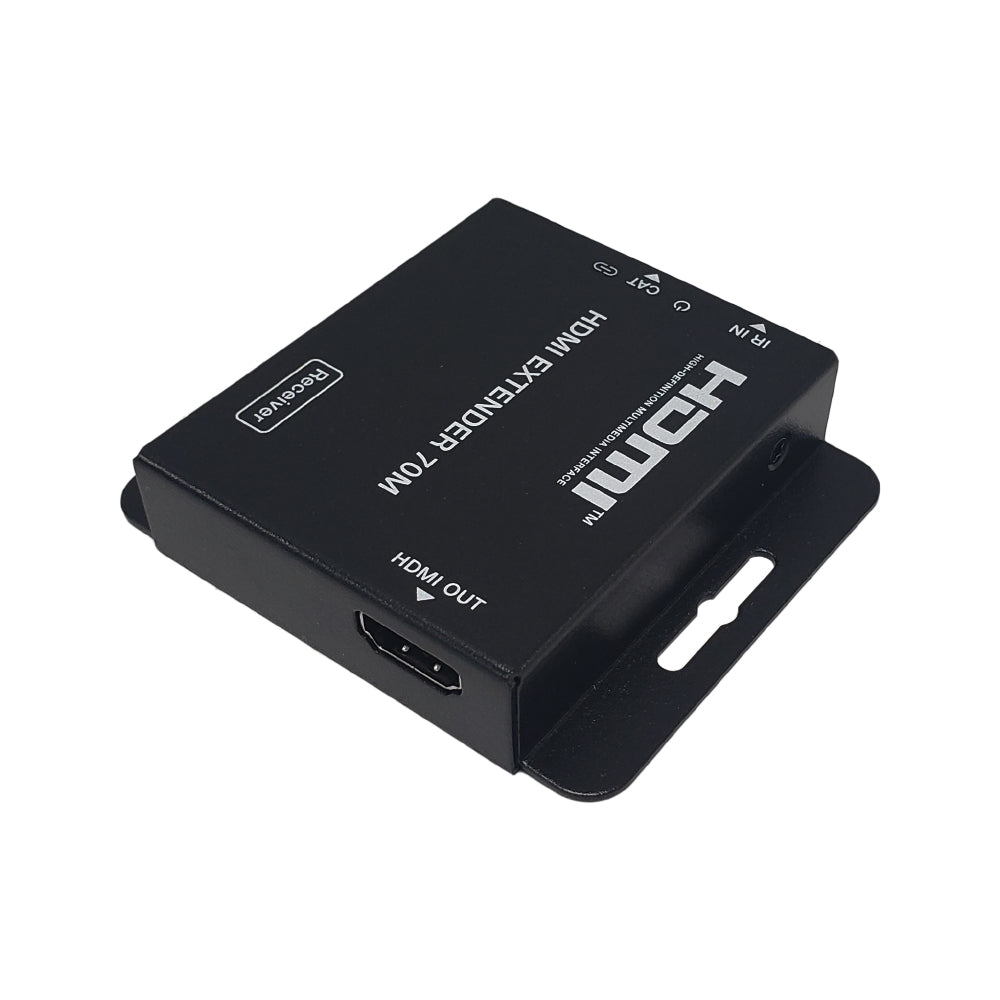

| Receiver x 8
|| 1 - HDMI Female Output
1 - RJ45 Female Input
1 - IR Input
|Video Resolution||480i ~1080p50/60Hz, 4Kx2K@30Hz (4:4:4)|
|Color Depth||8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K@30Hz)|
|Color Space||RGB, YCbCr 4:4:4/4:2:2. YUV 4:2:0|
|Audio Formats||LCPM 7.1CH, Dolby True HD and DTS-HD Master Audio|
|Transmission Distance||1080p@60Hz - 70m
4K@30Hz - 40m
|HDMI Compliance||HDMI 1.4|
|HDCP Compliance||HDCP 1.4|
|Supports||Advanced EDID management
12V POC function (only from transmitter to receiver)
|Product Weight||5.07 lbs [2.30kg]|

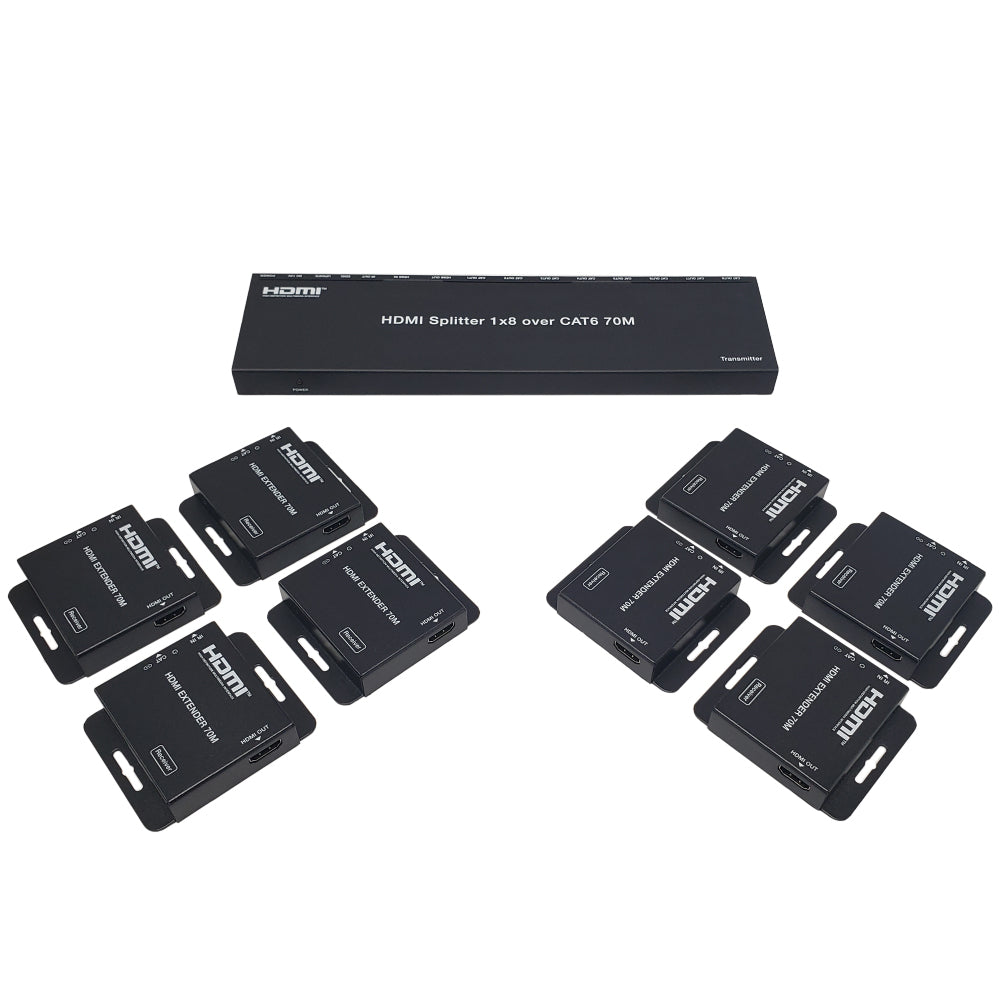

|Included in Package|| 1 - HDMI 1x8 Splitter
8 - Receivers

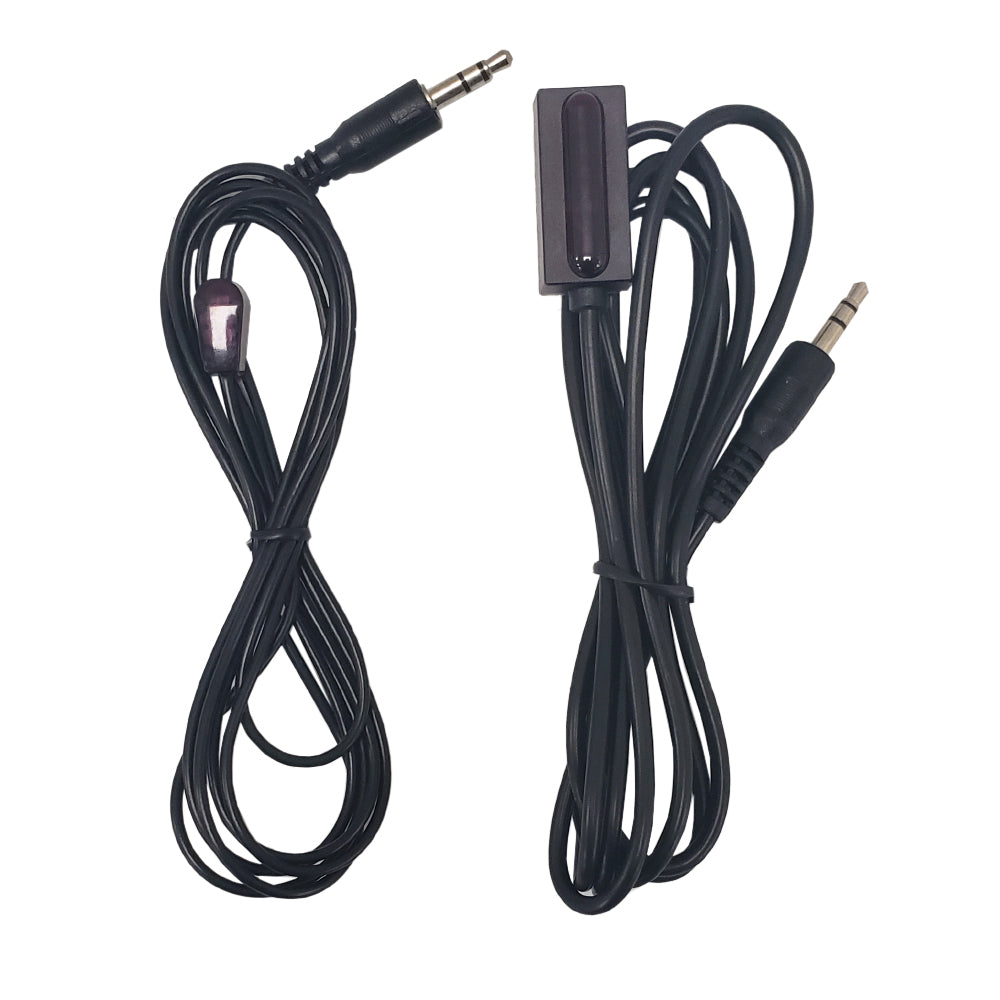

1 - IR Blaster
8 - IR Receiver
2 - Mounting Ears

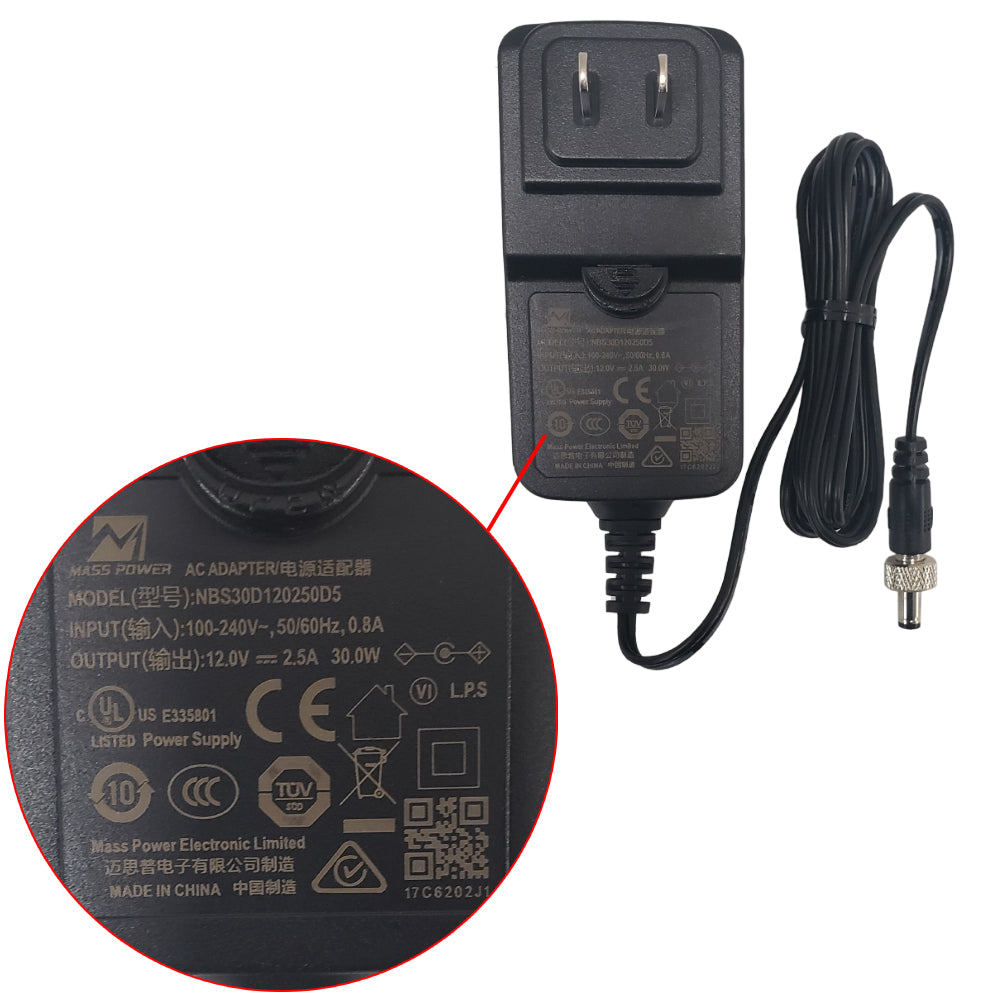

1 - 12V/2.5A DC Locking Power Adapter
8 - Machine Screws (KM3*4)
1 - User Manual
