HDMI 4-port Extender Over One Cat6 UTP Cable - 4K@30Hz YUV 4:4:4 - 40m

Video ExtendersSKU: VE-HDMI-008B

Price:
Sale price$357.70 CAD
Stock:
In stock


Description

This 4 port HDMI video extender allows you to extend a maximum of four 3D/HD displays up to 131ft (40 meters) away from your source device over Cat6 cables at a resolution of 4K@30Hz.

Application

Physical Characteristics
Color Black
Housing Metal Enclosure
Dimensions Transmitter: 210W x 83D x 18H mm
Receiver: 79.5W x 69D x 16.5H mm
Operating Temperature 0 ~ 40℃ / 32 ~ 104℃F
Storage Temperature -20 ~ -60℃ / -4 ~ 140℃F
Relative Humidity 20~90% RH (non-condensing)
Power
Input Voltage 125V
Power Supply 12V/2.5A DC Power (US/EU Standards, CE/FCC/RoHS certificated)
Power Consumption 11W
Connector(s)

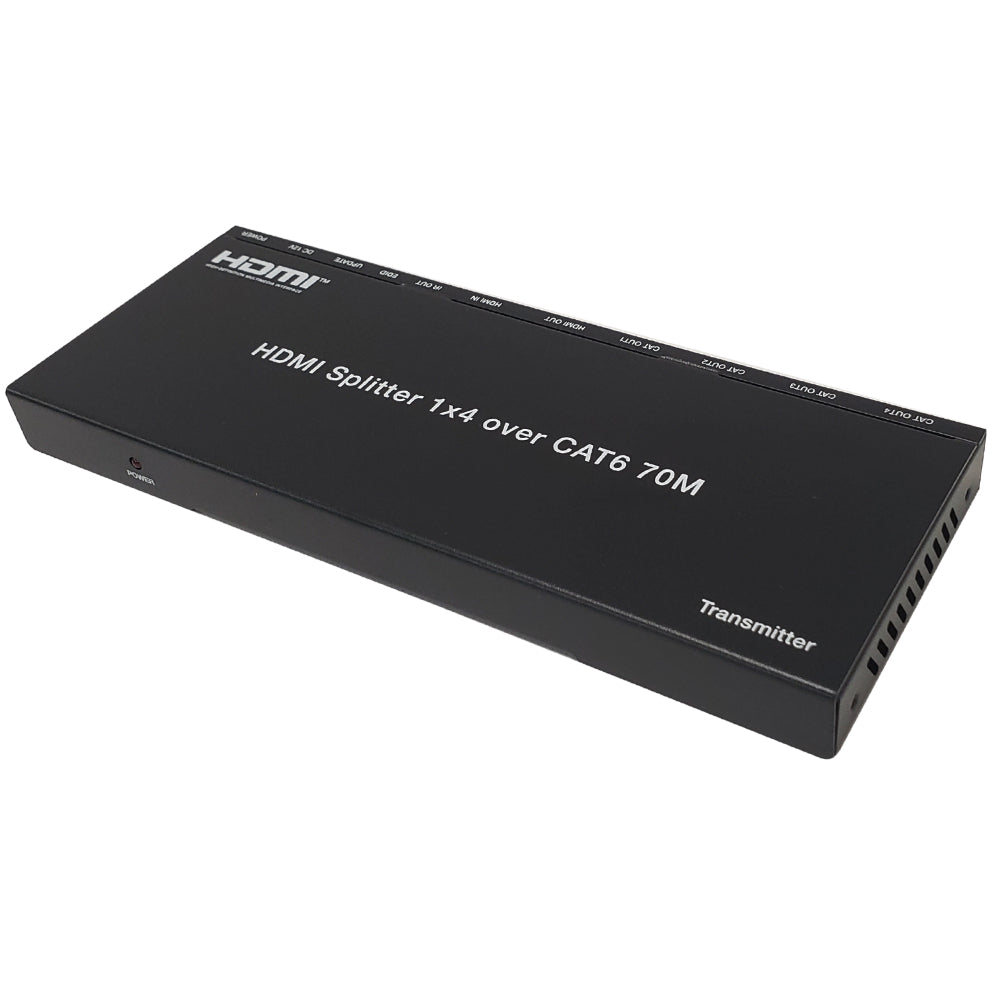

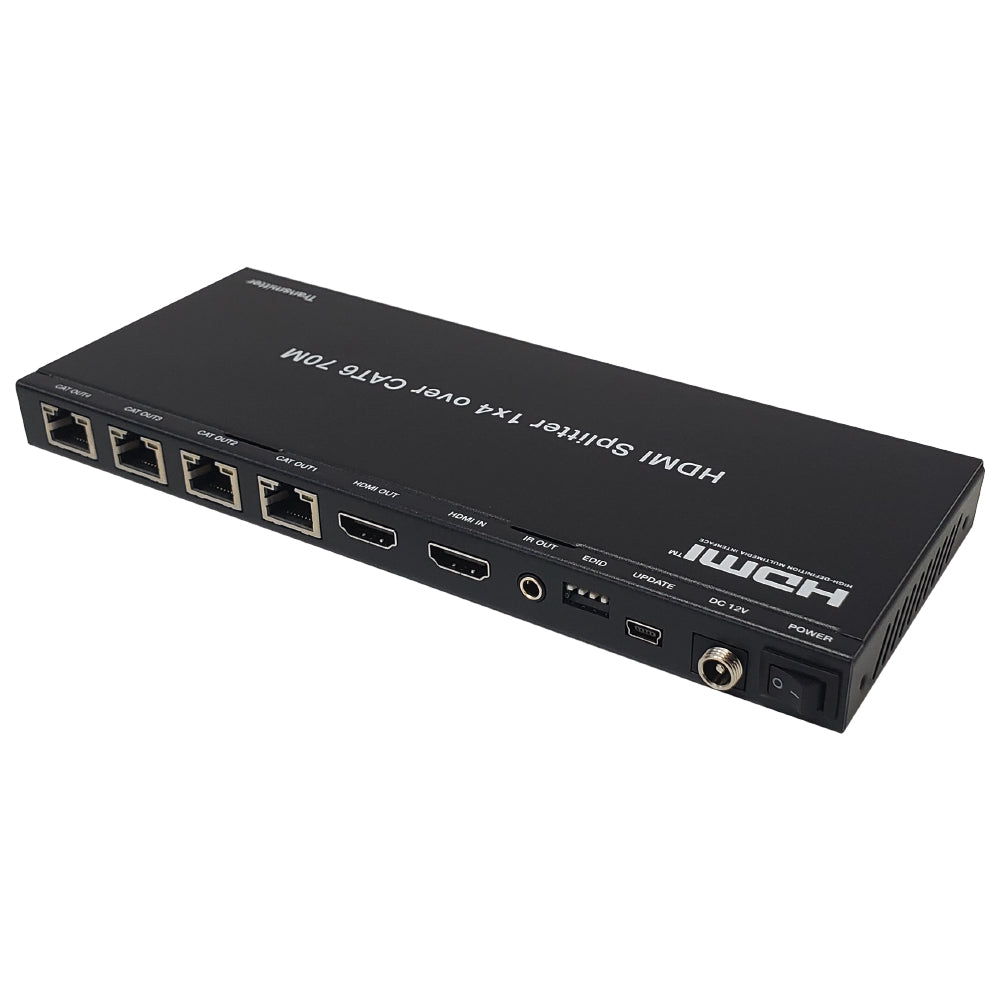

Transmitter Input:
1x HDMI IN [Type A, 19-pin female]
Outputs:
1x HDMI OUT [Type A, 19-pin female]
4x CAT OUT [RJ45]
Controls:
1x IR Out [3.5mm Stereo Mini-jack]
1x EDID DIP Switch [4-pin]
1x Update [Micro USB]

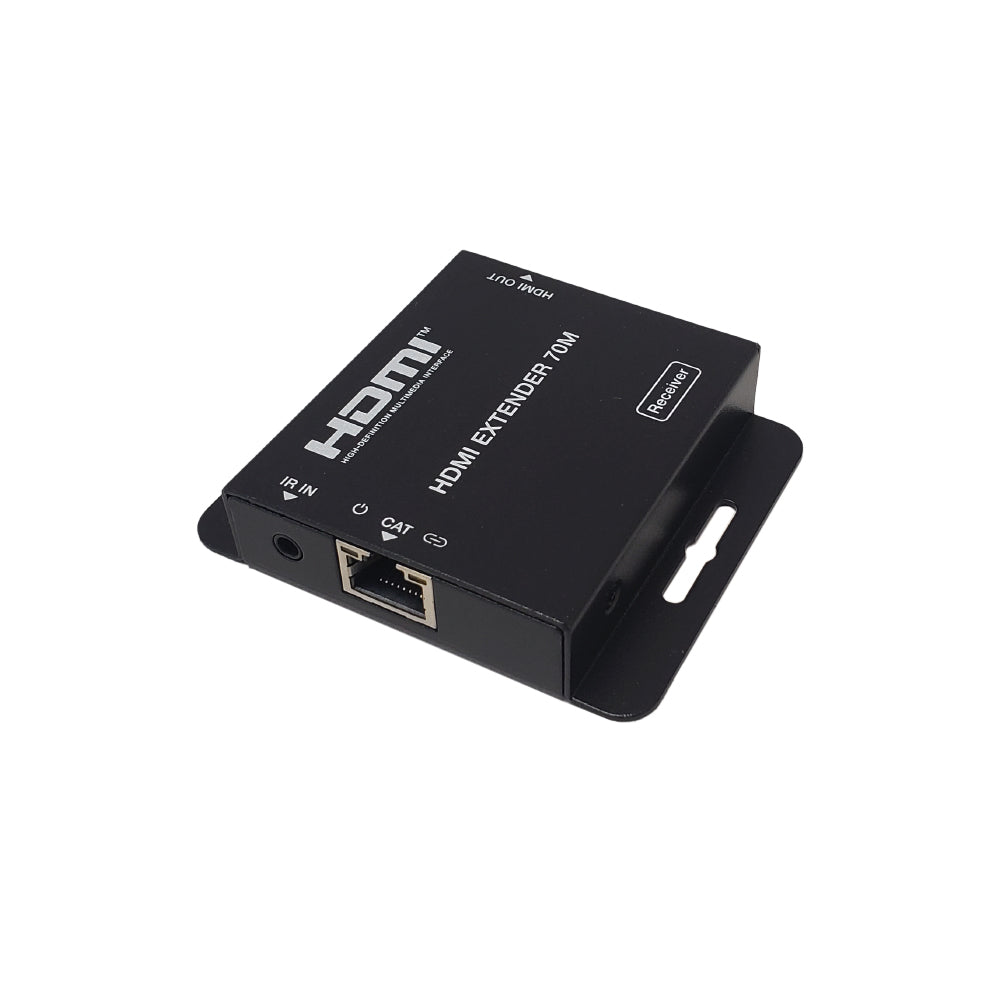

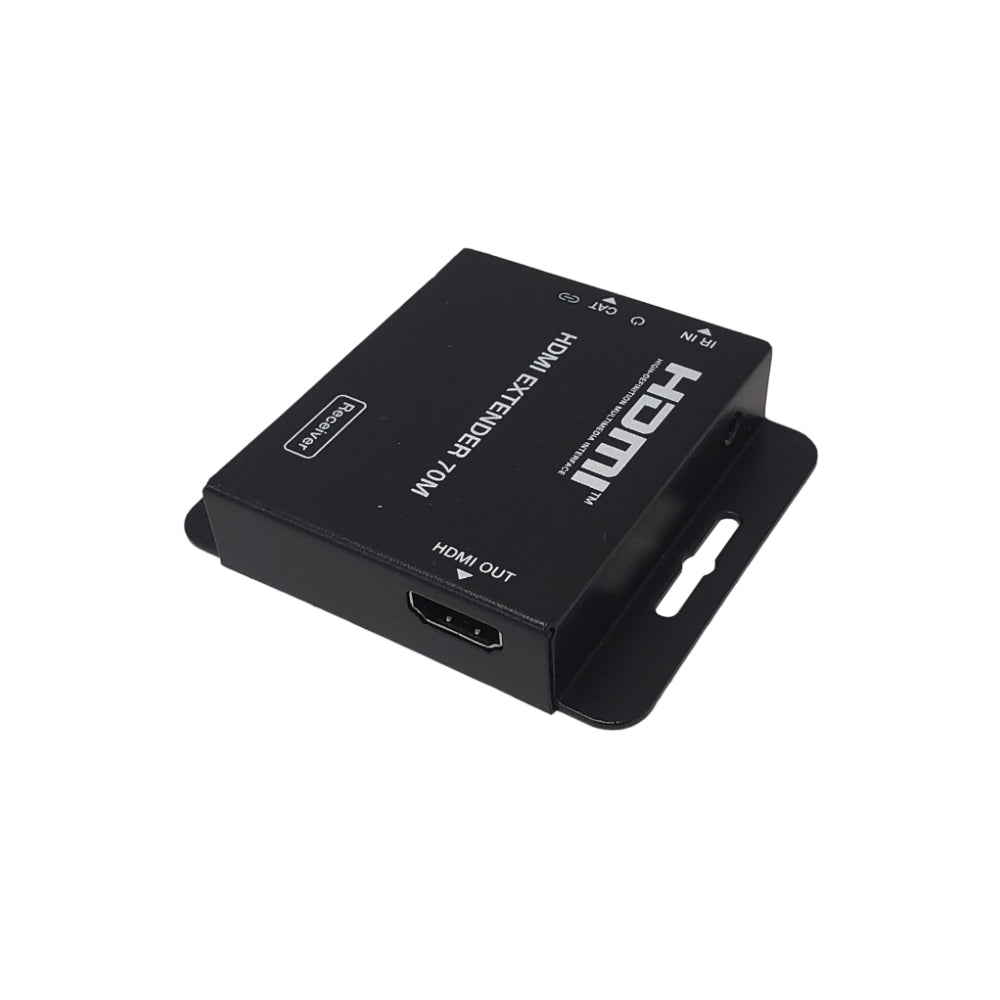

Receiver Input:
1x IR IN [3.5mm Stereo Mini-jack]
1x CAT IN [RJ45, 8-pin female]
Outputs:
1x HDMI OUT [Type A, 19-pin female
Performance
Video Resolution 480i ~ 1080p 50/60Hz, 4Kx2K@30Hz (4:4:4)
Video Bandwidth 297MHz/10.2Gbps
Transmission Range 1080p@60Hz - Up to 70m (230ft)
4K@30Hz - Up to 40m (131ft)
Color Depth 8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K@30Hz)
Color Space RGB, YCbCr4:4:4/4:2:2. YUV4:2:0
Audio Formats LPCM 7.1CH, Dolby True HD, and DTS-HD Master Autio
ESD Protection Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
HDMI Compliance HDMI 1.4
HDCP Compliance HDCP 1.4
Approvals
Power Adapter c(UL)us, CE, YUV, CCC
Environmental
RoHS Yes
Certification(s)
CE Yes
FCC Yes
Packaging Information
Package Quantity 1
Product Weight 1.27 lbs [0.57kg]
Contents

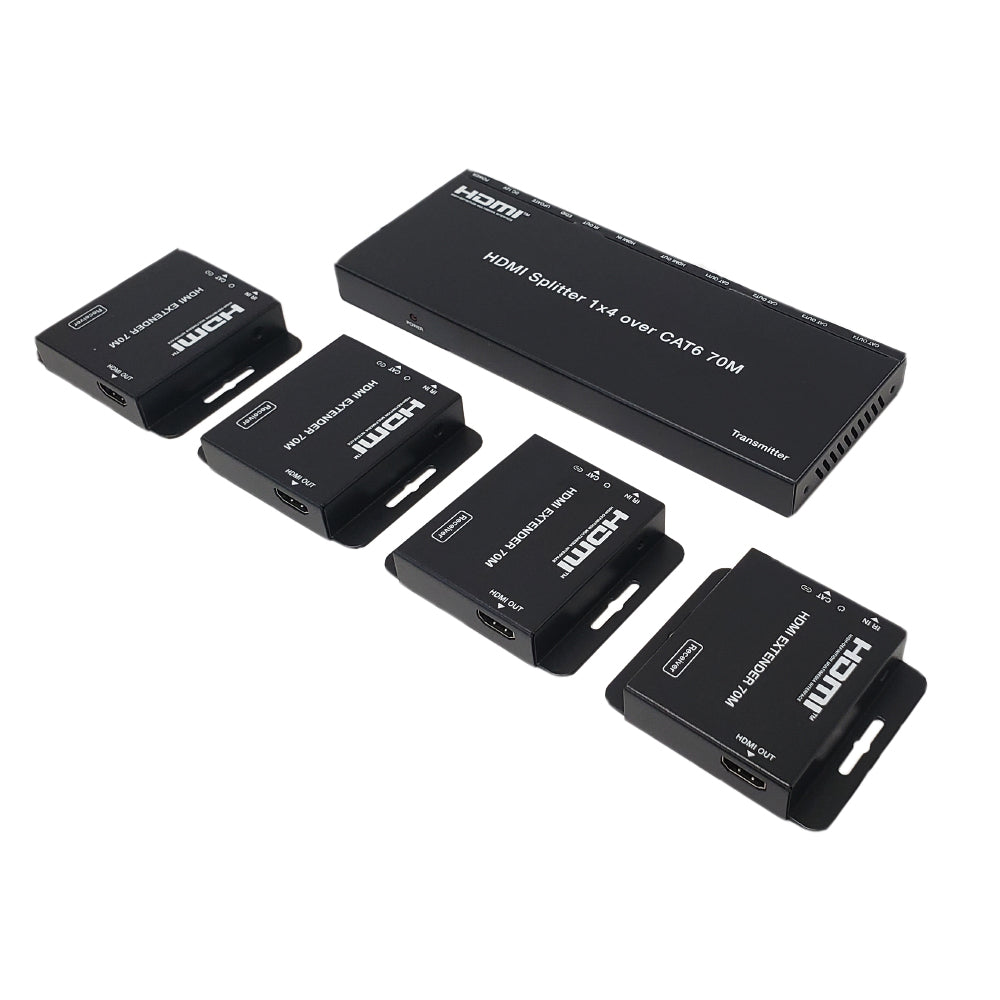

Included in Package 1 - HDMI Splitter
4 - CAT Receiver
1 - IR Blaster Cable (1.5m)
1 - IR Receiver Cable (1.5m)
2 - Mounting Ears

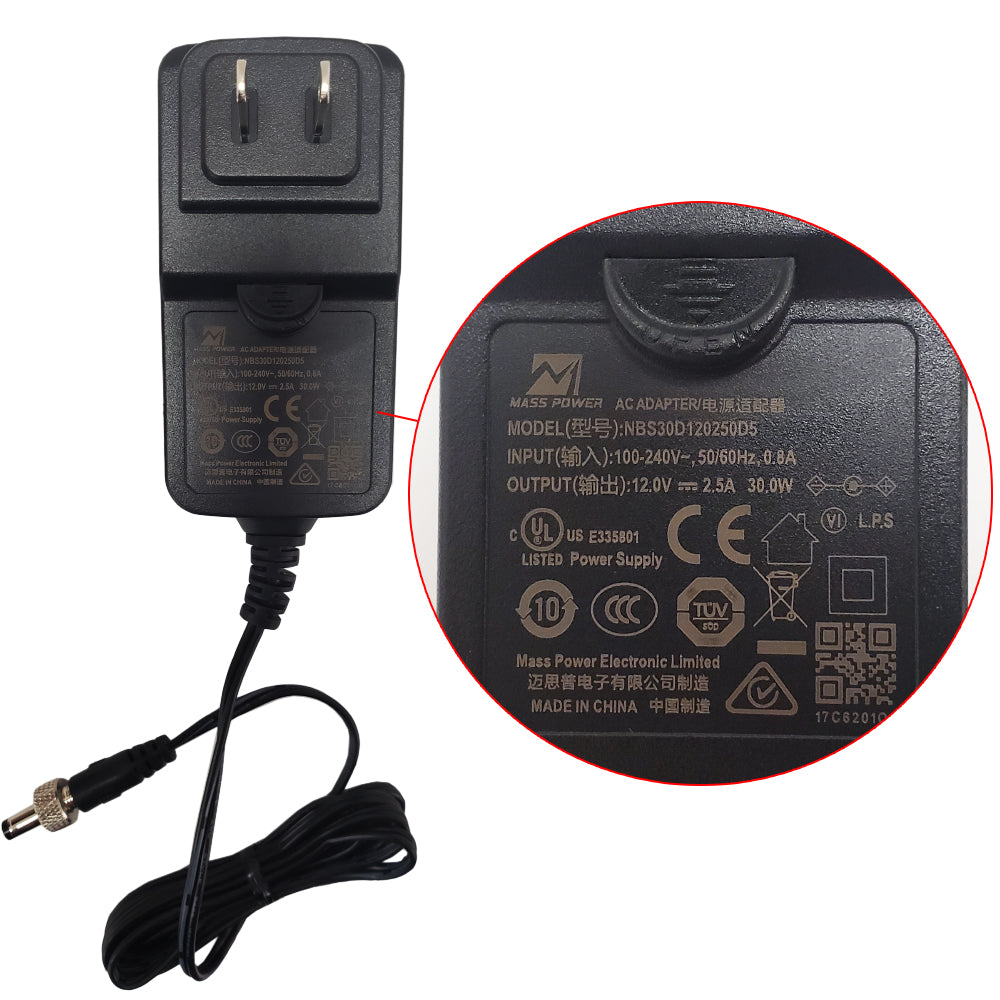

1 - 12V/2.5A DC Locking Power Adapter
8 - Machine Screw (KM3*4)
1 - User Manual
