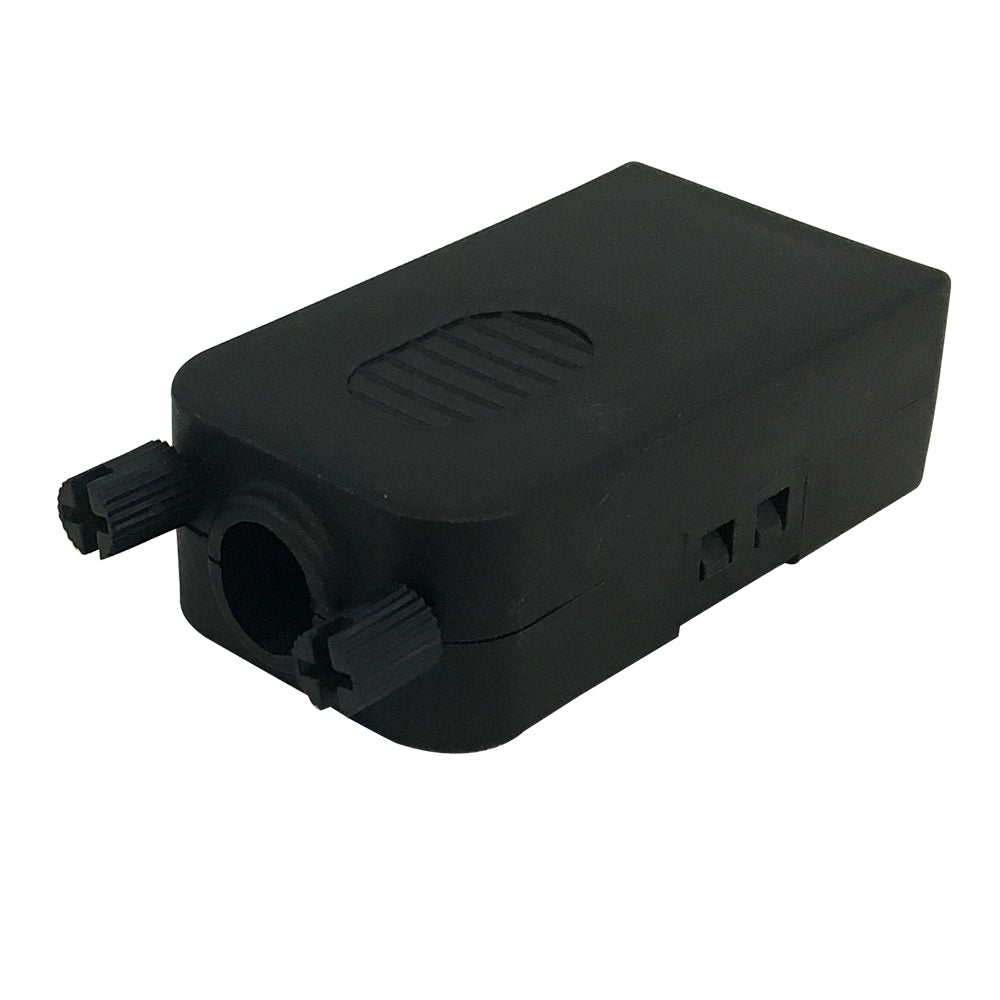

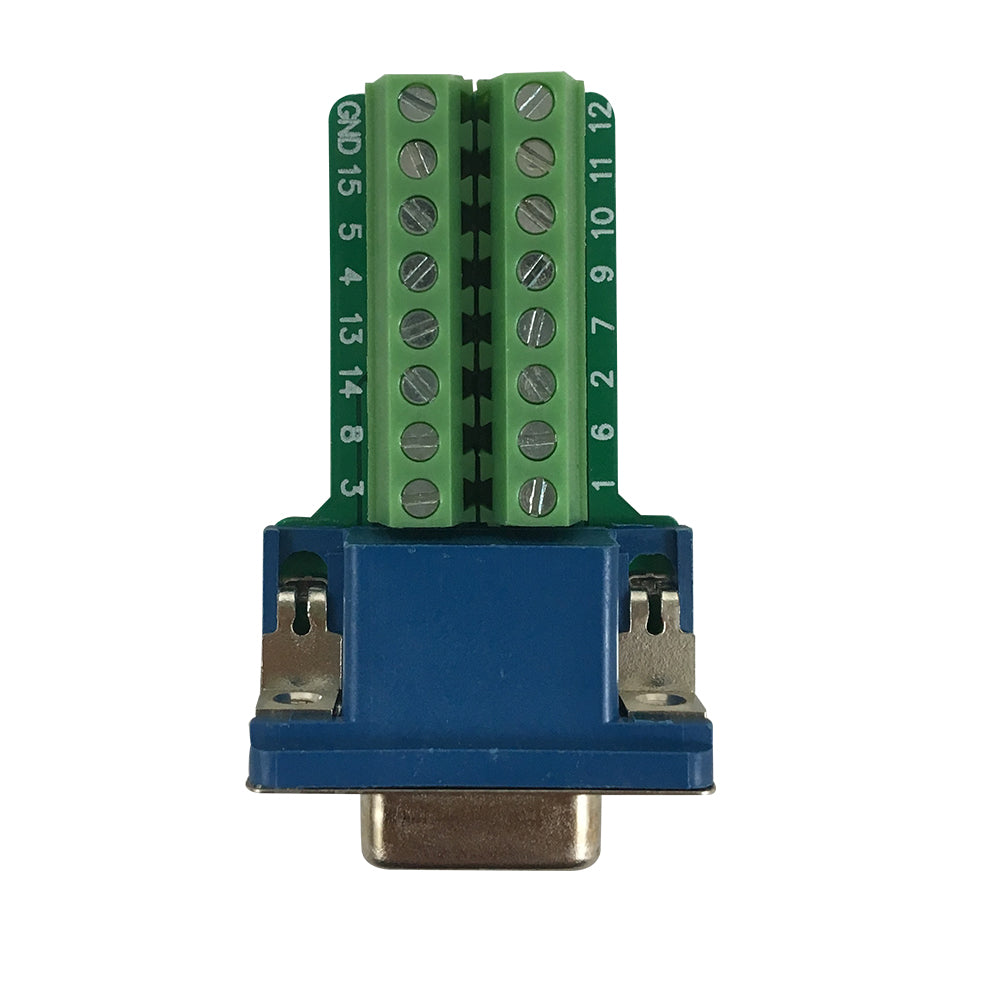

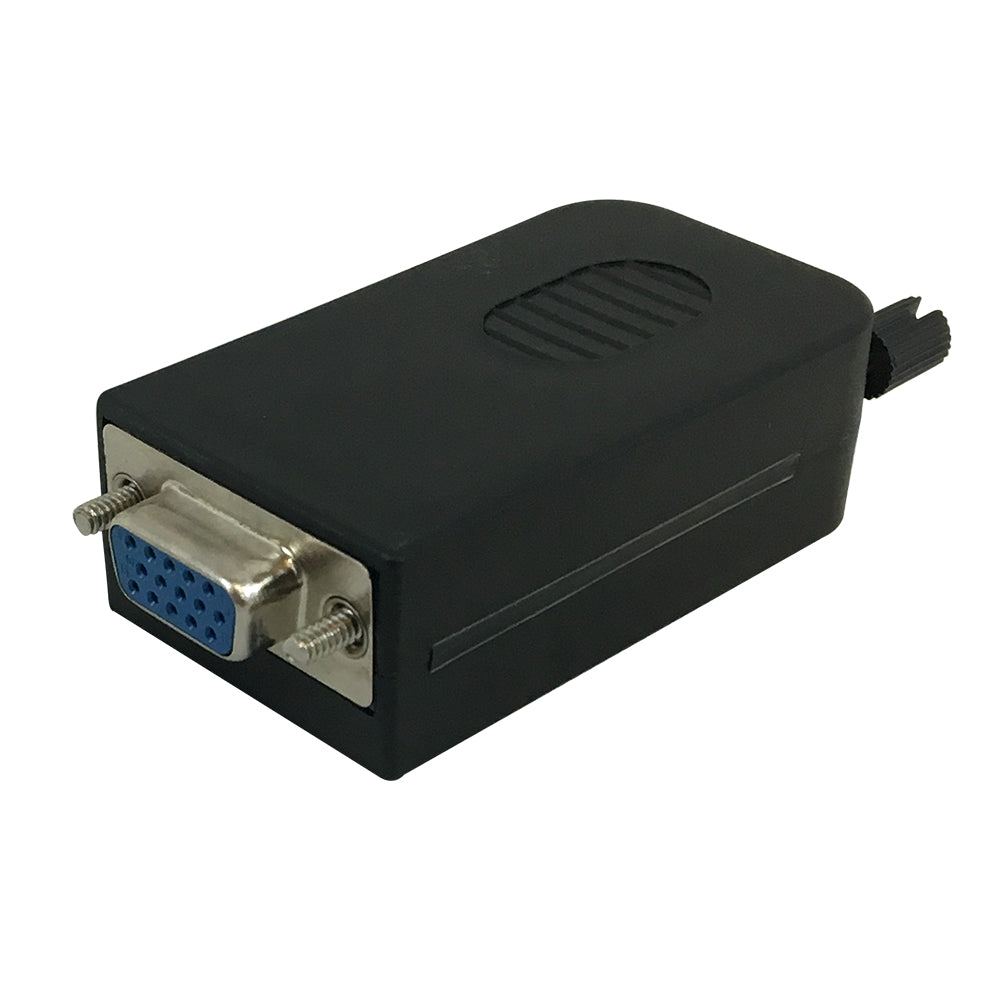

This field termination kit has a HD15 female connector on one end and accepts raw cable for a screw down termination on the other. It is typically used to terminate D-sub cables onsite quickly and easily without having to solder or crimp contacts.
Physical Characteristics |
Color | Black |
Housing Material | PVC |
Connector Plating | Nickel |
Connector(s) |
Wire Gauge | 12AWG – 24AWG |
Electrical Characteristics |
Max Voltage | 300V |
Max Amperage | 2A |
Connector | HD15 Female |
Environmental |
RoHS | Yes |
Package Information |
Package Quantity | 1 |
Product Weight | 0.08 lbs [0.04kg] |
Contents |

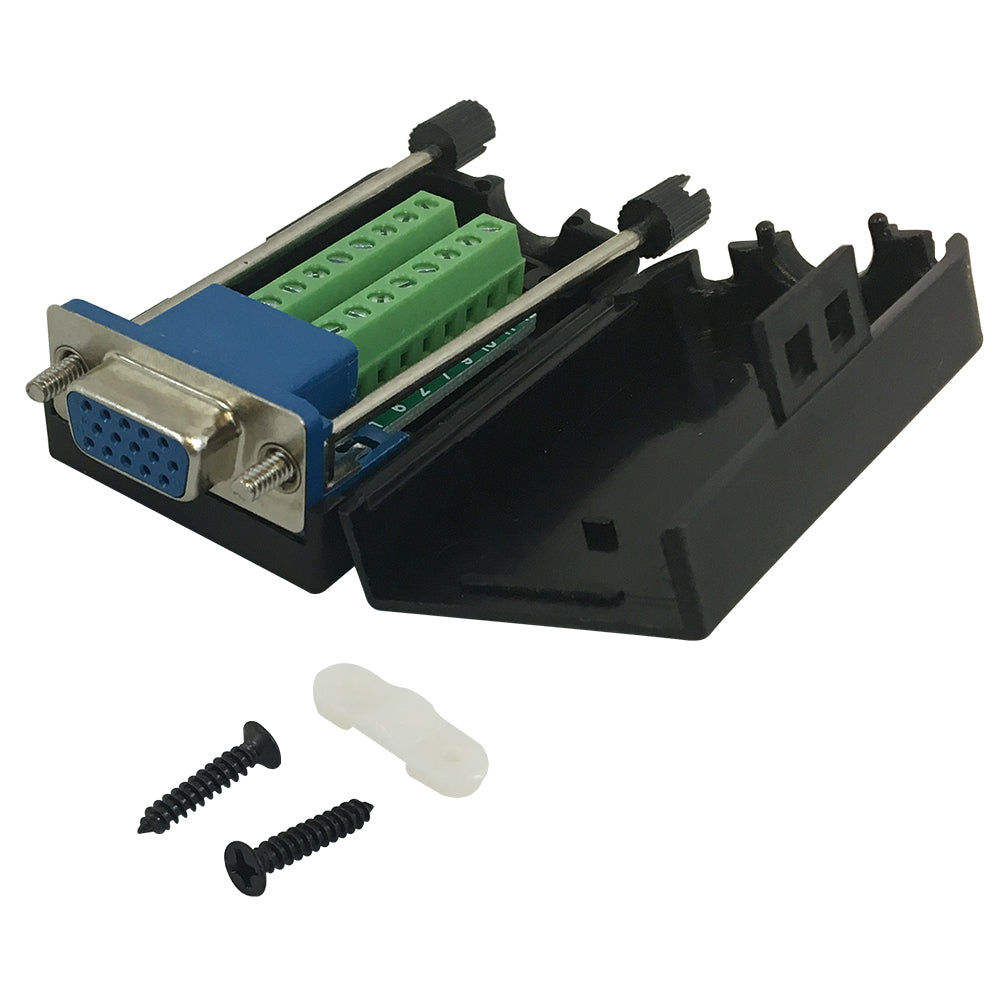

Included in Package | 1 - Connector 1 - Cover 2 - Screws 1 - Dust Cap |
