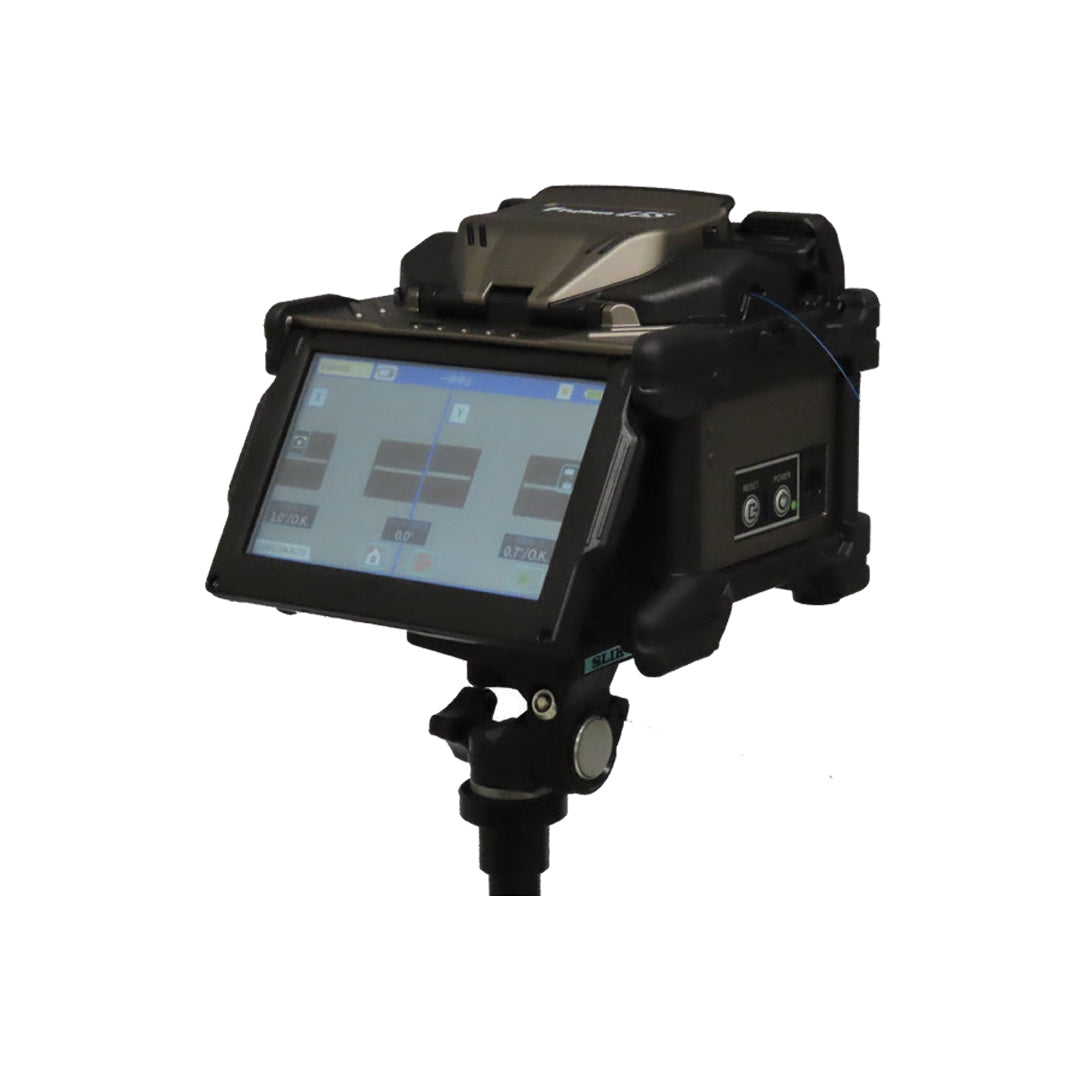

Fujikura 45S Fusion Splicer

Fiber ToolsSKU: TL-45S

Price:
Sale price$6,280.55 CAD

Contact sales to place an order, 1-866-207-6442 or sales@infinitecables.com.



Description

This cladding alignment fusion splicer allows simultaneous preparation and loading of two fibers. The advanced fiber coating stripper and cleaver adapter streamline the process. Patented sheath clamps enable one-handed operation, linked to the wind protector for quick sleeve transfer. A faster tube heater reduces splicing cycle time by over 30%, enhancing overall productivity.

Features

  • Simultaneous fiber preparation with newly patented sheath clamp design
  • Sheath clamps automatically opened with the wind protector
  • Automatic fiber placement correction
  • Active Fusion Control for arc optimization with every splice
  • Active Blade Management for cleave quality monitoring and correction
  • Easy-access battery, screen position adjustments, and ergonomic adaptations
  • Fully ruggedized for shock, moisture and dust resistance

Applications

  • 5G Small Cell Site
  • FTTx drops and terminations
  • MDF/IDF splices and terminations
  • Rural fiber deployments and restorations

Specifications

Physical Characteristics
Fiber Count Single fiber
Fibre Alignment Method Active cladding alignment
Cladding Diameter 125 µm
Cleave Length 5 to 16 mm with Sheath Clamp
10 mm with fiber holders
Cleave Angle Capability Single Fiber: 0.3 ~ 0.9°
 Fiber Ribbon: 0.3 ~ 1.2°
Splice Loss ITU-T G.652: Avg. 0.03dB
ITU-T G.651: Avg. 0.01dB
ITU-T G.653: Avg. 0.05dB
ITU-T G.655: Avg. 0.05dB
ITU-T G.657: Avg. 0.03dB
Splicing Time SM FAST mode: Avg. 6 to 8 sec.
SM AUTO mode: Avg. 8 to 11 sec.
Sleeve Type Heat shrinkable sleeve
Sleeve Length Max. 66 mm
Sleeve Diameter Max. 6.0 mm before shrinking
Sleeve Heat Time 60 mm mode: Avg. 21 to 23 sec.
60 mm slim mode: Avg. 16 to 18 sec.
Fiber Tensile Test Force 2.0 N
Electrode Life Approx. 6,000 splices
Dimensions (W x D x H) 131 mm x 123 mm x 121 mm
Temperature

Operate: -10 to 50°C

Storage: -40 to 80°C

Humidity

Operate: 0 to 95%RH non-condensing

Storage: 0 to 95%RH non-condensing

Altitude

Max. 5,000 m

Display

LCD TFT 4.95 inches with touch screen monitor

Display Magnification

Approx. 132 to 300X

Illumination

V-grooves: LED lamp

Screw Hole for Tripod

1/4-20UNC

Interface
PC USB2.0 MINI B type
External LED lamp

USB 2.0 A type, Approx. DC5V, 500mA

Wireless

Bluetooth® 5.2

Data Storage
Splice Mode 100 splice modes
Heat Mode

30 heat modes

Splice Result

20,000 splices

Fiber image

100 images

Power
AC Adaptor Input: AC100 to 240V, 50/60Hz, Max. 1A
Output: Approx. DC 19V, Max. 2.1A
Battery Pack Type Rechargeable Lithium Ion
Battery Pack Output Approx. DC14.4V / 3,190mAh
Battery Pack Capacity 60 mm heat mode: Approx. 200 splice & heat cycles
60 mm slim heat mode: Approx. 230 splice & heat cycles
Battery Pack Temperature Operate: -10 to 50°C
Recharge : 0 to 40°C
Short term storage of 30 days: -20 to 50°C
Long term storage: -20 to 30°C
Battery Pack Lifespan Approx. 500 recharge cycles
Other Features
Automatic Functions Fusion control
Blade management and control
Splice start
Heater start
Reference Guide PDF file stored on splicer
Sheath Clamp Open with/without wind protector
Close when setting fiber

Electrode Tool-less replacement
PC Software Splicer firmware update via internet
Parameter Upload and download
Manufacturing Information
AFL Part Number 45S
Packaging Information
Packaging Content

1 - CT-50 cleaver
1 - SS-05 single fiber stripper
1 Pair - Each FH-70-250 and FH-70-900 fiber holders
1 - SP-04 set plates
1 Pair - ELCT2-16B Spare Electrodes
1 - ADC-21 AC Adapter
1 - BTR-17 Battery Pack (installed)
1 - ACC-09 Power Cord
1 - USB-01 USB Cable
1 - AP-02 Alcohol Container
1 - WT-10 work tray
1 - ST-03 carrying case strap
1 - TS-03 tripod screw pack
1 - CC-45 Transit Case

Product Weight 3.08 lbs [1.4 kg]
Warranty 1-Year Warranty
SKU Weight
TL-45S 3.08 lb
