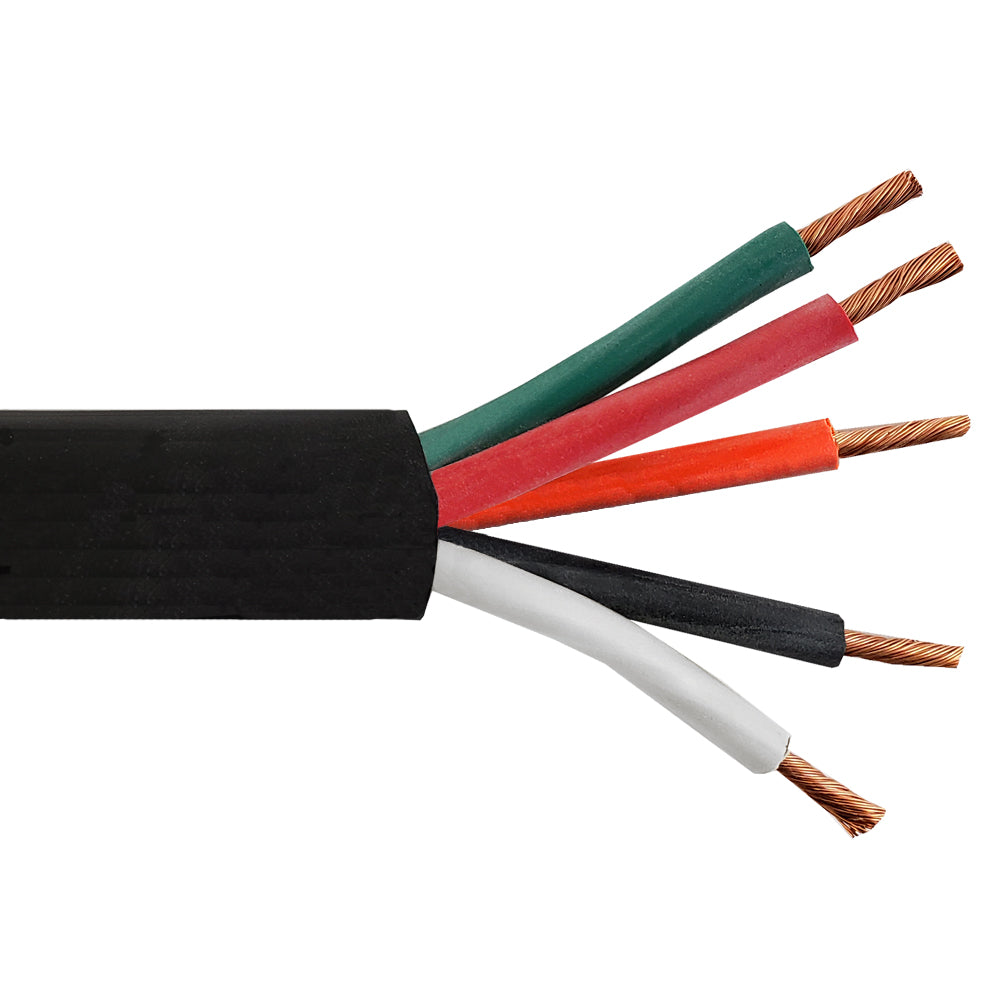

This bulk power cable consists of five 12 gauge conductors with a 600V SOOW jacket. It is typically used with industrial and processing equipment, cranes and hoists, track systems, construction equipment and other electrical equipment. It has excellent flexibility, resistance to oil, solvents, ozone, weather, sunlight and water. The cable is sold in bulk per meter.
- Suitable for shallow water immersion
- NEC Article 700 permitted use for specific applications.
- NFPA 70 permitted use in Hazardous Locations Classes I, II, III,
- Divisions 1 & 2 as outlined in Articles 501, 502, 503 section 140
Flexible Stranded Bare Copper Conductors
This cable is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime.
The Quality and Convenience You Need
This cable is sold per meter so you can have the right amount of flexible electrical cord cable needed for your application.
|Color Code||ICEA S-58-679, Method 1, table 1; Black, White, Red, Green, Orange|
|Number of Conductors||5|
|Conductor Material||Flexible Stranded Bare Copper, ASTM B-174 and UL 62|
|Insulation Material||EPR Compound, 90℃ + class 3, table 8, UL 62|
|Assembly||Insulated conductors cabled together|
|Separator||Polyester tape for 18-10 AWG|
|Number of Power Conductor Stranding||65 / 30|
|Nominal Insulation Thickness||1.14mm|
|Nominal Jacket Thickness||2.41mm|
|Nominal Outer Diameter||17.8mm|
|Jacket||Black CPE compound class, 90℃ + class 1.4, table 11, UL 62 integral fill|
|Jacket Fire Rating||FT2 and MSHA|
|Temperature Rating||-40℃ to 90℃|
|UL 62/CSA-C 22.2 No 49
|Product Weight||0.03 lbs|
