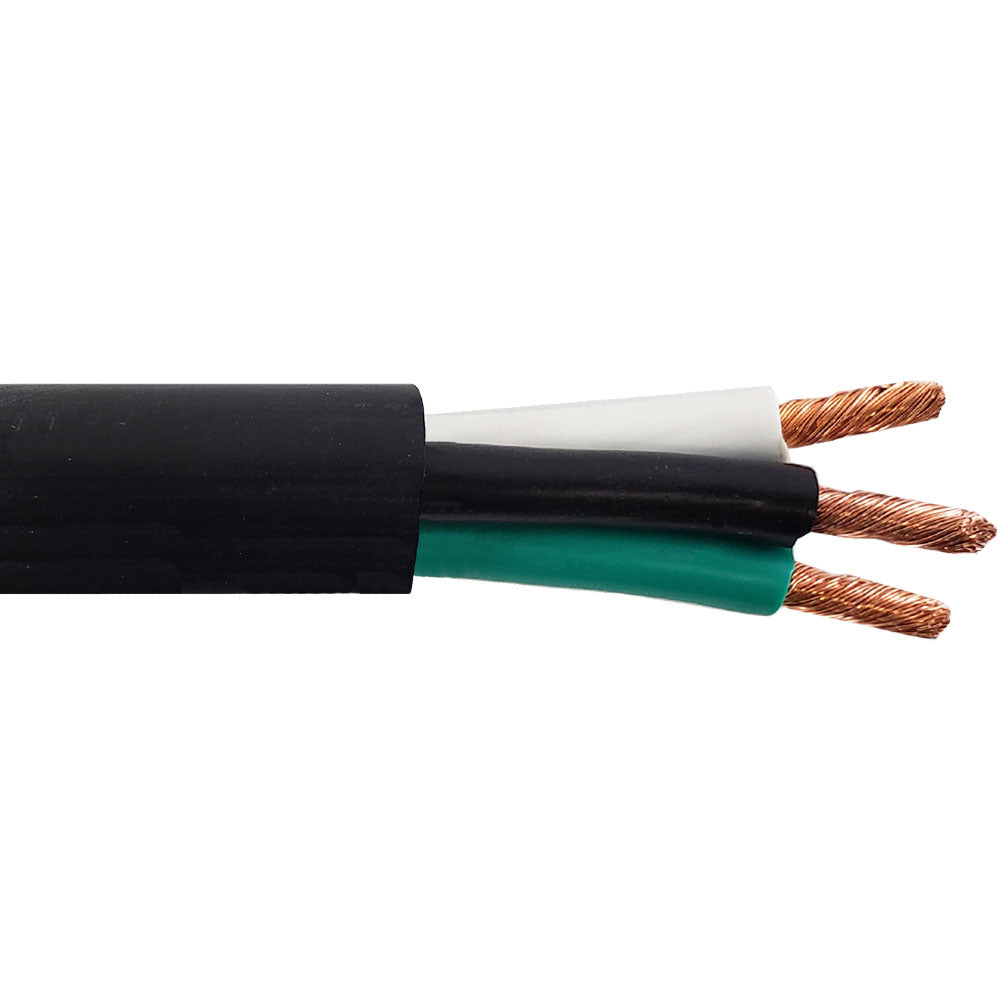

Flexible Electrical Cord Cable - 10AWG 3C SJT 300V 105C - Black (Per Meter)

Power Bulk CableSKU: BK-PW3C10-SJT

Price:
Sale price$8.03 CAD
Stock:
In stock

This item does not qualify for free shipping.



Description

Overview

This bulk power cable consists of three 10 gauge conductors with a 300V SJT jacket. It is generally used to manufacture single phase IEC and NEMA cord sets. The cable is sold in bulk per meter.

Annealed Bare Copper Conductors

This cable is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime.

The Quality and Convenience You Need

This cable is sold per meter so you can have the right amount of flexible electrical cord cable needed for your application.

Specifications

Physical Characteristics
Color Black
Color Code Black, White, Green
Wire Gauge 10AWG
Construction 105/ɸ0.254±0.005
Number of Conductors 3
Conductor Material Annealed Bare Copper
Insulation Material PVC - Polyvinyl Chloride
Insulation Diameter 5.4 ± 0.10
Jacket SJT
Jacket Material PVC - Polyvinyl Chloride
Jacket Fire Rating FT2
Jacket Overall Diameter 14.6 ± 0.2
Minimum Average Thickness 1.52mm
Core Assembly Twist 3-Core
Core Assembly Filler Cotton 20000D
Temperature Rating 105℃
Performance
Rating Voltage 300V
Insulation Resistance ≥ 0.76MΩ/Km 15.0℃ Min
Dielectric Strength AC 2.0KV/1 min No Crack
Spark Test 6KV/0.15 Sec
Insulation Unaged Tensile Strength / Elongation 1500 lbs/in2 min / 100% Min
Insulation Aged Tensile Strength / Elongation
Min 85%(136±1℃x168hrs) / Min 65%(136±1℃x168hrs)
Jacket Unaged Tensile Strength / Elongation 1500 lbs/in2 min / 100% Min
Jacket Aged Tensile Strength / Elongation Min 85%(136±1℃x168hrs) / Min 45%(136±1℃x168hrs)
Deformation Test 121±1℃m X 1hr ≤ 50%
Cold Bend Test -20℃ x 4hr No Crack
Heat Shock Test 121±1℃ x 1hr No Crack
Approvals
c(UL)us Yes
Environmental
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 1.42 lbs/m
