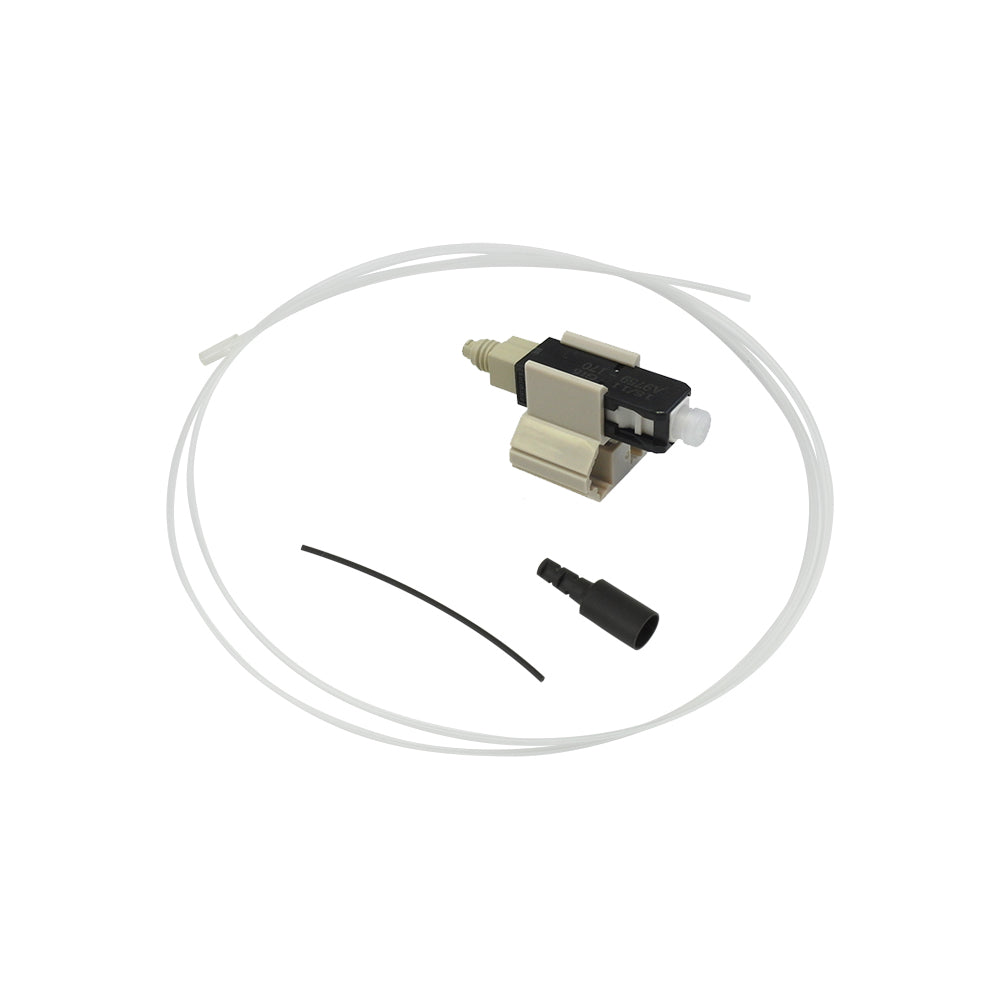

These fiber optic FASTConnect field-termination SC connectors are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination on 50 micron multimode optical fibers. FAST Connectors are compatible with 900 µm optical fibers, as well as 2 mm and 3 mm cordage (2mm and 3mm boots sold separately). The connectors are color coded per industry standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.
Features
- No Epoxy, No Polish
- Low Insertion Loss
- Fiber Can Be Reinserted up to Three Times
- 3.0 mm, 2.0 mm and 900 µm Cordage Compatibility
- VFI Accessory to Confirm Proper Installation
Applications
- Premise/Enterprise Networks
- LAN/WAN Connections
- Patch Panels
- Equipment Termination
- FTTx Applications
- Field Repair/Replacement
- Equipment Test Leads
Physical Characteristics |
Color |
Black |
Cable Diameter |
900 µm |
Fiber Size |
50/125 micron |
Fiber Type |
Multimode |
Operating Temperature |
-40℃ to +75℃ |
Fiber Classification |
OM2 |
Connector |
Connector |
SC Simplex Male |
Performance |
Insertion Loss |
Average: 0.1 dB, Maximum: 0.5 dB |
Return Loss |
Average: -25 dB, Maximum: -20 dB |
Package Information |
Package Quantity |
6 |
Product Weight |
0.19 lbs |
