Overview

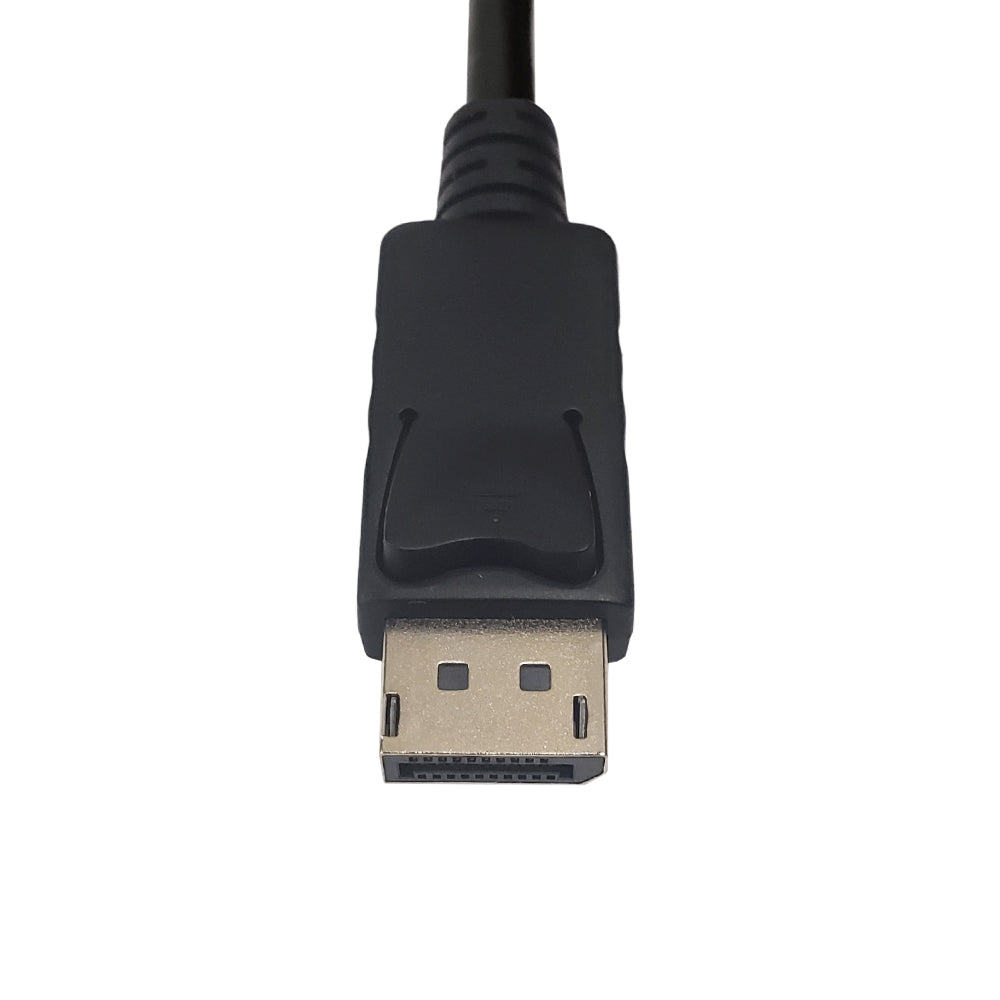

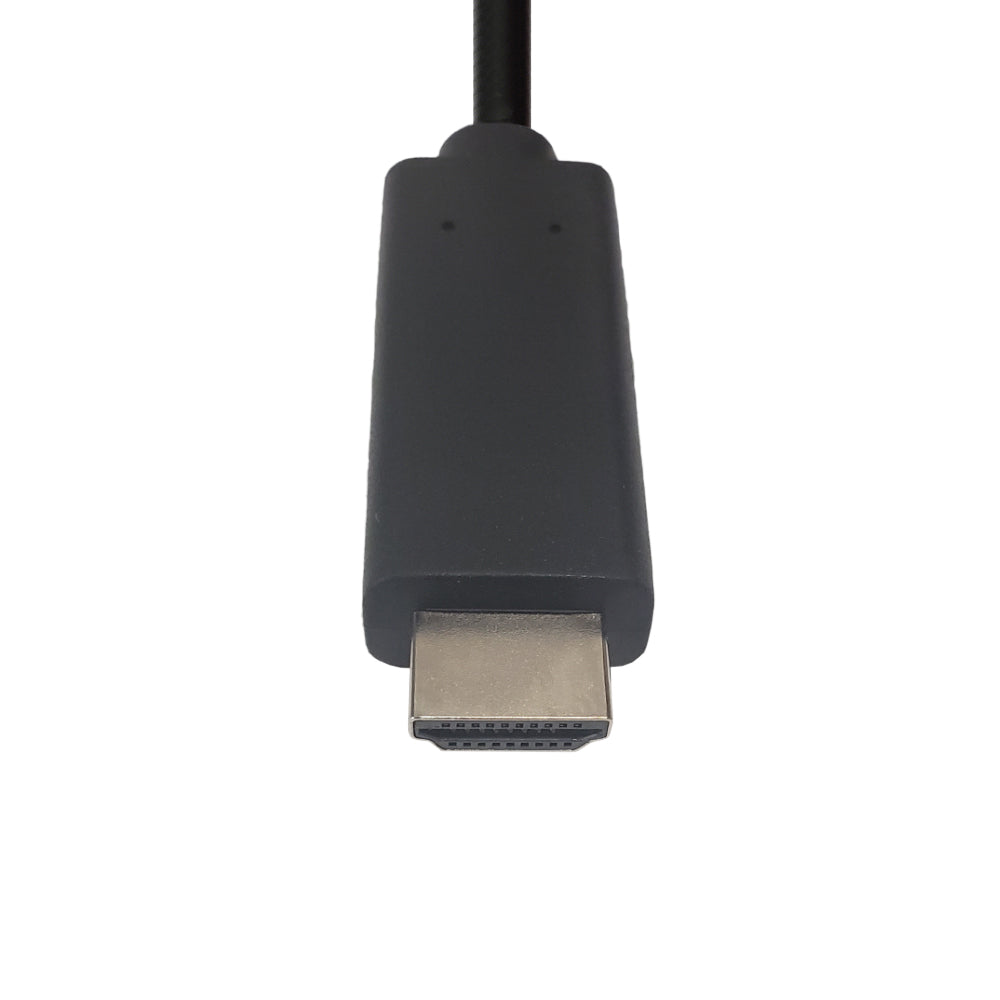

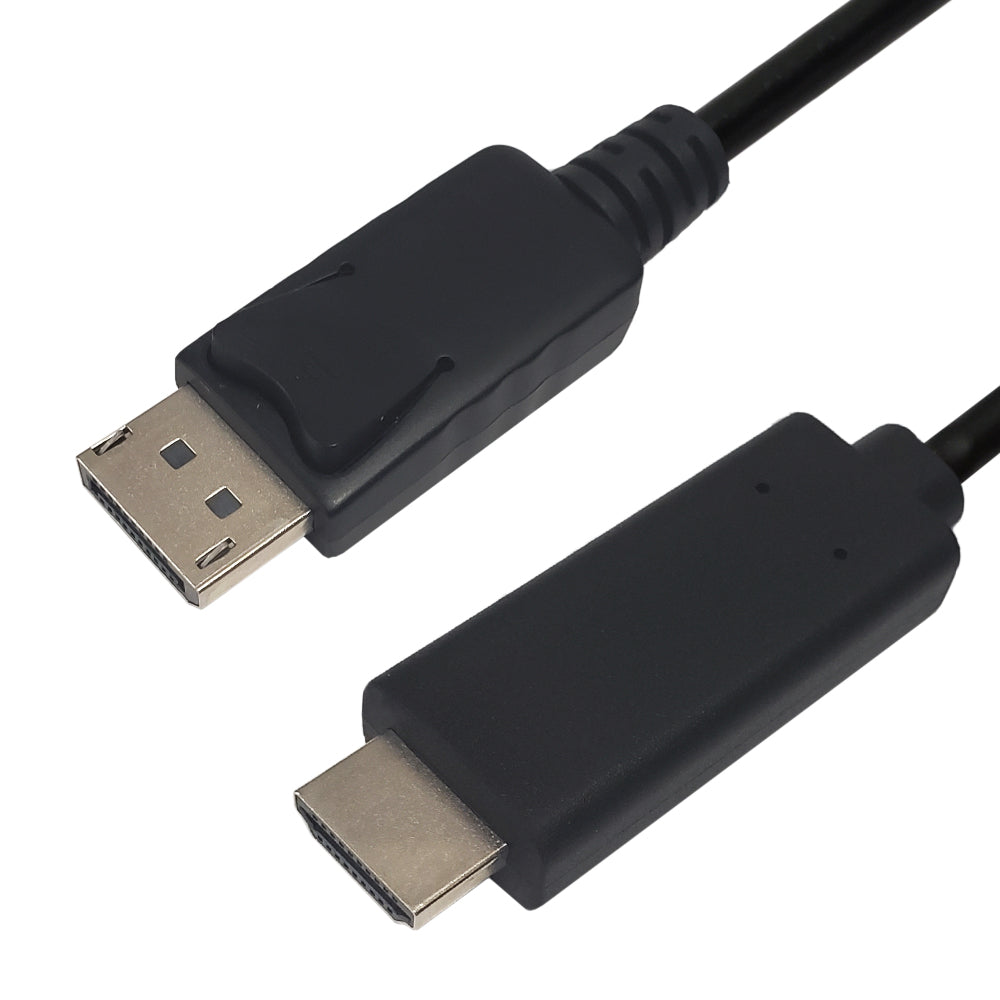

This cable has a DisplayPort male on one end and a HDMI male on the other. It is used to connect a DP source to a HDMI display. It cannot be used to connect a HDMI source to a DisplayPort monitor.
Note: The output resolution, refresh rate and video pixel format depends on the performance of the computer and the monitor.
|
Ultra High-Definition Resolution
This cable supports maximum video resolutions up to a breath-taking Ultra HD 8K @ 60Hz.
Used in Common Instances
This cable can be used in common instances - for example, connecting your PC to a TV, at the highest possible resolution available.
|
Specifications
Physical Characteristics |
Color |
Black |
Connector Plating |
Nickel |
Wire Gauge |
32 AWG |
Working Voltage |
3.3 - 3.6V |
Working Current |
150mA - 300mA |
Standby Power Consumption |
≤1W |
Operating Temperature & Humidity |
0°C to +45°C 10% to 90 % RH (no condensation) |
Storage Temperature & Humidity |
-10°C to +70°C 10% to 90 % RH (no condensation) |
Connectors
|
Connector A |
HDMI Male |
Connector B |
DisplayPort Male |
Performance |
HDMI Features |
Supports HDMI max 8K/60Hz Supports Dynamic HDR10+ Supports HDCP1.4 & HDCP2.3 specification Supports HPD Supports DSC 1.1/1.2a decoder Supports 8/10/12 bit color depth output Supports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0 Supports 1 to 32 channels LPCM 192kHz audio output Supports HBR audio up to 1536kHz
|
DisplayPort Features |
Supports DP1.4 Supports DSC1.1/1.2a or uncompressed video Supports DSC 1.1/1.2a decoder Supports 8/10/12 bit color depth Supports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
|
Certifications |
FCC, CE |
Approved Cable |
Environmental |
RoHS |
Yes |
Reach |
Yes |
Conflict Minerals |
Yes |
Packaging Information |
Warranty |
Limited Lifetime |
3ft |
6ft |
10ft |
0.12 lbs |
0.16 lbs |
0.34 lbs |
