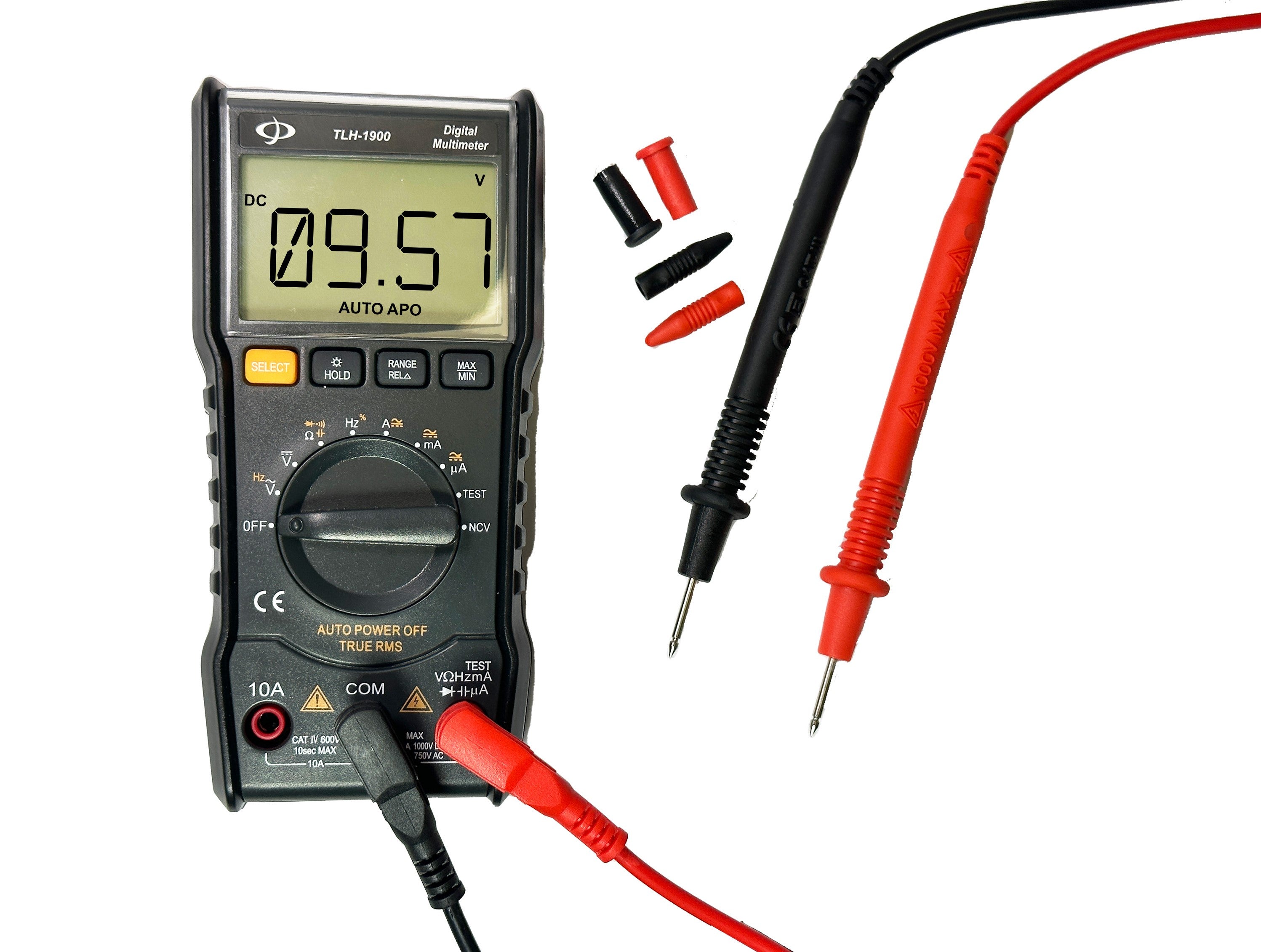

Digital multimeter with test leads - LED display


Price:
Sale price$24.35 CAD
Stock:
In stock


Description

Overview

This digital multimeter is basically used to measure AC/DC voltage, AC/DC amperage, resistance, capacitance and frequency. The meter has a large back lit LCD display, overload protection and comes with test leads.

Features

  • Display, liquid crystal display (LCD)
  • Maximum display: 5999 (3 5/6) bits automatic polarity display
  • Measurement: double integral A / D conversion
  • Sampling rate: about 3 times per second
  • Over-range and Low voltage display
  • On-off buzzer diode
  • Flashlight/ backlight
  • Non-contact voltage
  • Certifications - Passes RoHS, FCC, and CE compliance testing

Smart - Inexpensive - Compact

This digital multimeter is smart, inexpensive and simple to use. Comes in a compact, lightweight design with large LCD display and smart turn OFF technology.





Quick and Easy Operation

This digital multimeter is a quick and easy way to measure AC/DC voltage, AC/DC amperage, resistance, capacitance, frequency and much more.





Specifications

Physical Characteristics
Color Black
Display liquid crystal display (LCD)
Resolution (RGB) 800 x 480
Dimensions
142 x 70 x 32mm
Operating Temperature 0°C to 40°C
Operating Humidity <80%
Power Supply
Battery 2 x AAA 1.5V
Performance
DC Voltage 6V1000V ± (0.5%+4)
AC Voltage 6V-750V ± (0.8%+3)
DC Current 600μA~10A ± (0.8%+8)
AC Current 600μA~10A ± (1.0%+8)
Resistance 600Ω~40MΩ ± (1.0%+8)
Capacitance 60nF6mF ± (5.0%+10)
30mF ± (5.0%+10)
Frequency 10Hz10MHz ± (0.01%+5)
Duty Cycle 0. 1-99%
Display counts 6000 counts
Auto/Manual range Manual
Live Test Yes
NCV Yes
Diode test Yes
MAX/MIN/hold MAX
Data Hold Yes
True RMS Yes
Battery test( 1.5 V/9 V ) Yes
Low battery indication Yes
AUTO power off Yes
Double color backlight Yes
Flashlight Yes
Resistance measurement 600 Ω~60M Ω ±(1.0%+8)
Capacitance measurement 60nF~6mF ±(2.5%+60)
30mF ±(5.0%+10)
Packaging Information
Packaging Contents 1 - Digital Multimeter
1 - Multi-Meter Test Leads (One Pair of Red and Black)
1 - Test Certificate
1 - User Manual
Product Weight 0.70 lbs [317g]
SKU Weight
TLH-1900 0.7 lb
