Description

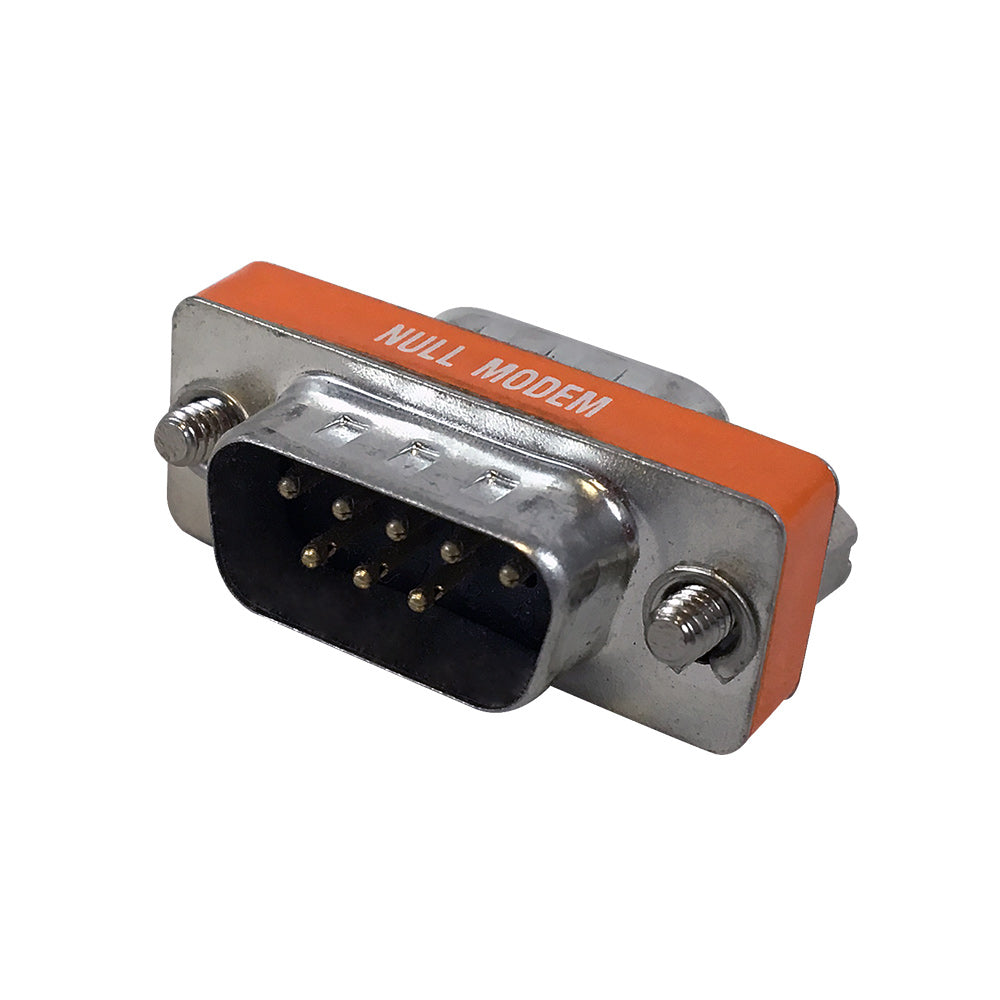

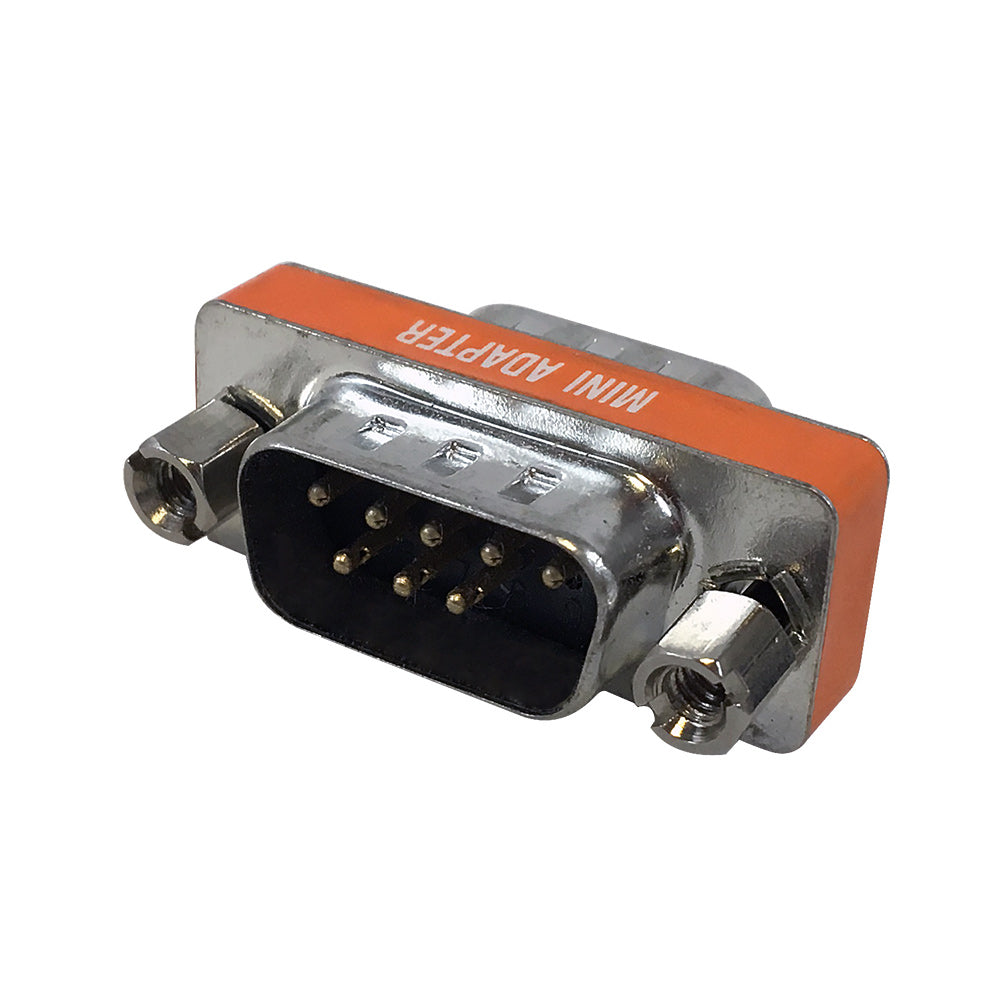

This slimline null modem adapter consists of a DB9 male on one end and a DB9 male on the other. It is primarily used to convert a DB9 female straight through cable to a DB9 male null modem cable.
| Physical Characteristics | ||
|---|---|---|
| Connector Plating | Nickel | |
| Contact Plating | Brass Gold flash over Nickel Plated | |
| Shell | SPCC Nickel Plated | |
| Insulator | PBT+30%GF UL94V-0 Blue | |
| Screw | Steel 12L14 Nickel Plated | |
| Pin Assignment | Null Modem | |
| Body Style | Slimline | |
| Dielectric Strength | 1000V AC for one minute | |
| Insulation Resistance | 1000M Ohm min. at 500V DC | |
| Temperature | -55°C ~ +105°C | |
| Rating Current | 3 AMP | |
| Connectors | ||
| Connector A | DB9 Male | |
| Connector B | DB9 Male | |
| Pin Out | ||
| DB9 Male - DB9 Male | ||
| 1 + 6 - 4 | ||
| 2 - 3 | ||
| 3 - 2 | ||
| 4 - 1 + 6 | ||
| 5 - 5 | ||
| 7 - 8 | ||
| 8 - 7 | ||
| Shell - Shell | ||
| Packaging Information | ||
| Packaging Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01 kg] | |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| AD-DB9N-1SL | 0.02 lb |
