Description

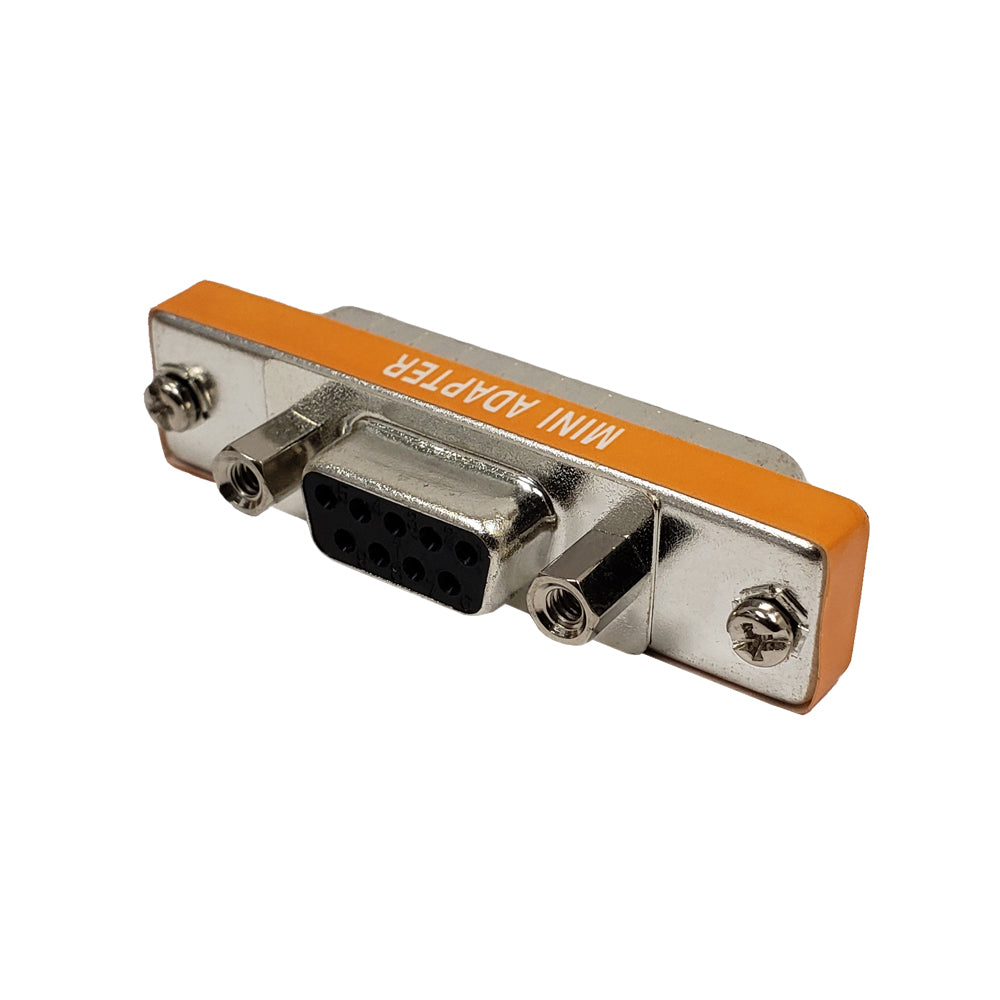

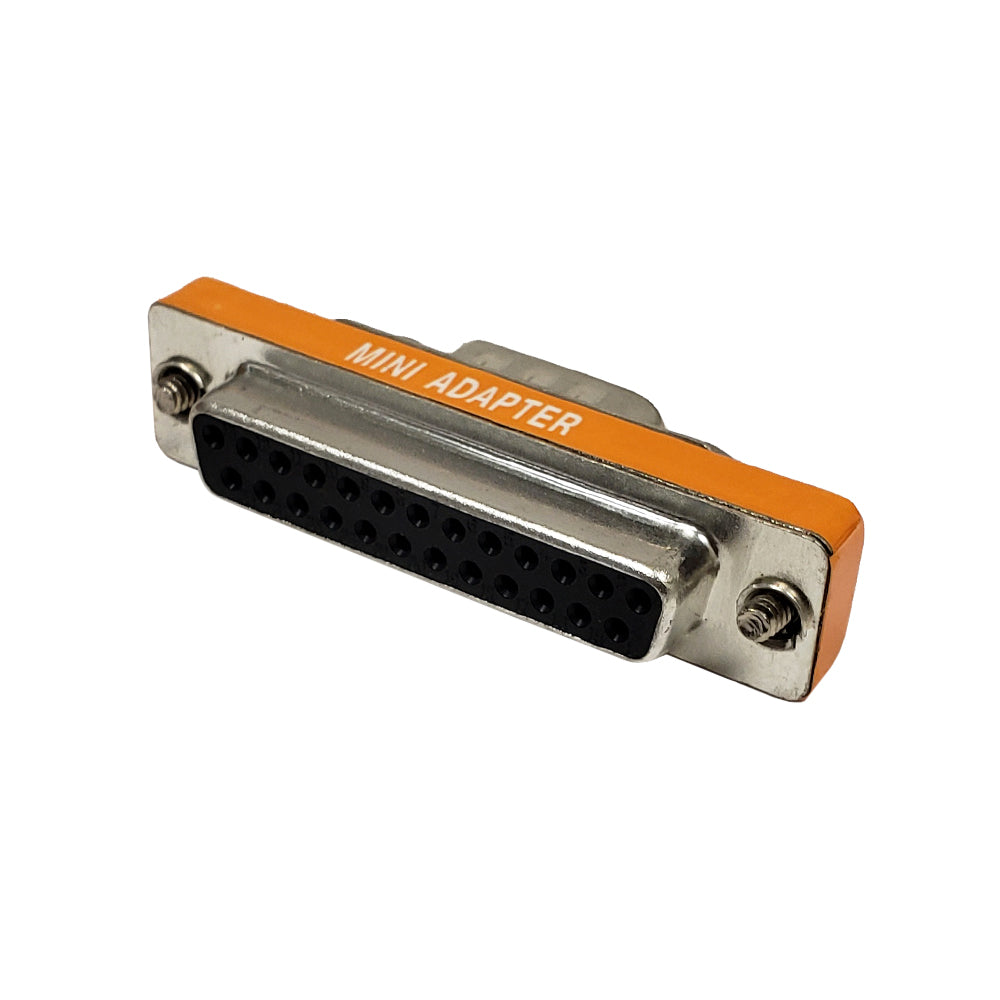

This adapter consists of a slimline DB9 female on end and a slimline DB25 female on the other. It is primarily used to connect a DB9 male cable to a DB25 male cable.
| Physical Characteristics | |
|---|---|
| Connector Plating | Nickel |
| Contact Plating | Brass Gold Flash Over Nickel Plated |
| Insulator | PBT Glass Fiber Reinfored UL94 VO Black |
| Shell | SPCC Nickel Plated |
| Screw | 12L14 Nickel Plated |
| Pin Assignment | Straight Through |
| Body Style | Slimline |
| Temperature | -55°C ~ +105°C |
| Dielectric Strength | 1000V AC for One Minute |
| Current Rating | 3 AMP |
| Insulation Resistance | 1000M Ohm min. at 500V DC |
| Connectors | |
| Connector A | DB9 Female |
| Connector B | DB25 Female |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
Spec Sheet
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| AD-DB925AT-04SL | 0.02 lb |
