Description

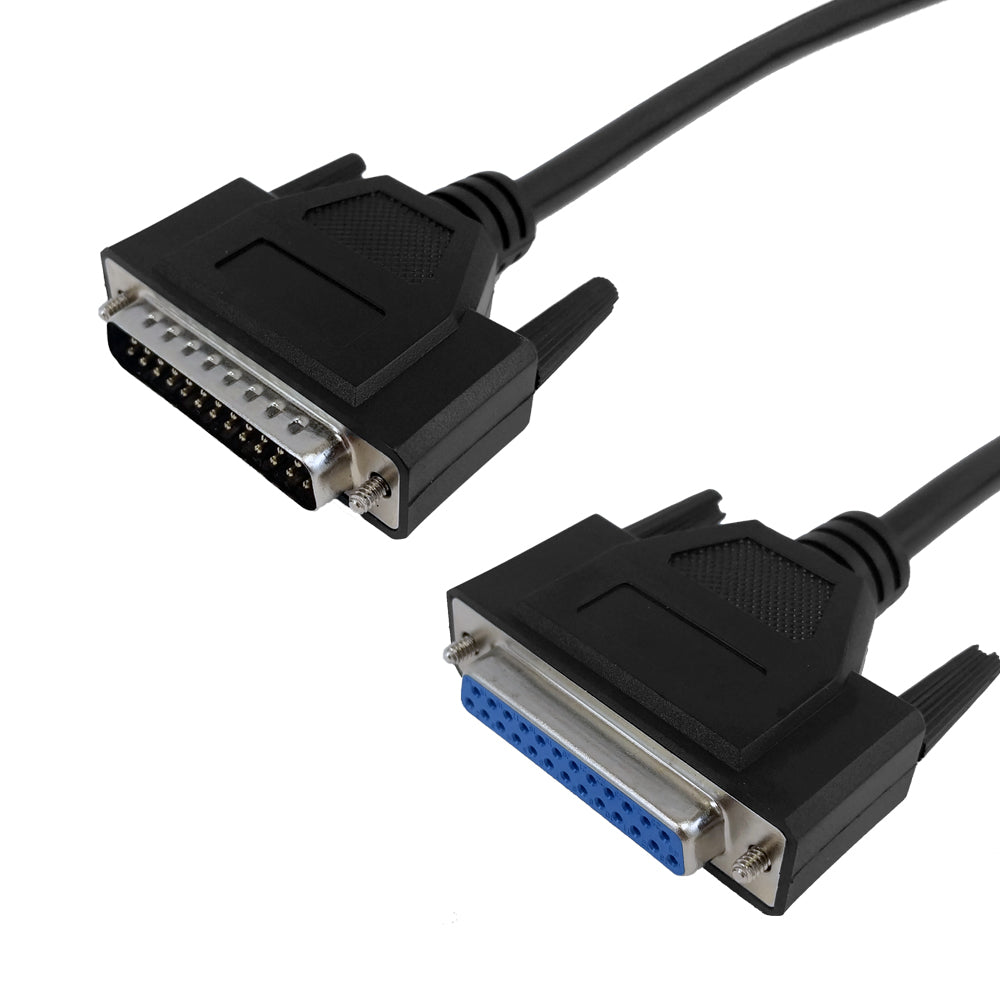

This DB25 serial cable consists of a DB25 male on one and a DB25 female on the other. It is commonly used in serial RS-232 data applications.
| Physical Characteristics | ||
|---|---|---|
| Color | Black | |
| Number of Conductors | 25 Conductors | |
| Wire Gauge | 28AWG Stranded | |
| Jacket Material | PVC - Polyvinyl Chloride | |
| Cable Shielding | 100% Aluminum Mylar Foil Shield | |
| Connectors | ||
| Connector A | DB25 Male (4-40 thumbscrews) | |
| Connector B | DB25 Female (4-40 thumbscrews) | |
| Pin Out | ||
| DB25 Male - DB25 Female | ||
| 1 - 1 | ||
| 2 - 2 | ||
| 3 - 3 | ||
| 4 - 4 | ||
| 5 - 5 | ||
| 6 - 6 | ||
| 7 - 7 | ||
| 8 - 8 | ||
| 9 - 9 | ||
| 10 - 10 | ||
| 11 - 11 | ||
| 12 - 12 | ||
| 13 - 13 | ||
| 14 - 14 | ||
| 15 - 15 | ||
| 16 - 16 | ||
| 17 - 17 | ||
| 18 - 18 | ||
| 19 - 19 | ||
| 20 - 20 | ||
| 21 - 21 | ||
| 22 - 22 | ||
| 23 - 23 | ||
| 24 - 24 | ||
| 25 - 25 | ||
| Shell - Shell | ||
| Environmental | ||
| RoHS | Compliant | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Warranty Information | ||
| Warranty |
Limited Lifetime | |
| 3ft | 6ft | 10ft | 15ft | 25ft | 50ft | 100ft |
|---|---|---|---|---|---|---|
| 0.35 lbs | 0.50 lbs | 0.65 lbs | 0.70 lbs | 1.35 lbs | 2.65 lbs | 4.80 lbs |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| SR-111-03BK | 3ft | 0.15 lb |
| SR-111-06BK | 6ft | 0.21 lb |
| SR-111-10BK | 10ft | 0.33 lb |
| SR-111-15BK | 15ft | 0.5 lb |
| SR-111-25BK | 25ft | 0.77 lb |
| SR-111-50BK | 50ft | 1.55 lb |
| SR-111-100BK | 100ft | 3.0 lb |
