Overview

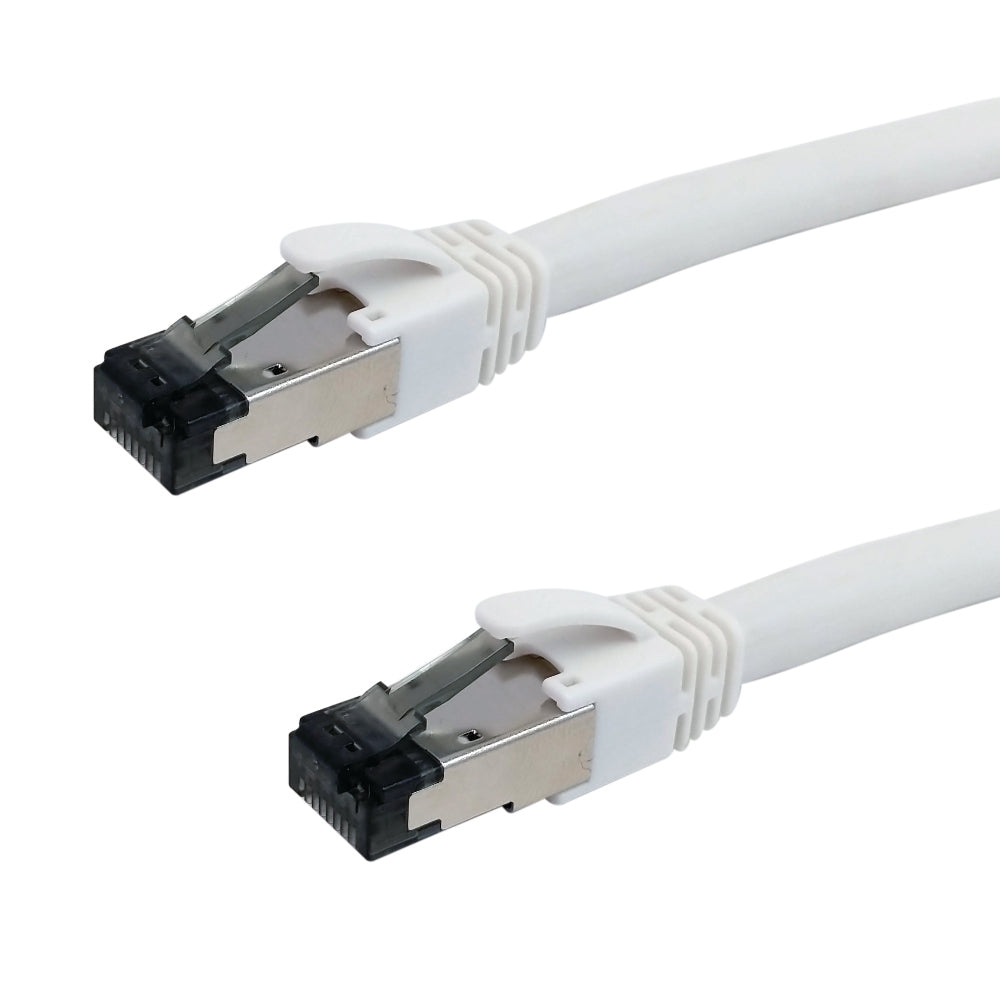

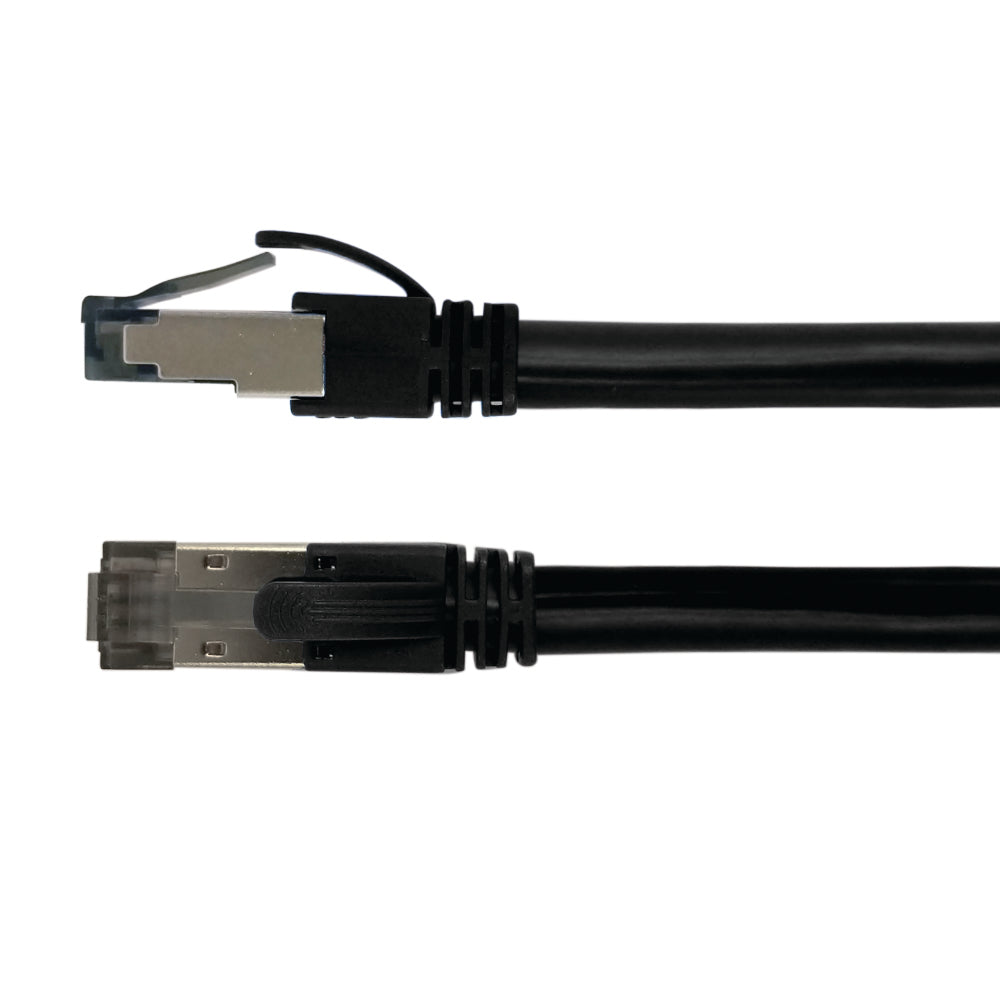

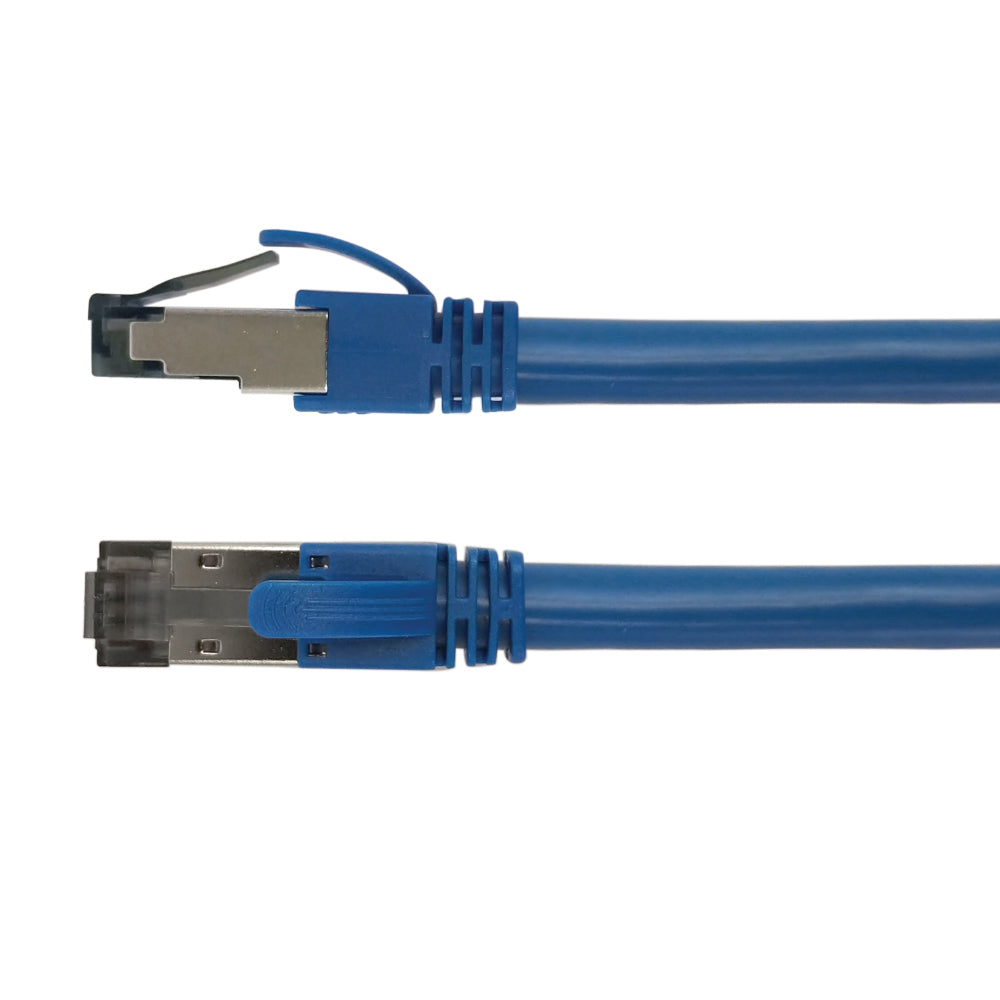

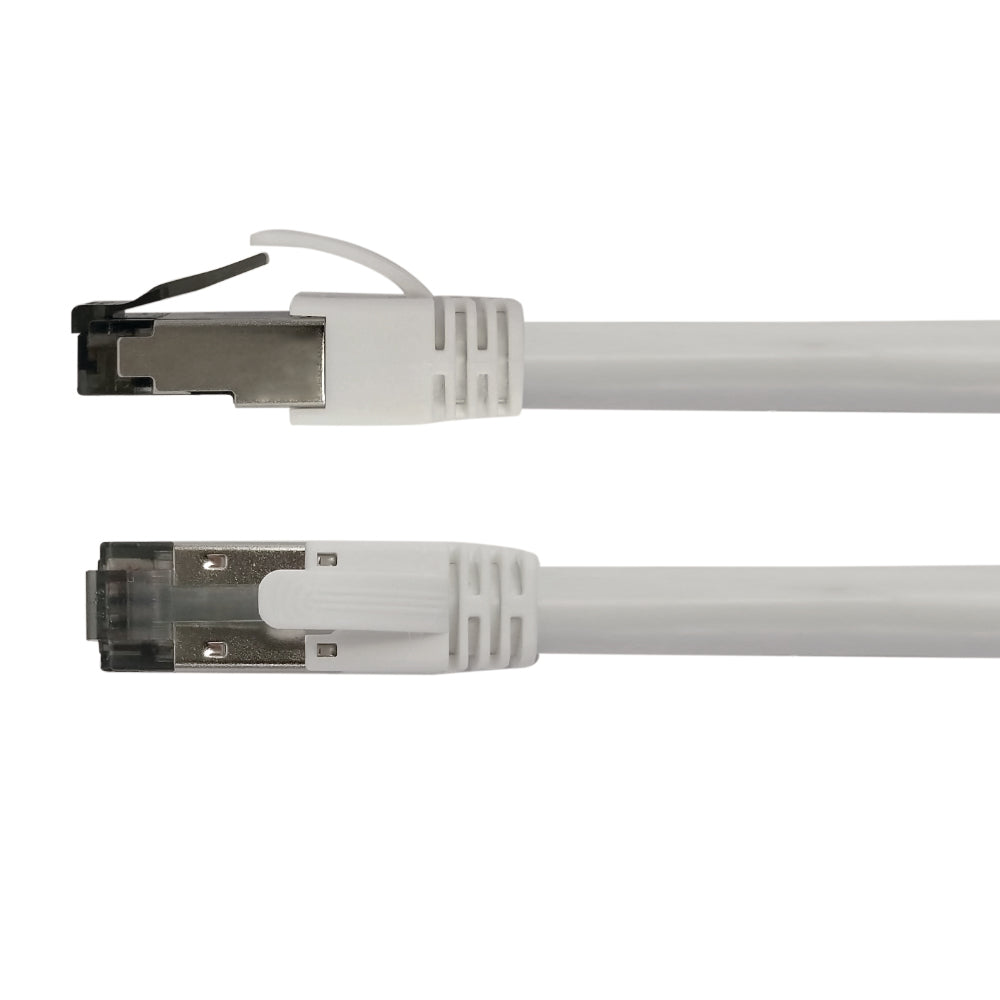

This Cat8 Ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for Ethernet network connections such as patch panels, switches, computers and routers. The shielding helps protect against electro-magnetic (EMI) and radio frequency interference (RFI).
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Double ShieldedFoil shield on individual pairs plus overall braid is optimal for interference prone areas, and shielded RJ45 connectors offer enhanced isolation. Fluke CAT8 Channel TestOur cables are 100% tested to pass a fluke CAT8 channel test, and come with a printed test report.
|
Specifications
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 8.0mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | S/FTP (65% Overall Braid and Individually Foil Shielding Pairs) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Strain Relief | Tab Style Strain Relief Boot |
| Jacket Type | PVC |
| Temperature
Rating |
-20oC to +75oC |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Fluke® CAT8 Channel Test | Yes |
| Frequency | 40Gb |
| Color Code | 568A/568B Compatible |
| Approvals | |
| c(UL)us | Yes - Cable |
| ISO/IEC 11801 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 5ft | 7ft | 10ft | 15ft | 25ft | 35ft | 50ft | 65ft |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.07 | 0.12 lbs | 0.16 lbs | 0.24 lbs | 0.33 lbs | 0.47 lbs | 0.68 lbs | 1.13 lbs | 1.52 lbs | 2.23 lbs | 2.86 lbs |
Product Weight
CAT8S-01BK
0.07 lb
CAT8S-02BK
0.1 lb
CAT8S-03BK
0.15 lb
CAT8S-05BK
0.2 lb
CAT8S-07BK
0.24 lb
CAT8S-10BK
0.33 lb
CAT8S-15BK
0.5 lb
CAT8S-25BK
0.77 lb
CAT8S-35BK
1.1 lb
CAT8S-50BK
1.55 lb
CAT8S-65BK
2.0 lb
CAT8S-01BL
0.07 lb
CAT8S-02BL
0.1 lb
CAT8S-03BL
0.15 lb
CAT8S-05BL
0.2 lb
CAT8S-07BL
0.24 lb
CAT8S-10BL
0.33 lb
CAT8S-15BL
0.5 lb
CAT8S-25BL
0.77 lb
CAT8S-35BL
1.1 lb
CAT8S-50BL
1.55 lb
CAT8S-65BL
2.0 lb
CAT8S-01WH
0.07 lb
CAT8S-02WH
0.1 lb
CAT8S-03WH
0.15 lb
CAT8S-05WH
0.2 lb
CAT8S-07WH
0.24 lb
CAT8S-10WH
0.33 lb
CAT8S-15WH
0.5 lb
CAT8S-25WH
0.77 lb
CAT8S-35WH
1.1 lb
CAT8S-50WH
1.55 lb
CAT8S-65WH
2.0 lb
