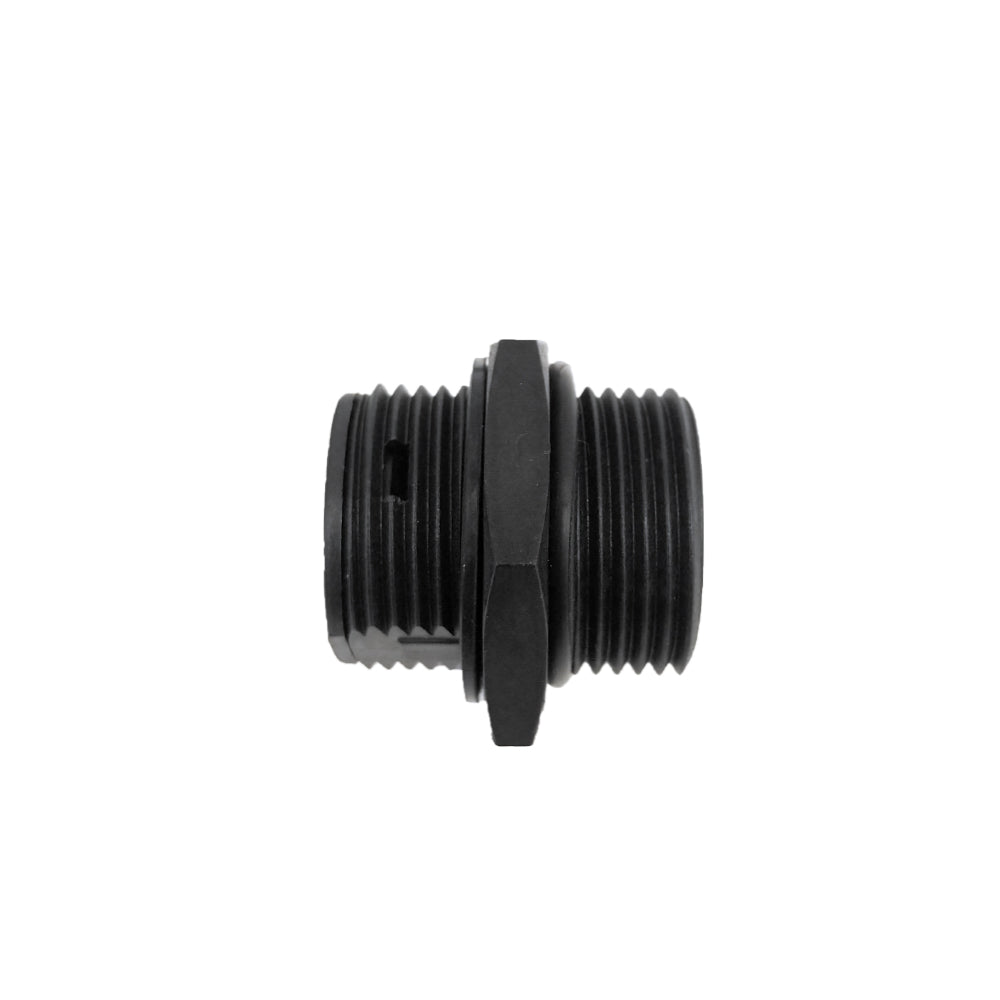

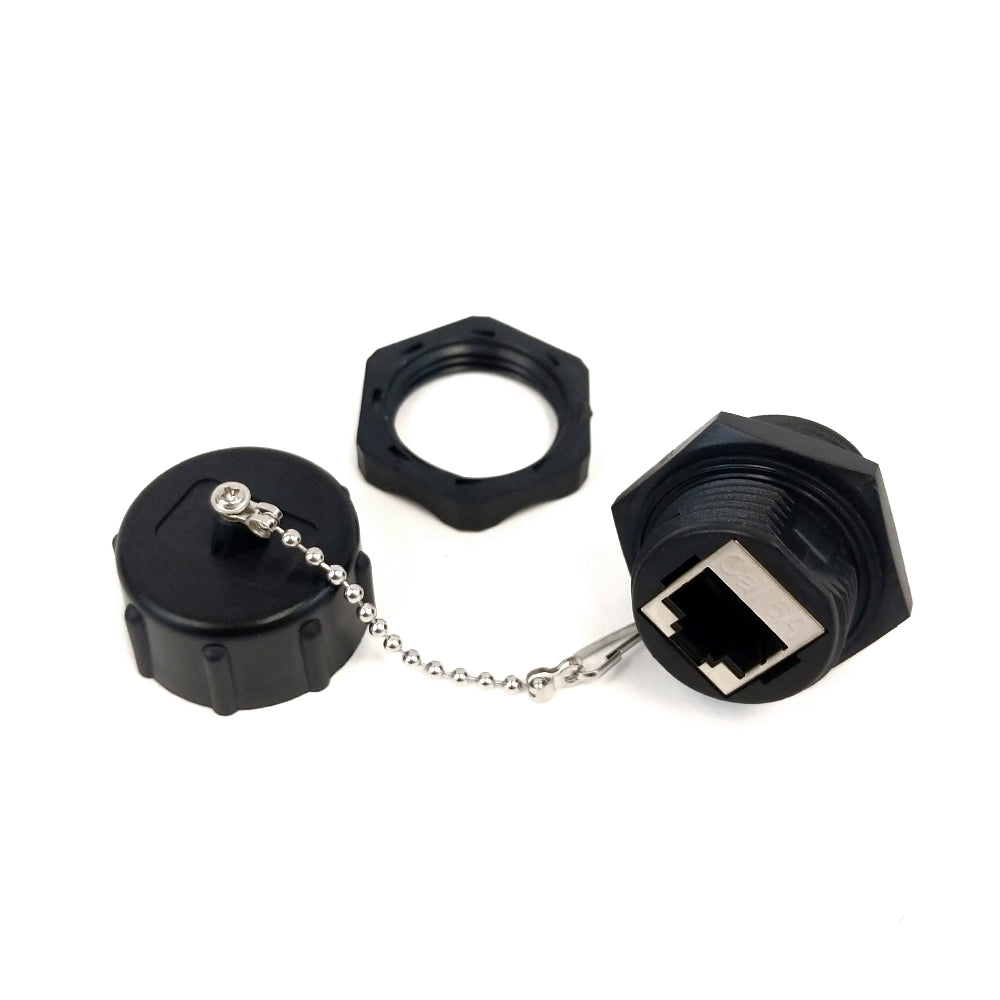

Cat6A RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black

Outdoor IP68 Rated AccessoriesSKU: CN-C6A-FFS-IP68

Price:
Sale price$25.10 CAD
Stock:
In stock


Description

Overview

This Cat6A shielded bulkhead coupler consists of a RJ45 female on both ends. It is typically used to connect two RJ45 male outdoor network cables where dust, water and protection from the elements is required. Creates a IP68 rating when used in conjunction with our matting RJ45 male shroud. It is suitable for outdoor or industrial applications.

Waterproof RJ45 Bulkhead Coupler for Outdoor Cable

This Cat6A coupler is IP68 compliant to help protect your outdoor network cabling against water, moisture, dirt and insects for uninterrupted and quality connections. Waterproof when immersed in water at a depth of 4 meter.

Use as Part of a Complete Kit

This coupler can be used as part of a complete kit to create an end-to-end IP rated channel.

Specifications

Physical Characteristics
Color Black
Body Material PBT+GF,UL94V-0
Coupler Housing ABS,UL94V-0
Connector Plating Gold Plated
Shielded Case Brass, Nickel Plated
Thread Pattern
3/4" -14
Operating Temperature -10°C to 60°C
Storage Temperature -40°C to 68°C
Humidity 10% ~ 90% RH
Connector(s)
RJ45 - 8P8C Female to Female
Performance
Insertion Life 750 Mating Cycles
Contact Force 100 Grams
Plug Retention Force 11 LBF MIN
Electrical Features
Insulation Resistance 500 M?
Dielectric Withstanding Voltage 1000 V AC
DC Current Rating 1.5 Amps
DC Resistance 0.1?
Contact Resistance 20m?
Compatible Items
SB-EBH2-WH Single Gang Surface Mount Box with 2x Ethernet Bulkhead Knockouts - Waterproof IP68 Rated - White
WP-EBH1-SS Single Gang Wall Plate - 1x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel
WP-EBH2-SS Single Gang Wall Plate - 2x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel
WP-EBH4-SS Double Gang Wall Plate - 4x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel
CN-BT-IP68-BK RJ45 IP68 Waterproof Shroud for RJ45 Male Cable - Fits Cable OD of 5mm to 10mm - Black
Environmental
IP Rating IP68 Rated When Used in Conjunction with RJ45 shroud
RoHS Yes
Packaging Information
Product Weight 0.07 lbs [0.03 kg]
SKU Weight
CN-C6A-FFS-IP68 0.07 lb
