Cable Gland with Strain Relief M16x1.5 Thread - Cable OD 5~10mm - IP68 - Black

Cable GlandsSKU: CG-M16-SR

Price:
Sale price$2.35 CAD
Stock:
In stock


Description

This cable gland with strain relief has a metric thread pattern of M16xP1.5 and accommodates a cable size of 5 to 10mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.

Physical Characteristics
Color Black
Material Nylon 66
Thread M16xP1.5
Mounting Hole 16.0 ~ 16.3 mm [0.63 ~ 0.64 inches]
Cable Range 5 ~ 10 mm[0.20 ~ 0.39 inches]

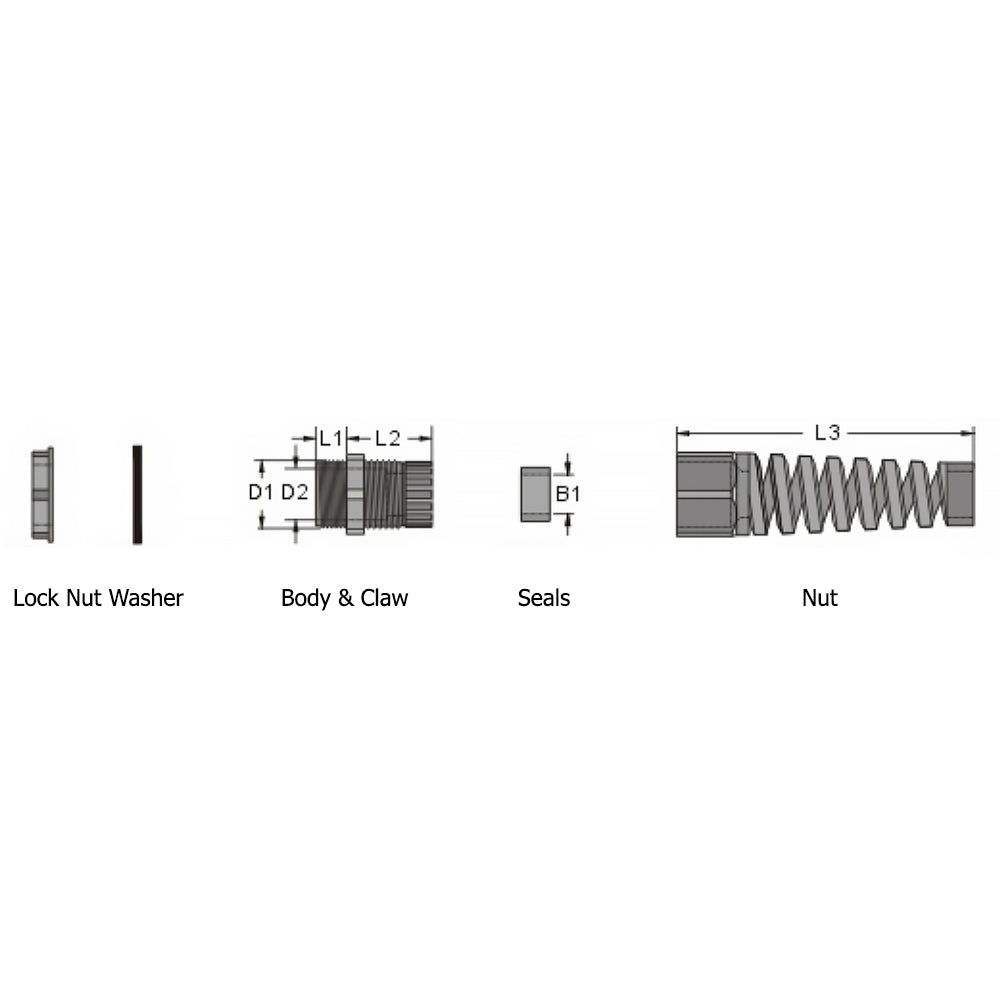

Dimensions (mm)

D1 D2 B1 L1 L2 L3
16.0mm 10.9mm 10.5mm 15.5mm 23.4mm 74.4mm
0.63in 0.43in 0.41in 0.61in 0.92in 2.93in
Flammability Rating UL94V-2
IP68 Rated Yes
Approvals
UL Yes
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.2 lbs [0.09kg]
SKU Weight
CG-M16-SR 0.2 lb
