Cable Gland M32x1.5 Thread - Cable OD 18~25mm - IP68

Cable GlandsSKU: CG-M32-L

Color: Black
Price:
Sale price$5.55 CAD
Stock:
In stock


Description

Overview

This cable gland has a metric thread pattern of M32xP1.5 and accommodates a cable size of 18 to 25mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.

Specifications

Physical Characteristics
Color Black / White
Material Nylon 66
Thread M32xP1.5
Mounting Hole 32.0 ~ 32.4 mm[1.26 ~ 1.28 inches]
Cable Range 18 ~ 25 mm[0.71 ~ 0.98 inches]

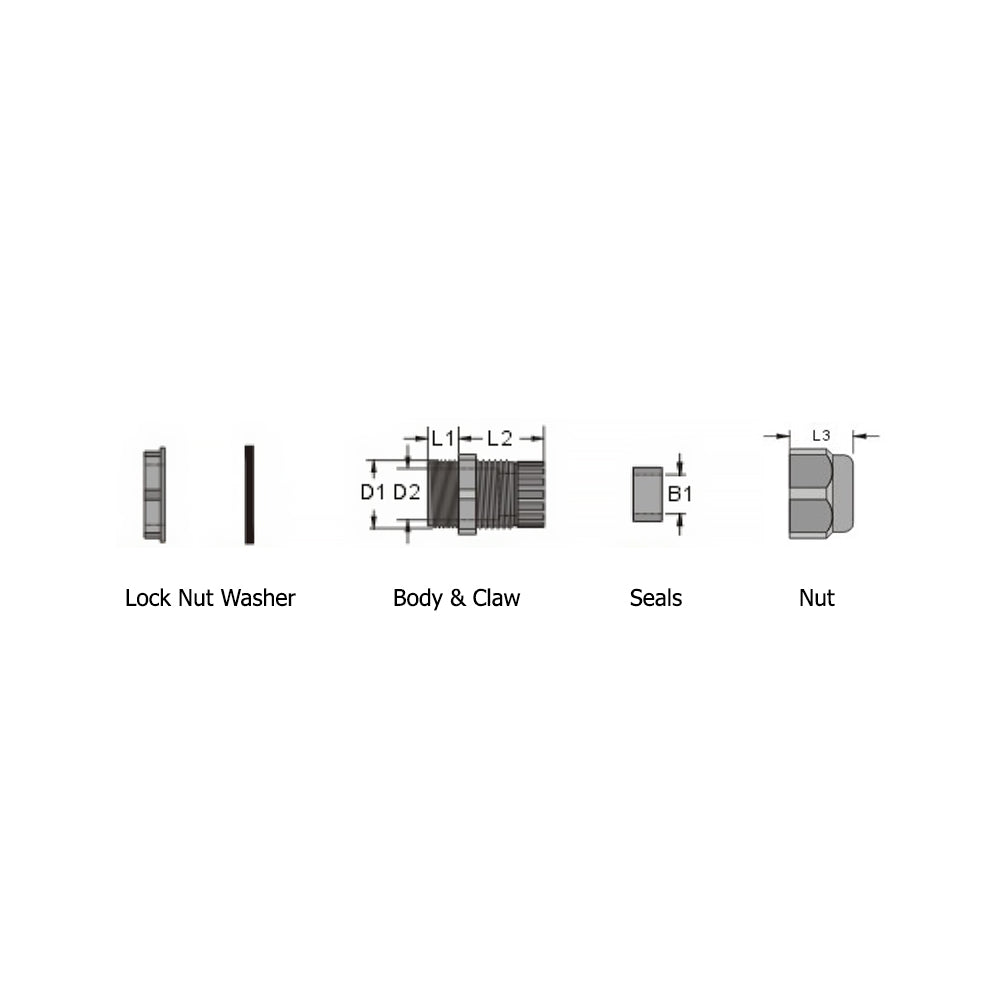

Dimensions (mm)

D1 D2 B1 L1 L2 L3
32.0mm 27.1mm 25.0mm 14.7mm 34.5mm 25.7mm
1.26in 1.07in 0.98in 0.58in 1.36in 1.01in
Flammability Rating UL94V-2
IP68 Rated Yes
Approvals
UL Yes
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.2 lbs [0.09kg]
SKU Options Weight
CG-M32-L Black 0.2 lb
CG-M32WH-L White 0.2 lb
