Cable Gland M20x1.5 Thread - Cable OD 10~14mm - IP68

Cable GlandsSKU: CG-M20WH-L

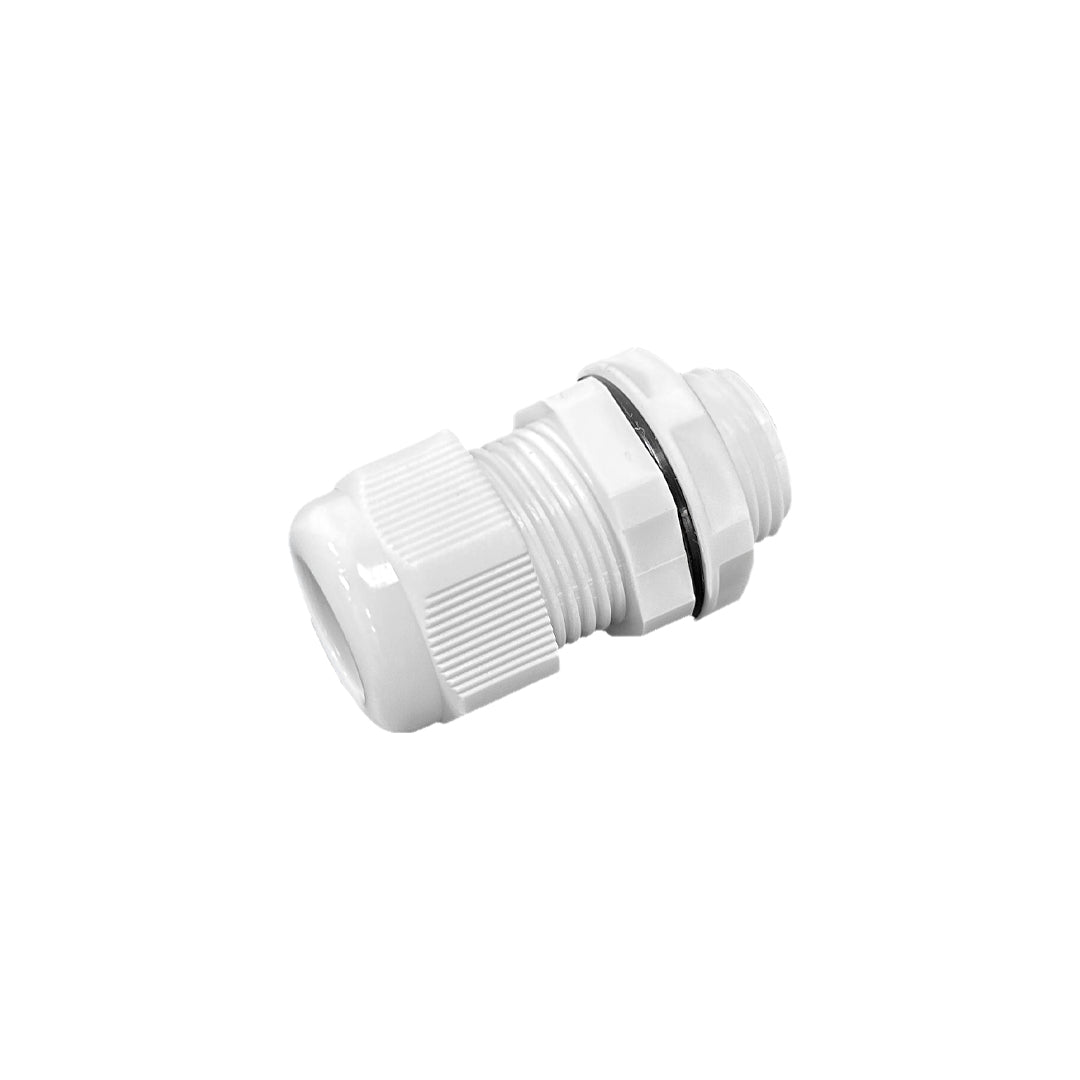

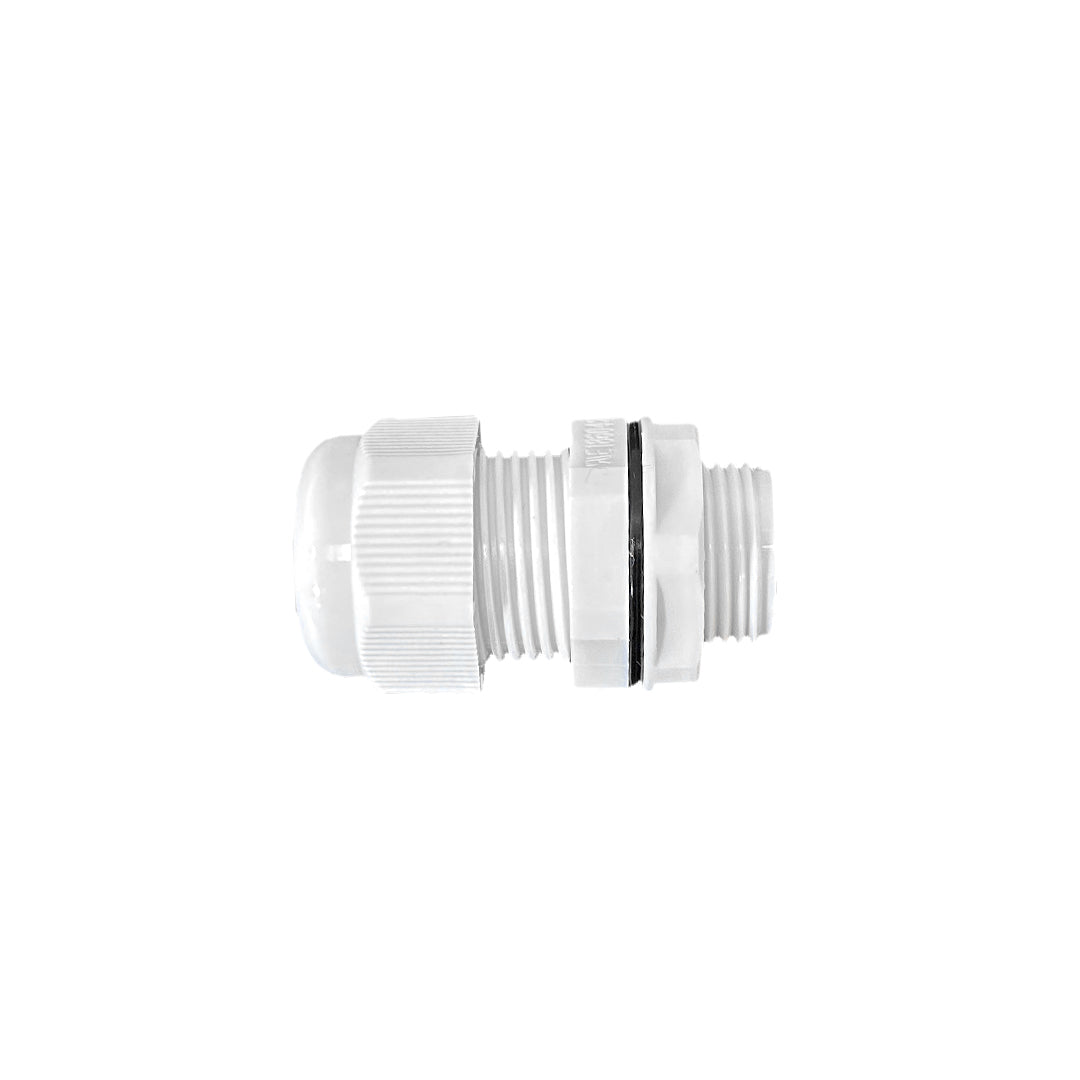

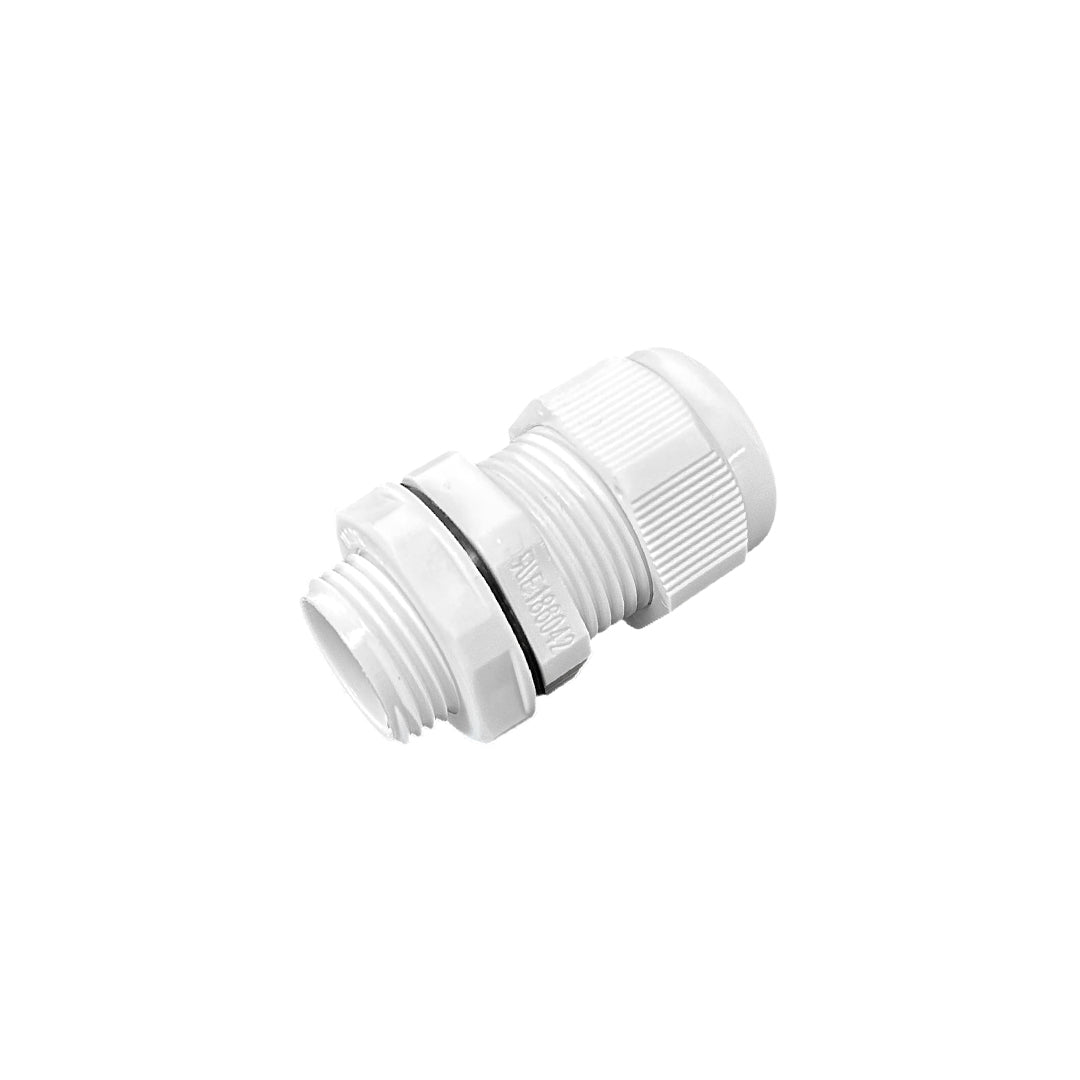

Color: White
Price:
Sale price$2.65 CAD
Stock:
In stock


Description

This cable gland has a metric thread pattern of M20xP1.5 and accommodates a cable size of 10 to 14mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.

Physical Characteristics
Color Black / White
Material Nylon 66
Thread M20xP1.5
Mounting Hole 20.0 ~ 20.3 mm [0.79 ~ 0.80 inches]
Cable Range 10 ~ 14 mm[0.39 ~ 0.55 inches]

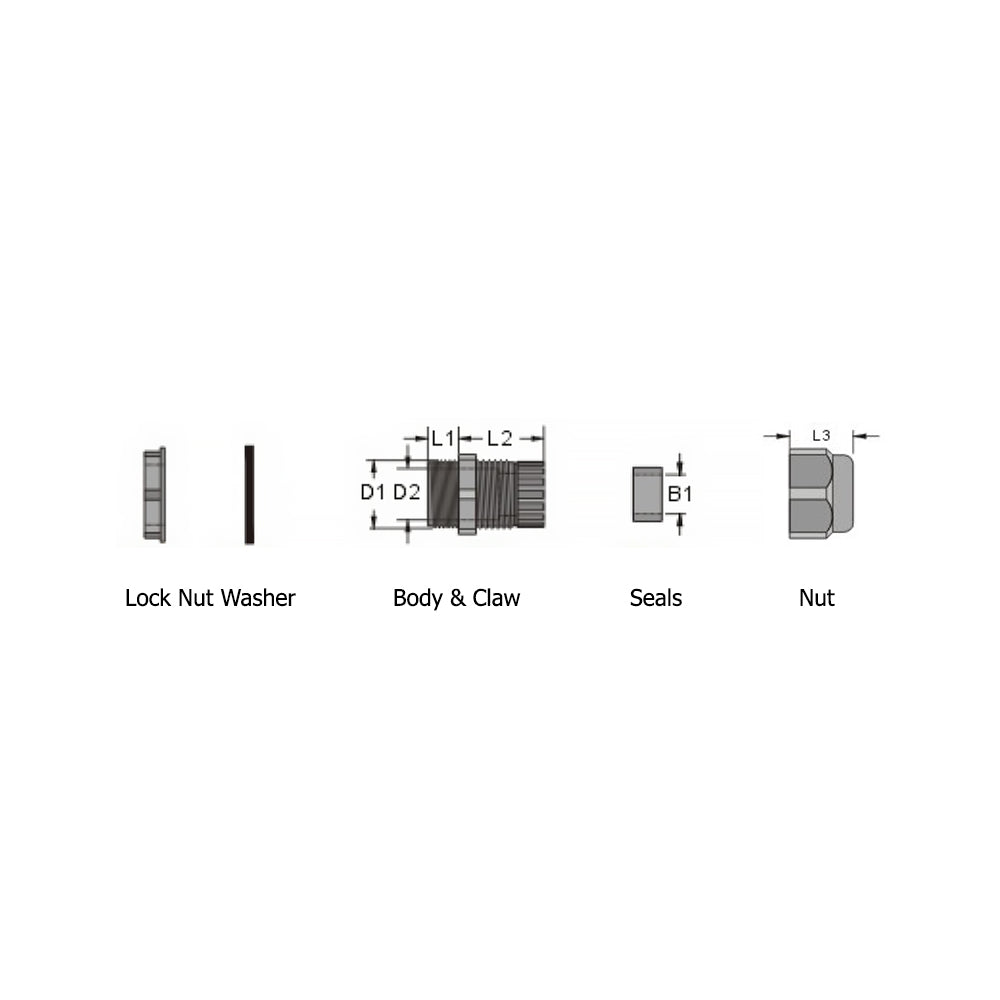

Dimensions (mm)

D1 D2 B1 L1 L2 L3
20.0mm 15.0mm 14.0mm 15.0mm 28.5mm 18.5mm
0.79in 0.59in 0.55in 0.59in 1.12in 0.73in
Flammability Rating UL94V-2
IP68 Rated Yes
Approvals
UL Yes
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.2 lbs [0.09kg]
