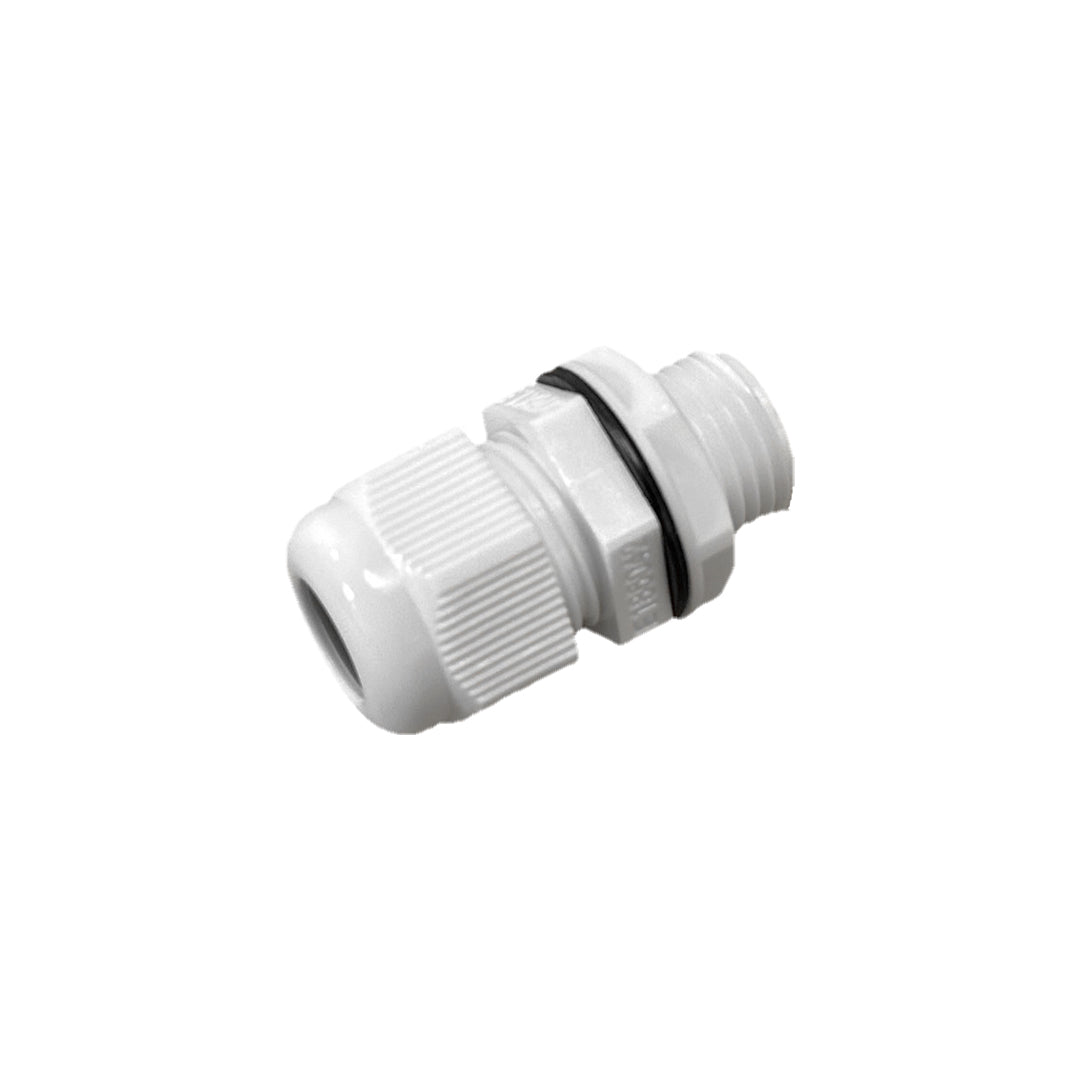

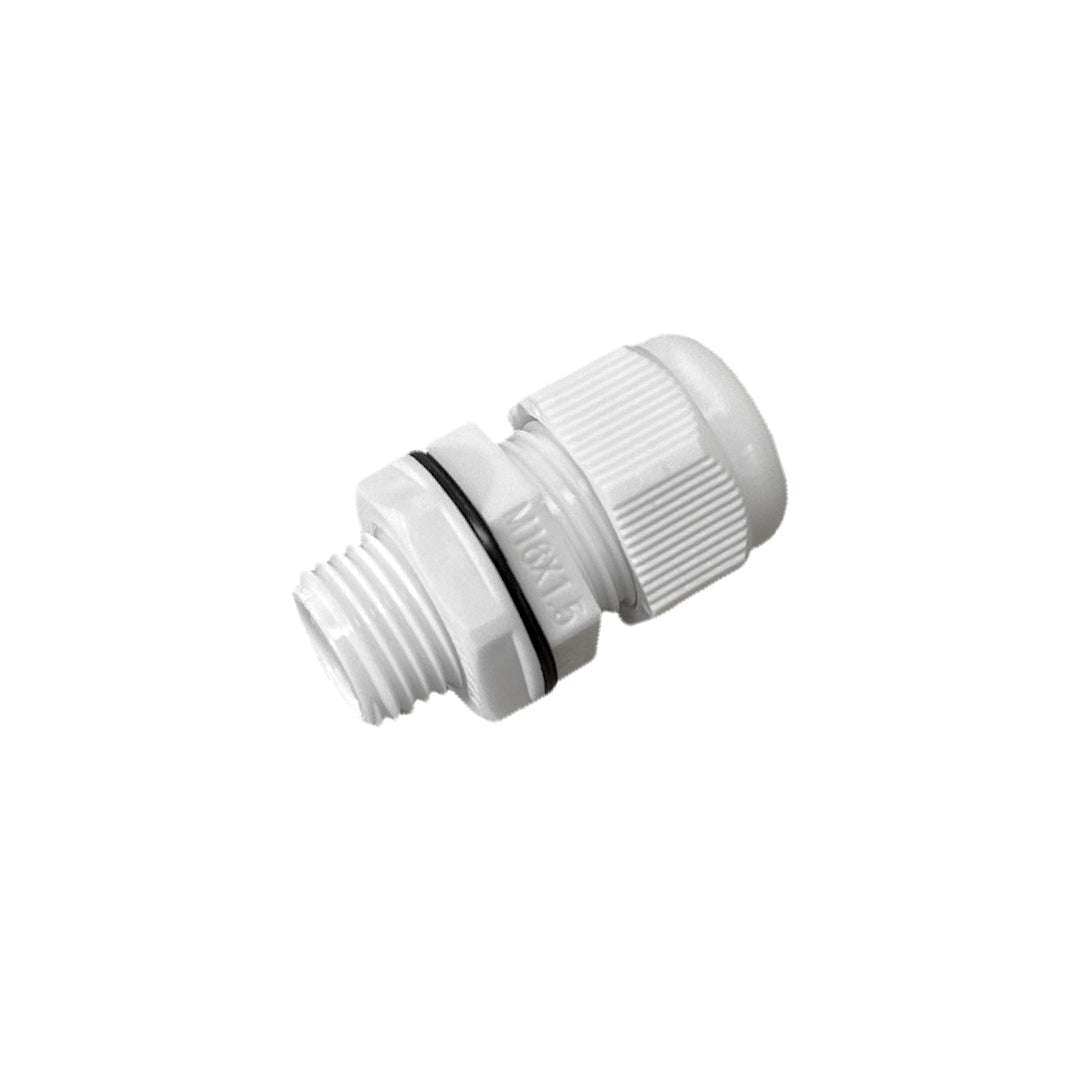

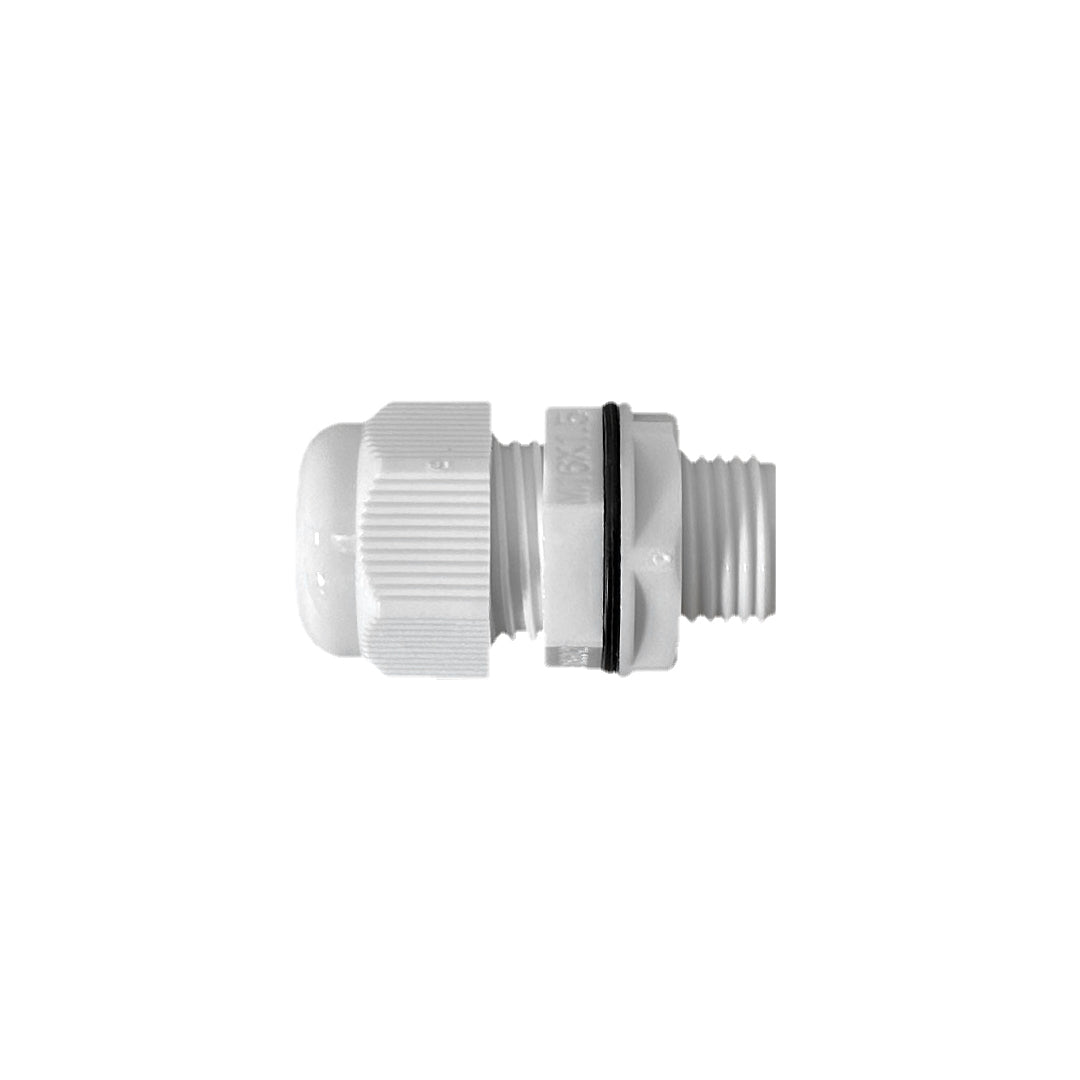

This cable gland has a metric thread pattern of M16xP1.5 and accommodates a cable size of 5 to 10mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.
|Color||Black / White|
|Mounting Hole||16.0 ~ 16.3 mm[0.63 ~ 0.64 inches]|
|Cable Range||5 ~ 10 mm[0.20 ~ 0.39 inches]|
|Product Weight||0.2 lbs [0.09kg]|
