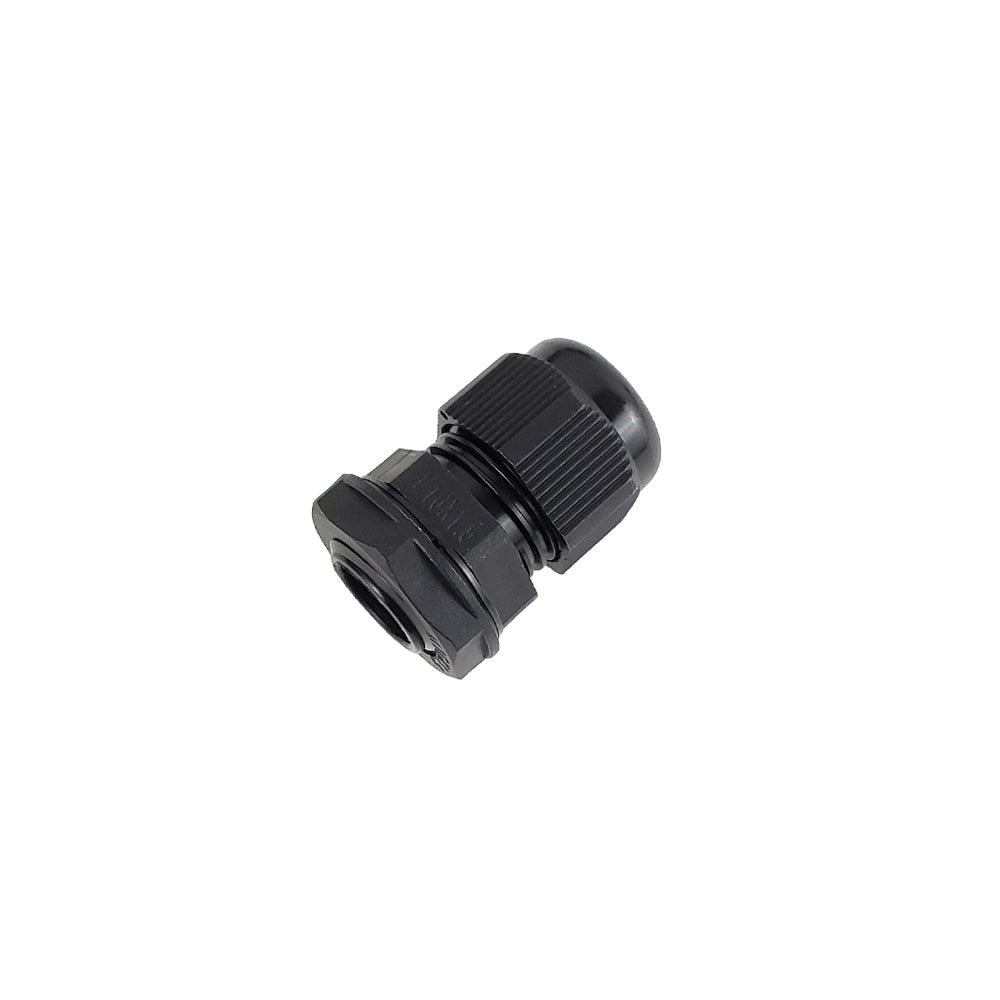

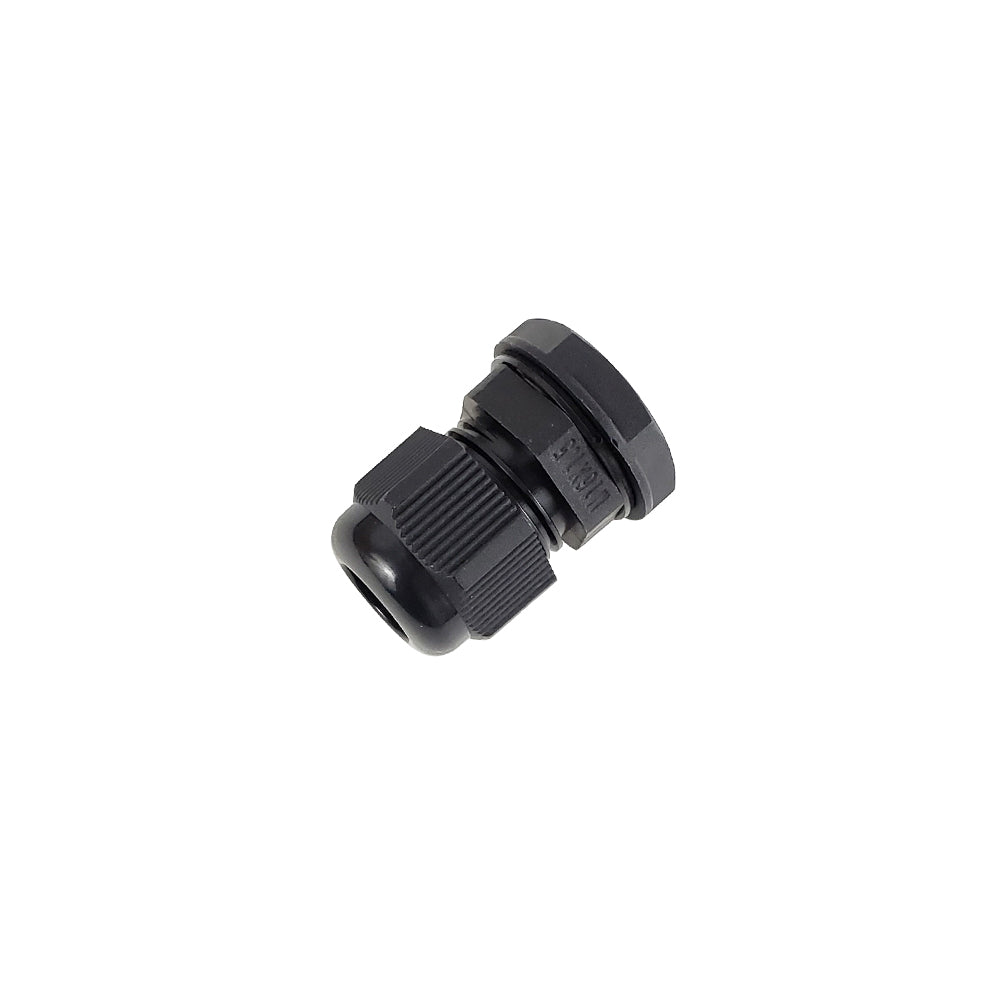

Cable Gland M16x1.5 Thread - Cable OD 5~10mm - IP68 - Black

Cable GlandsSKU: CG-M16-S

Price:
Sale price$1.80 CAD
Stock:
In stock


Description

This cable gland has a metric thread pattern of M16xP1.5 and accommodates a cable size of 5 to 10mm. The gland is dust resistant and waterproof with an IP68 rating. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.

Physical Characteristics
Color Black
Material Nylon 66
Thread M16xP1.5
Mounting Hole 16.0 ~ 16.3 mm[0.63 ~ 0.64 inches]
Cable Range 5 ~ 10 mm[0.20 ~ 0.39 inches]

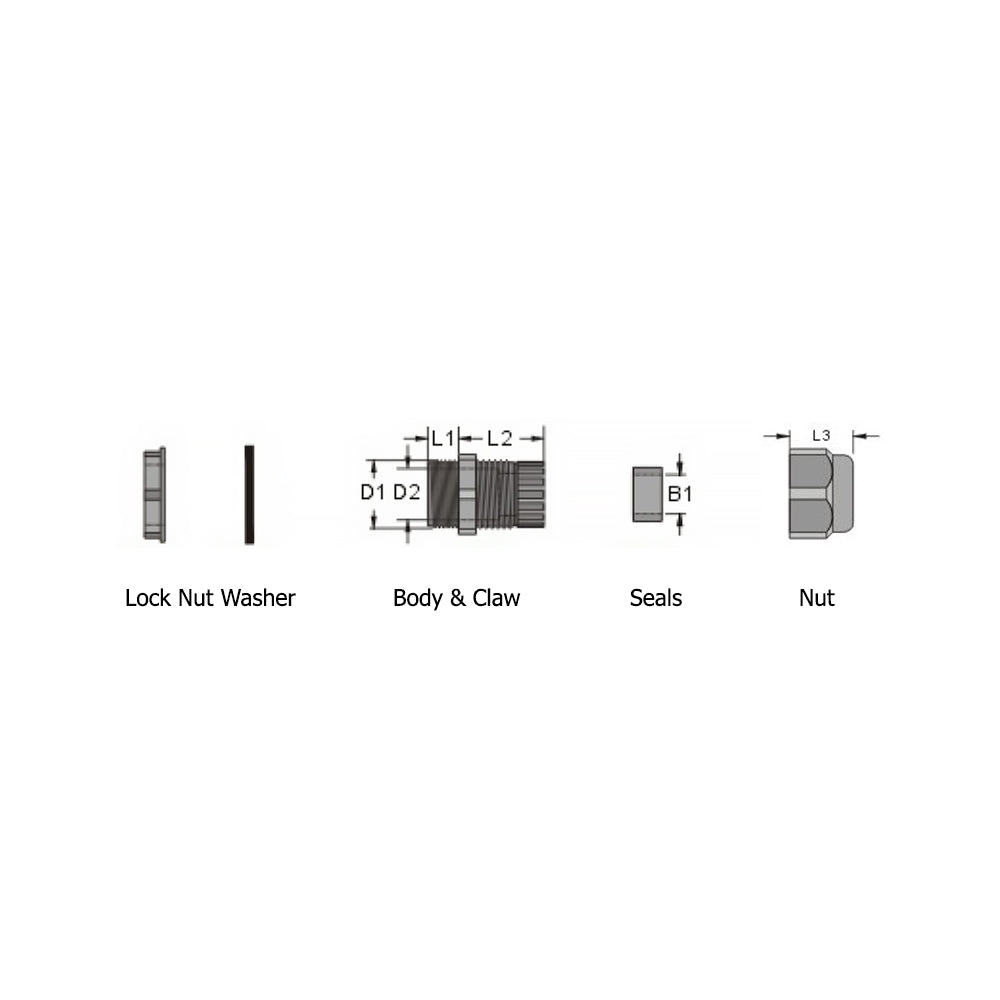

Dimensions

D1 D2 B1 L1 L2 L3
16.0mm 10.7mm 10.1mm 8.2mm 23.3mm 16.1mm
0.63in 0.42in 0.40in 0.32in 0.92in 0.63in
IP68 Rated Yes
Approvals
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.2 lbs [0.09kg]
