C13 Locking Receptacle - 6 Tier - 6.3mm Terminal, 1.5mm Panel Thickness - Black (IEC-Lock Part #: PA135015BK6)

Locking IEC AccessoriesSKU: PW-SCL-C13-6T

Price:
Sale price$31.60 CAD
Stock:
In stock


Description

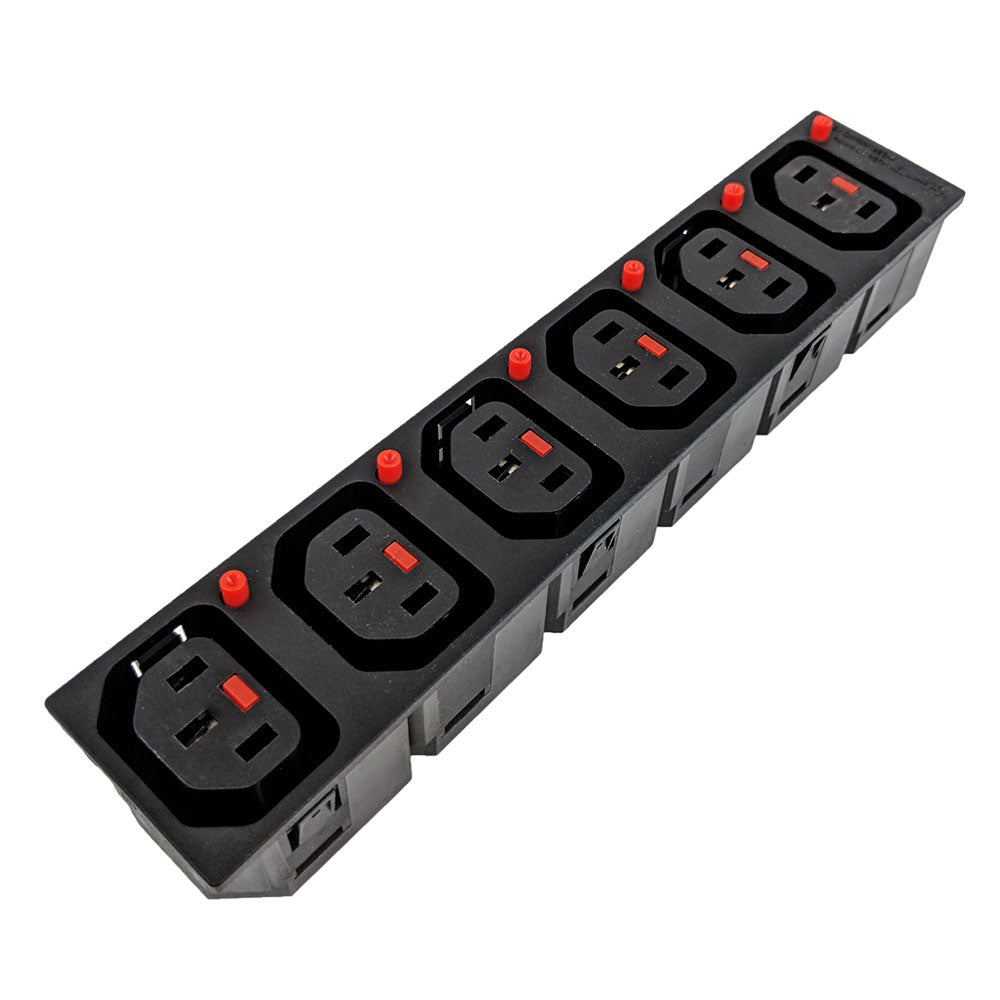

This power outlet has six locking female C13 connectors on one side and a solder/quick connect terminal on the other. This outlet is typically used to provide maximum retention when connecting a C14 power cable to the locking C13 power outlet. Compatible with any C14 cable.

Physical Characteristics
Connection Type Snap-in Mounting From Front
Color Black
Material (Body) Thermoplastic UL94V-0
Materials Socket Black Polyamide 66 (PA66) UL94V-0
Material Rating LSZH - Low Smoke Zero Halogen
Connector Plating Nickel
Rating 10A/250V AC
Insulation Resistance 10M (500V DC, 1Min.)
Dielectric Strength 2KV (50Hz 1 Min) to Accessible Surfaces
Lock Retention >100N
Panel Mount Yes
Panel Thickness Black & White IEC320 Snap-in 1mm or 1.5mm
Solder/QC Dimensions 6.5 x 1.6mm
Manufacturing Information
IEC-Lock Part # PA135015BK6
Connectors
C13 x 6 Female

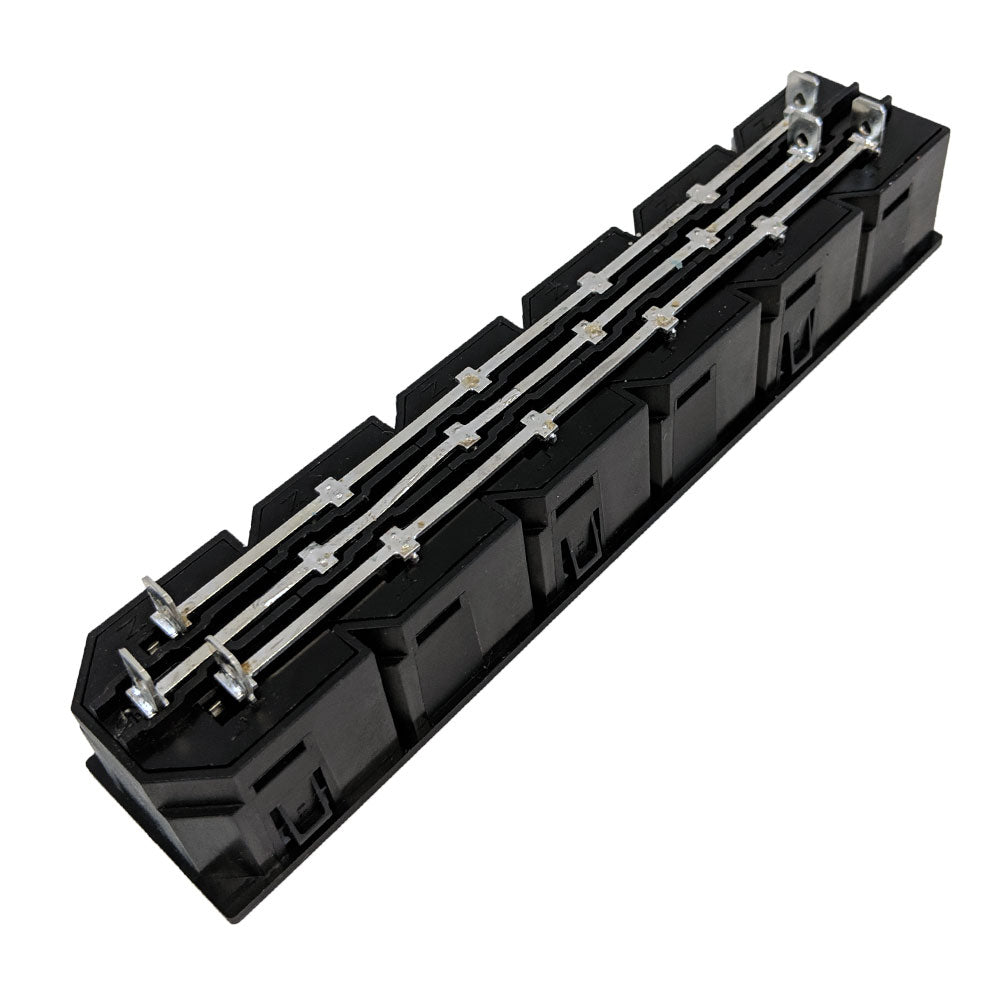

Solder/Quick Connect Male
Approvals
UL Yes
CSA Yes
Certification
c(UL)us Yes
Packaging Information
Package Quantity 1
Product Weight 0.33 lbs [0.14kg]

SKU Weight
PW-SCL-C13-6T 0.33 lb
