AFL FUSEConnect ST/PC MM 62.5u Connector - 900um Beige (6 pack)

Fiber Optic ConnectorsSKU: FO-FUSE-ST9M62-6

Price:
Sale price$147.05 CAD
Stock:
In stock


Description

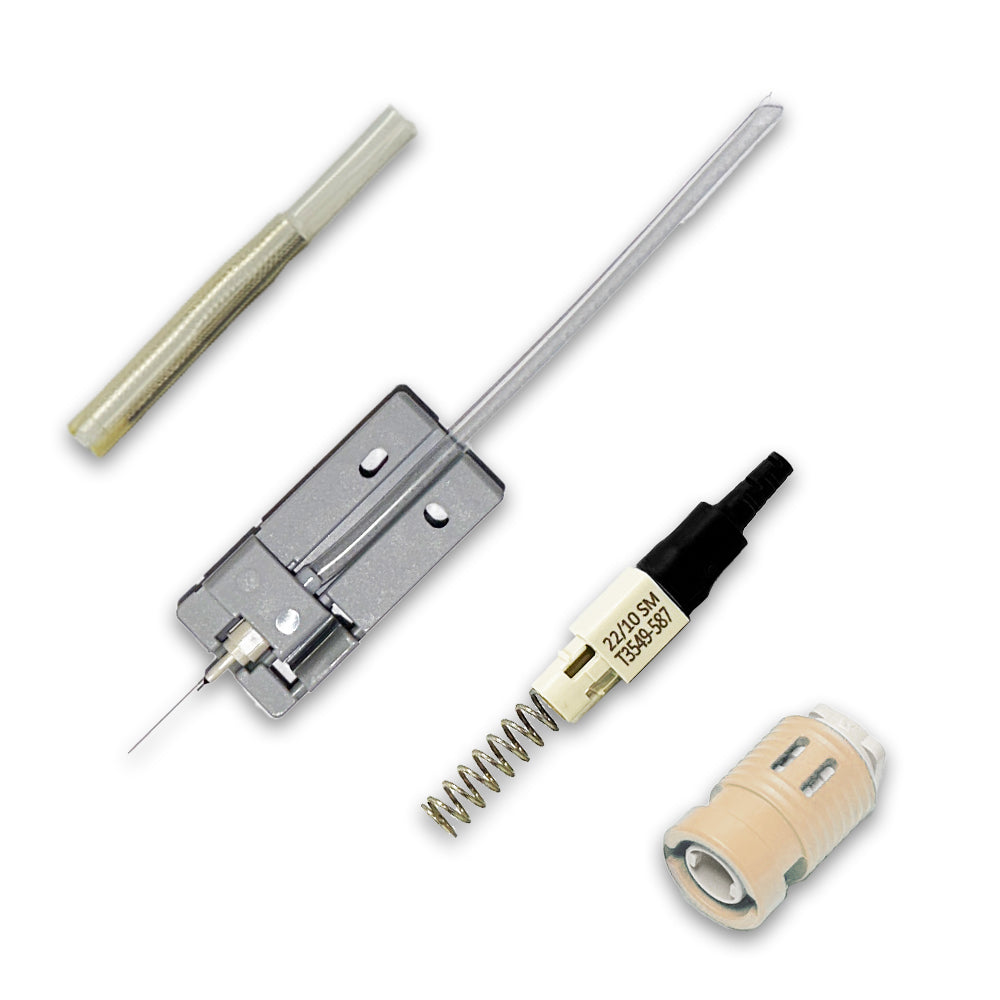

These fiber optic FUSEConnect fusion-spliced ST connectors are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. FUSEConnect Connectors are compatible with 900 µm optical fibers, as well as 2 mm and 4.8 mm cordage. The connectors are color coded per industry standard requirements to aide in identification during and after installation. They utilize a fusion splicer to terminate the connector in the field, addressing return loss concerns present in analog optical networks.

Features

  • Field installable
  • No adhesives, crimping or polishing
  • True PC performance
  • Compatible with most fusion splicers

Applications

  • Connectorization in RF-overlay FTTP networks
  • Connectorization in cable TV backbone networks
  • Connectorization in outside plant
  • Connectorization in FTT Desk
  • Connectorization in MDU FTTP cabling
  • Data center installation
  • Central office connector replacement
Physical Characteristics
Color Beige
Cable Diameter 900um
Fiber Size 62.5/125 micron
Fiber Type Multimode
Operating Temperature -40°C to +75°C
Fiber Classification MM
AFL P/N FUSE-ST9M62-6
Connector
Connector ST Simplex Male
Performance
Insertion Loss Average: 0.10 dB, Maximum: 0.25 dB
Return Loss ≤ -35 dB
Package Information

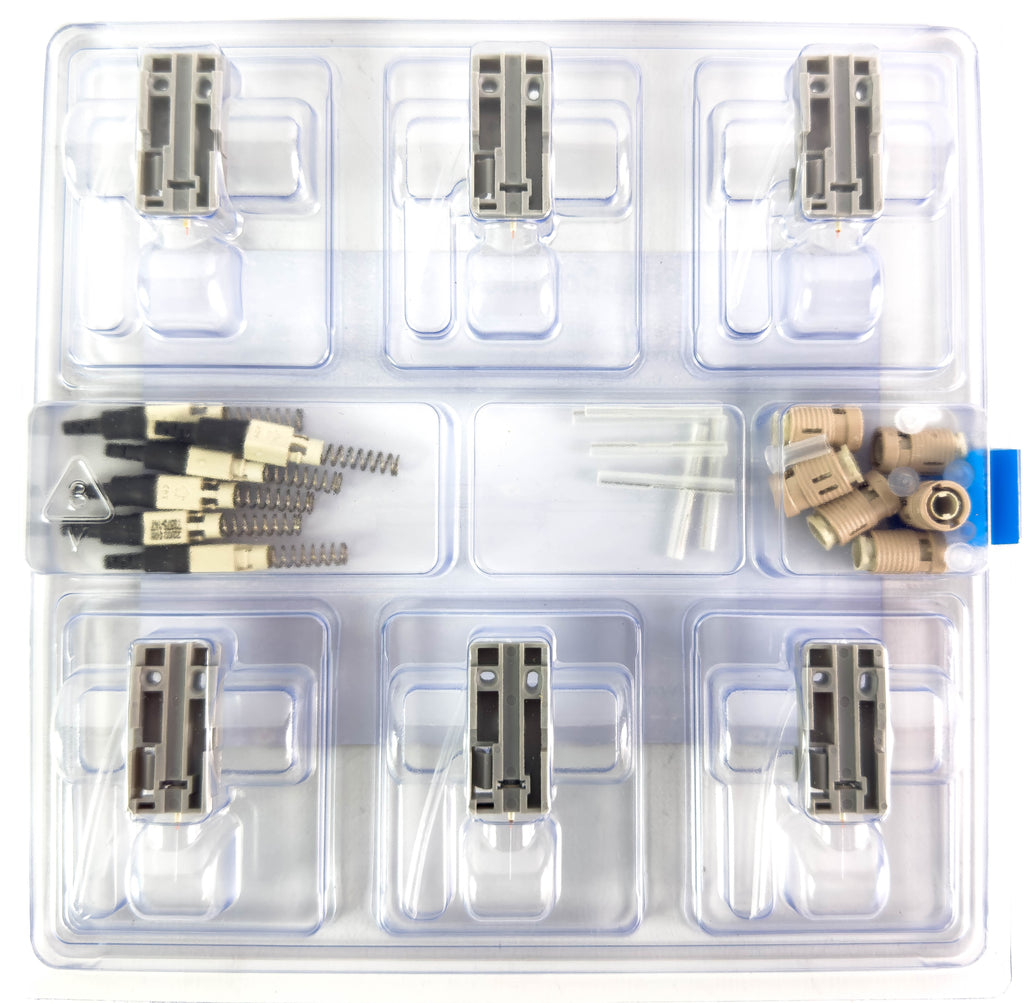

Package Quantity 6
Product Weight 0.24 lbs
SKU Weight
FO-FUSE-ST9M62-6 0.24 lb
