Adhesive cable tie mount - Pack of 100


Size: 0.75x0.75 inch
Color: Clear
Price:
Sale price$3.80 CAD
Stock:
In stock


Description

This cable tie adhesive mount is used to direct and fasten cable-tied bundles to flat surfaces. Cable ties can be inserted from a variety of directions, allowing for quick installation. The cradle design at the top of the mount allows for the bundle to fit snug. The mounts peel and stick self adhesive can attach to most flat surfaces.

Physical Characteristics
Color Black/Clear
Material Black: Polyamide 6.6 natural+ ~1% carbon black+Adhesive Tape
Clear: Polyamide 6.6 natural+Adhesive Tape
Type Cable Tie Mount
Flammability of Raw Material UL 94 - V2
Humidity Absorption 2.7% ~ 2.8% (23° C - 50% R.H.)
Min. Installation Temperature -10° C (stocking temperature22+/-1° C,R.H.55%+/-5%)
Working Temperature -10° C ~ +50° C (best suggested with 18-25° C,R.H.55%+/-5%)
Max. Sustainable Temperature for Short Time +85°C

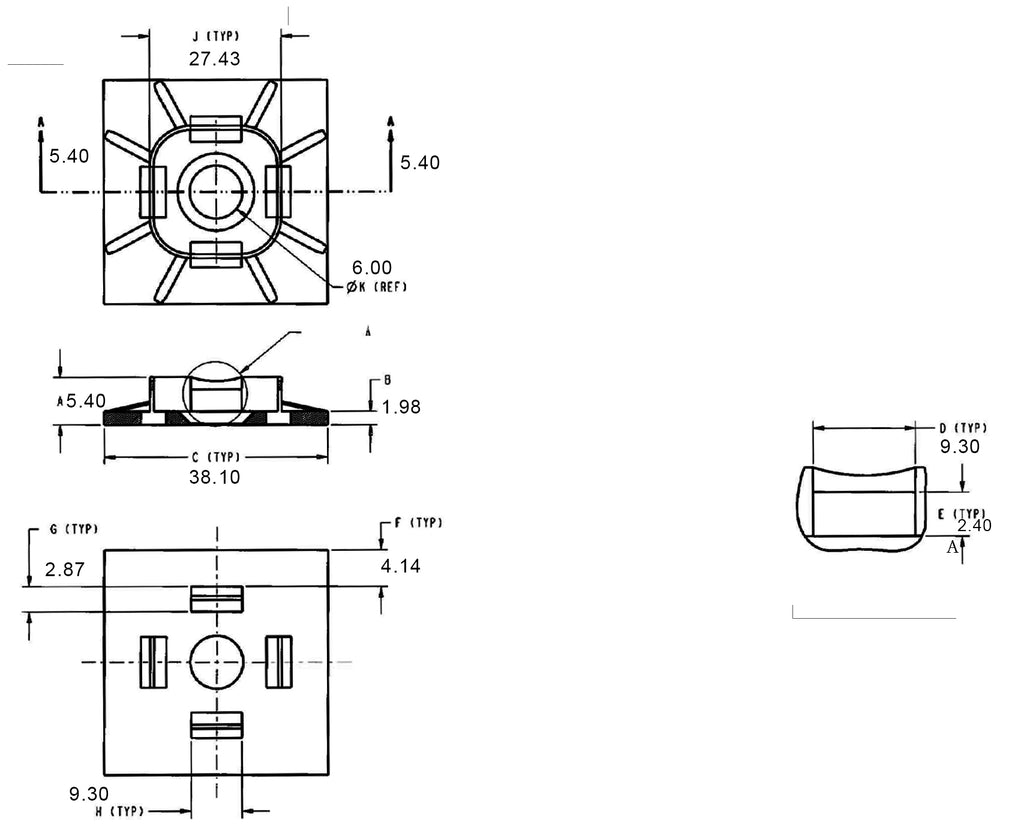

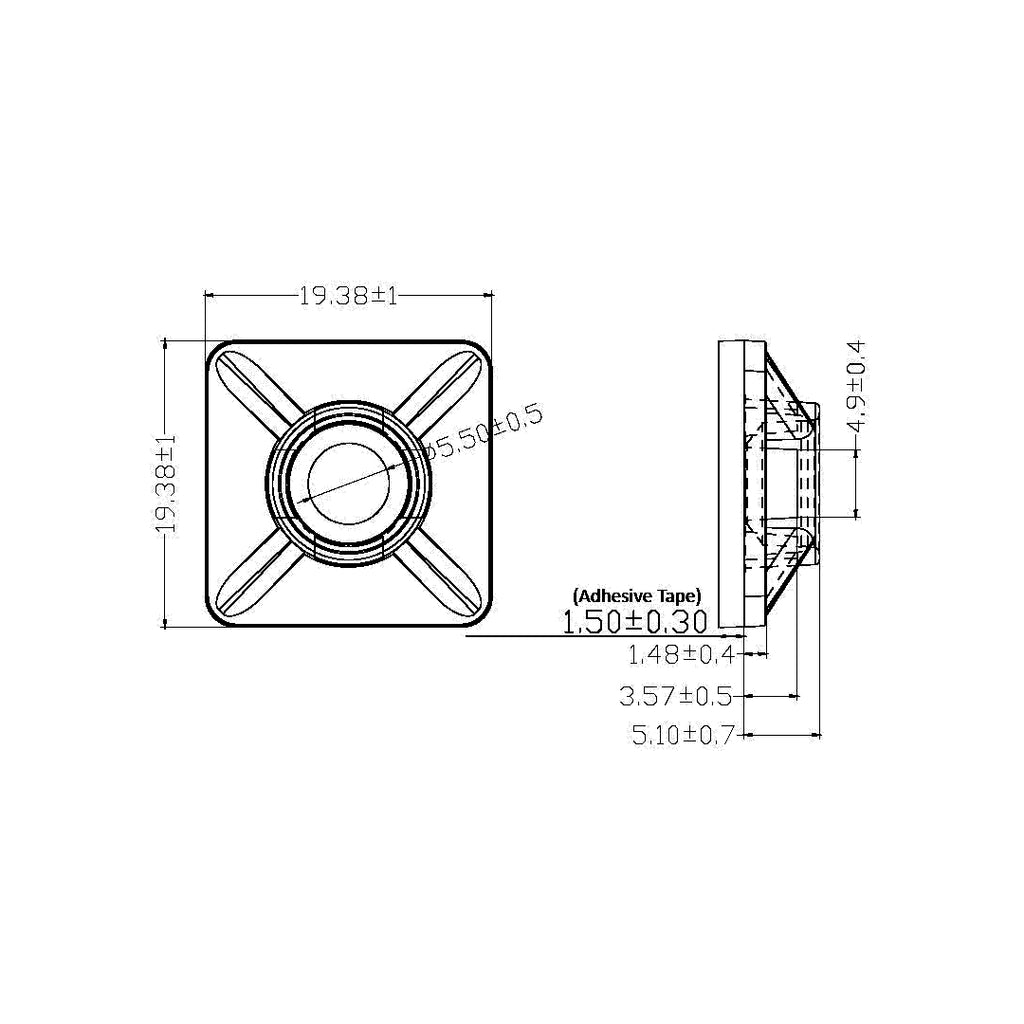

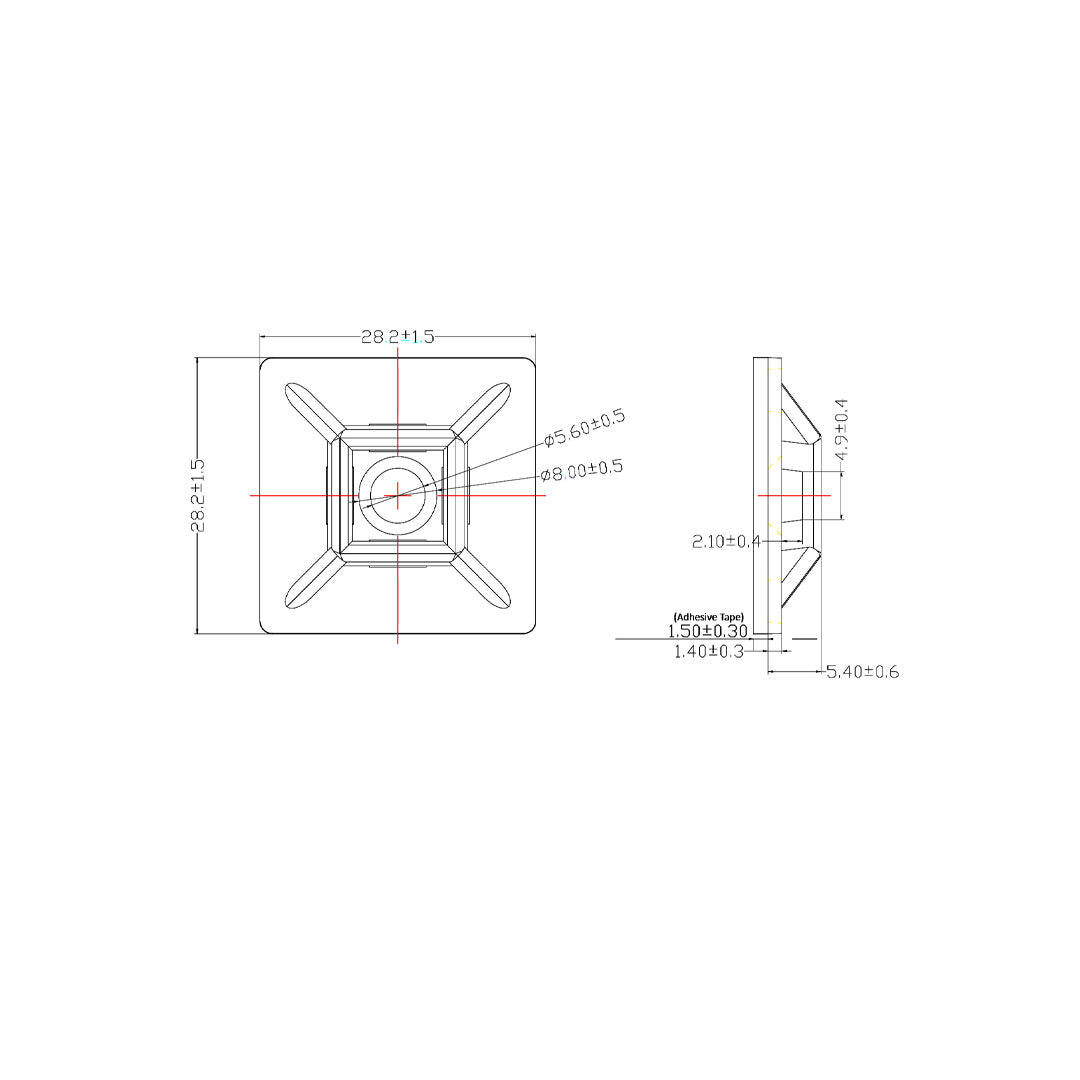

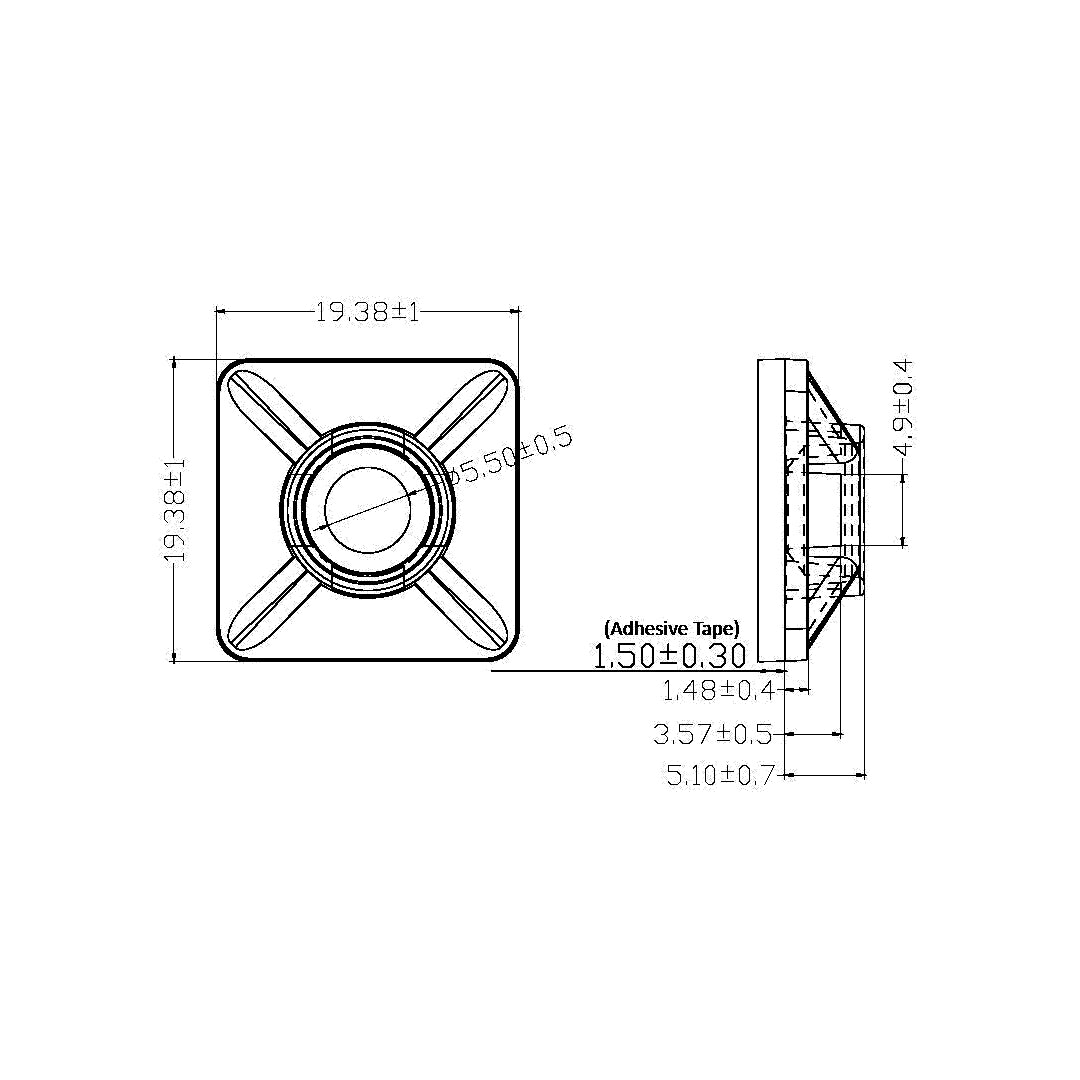

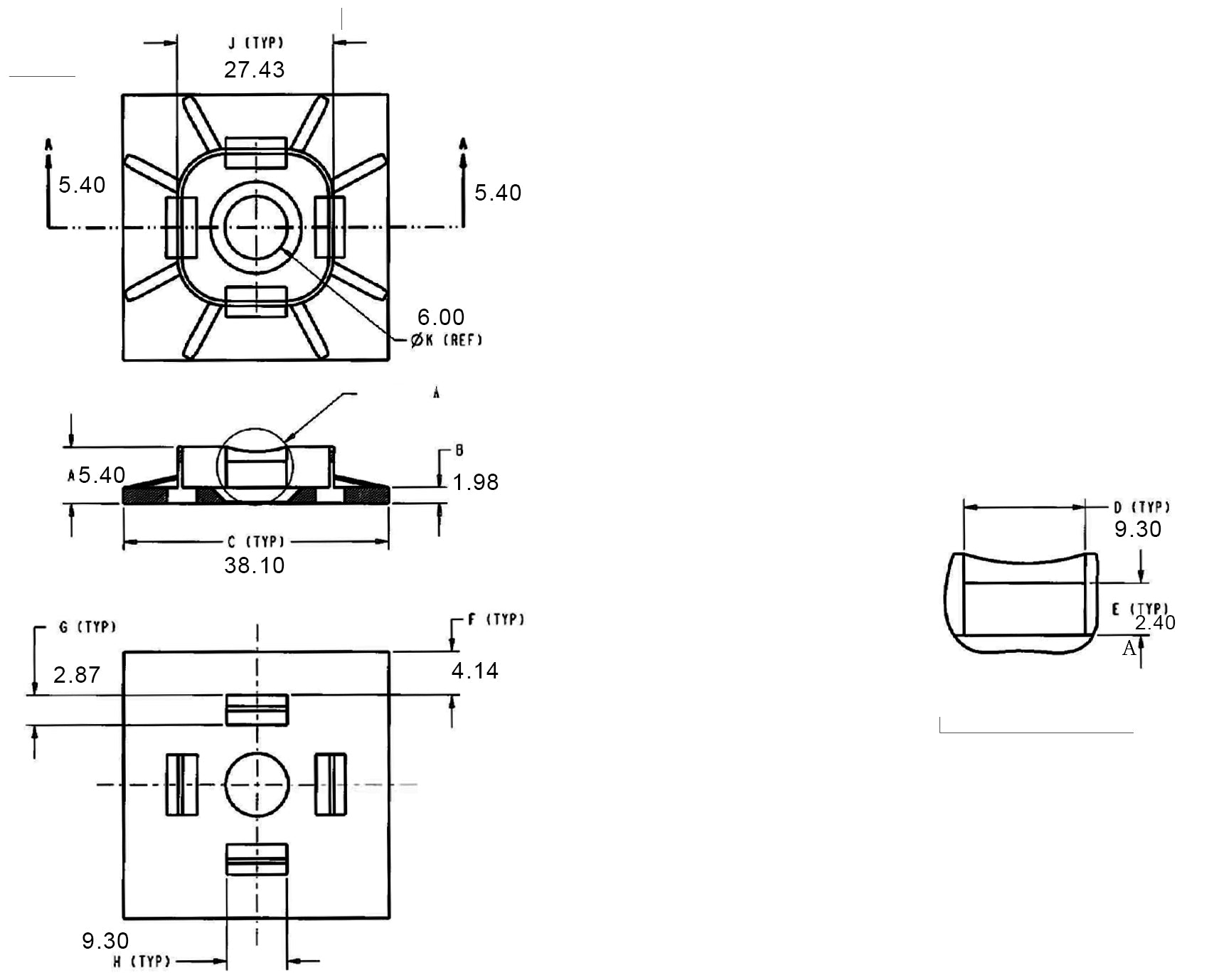

Mount Size 0.75 inch x 0.75 inch 1 inch x 1 inch 1.5 inch x 1.5 inch
Screw Size M5, #10 (Optional) M5, #10 (Optional) M6, #1/4 (Optional)
Slot Width 0.14 inch 0.203 inch 0.394 inch
Length 0.75 inch 1 inch 1.5 inch
Width 0.75 inch 1 inch 1.5 inch
Height 0.140 inch 0.16 inch 0.3 inch
Tear off Force
(Base: Steel Board) PSTC#1 SUS 304mm×30mins×180°
36.5 OZ / 10.1 N 76.3 OZ / 21.2 N 162 OZ / 45 N
Holding Force (Normal Temp)  > 72 hours (PSTC#7 at 5.1N) > 72 hours (PSTC#7 at 10.6N) > 72 hours (PSTC#7 at 22.6N)
Features Three Mounting Holes
Application Cable Bundling
Mounting Self Adhesive
Approvals
c(UL)us Yes
TUV   Yes
RoHS  Yes
Reach Yes
Packaging Information
Product Weight 0.18 lbs [0.08 kg]
Contents
Included in Package 100 Pcs/Pack
SKU Options Weight

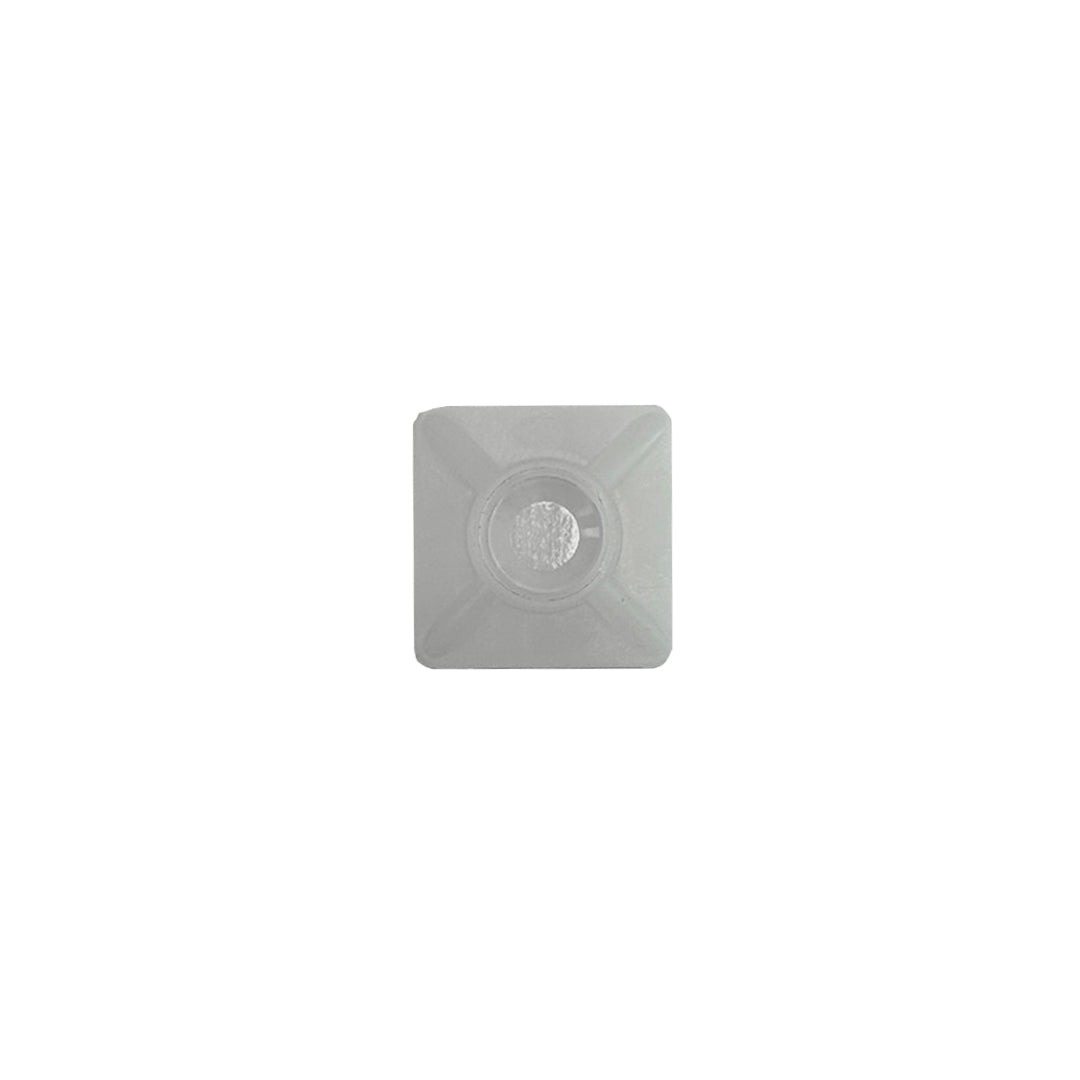

CT-M075-CL 0.75x0.75 inch / Clear 0.18 lb

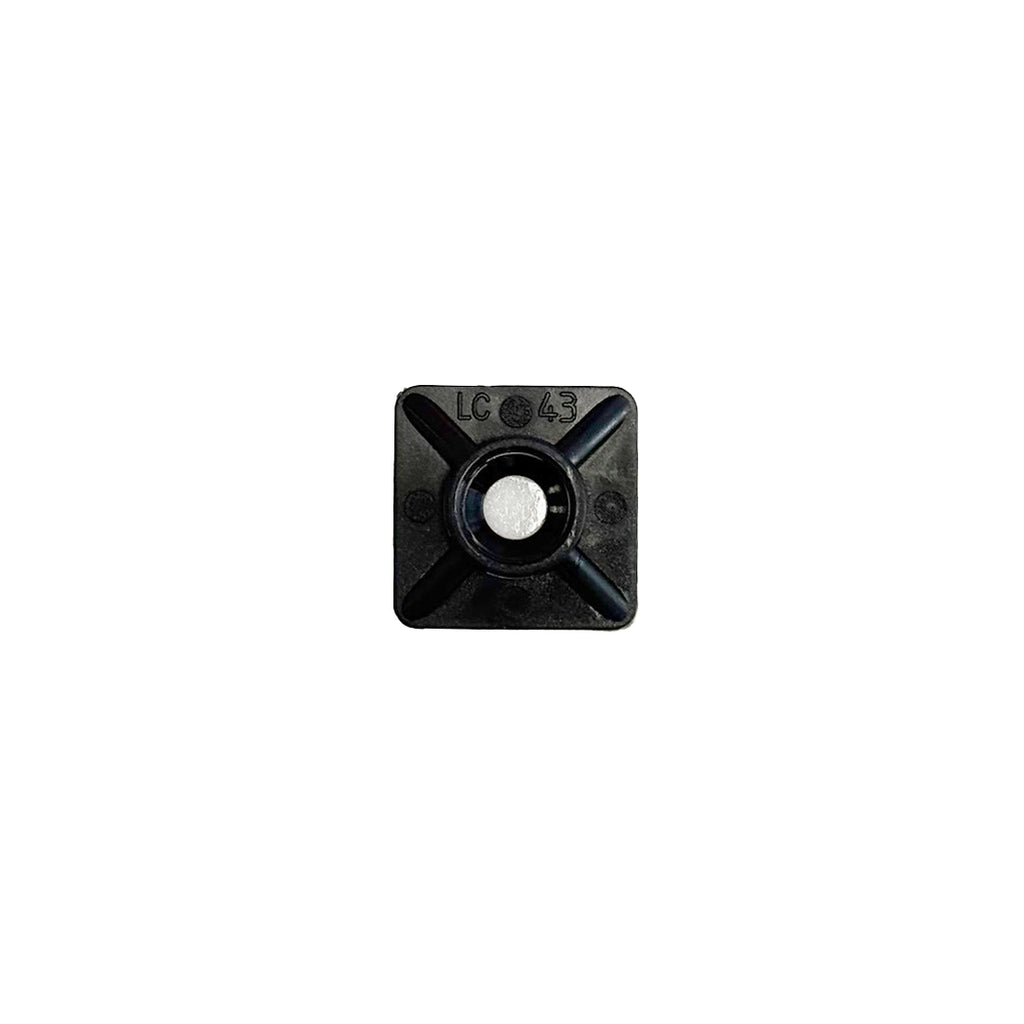

CT-M075-BK 0.75x0.75 inch / Black 0.18 lb

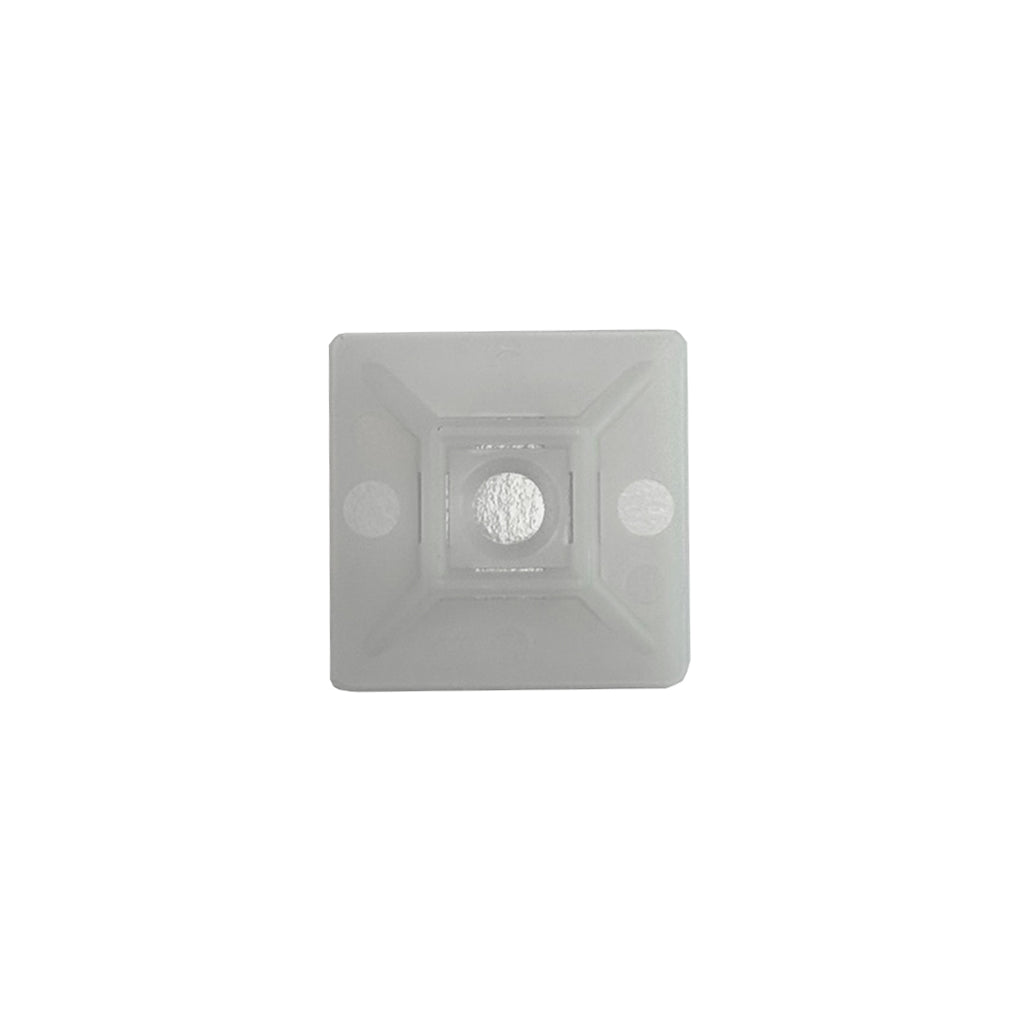

CT-M100-CL 1x1 inch / Clear 0.33 lb

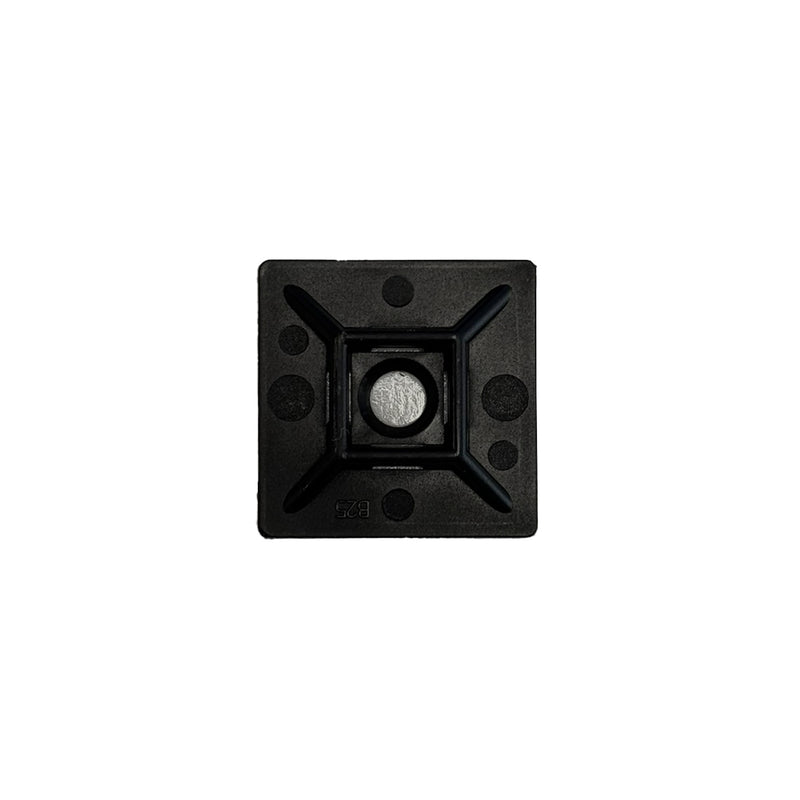

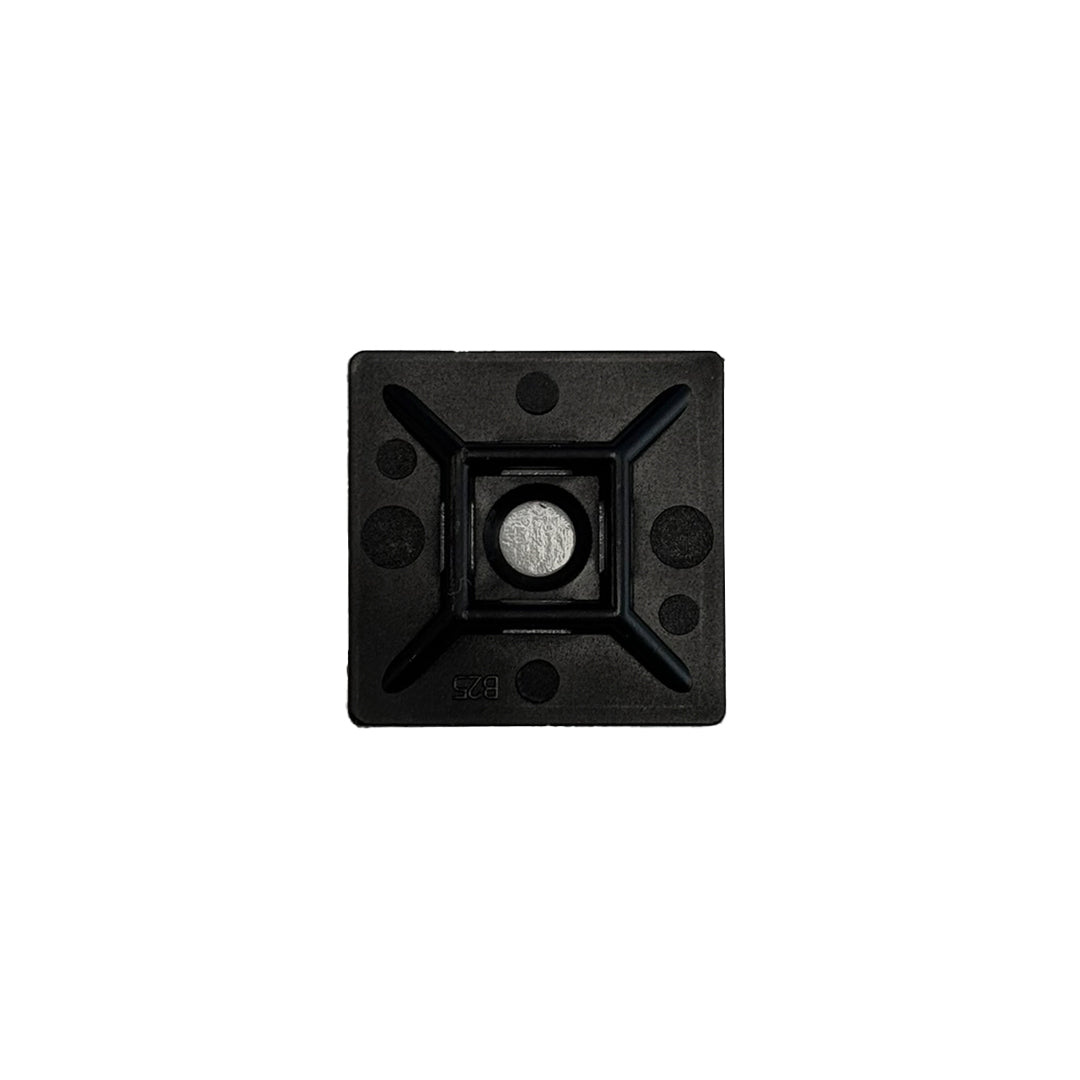

CT-M100-BK 1x1 inch / Black 0.33 lb

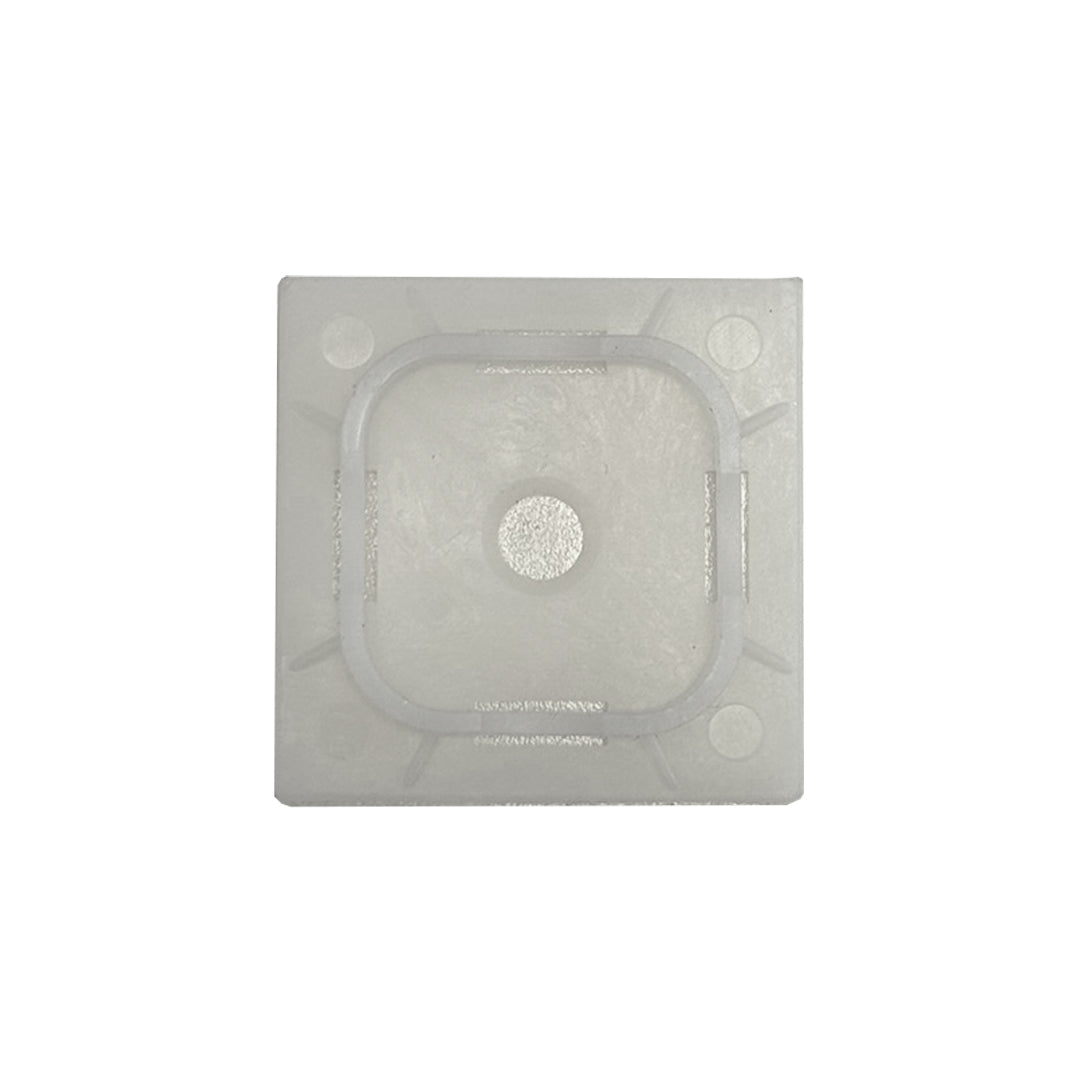

CT-M150-CL 1.5x1.5 inch / Clear 0.9 lb

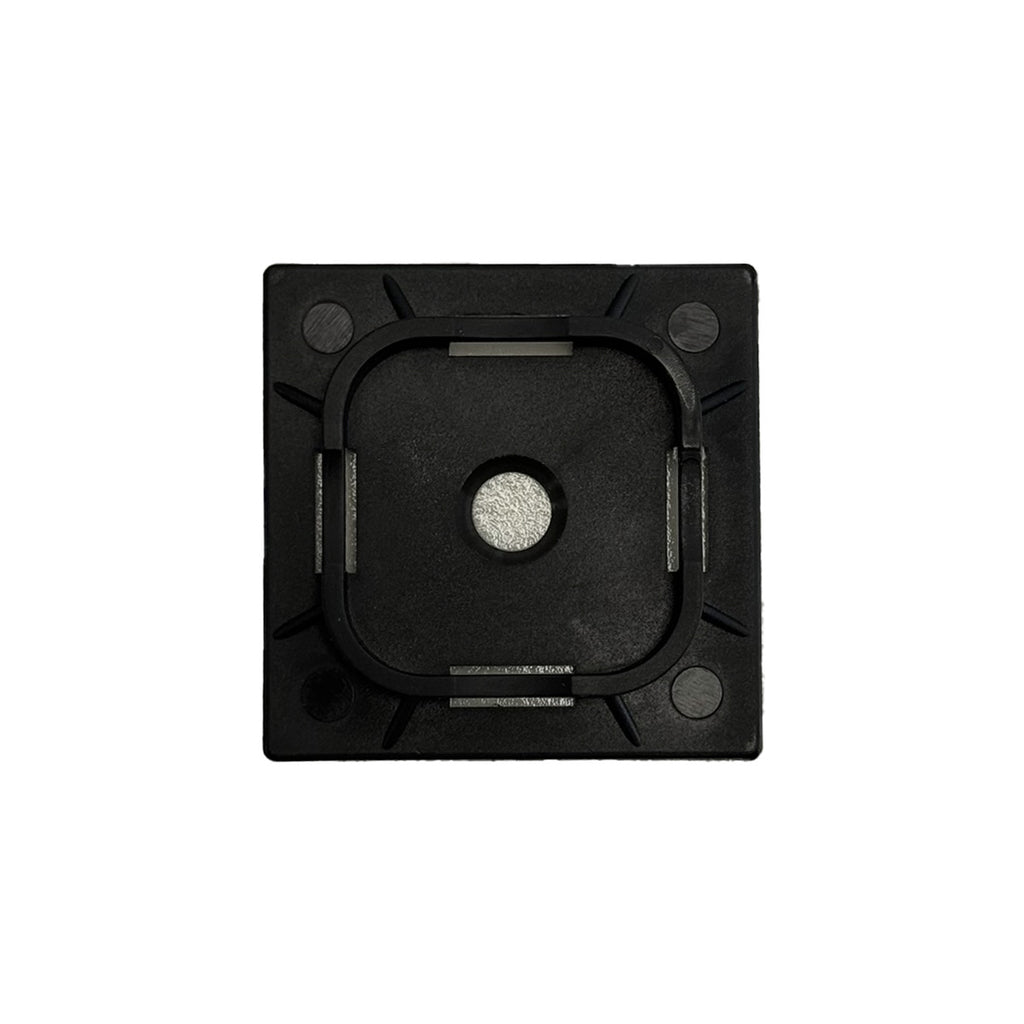

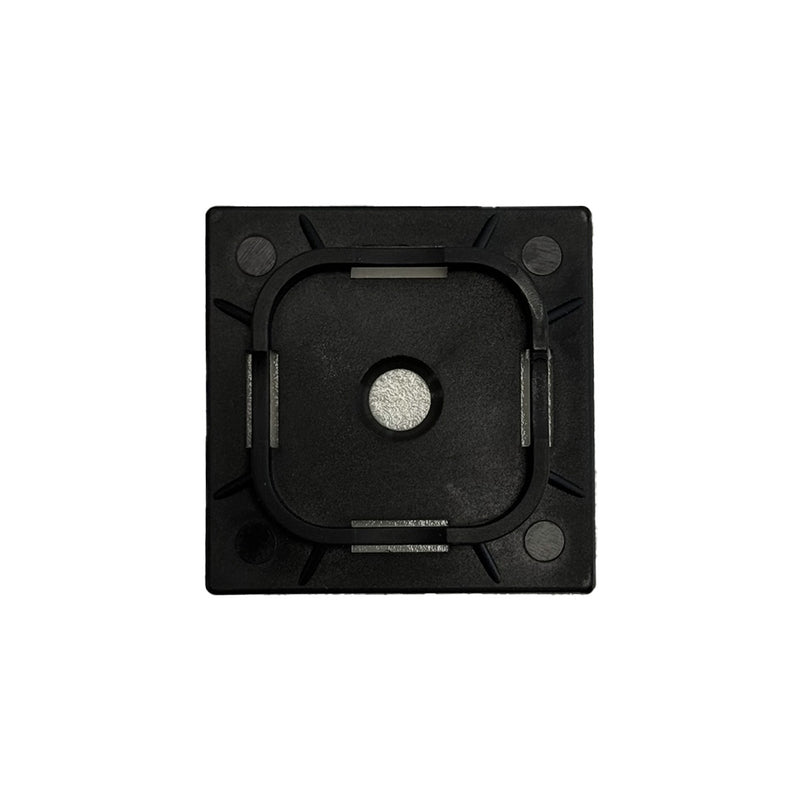

CT-M150-BK 1.5x1.5 inch / Black 0.9 lb
