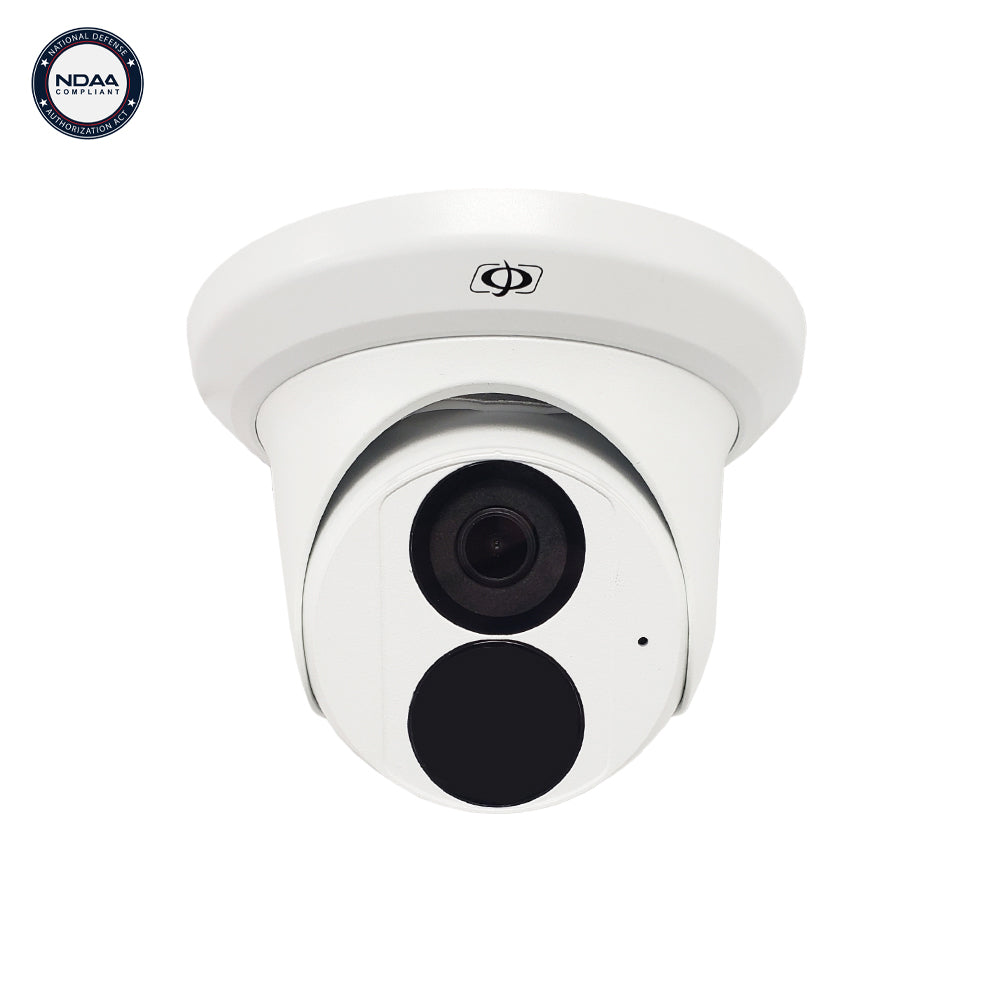

8MP Turret IP Camera - Fixed Lens - IR - Microphone - IP67 Rated

Phantom IP Cameras & RecordersSKU: SCD-8TR100-2WH

Size: 2.8mm Lens
Color: White
Price:
Sale price$319.45 CAD

Contact sales to place an order, 1-866-207-6442 or sales@infinitecables.com.



Description

This 8MP indoor/outdoor, IP based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera is available in 2.8mm and 4mm fixed lens which delivers a 112.9 ° and 91.2 ° horizontal field of view respectively. Its maximum resolution is 3840*2160 at 20fps and supports Ultra 265 video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP67 rated for outdoor use and has 98 feet of night vision using an IR cut filter and IR LEDs.

Features

  • High quality image with 8MP, 1/2.7"CMOS sensor
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Easystar technology ensures high image quality in low illumination environment
  • 120dB true WDR technology enables clear image in strong light scene
  • Supports 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256Gb Micro SD card
  • IP67 protection
  • Support PoE power supply
  • 3-Axis

Application

The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.

NVR Setup



Standalone Camera Setup

Specifications

Camera
Image Sensor 1/2.7" (8 MP) progressive scan CMOS
Minimum Illumination Support Easystar: Colour: 0.005Lux ( F1.6, AGC ON)
0Lux with IR on
Day / Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N >56dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 80°, rotation: 0° to 360°
Lens
Focal Length 2.8mm and 4.0mm @1.6, Fixed-focal
Lens Mount M12
Angle of View (H) 112.9° (2.8mm), 91.2°(4mm)
Angle of View (V) 59.1° (2.8mm), 47.9°(4mm)
Angle of View (O) 121.2° (2.8mm), 95.9°(4mm)
DORI
DORI Distance 2.8mm Lens, 84.0m Detect, 33.6m Observe, 16.8m Recognize, 8.4m Identify

4.0mm Lens, 120.0m Detect, 48.0m Observe, 24.0m Recognize, 12.0m Identify
IR
IR Range Up to 30m (98ft)
Wavelength 850 nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Supported
9:16 Corridor Mode Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital Noise Reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Defog Digital Defog
Events
Behavior Detection Cross line, intrusion(based on human body detection)
Motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHz
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
Interface
Network 1 * RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Certification
EMC FCC: FCC Part 15
Safety CE: EN 60950-1
UL: UL60950-1
IEC 60950-1
NDAA Compliant Yes
General
Operating Conditions -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Power

DC 12V±25%,
PoE (IEEE 802.3af, Mode B – Pins 4, 5, 7 and 8)
Power consumption: Max 4.5W

Power Interface Ø 5.5mm coaxial power plug
Surge Protection 4KV
Reset Button N/A
Ingress Protection IP67
Material Metal + Plastic

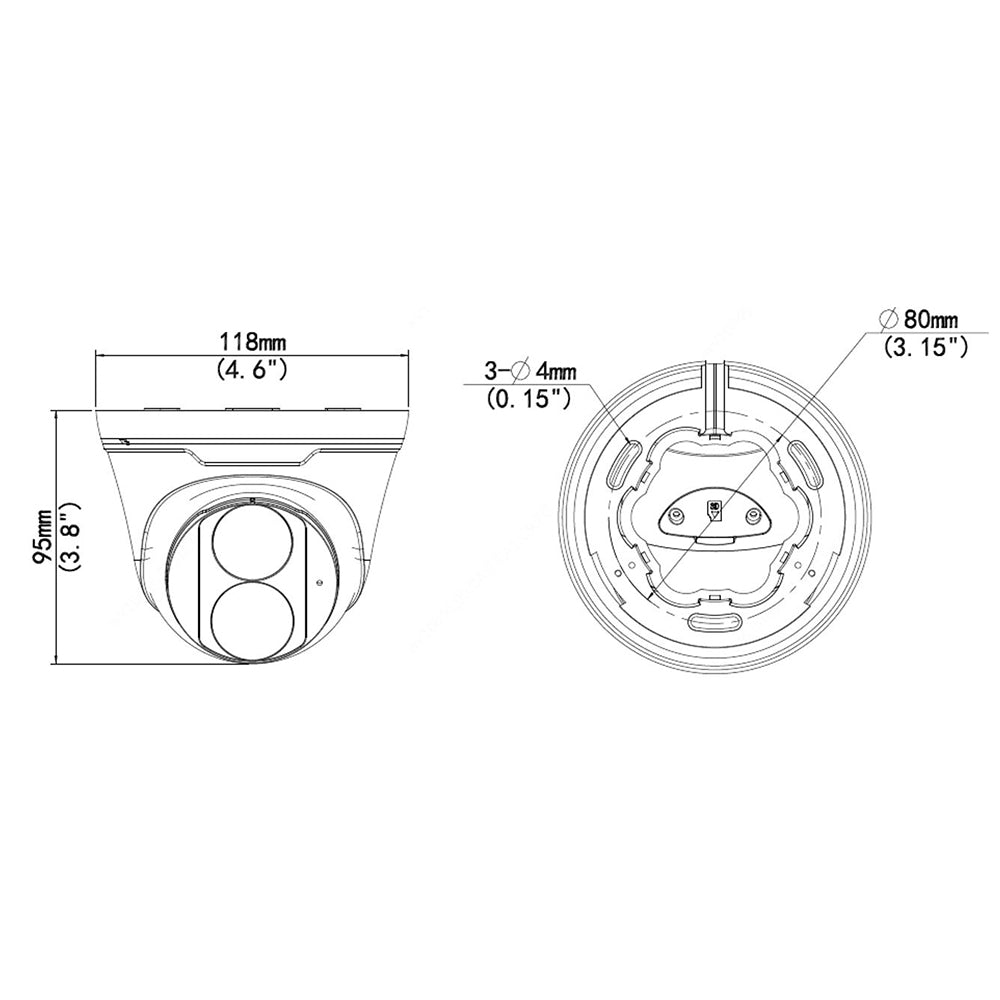

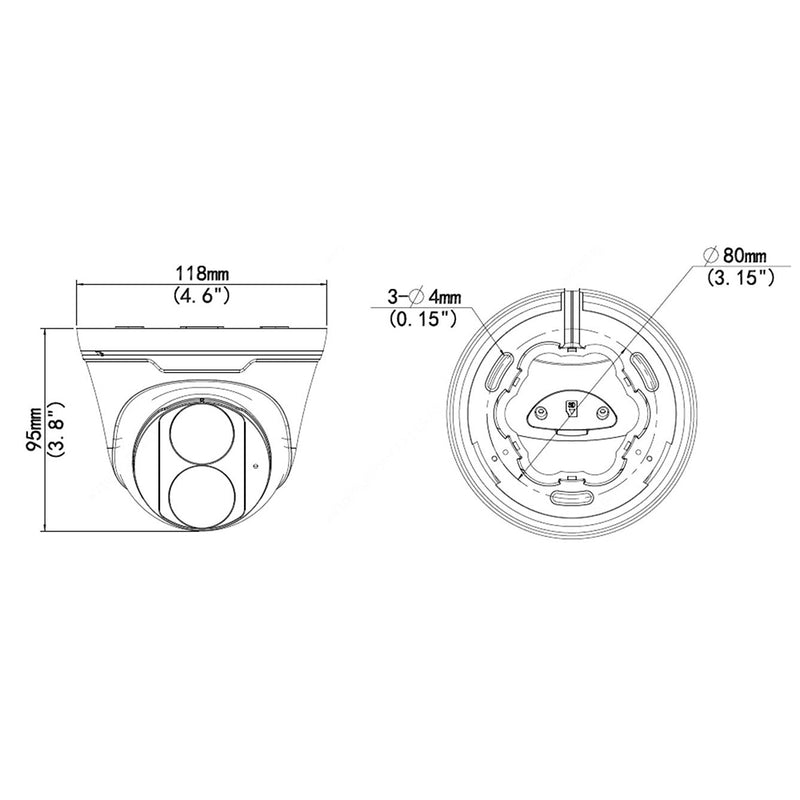

Dimensions
(Ø x H)
Φ118 x 95mm (Φ4.6” x 3.8”)
Weight 0.79 lbs [0.36kg]

Quick Start Guide

User Manual

Phantom Camview for Android

Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.

PhantomCamTools Windows app

PhantomCamStation Windows app to set up cameras

3-YEAR WARRANTY

Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.

SKU Options Weight
SCD-8TR100-2WH 2.8mm Lens / White 0.77 lb

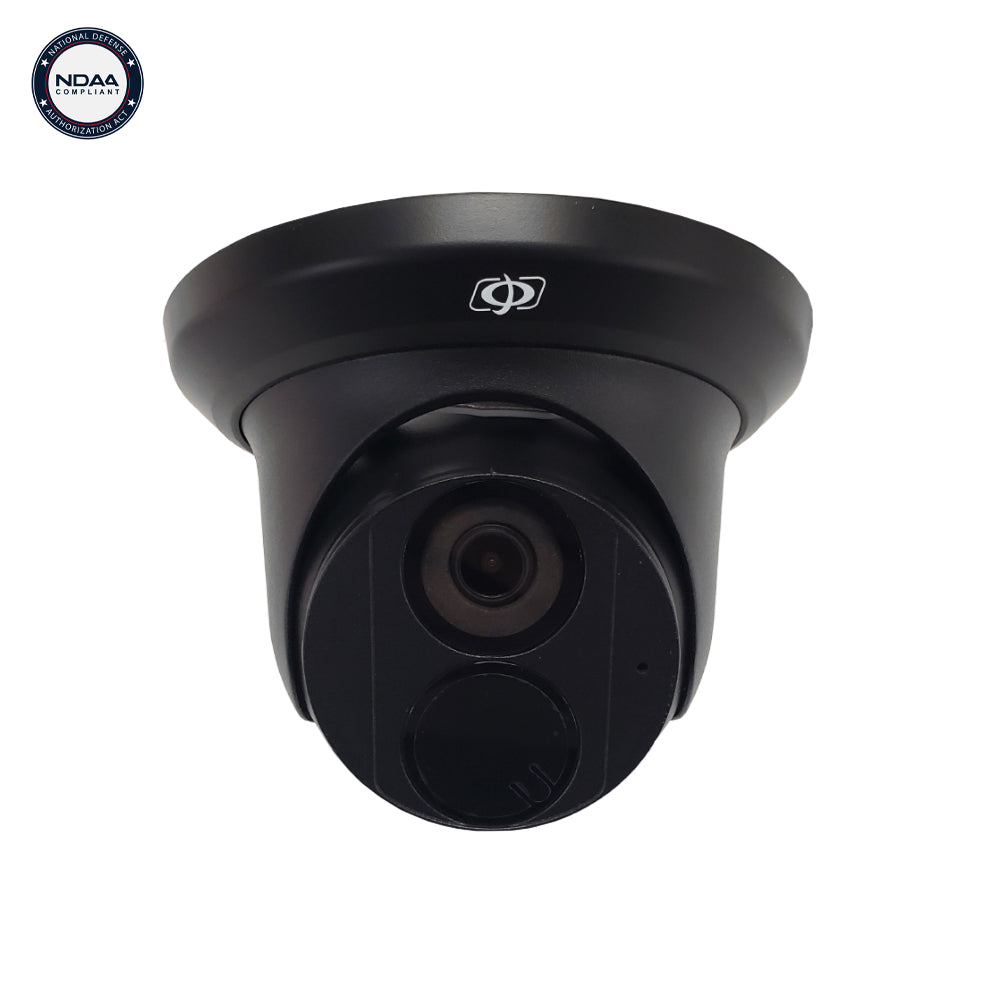

SCD-8TR100-2BK 2.8mm Lens / Black 0.77 lb
SCD-8TR100-4WH 4mm Lens / White 0.77 lb
