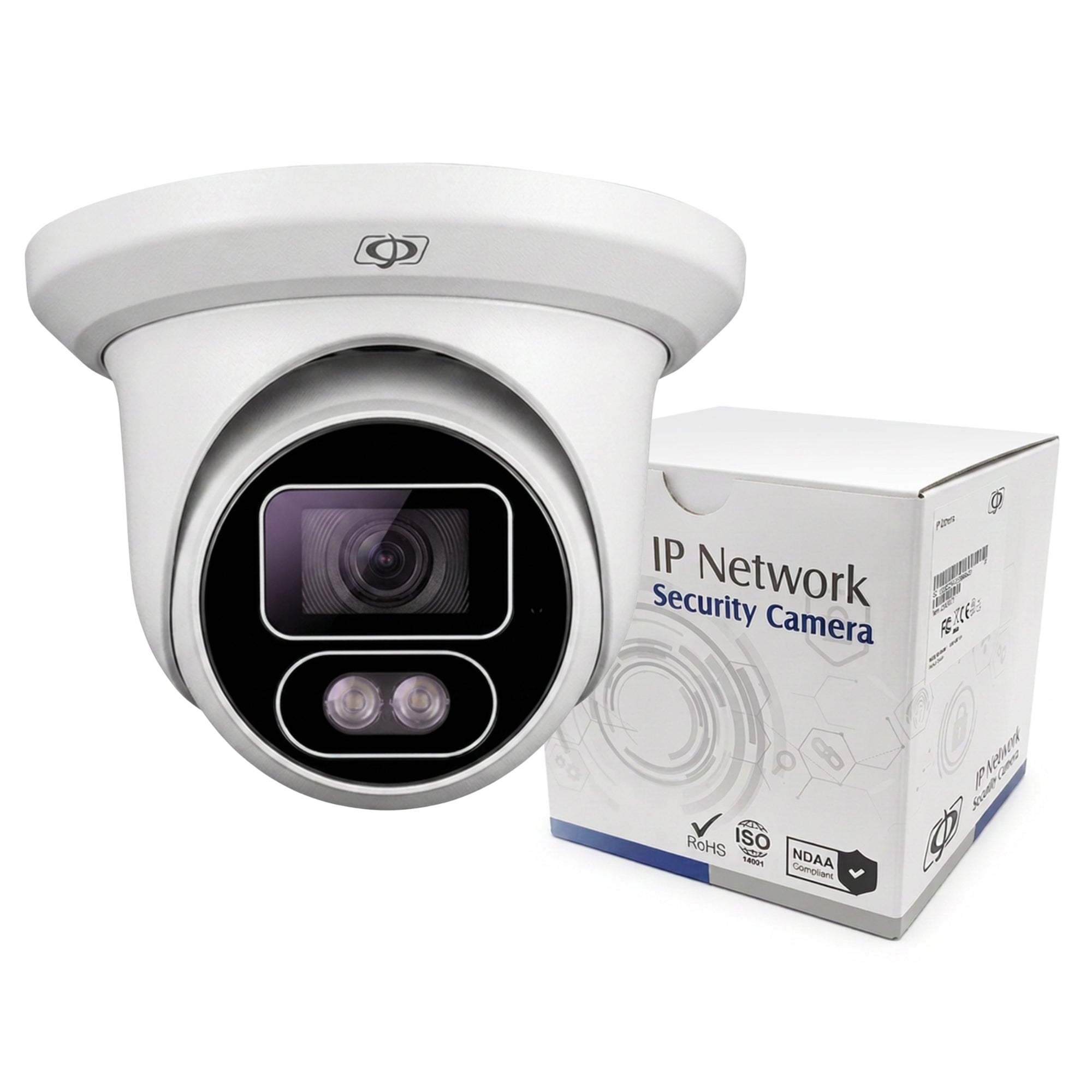

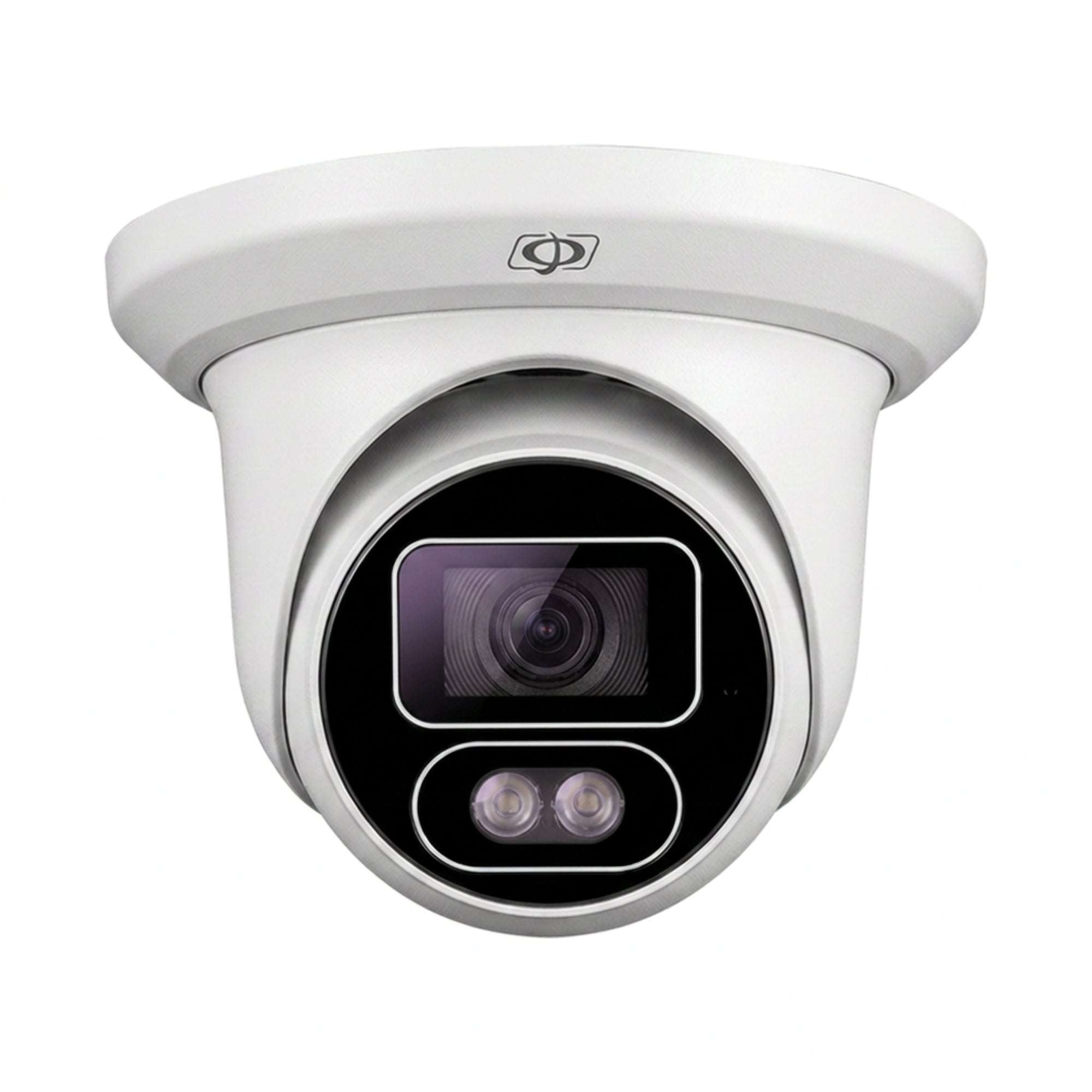

This 8MP HD intelligent light with improved colour night vision, indoor/outdoor, IP-based turret camera features maximum light gathering capability to provide full colour imaging in extremely dark settings. The camera is available in a 2.8mm fixed lens which delivers a 98.7° horizontal field of view. Its maximum resolution is 3840 x 2160 at 30fps and supports Ultra H.265 video compression technology, which assures savings in bandwidth and storage. Its housing is IP67 rated for outdoor use.
Features
- High quality image with 8MP, 1/2.7" CMOS sensor
- 8MP (3840*2160)@30fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- Supports sound and light alarm linkage. When Smart Intrusion Prevention is triggered, the camera links sound alarm and light linkage
- People Counting supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
- 130dB true WDR technology enables clear images in strong light scenes
Support 9:16 Corridor Mode - Built-in Mic and Speaker
- Smart illumination, allows for both IR and white LEDs to illuminate up to 30m (98ft) IR distance
- Supports 512GB Micro SD card
- IP67 protection
Application
The typical application for most security camera networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP camera as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a Micro SD card.
NVR Setup
Standalone Camera Setup
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Colour: 0.002 lux (F1.4, AGC ON) 0 lux with light on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° |
| S/N | >56dB |
| WDR | 130dB |
| Lens | |
| Lens Type | 2.8mm@F1.4 |
| Iris | Fixed |
| Angle of View (H) | 98.7° |
| Angle of View (V) | 53.6° |
| Angle of View (O) | 113.4° |
| DORI | |
| DORI Distance | Detect(m): 84 Observe(m): 33.6 Recognize(m): 16.8 Identify(m): 8.4 |
| Illuminator | |
| LED Distance(IR) | Up to 30m (98ft) |
| Illumination Distance(Warm Light) | Up to 30m (98 ft) |
| Wavelength | 850nm |
| LED On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 8 MP (3840 × 2160), max. 30 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Supported |
| Video Stream | Triple streams |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping | Support |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent | |
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| People Counting | People counting, support people flow counting and crowd density monitoring |
| Events | |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication |
| Audio | |
| Audio Compression | G.711U, G.711A, AAC-LC |
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
| Two-way audio | Support |
| Suppression | Support |
| Sampling Rate | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols | IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client |
Phantom Cam Link Phantom CamStation |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Interface | |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Audio I/O, Alarm I/O, RS485, WIFI, Video Output | N/A |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| NDAA Compliant | Yes |
| General | |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 11.5W |

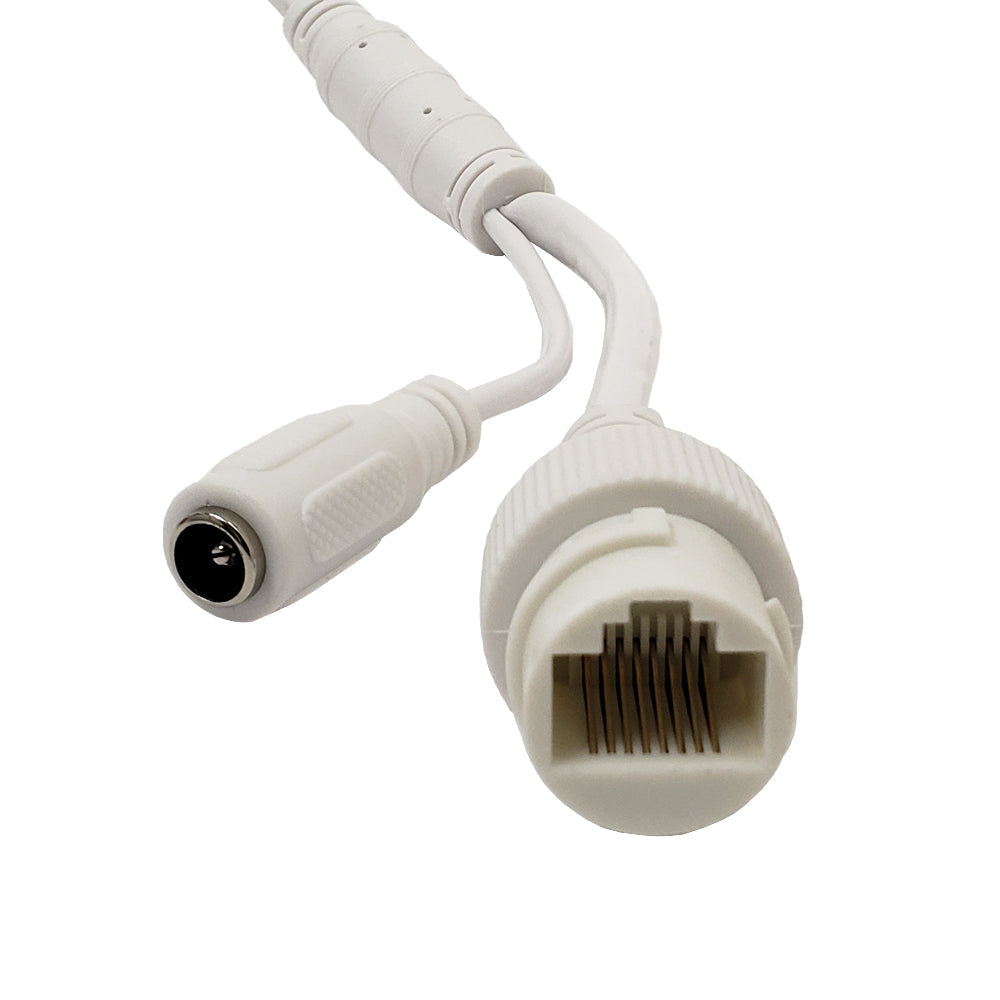

| Power Interface | Ø 5.5mm coaxial power plug |
| Surge Protection | 4KV |
| Reset Button | N/A |
| Material | Metal + Plastic |
| Dimensions (Ø x H) |
Φ111 x 95mm (Φ4.4” x 3.8”) |
| Weight | 1.04 lbs [0.47kg] |
