Overview

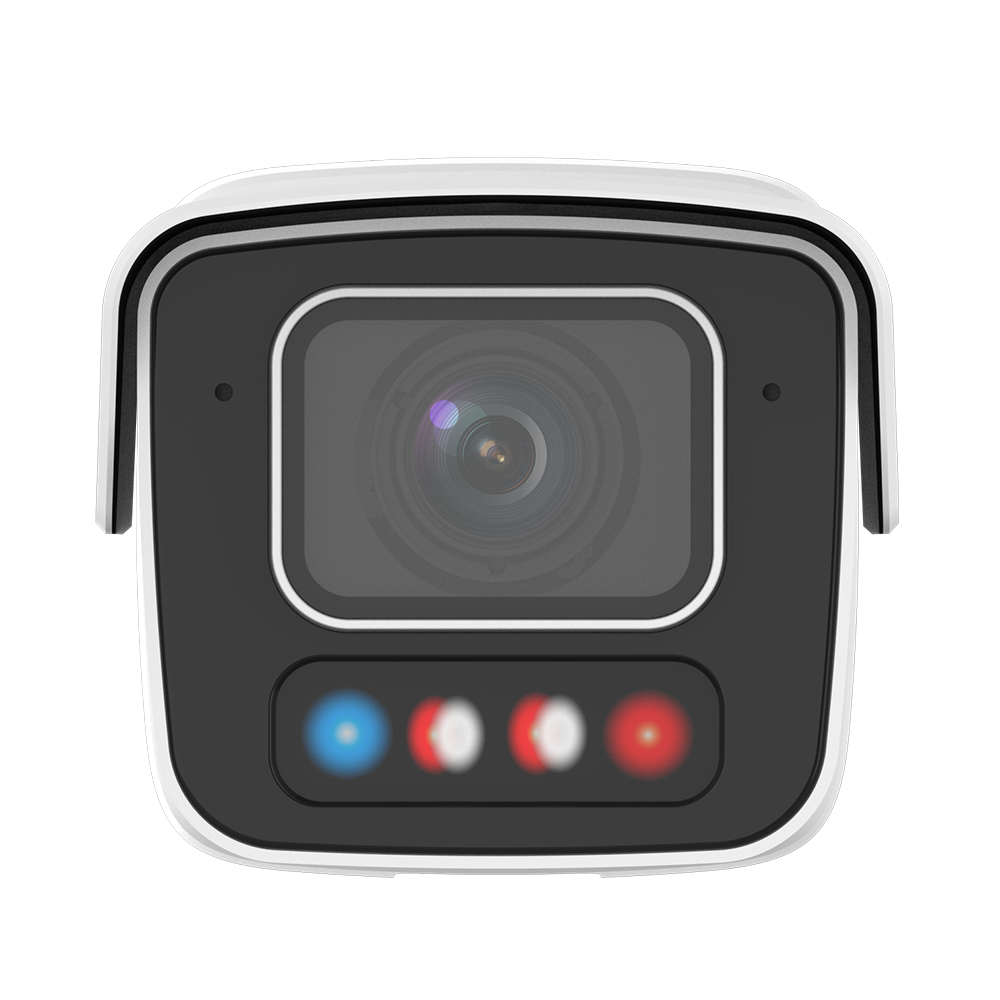

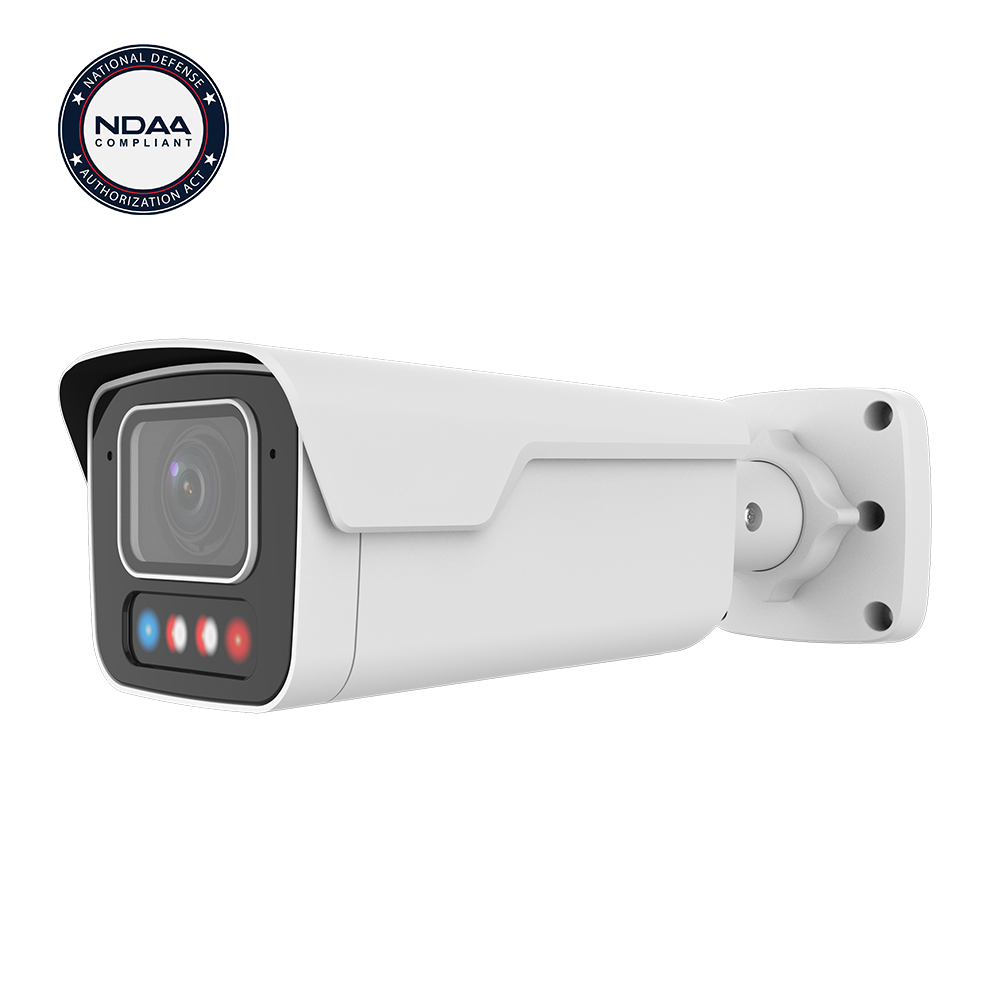

This 8MP dual light bullet camera provides sharp, high definition images in daylight or nighttime color settings. The camera has a varifocal 2.8 to 12 mm lens . Its maximum resolution is 3840 x 2160 at 30 fps and supports Ultra 265 video compression technology, which assures savings in bandwidth and storage. Its colorhunter technology ensures 24-hour full-color images.
|
Features • High quality image with 8 MP, 1/1.8" CMOS sensor |
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Standalone Camera Setup
Specifications
| Camera | |
|---|---|
| Max Resolution | 8 MP |
| Image Sensor | 1/1.8" CMOS |
| Minimum Illumination | Color: 0.0005 Lux (F1.2, AGC ON) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N | >56dB |
| WDR | 130 dB |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| Iris | Fixed F1.2 |
| Angle of View (H) | 111.5° to 54.1° |
| Angle of View (V) | 60.2° to 30.6° |
| Angle of View (O) | 128.7° to 61.9° |
| Lens Type | Motorized |
| DORI | |
| DORI Distance | Lens: 2.8 to 12 mm Detect: 63.0 m to 270.0 m (206.7 ft. to 885.8 ft) Observe: 25.2 m to 108.0 m (82.7 ft. to 354.3 ft) Recognize: 12.6 m to 54.0 m (41.3 ft. to 177.2 ft) Identify: 6.3 m to 27.0 m (20.7 ft. to 88.6 ft) |
| Illuminator | |
| Supplemental Light | Dual light |
| Illumination Distance (IR) | 40 m (131.2 ft) |
| Illumination Distance (Warm Light) | 40 m (131.2 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| LED On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate-Main Stream |
8 MP (3840 × 2160), max. 30 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps |
| Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Frame Rate-Third Stream | D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| ROI |
Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Video Stream | Triple streams |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Auto Scene Match (ASM) | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Statistical Analysis | N/A |
| People Counting | Support people flow counting and crowd density monitoring |
| Attribute Collection | SIP with color retrieval |
| Events | |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-Way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8KHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Client | Phantom CamStation |
| Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Serial Port | N/A |
| Built-In Mic | Built-in dual-mic |
| Built-In Speaker | Support |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC |
CE-EMC FCC |
| Safety |
CE LVD UL |
| Environment | CE-ROHS |
| Protection | IP67 IK10 |
| NDAA Compliant | Yes |
| General | |
| Power |
DC 12V±25%, PoE (IEEE 802.3af, Mode B – Pins 4, 5, 7 and 8) Power consumption: MAX 7.0W |
| Power Interface |
Ø 5.5mm coaxial power plug |

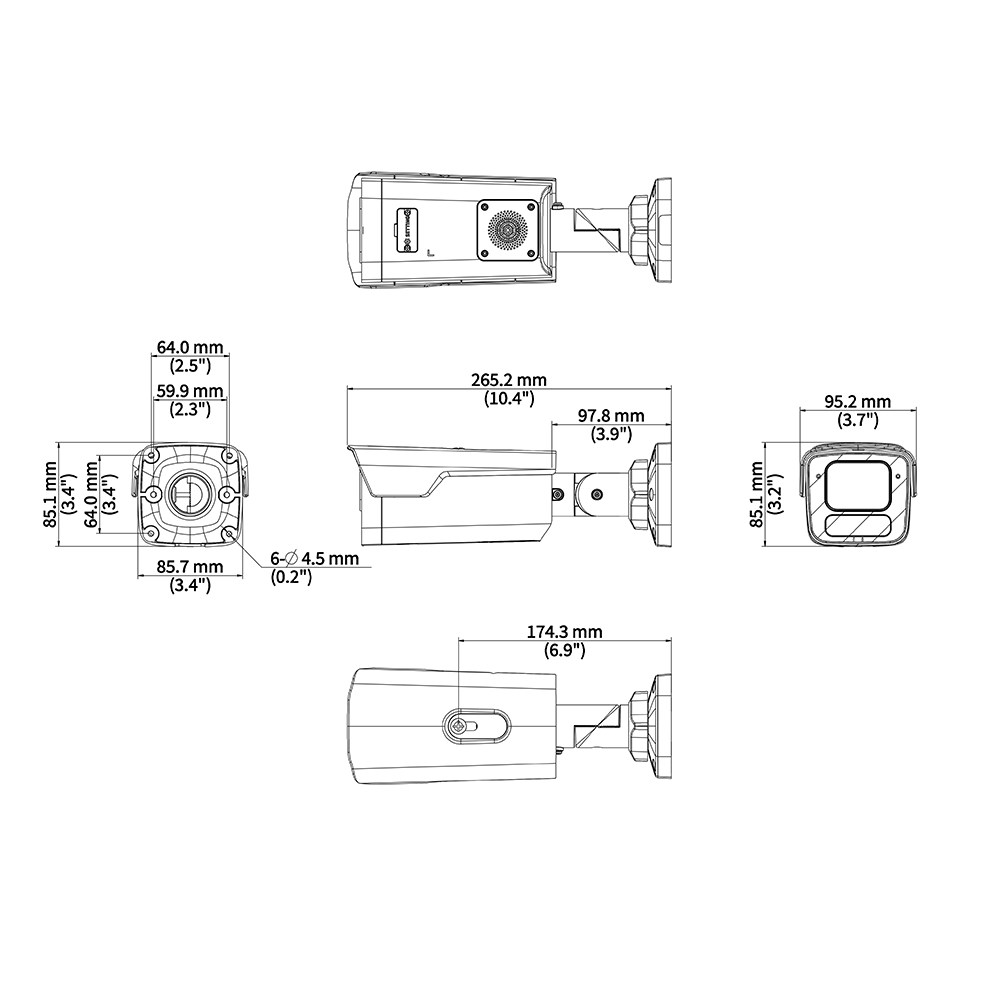

| Dimensions |
265.2 mm × 95.2 mm × 82.9 mm (10.4" × 3.7" × 3.3" ) (L × W × H) |
| Weight | 0.86 kg (1.90 lb) |
| Material | Metal + Plastic |
| Working Environment |
-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Support |
Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| SC-IPC2B18SE-ADZKMCWPI1 | 1.9 lb |
